Sysolution D60-12 FPGA LED Receiving Card, 12 HUB75E
$ 14.00
The Sysolution D60-12 FPGA receiving card provides 12 HUB75E ports and 24 RGB data groups. Maximum load is 512 × 384 pixels with PWM drivers or 512 × 320 with conventional drivers; correction modes have separate limits.
10000 in stock
D60-12 FPGA receiving card for LED cabinets
The Sysolution D60-12 combines 12 HUB75E module interfaces with 24 groups of RGB parallel data. Its specification describes point brightness/chromaticity correction, screen rotation and scaling, and network-port hot backup for LED display installations.
Choose the receiving-card load by driver type and correction mode. The headline 512 × 384 figure applies to the PWM row of the datasheet; it is not the stated capacity for every configuration. The values below come from the model-matched Ver.1.0 PDF, including its separate software-version references.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sysolution D60-12 FPGA receiving card |
| Module connectors | 12 HUB75E interfaces |
| Parallel RGB data | 24 groups |
| Maximum load — conventional driver | 512 × 320 pixels |
| Maximum load — PWM driver | 512 × 384 pixels |
| Load with brightness correction | 512 × 256 pixels for conventional and PWM drivers |
| Load with chromaticity correction | 256 × 320 pixels for conventional and PWM drivers |
| Scan support | 1–64 scan |
| Cascade count | Up to 1,000 receiving cards |
| Input voltage | DC 3.5–5.5 V |
| Rated current / power | 0.6 A / 3 W |
| Working temperature | −20°C to +70°C |
| Working humidity | 10–90% RH |
| Storage temperature | −25°C to +125°C |
| Board size / net weight | 144.02 × 91.19 mm / 100.8 g |
| Display adjustment | Point brightness/chromaticity correction; 90°-increment rotation and scaling |
| Configuration software references | LedSet 4.0 for display effects/layout; the PDF separately names LedSet 3.0 for data customization, readback and monitoring |
| Backup and maintenance | Network-port hot backup; hardware reset after online upgrade; parameter readback and cable bit-error monitoring |
| HUB75E pin 15 | OE display enable; GCLK when using a PWM driver chip |
| Source | D60-12 Product Specification Ver.1.0, 2022-11-09 |

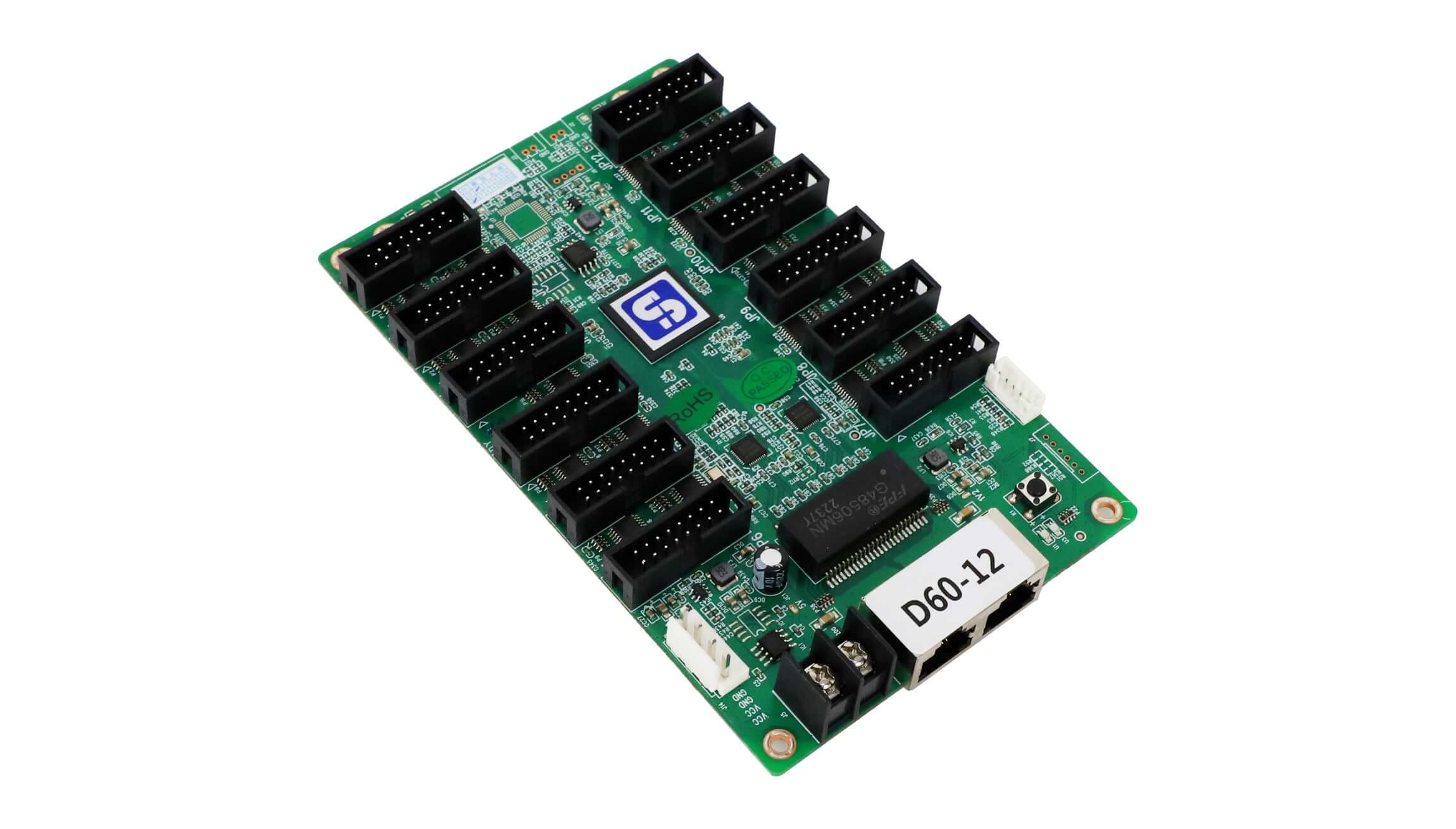

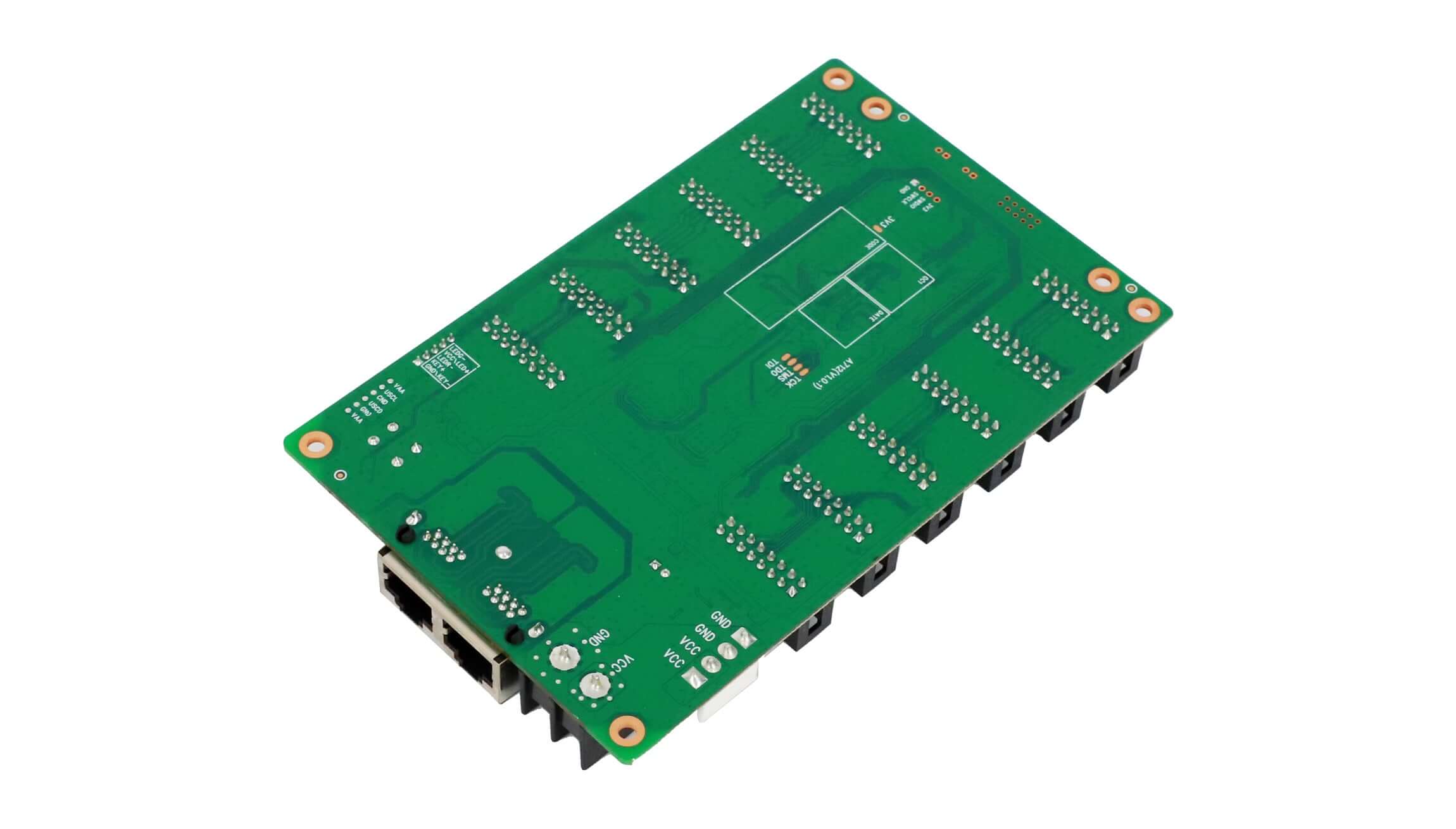

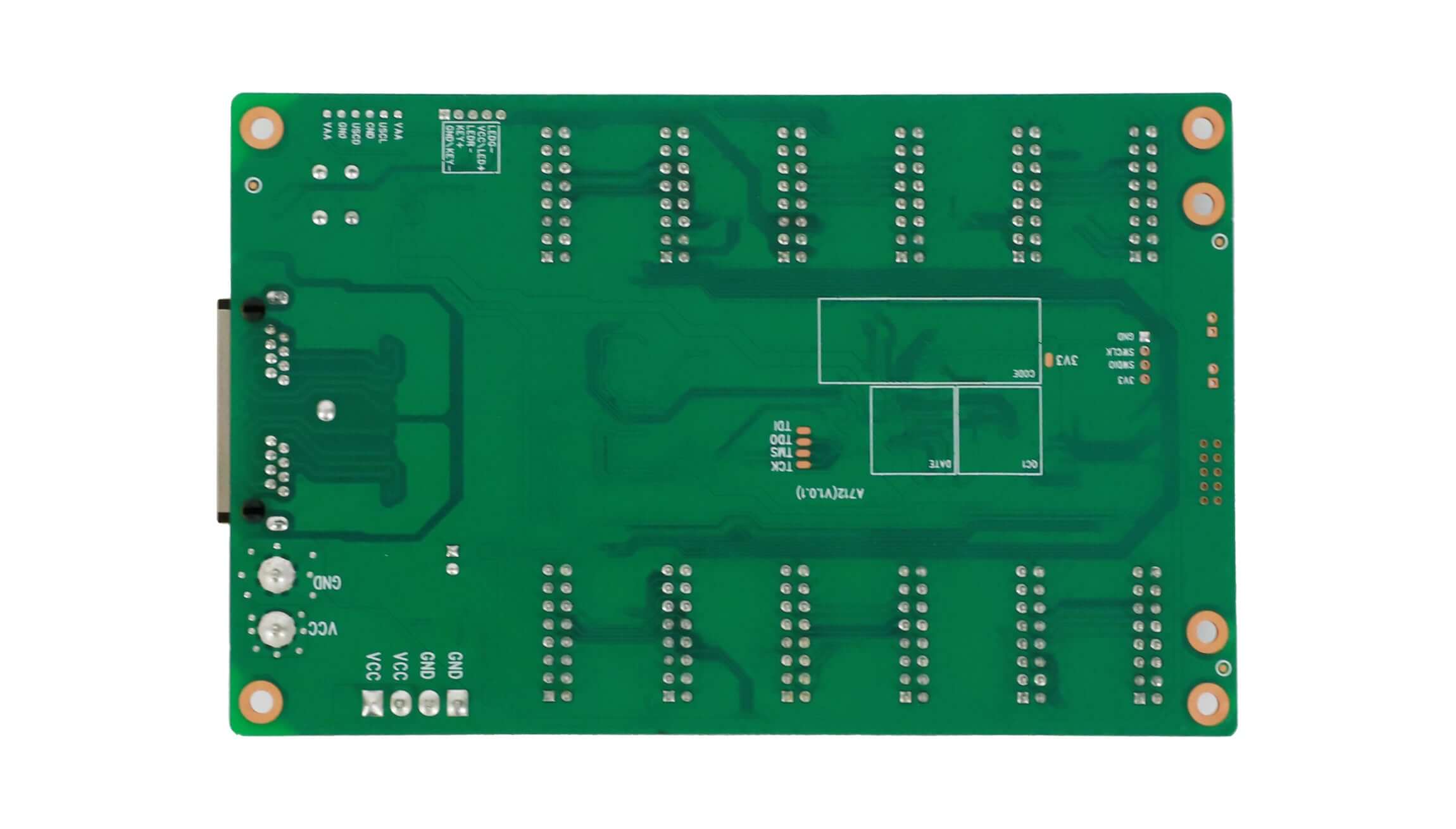

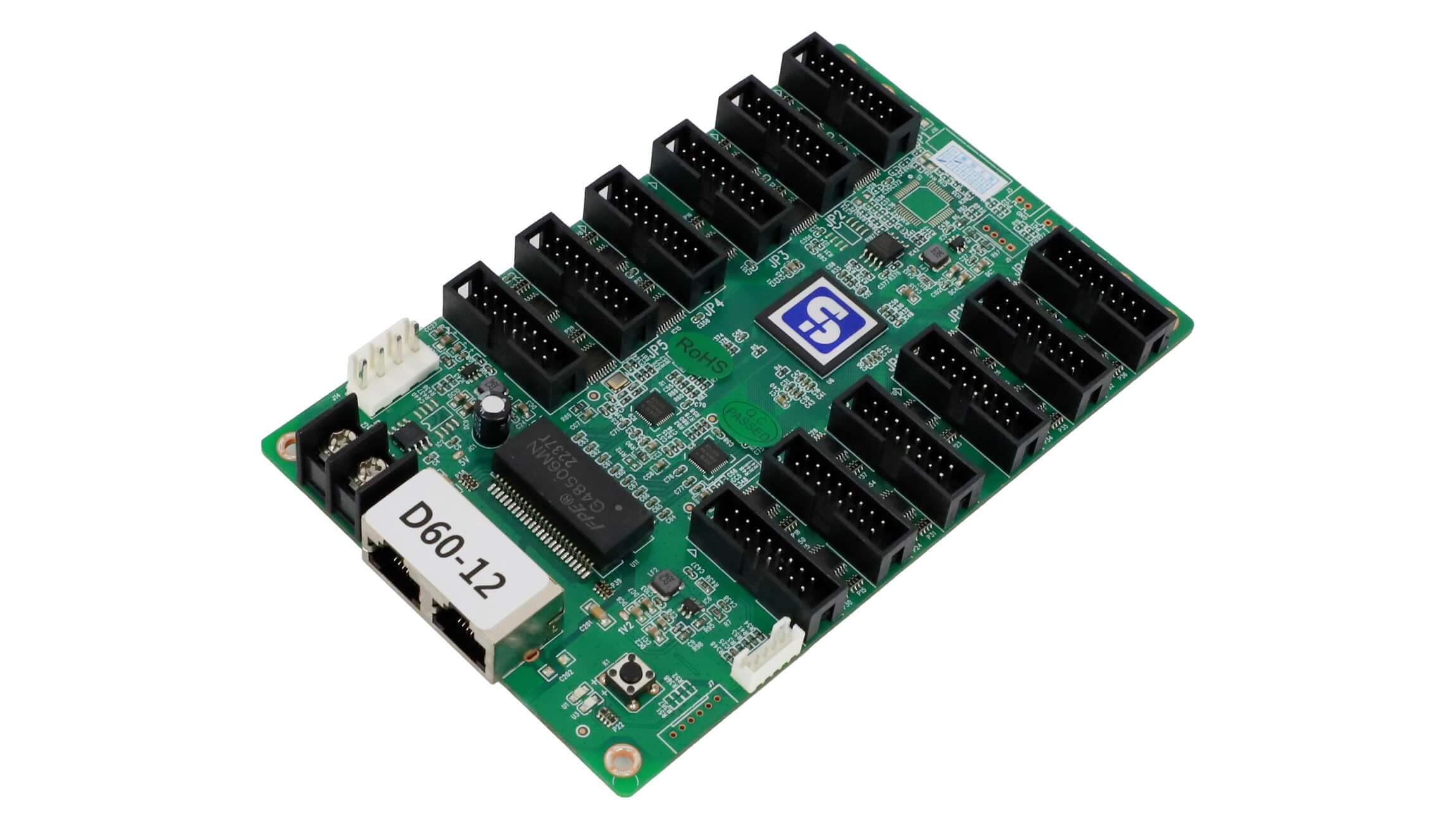

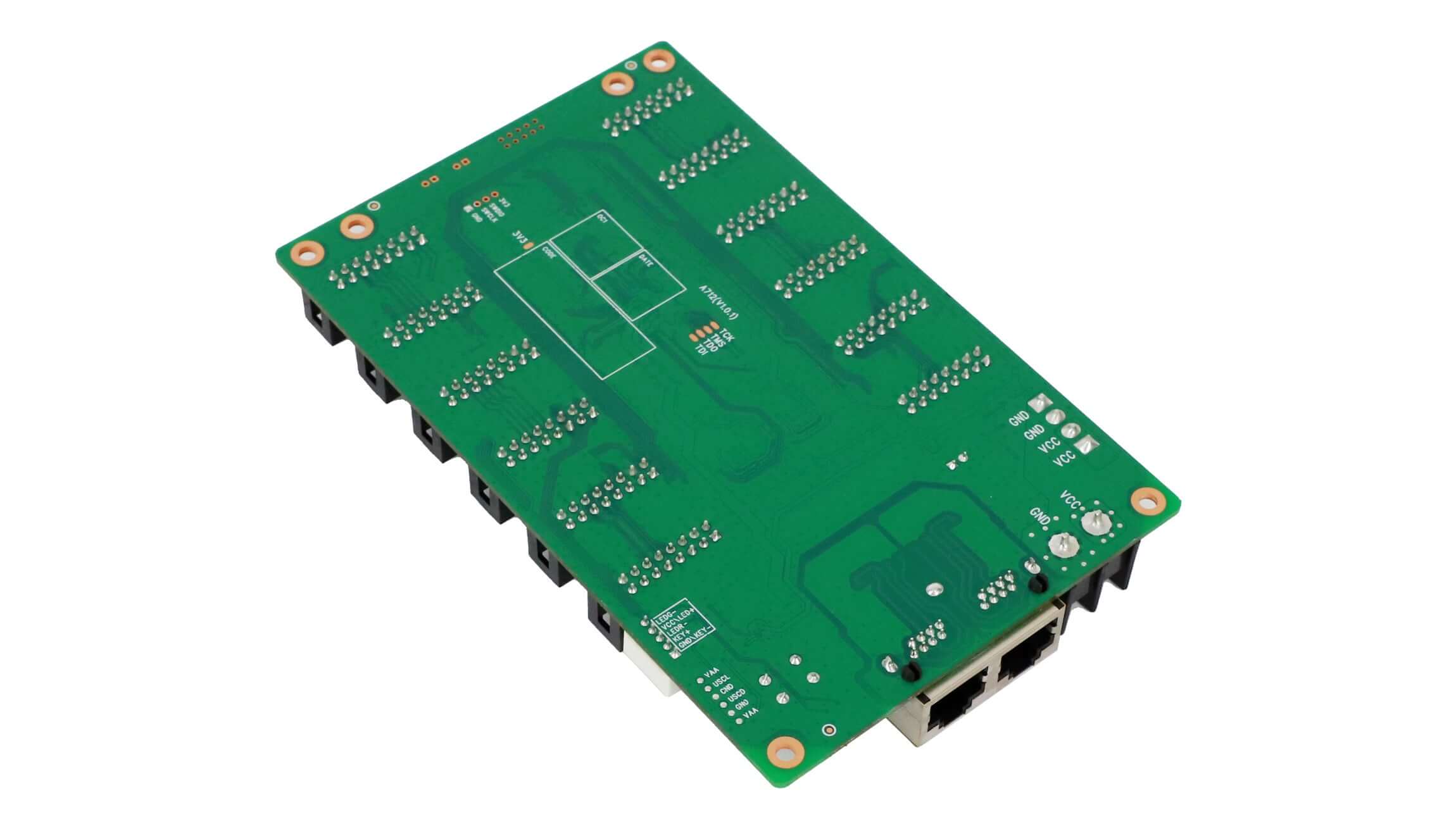

Product images and specification download
Xixun Sysolution D60-12 FPGA Receiving Card Specification
Frequently asked questions
Does D60-12 always support a 512 × 384-pixel cabinet?
No. The load table gives 512 × 384 pixels for PWM drivers and 512 × 320 for conventional drivers. With brightness correction, both are 512 × 256; with chromaticity correction, both are 256 × 320. Select the limit that matches the driver and correction mode.
How many HUB75E ports are on the D60-12?
The specification lists 12 HUB75E interfaces carrying 24 groups of parallel RGB data. Check the module pinout against the JP1–JP12 definitions before connecting ribbon cables.
What power supply does the receiving card require?
The specified input is DC 3.5–5.5 V, with rated current of 0.6 A and rated power of 3 W. These are card ratings, not the power requirement of the connected LED modules.
Which LedSet software version is named in the specification?
The PDF names LedSet 4.0 for display effects, rotation, scaling and layout. It also names LedSet 3.0 for some configuration and monitoring functions. Confirm the software and firmware combination required by the installed card rather than assuming the references are interchangeable.
Can the D60-12 help diagnose a network cable fault?
Yes. The PDF describes network-cable bit-error-rate detection and communication monitoring, along with receiving-card parameter readback. Network-port hot backup uses main and standby cable connections; it must be configured and wired for that arrangement.
