XingXiu DSP400L-0304-BA Dual-Output LED Power Supply
$ 26.30
The XingXiu DSP400L-0304-BA is a 321W dual-output supply with nominal 4.2V/49.7A and 3.2V/35A rails. Each output offers three jumper-selectable voltage settings, with 90–264V AC input.
10000 in stock
321W dual-output supply with three voltage settings per rail
The XingXiu DSP400L-0304-BA provides nominal 4.2V/49.7A and 3.2V/35A DC outputs from an AC input. The V1.0 specification lists three jumper settings on each rail, allowing selection of 3.8/4.0/4.2V for V1 and 2.8/3.0/3.2V for V2.
The BA suffix identifies the version described here. Use its own electrical ratings when planning a replacement: related DSP400L models have different nominal outputs. This version uses LLC conversion, input-to-output isolation and ventilation cooling.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | XingXiu DSP400L-0304-BA |
| V1 nominal output | 4.2 V DC / 49.7 A |
| V2 nominal output | 3.2 V DC / 35 A |
| V1 jumper settings | 3.8 / 4.0 / 4.2 V |
| V2 jumper settings | 2.8 / 3.0 / 3.2 V |
| Rated output power | 321 W |
| Input voltage range | 90–264 V AC |
| Nominal input | 100–240 V AC |
| Frequency | 47–63 Hz |
| Maximum AC input current | 4.7 A at 100 V AC |
| Cold-start inrush current | Less than 60 A at 230 V |
| Typical full-load efficiency | 88% at 230 V AC |
| Leakage current | Less than 1 mA at 230 V AC |
| Input fuse | T6.3AL / 250 V AC |
| Power factor | Greater than 0.95 at 230 V AC |
| Cooling | Ventilation cooling |
| Dimensions | 180 × 68 × 26 mm |
| Certifications listed in the specification | CE, UL, FCC, CB, CCC |

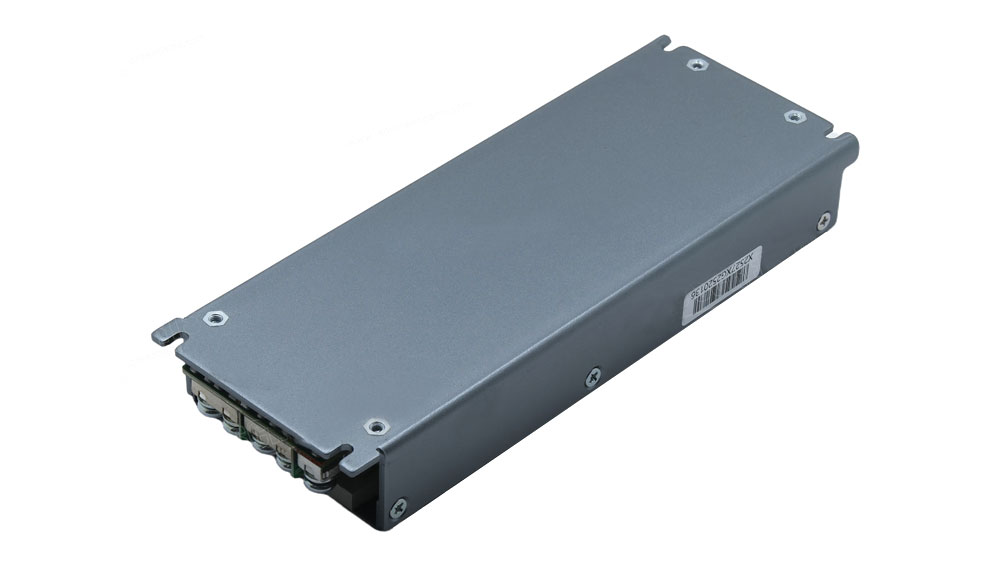

Product images and specification download
Download Specification:
XingXiu DSP400L-0304-BA LED Power Supply Specification
Frequently asked questions
What output ratings apply to the DSP400L-0304-BA?
The specification lists V1 at 4.2V/49.7A and V2 at 3.2V/35A, with a rated output power of 321W.
How are the output voltages selected?
Each output has three jumper-selectable settings: 3.8/4.0/4.2V for V1 and 2.8/3.0/3.2V for V2. Match each setting to the connected load.
Is the BA version identical to DSP400L-0304?
Do not use the two model names interchangeably. The BA specification lists 4.2V/49.7A and 3.2V/35A nominal outputs, while the DSP400L-0304 specification lists 3.8V/55A and 2.8V/35A. Use the document for the exact version being installed.
What AC supply does this version require?
The full input range is 90–264V AC at 47–63Hz, with a nominal input range of 100–240V AC.
What size is the BA power supply?
The listed dimensions are 180 × 68 × 26mm. Verify mounting, terminals and ventilation space using the original specification PDF.
| Weight | 0.8 kg |
|---|
