XingXiu DSP300V-5 LED Power Supply – 5V, 300W
$ 21.50
The XingXiu DSP300V-5 is a 5V, 300W LED power supply with a 90–264V AC input range. Minimum efficiency is 90% at 230V AC and full load; case dimensions are 208 × 60 × 30mm.
10000 in stock
300W LED power supply with 5V DC output
The XingXiu DSP300V-5 combines a 300W rated output with a 5V DC supply for LED display equipment. It uses LLC conversion technology and isolates the AC input from the DC output.
The published efficiency figure is a minimum of 90% at 230V AC and full load. Its 90–264V AC input range covers nominal 100–240V supplies. The table below brings together the electrical and enclosure specifications for checking a cabinet installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | XingXiu DSP300V-5 |
| DC output | 5 V |
| Rated output power | 300 W |
| Input voltage range | 90–264 V AC |
| Nominal input | 100–240 V AC |
| Frequency | 47–63 Hz |
| Maximum AC input current | 4 A at full load |
| Cold-start inrush current | Less than 120 A at 230 V AC |
| Full-load efficiency | At least 90% at 230 V AC |
| Leakage current | Less than 0.5 mA at 230 V AC |
| Input fuse | T5AL / 250 V AC |
| Power factor | Greater than 0.95 at 230 V AC, full load |
| Cooling | Ventilation cooling |
| Dimensions | 208 × 60 × 30 mm |

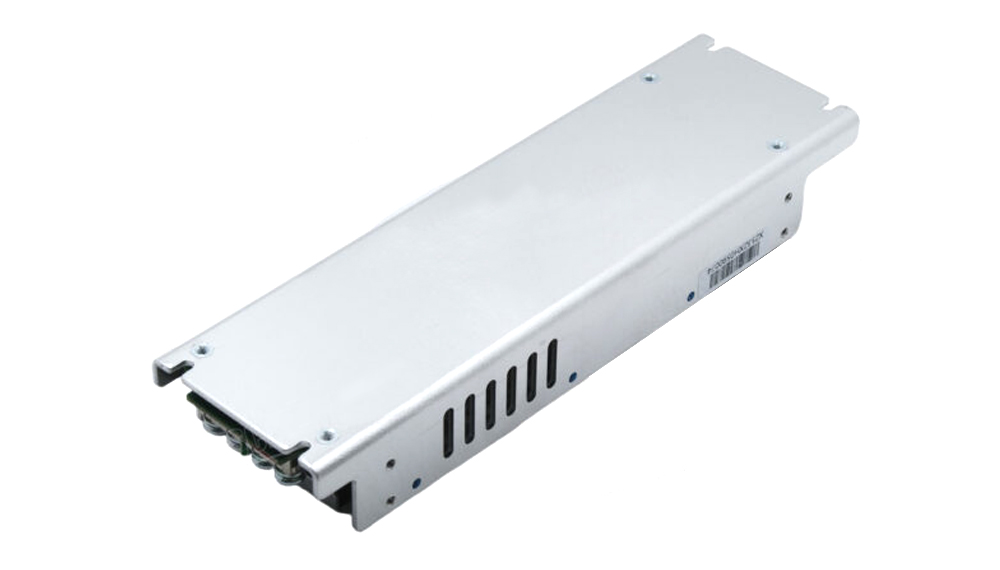

Product images and specification download
Download Specification:
XingXiu DSP300V-5 LED Power Supply Specification
Frequently asked questions
What is the DSP300V-5 designed to supply?
This model supplies 5V DC with a rated output power of 300W for equipment such as LED displays. The connected load must meet its electrical specifications.
What AC input range does it accept?
The input range is 90–264V AC at 47–63Hz. The nominal input range is 100–240V AC.
What does the 90% efficiency figure mean?
The specification lists a minimum efficiency of 90% at 230V AC and full load. Use those conditions when comparing it with another supply.
Will it fit in the same space as my existing power supply?
The case measures 208 × 60 × 30mm. Compare the mounting points and terminal layout in the linked PDF as well as the outer dimensions; similar dimensions alone do not confirm fit.
| Weight | 0.5 kg |
|---|
