XingXiu DHP500H-5 LED Power Supply – 5V, 500W
$ 28.00
The XingXiu DHP500H-5 supplies 5V DC at 500W rated output. It uses an LLC design with isolation and accepts 180–264V AC input in a 220 × 46 × 26mm enclosure.
10000 in stock
500W supply for 5V LED display loads
The XingXiu DHP500H-5 converts a nominal 200–240V AC input to 5V DC, with a rated output power of 500W. Its LLC control design provides input-to-output isolation.
For installations using this model, the AC input range is a key check: it is specified for 180–264V AC. The 220 × 46 × 26mm case uses ventilation cooling. Compare the mounting layout and load requirements with the linked specification before replacing an existing cabinet supply.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | XingXiu DHP500H-5 |
| DC output | 5 V |
| Rated output power | 500 W |
| Input voltage range | 180–264 V AC |
| Nominal input | 200–240 V AC |
| Frequency | 47–63 Hz |
| Maximum AC input current | 4.7 A at 180 V AC |
| Cold-start inrush current | Less than 60 A at 230 V |
| Full-load efficiency | At least 88% at 230 V AC |
| Leakage current | At most 1 mA at 230 V AC |
| Input fuse | T6.3AL / 250 V AC |
| Power factor | Greater than 0.95 at 230 V AC, full load |
| Cooling | Ventilation cooling |
| Dimensions | 220 × 46 × 26 mm |

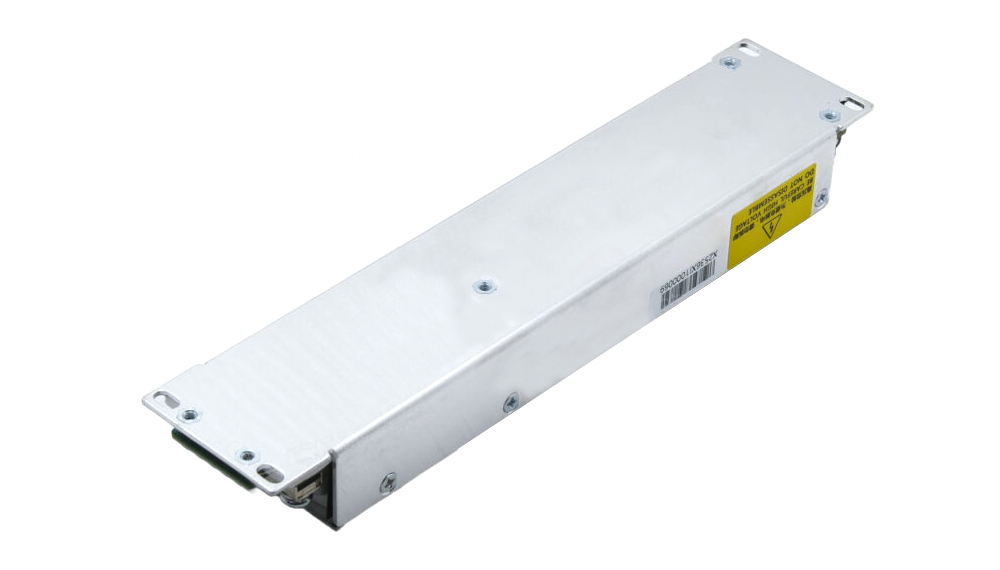

Product images and specification download
Download Specification:
XingXiu DHP500H-5 LED Power Supply Specification
Frequently asked questions
What is the DHP500H-5 output rating?
This model provides 5V DC with 500W rated output power. Compare both voltage and load requirements with the equipment you intend to power.
Can the DHP500H-5 be connected to 110V AC?
No. The specified input range is 180–264V AC, with a nominal range of 200–240V AC. 110V AC is outside the listed range.
What cabinet space is needed for the supply?
Its case dimensions are 220 × 46 × 26mm. Allow for the actual mounting arrangement, terminal access and ventilation; the specification PDF contains the product installation details.
What do the efficiency and power-factor figures refer to?
At 230V AC and full load, the stated efficiency is at least 88% and power factor is greater than 0.95. Retain these test conditions when comparing power supplies.
| Weight | 0.5 kg |
|---|
