G-Energy G300V5 power supply overview
The G-Energy G300V5 is a constant-voltage LED power supply with a 5V output, a listed 0–60A output-current range and 300W maximum output power. Its low-profile enclosure measures 217 × 117 × 30mm.
The original page recommends G-Energy JPS300V as an alternative. Confirm the electrical ratings, connections and mounting dimensions for your installation before selecting a replacement.
G-Energy G300V5 electrical specifications
| Item | Specification |
|---|---|
| Model | G300V5 |
| Output type | Constant voltage |
| Output voltage | 5V |
| Output current | 0–60A |
| Maximum output power | 300W |
| Ripple and noise | ≤200mV |
| Efficiency | ≥86% |
| AC input | 200–240VAC |
| Input frequency | 47–63Hz |
| Power factor | 0.50 at 230VAC |
| Leakage current | <1mA at 230V input |
Protection and insulation
| Item | Specification |
|---|---|
| Protection functions | Input undervoltage, overload and short-circuit protection |
| Input to output insulation | 3.0kVAC |
| Input to frame ground insulation | 1.5kVAC |
| Output to frame ground insulation | 0.5kVAC |
| Standards listed on the original page | GB4943; EN60950 |
Dimensions and operating environment
| Item | Specification |
|---|---|
| Dimensions (L × W × H) | 217 × 117 × 30mm |
| Working temperature | −30°C to 60°C |
| Storage temperature | −40°C to 80°C |
| Cooling method | Air cooling |

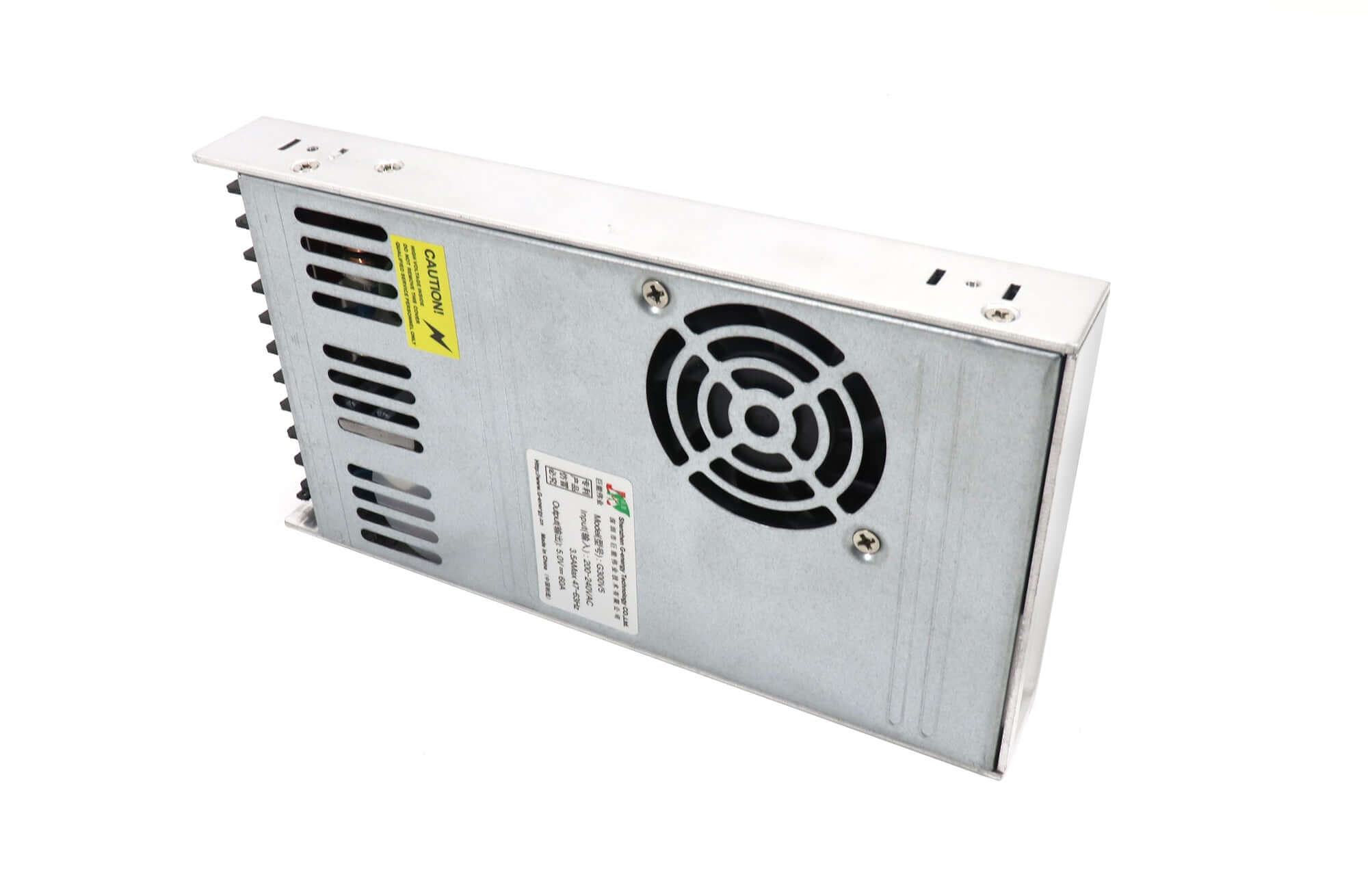

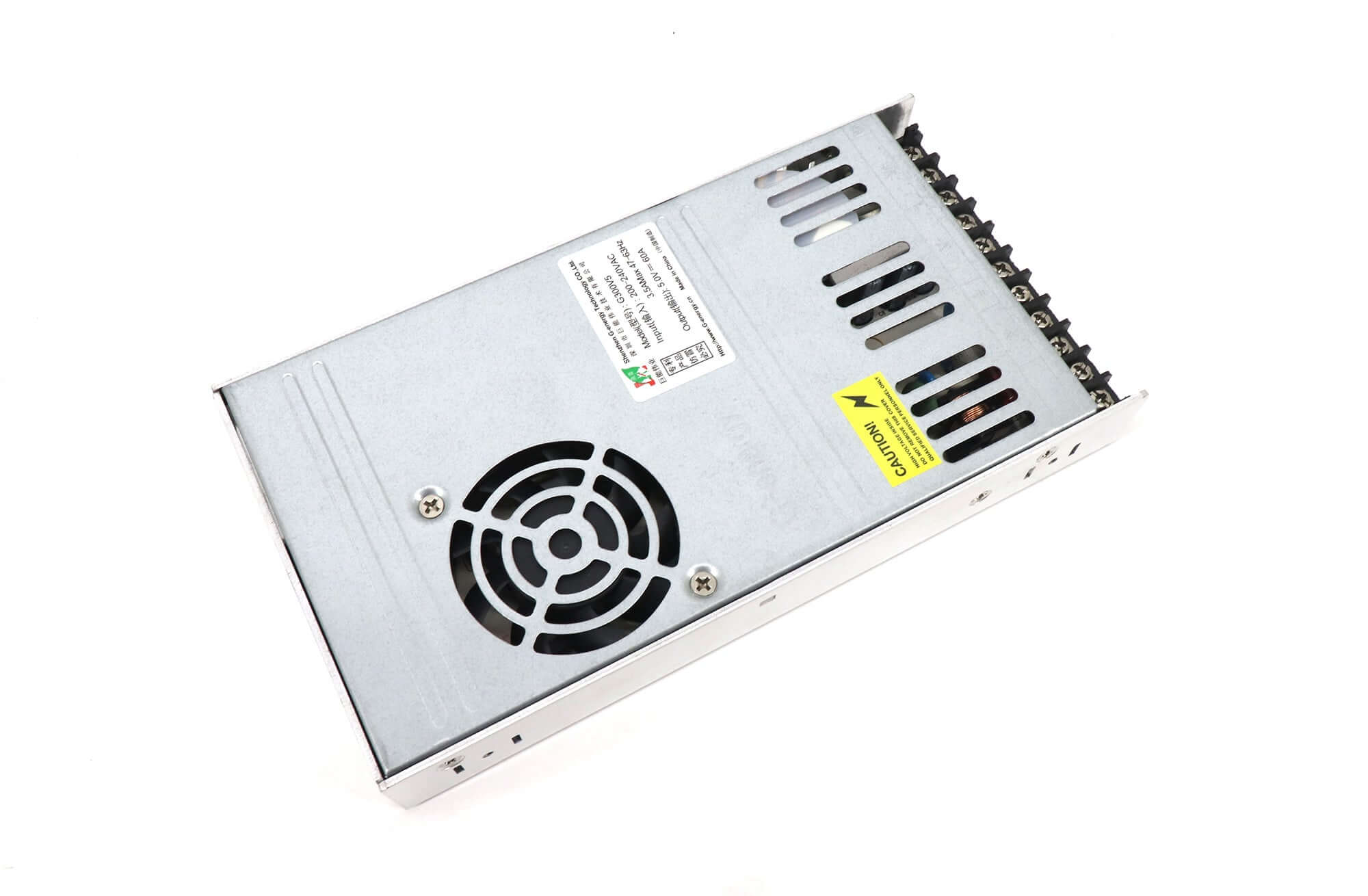

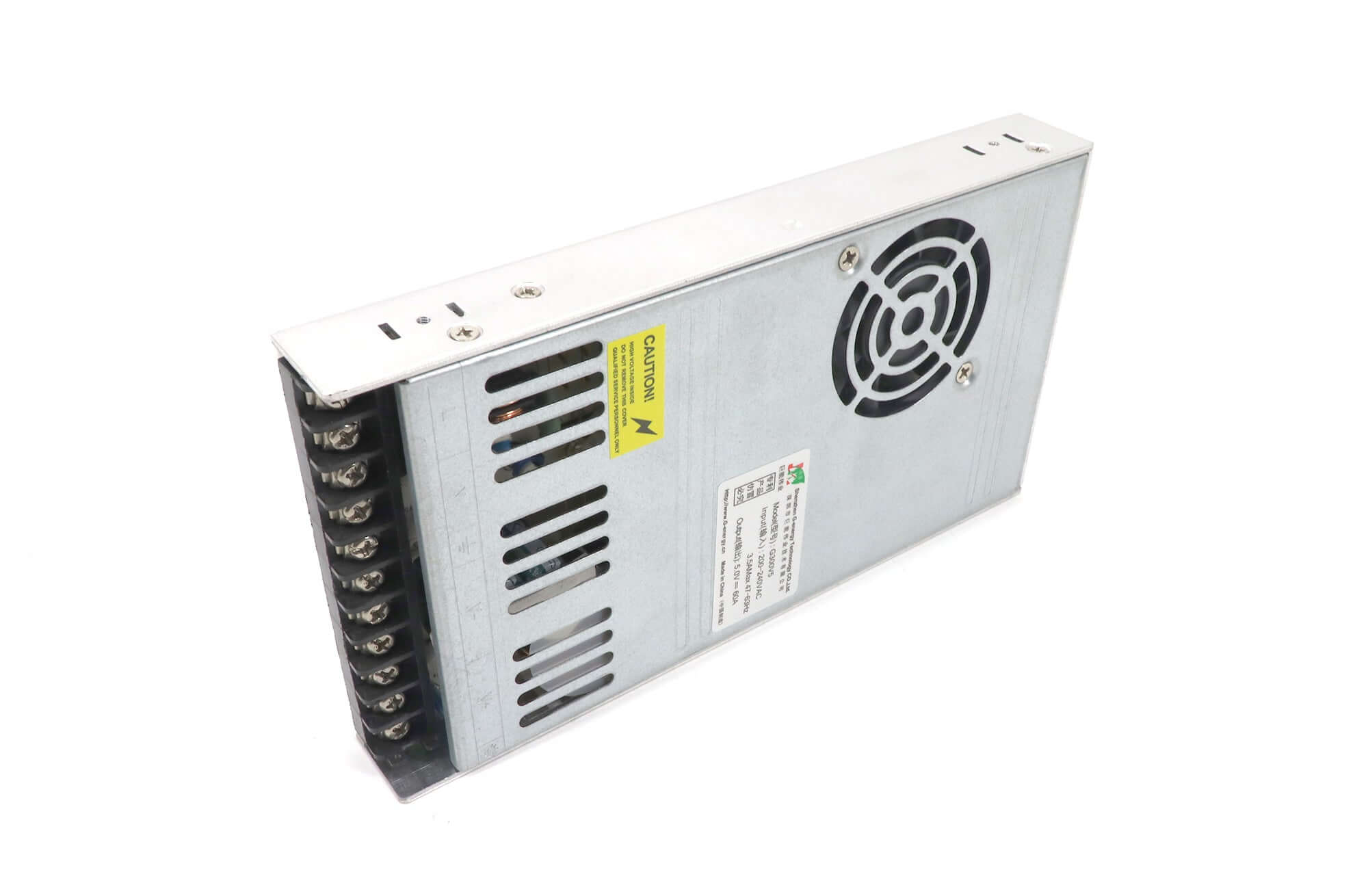

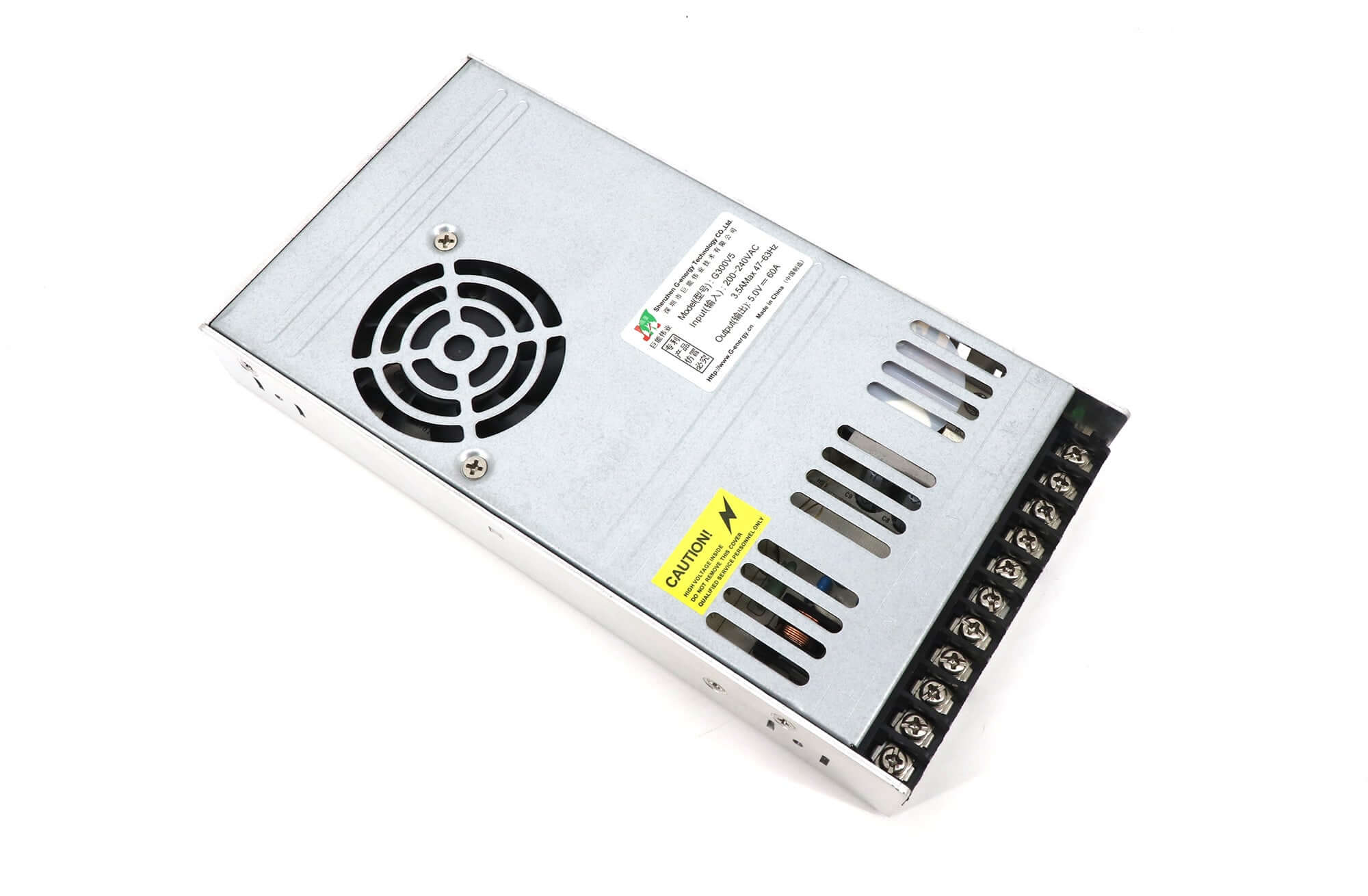

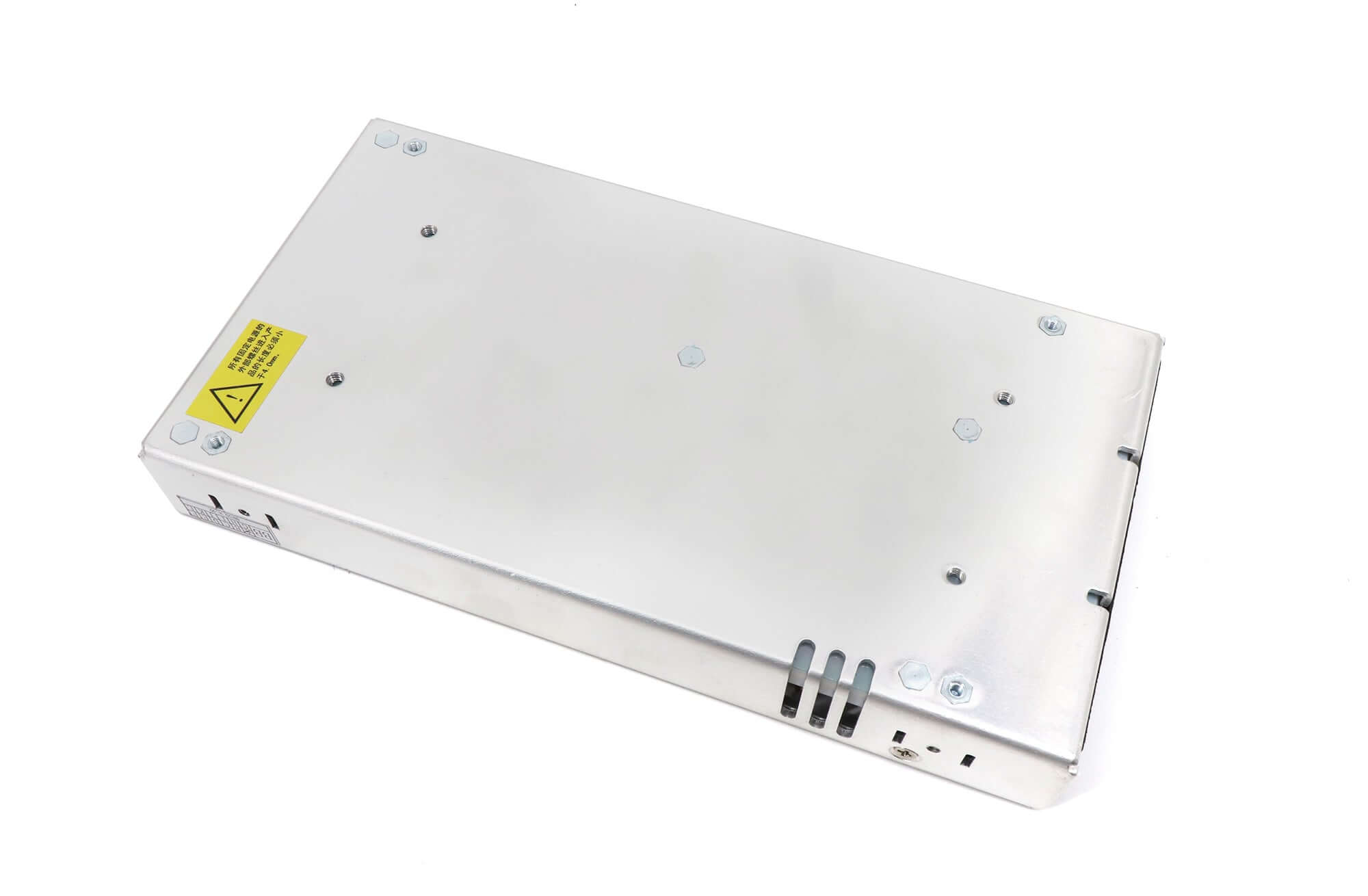

Original product images


Specification document
Download the original G-Energy G300V5 specification (PDF).
Frequently asked questions
Q1Is the G300V5 still available?
The original product page identifies this model as out of production. It recommends G-Energy JPS300V as an alternative; confirm the replacement specification for your installation before ordering.
Q2What output and input ratings are listed?
The original specifications list 5V output, 0–60A output current and 300W maximum power, with a 200–240VAC, 47–63Hz input.
Q3What dimensions should I compare for a replacement?
The original enclosure measures 217 × 117 × 30mm. Check mounting points, terminal positions and the electrical ratings as well as the enclosure size.
Discuss your power-supply requirements
Send the original model and label photos through LED Mall’s contact page. Review the shipping policy and returns policy when planning an alternative order.
