CZCL A-200FAF-5 5V 40A Fanless LED Power Supply
$ 9.80
CZCL A-200FAF-5 fanless LED power supply rated at 5 V, 40 A and 200 W. Its 30 mm-high enclosure uses natural cooling; full-load operation requires the auxiliary aluminum plate specified in the PDF.
9980 in stock
A-200FAF-5 fanless 5 V supply for LED cabinets
The CZCL A-200FAF-5 is the 5 V, 40 A model in the A-200FAF series. It provides a documented 200 W rating from 180–264 V AC input, with short-circuit and overload protection in a 190 × 82 × 30 mm enclosure.
Plan the cabinet installation around the required auxiliary heat sink and temperature derating curve. The specification’s electrical and mounting data are summarized below; any project-specific certification document should be obtained separately.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | CZCL A-200FAF-5 |
| Rated DC output | 5 V, 40 A, 200 W |
| AC input / frequency | 180–264 V AC / 47–63 Hz |
| Input-current entry | 2.5 A at 230 V AC |
| Efficiency | ≥87% for the 5 V model; electrical tests specified at 25°C |
| Cold-start inrush / leakage | 60 A at 230 V AC / less than 1 mA at 240 V AC |
| Voltage adjustment | ±3.0% |
| Line regulation / load regulation | ±0.5% / ±2.0% |
| Voltage accuracy / ripple | ±2.0% / 150 mVp-p under the specified test method |
| Startup / rise / hold-up | 2000 ms / 50 ms / 20 ms at 220 V AC, 100% load |
| Overload protection | 110–150% of rated load; hiccup mode with automatic recovery after overload removal |
| Short-circuit protection | Automatic recovery after the short circuit is removed |
| Cooling requirement | Fanless natural cooling; full-load use requires an auxiliary aluminum plate at least 400 × 400 × 3 mm |
| Operating conditions | −20 to 70°C; 20–95% RH non-condensing; temperature derating curve applies |
| Storage conditions | −40 to 85°C; 10–95% RH non-condensing |
| Dimensions / listed unit weight | 190 × 82 × 30 mm / 0.36 kg |
| Mounting | M3 × 6 mm screws; maximum penetration into the housing 3 mm |
| Documentation note | Linked series PDF supplies electrical and installation data but does not provide a CE certificate for the supplied unit |

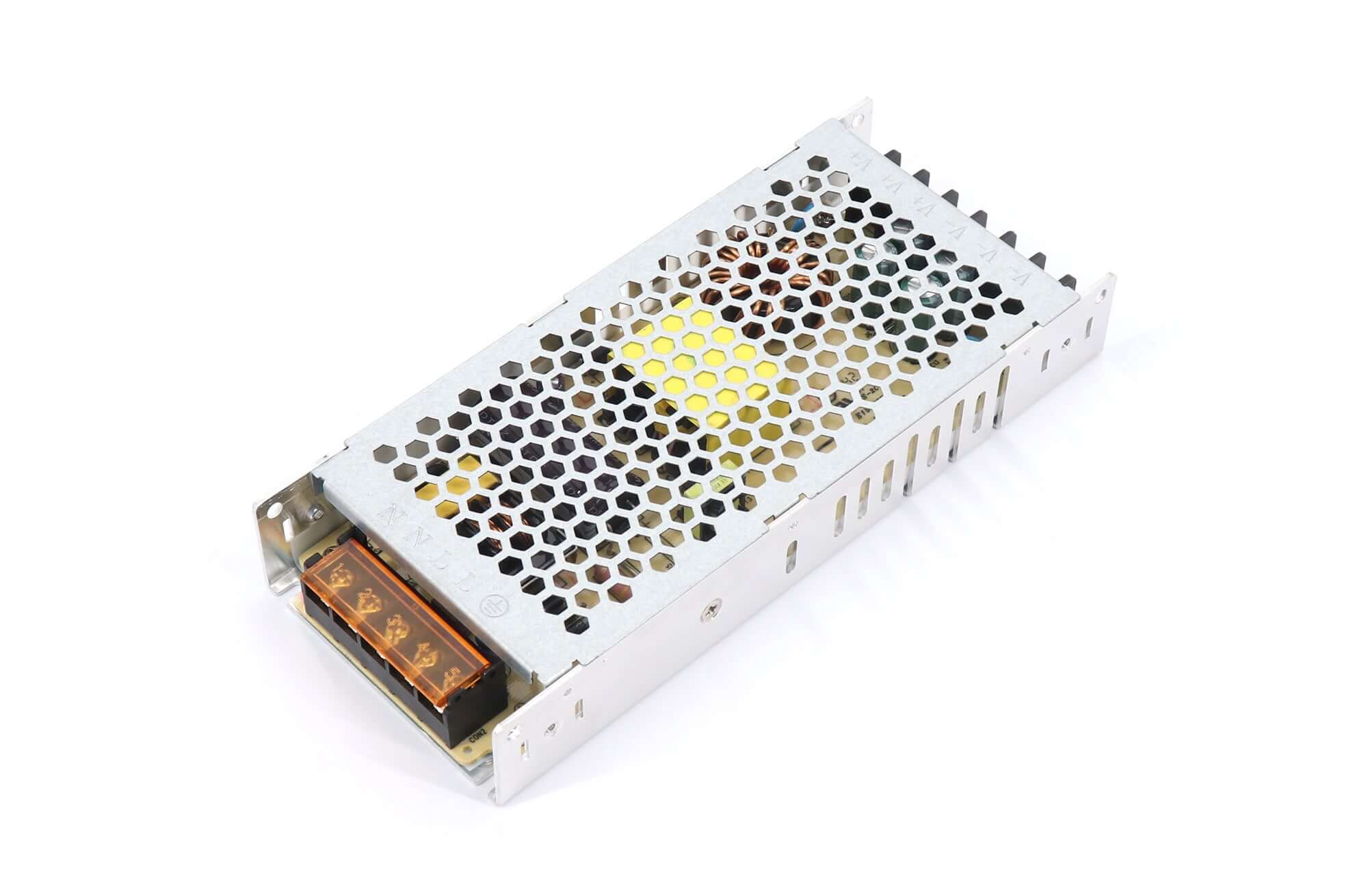

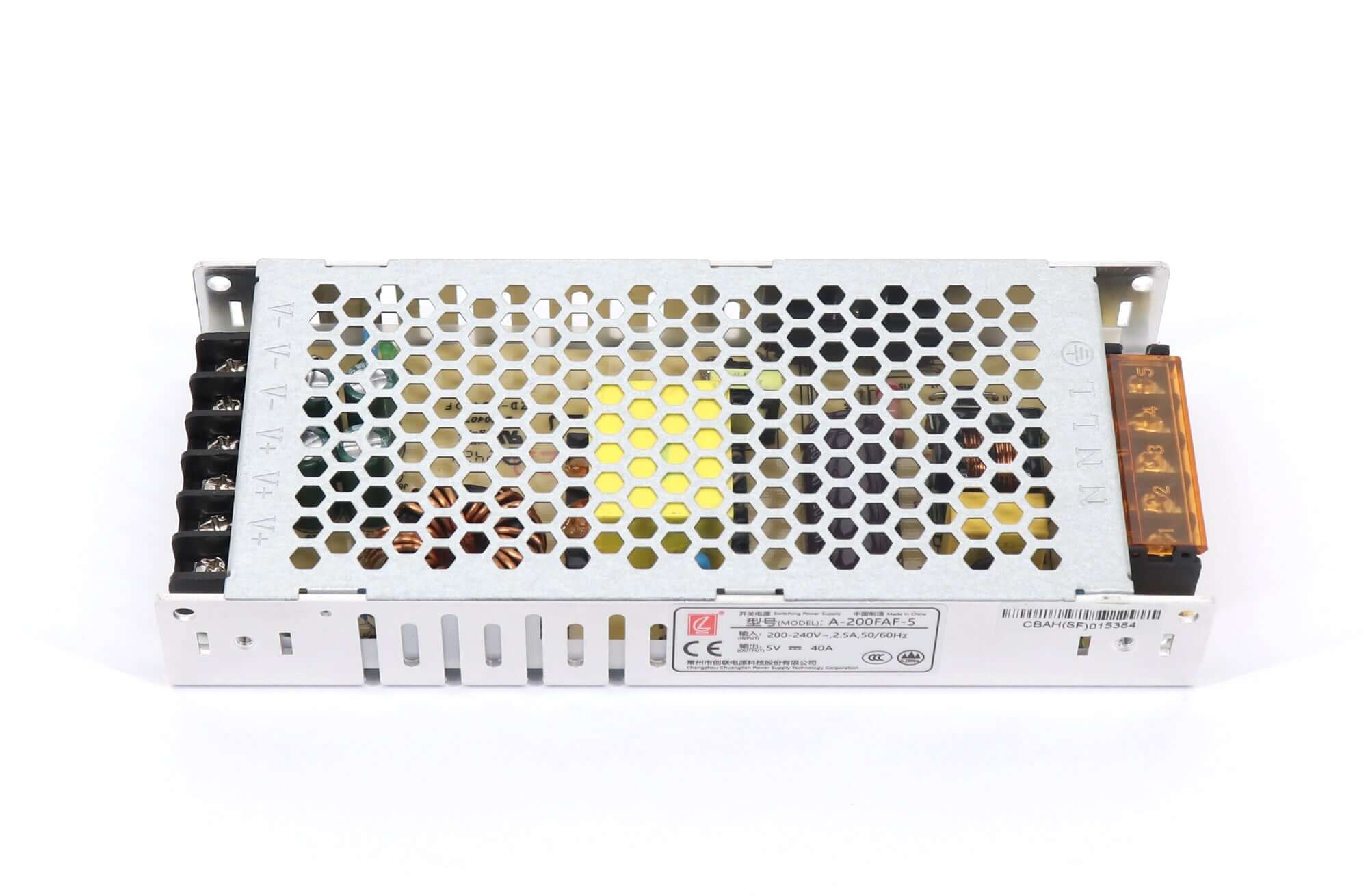

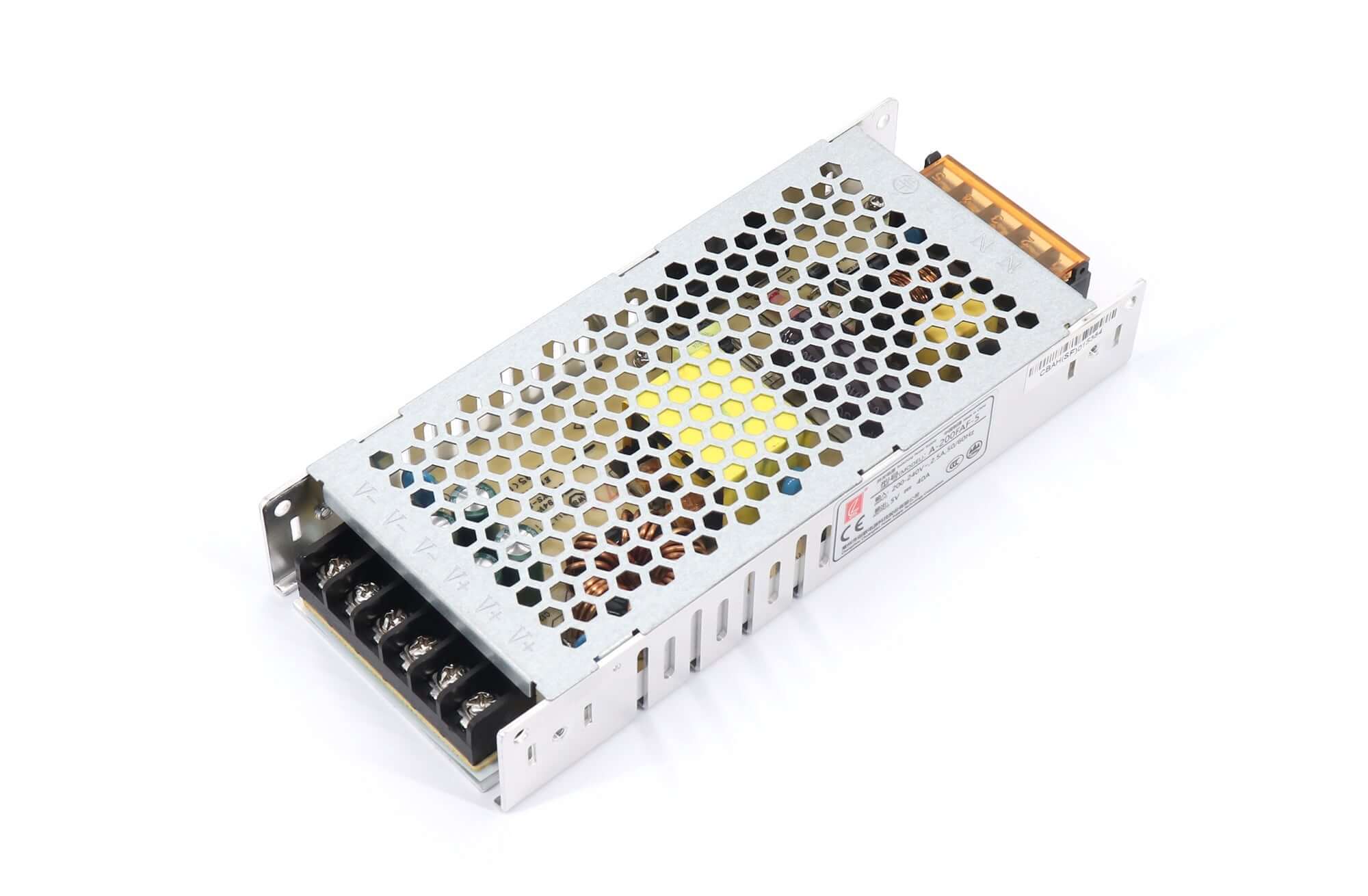

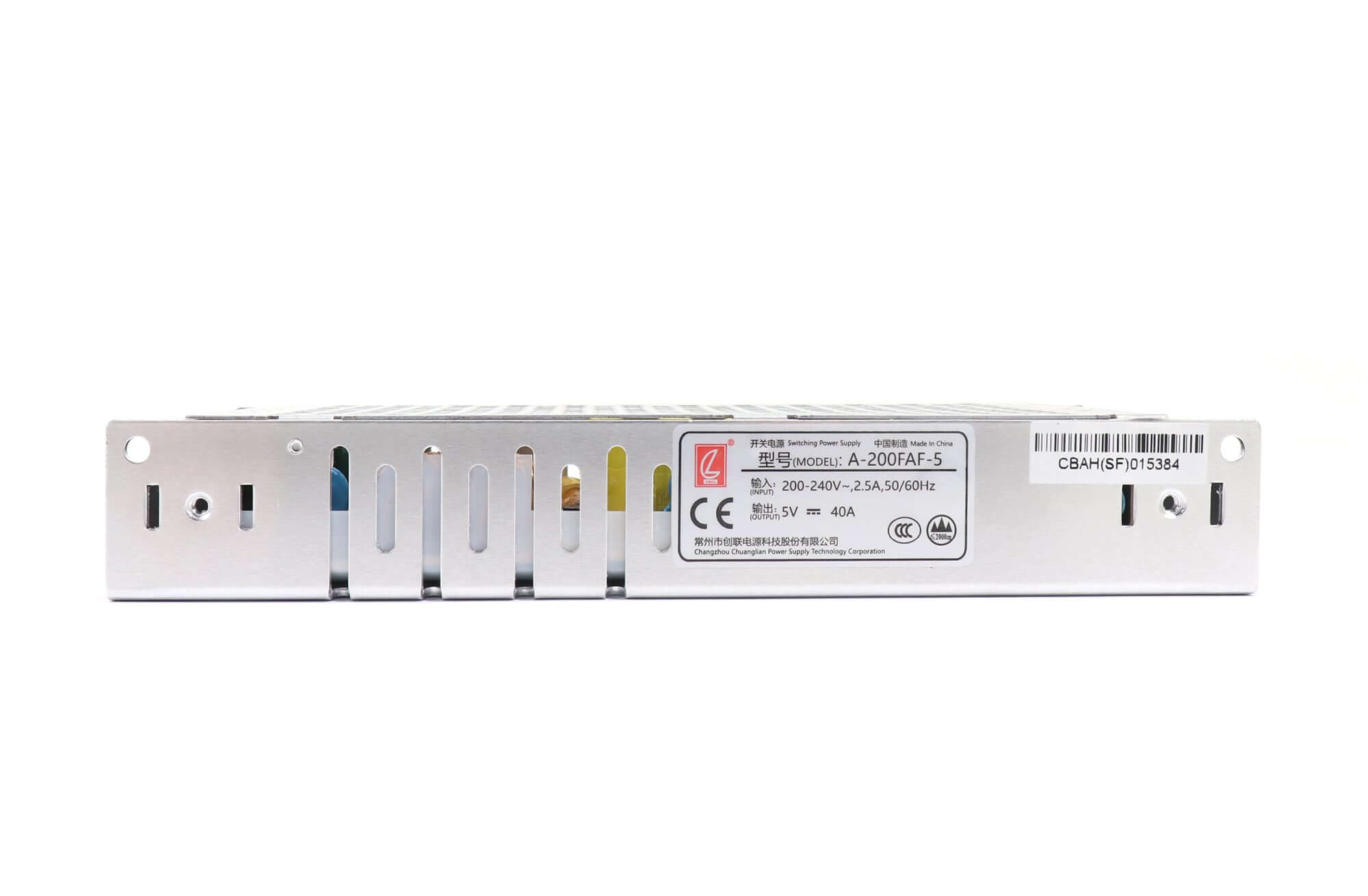

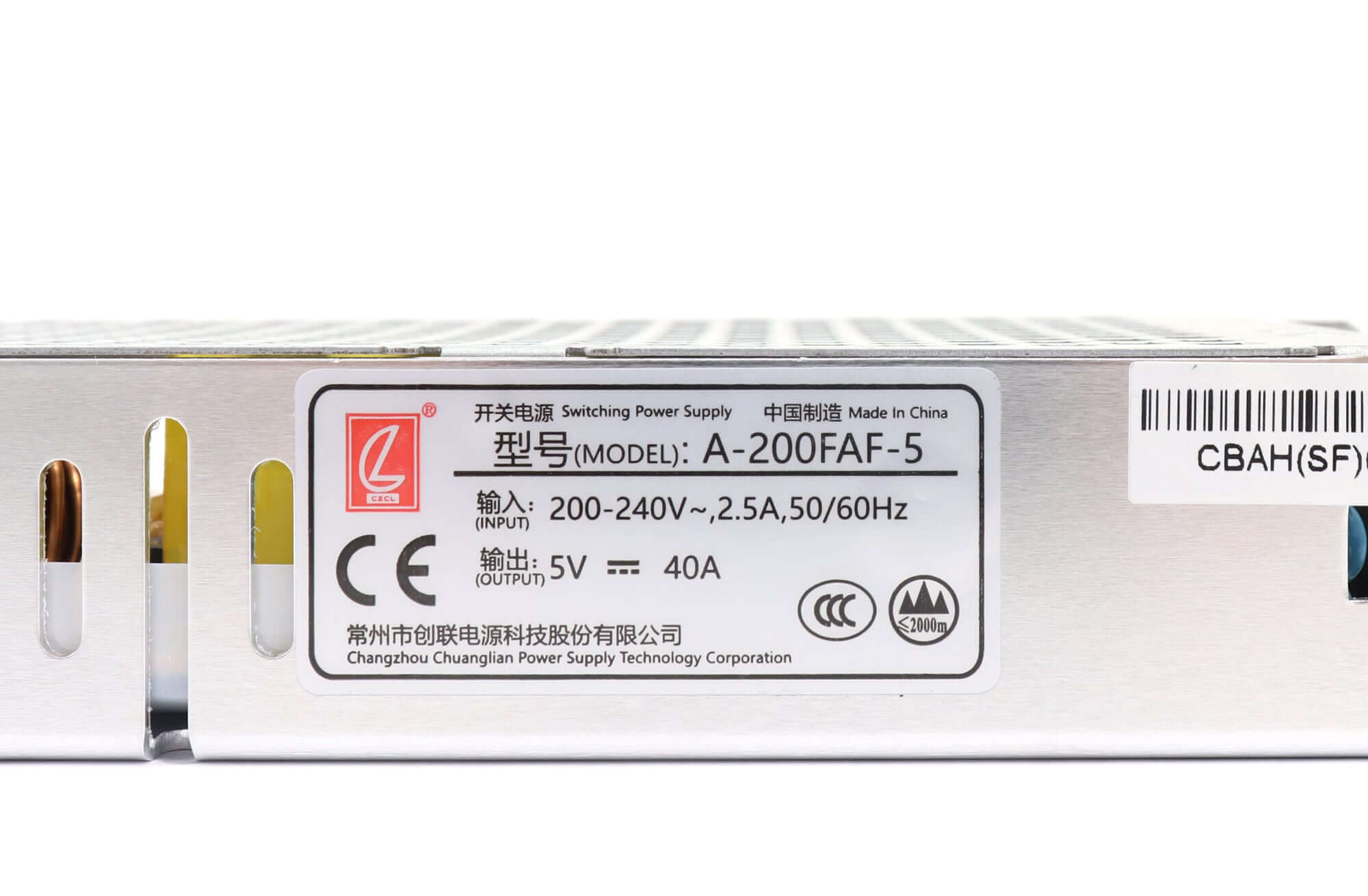

Product images and specification download
CZCL A-200FAF series specification (Chinese)
Frequently asked questions
What are the A-200FAF-5 output ratings?
The model column in the specification lists 5 V DC, 40 A and 200 W. Other output voltages in the series belong to separate models and are not selectable voltage modes of this unit.
Can it run from 110 V AC?
The documented input range is 180–264 V AC. A 110 V AC supply is outside that stated range.
Does fanless operation mean no additional heat sink is required?
No. The PDF explicitly requires an aluminum plate of at least 400 × 400 × 3 mm for full-load use. Follow the temperature derating curve and mounting instructions.
Can it supply full power at 70°C?
The stated −20 to 70°C operating range is subject to the manufacturer’s derating curve. It is not a promise of full output throughout that temperature range.
Is a CE certificate available in the linked specification?
The original listing title mentioned CE, but the linked document does not provide a CE certificate for the supplied unit. Request the applicable compliance documentation if it is required for your project.
| Weight | 0.6 kg |
|---|
