Huidu HD-A6L LED Multimedia Player – 4 Gigabit Outputs
Original price was: $ 321.00.$ 259.00Current price is: $ 259.00.
Huidu HD-A6L supports synchronous, asynchronous and HDMI splicing playback. Its V1.3 specification lists 2.6 million pixels, four Gigabit receiving-card outputs, dual-band Wi-Fi and LedArt management. 4G/5G and wireless screen casting are optional.
10000 in stock
HD-A6L multimedia control for LED displays
The Huidu A6L combines stored-program playback, live HDMI input and HDMI splicing. It supports video, pictures, GIF animations, text, WPS documents, tables, clocks and timed content. LedArt provides wireless mobile management, while XiaoHui Cloud supports remote Internet management.
Model identification: this page is for HD-A6L. The specifications below follow the linked A6L V1.3 manual; the earlier HD-A6 description is not a specification for the A6L version.
A6L technical specifications
| Parameter | Specification |
|---|---|
| Maximum control range | 2.6 million pixels |
| Separate dimension limits | Horizontal maximum 65,536 pixels with reduced loading; vertical maximum 4096 pixels |

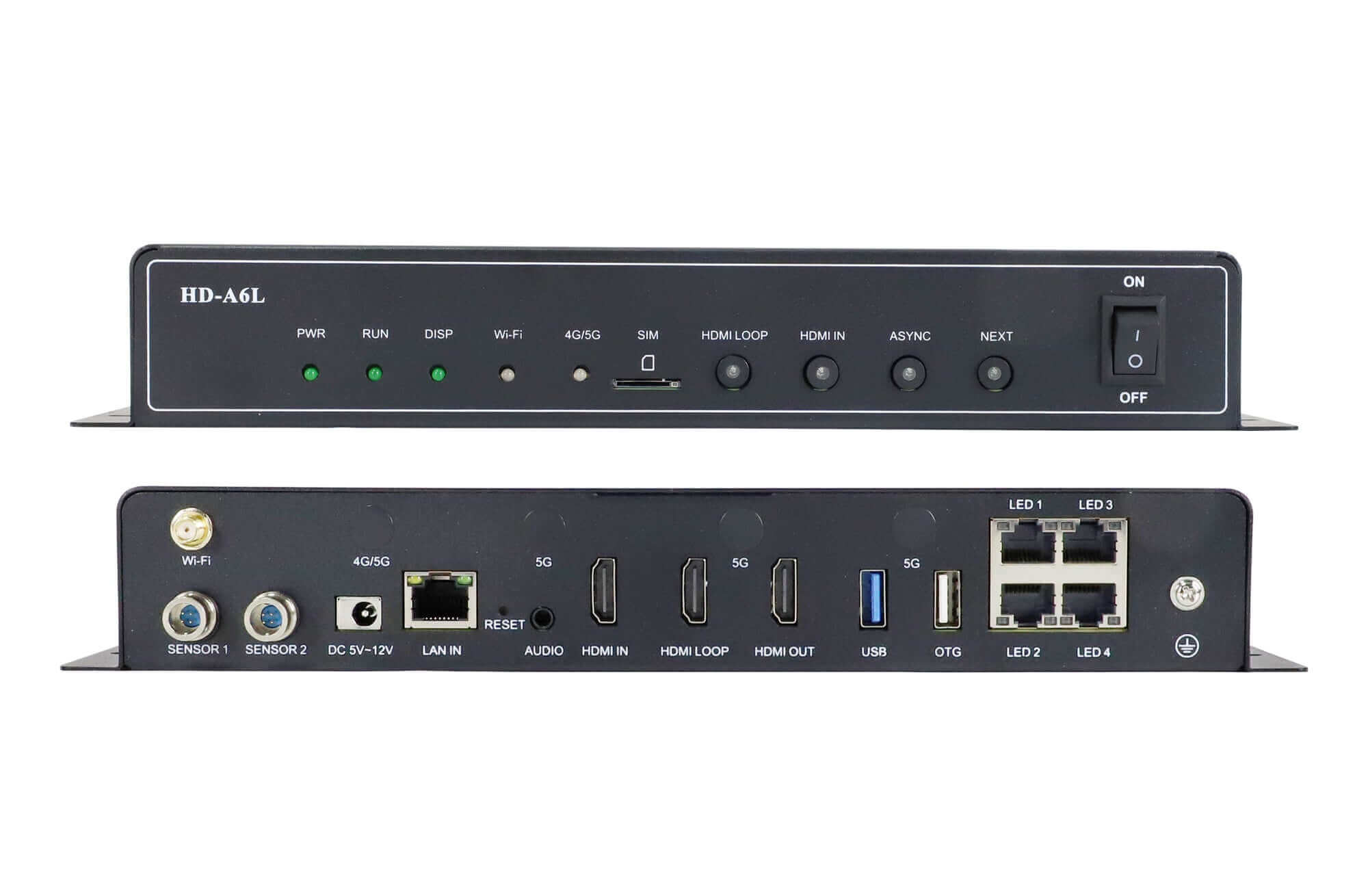

| LED output | 4 × Gigabit Ethernet for HD-R series receiving cards |
| Communication input | 1 × Gigabit Ethernet for configuration and program transfer |
| HDMI inputs | 1 × HDMI IN with automatic scaling and sync/async picture-in-picture; 1 × HDMI LOOP IN for splicing/cascading |
| HDMI output | 1 channel for source output or HDMI-input monitoring |
| USB | 1 × USB 2.0 with OTG/USB mode; 1 × USB 3.0 |
| Sensor inputs | 2 channels |
| Audio | 1 × TRS 3.5 mm two-channel output |
| Wi-Fi | Standard 2.4 GHz and 5 GHz; STA mode supported |
| Video windows | Up to 2 × 4K, or 6 × 1080p, or 10 × 720p, or 20 × 360p |
| Mobile network | Optional 4G/5G for XiaoHui Cloud |
| Wireless casting | Optional phone, tablet and computer casting |
The horizontal maximum is subject to reduced loading and is not an unrestricted 65,536 × 4096 screen resolution. The video-window counts are alternative playback configurations.
Live input, splicing and remote programs
Use HDMI IN when automatic image scaling or synchronous/asynchronous picture-in-picture is required. HDMI LOOP IN supports splicing and cascading. The player can switch between synchronous and asynchronous playback, and its HDMI output can provide a source feed or monitor HDMI-input content.
Programs can be delivered through the communication network or USB interfaces. Dual-band Wi-Fi supports local mobile control; optional 4G/5G connects to XiaoHui Cloud for remote management. External environmental sensors are supported through the two sensor inputs.
Product video

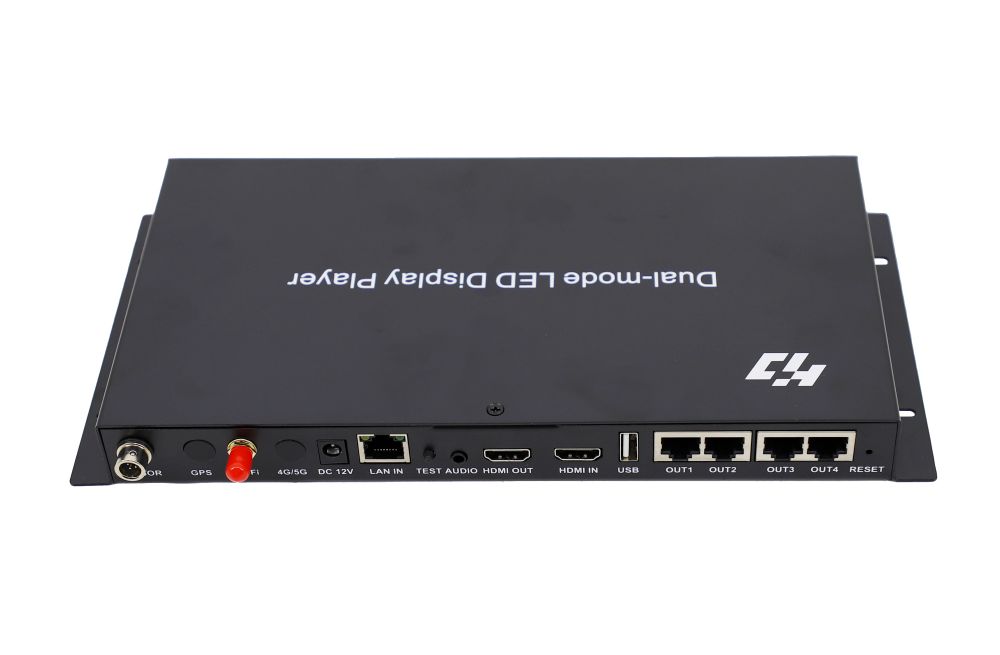

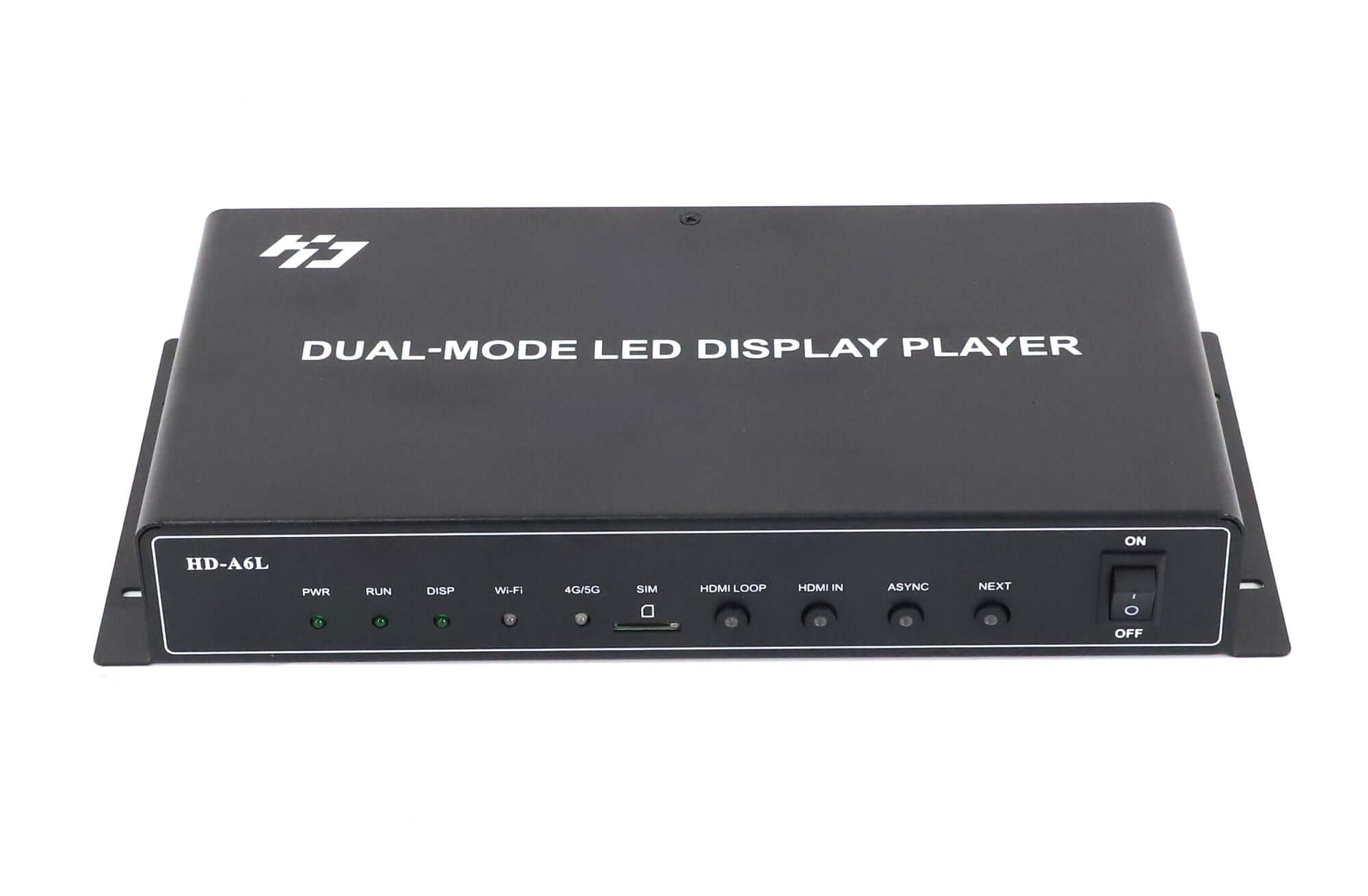

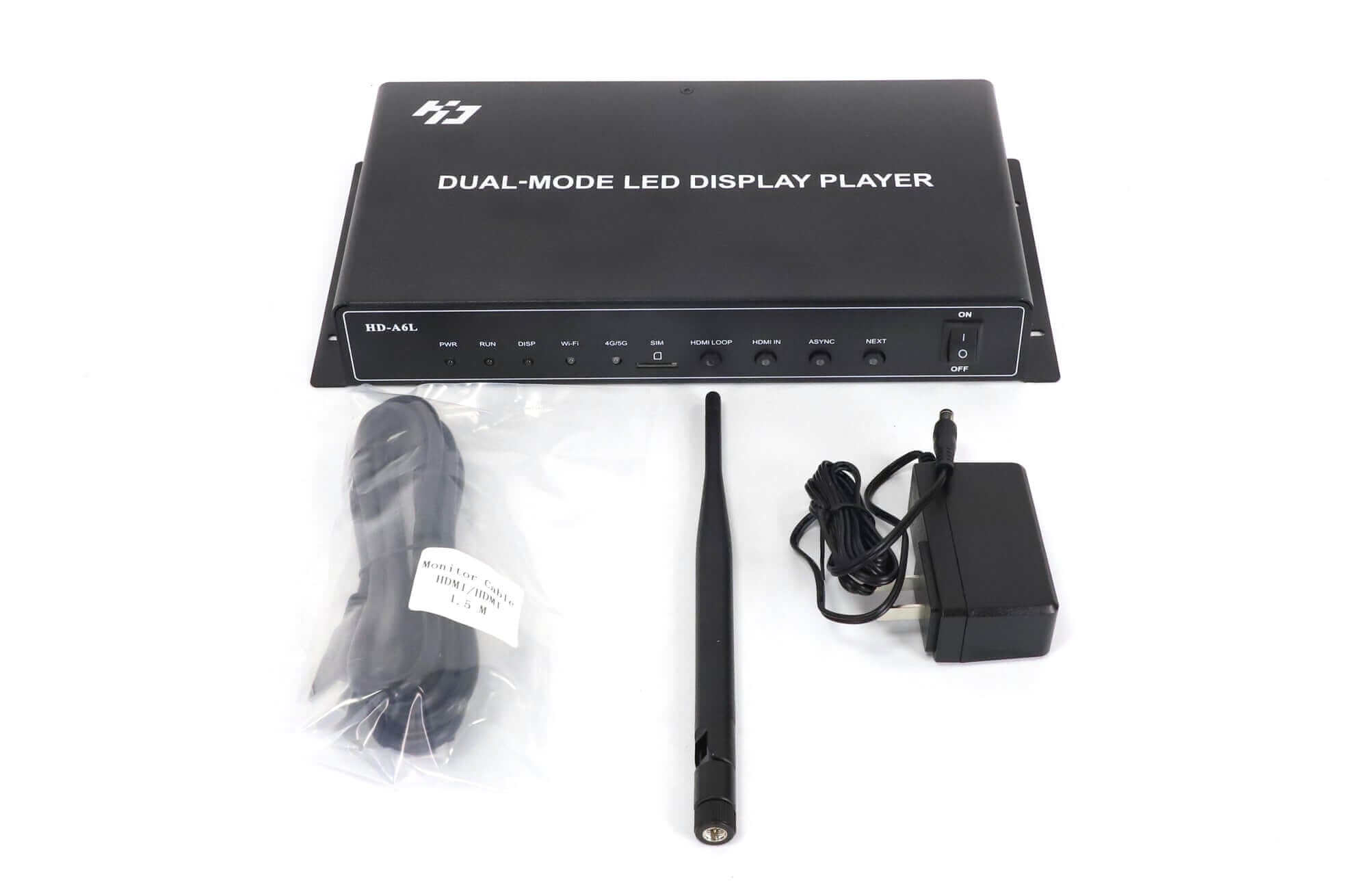

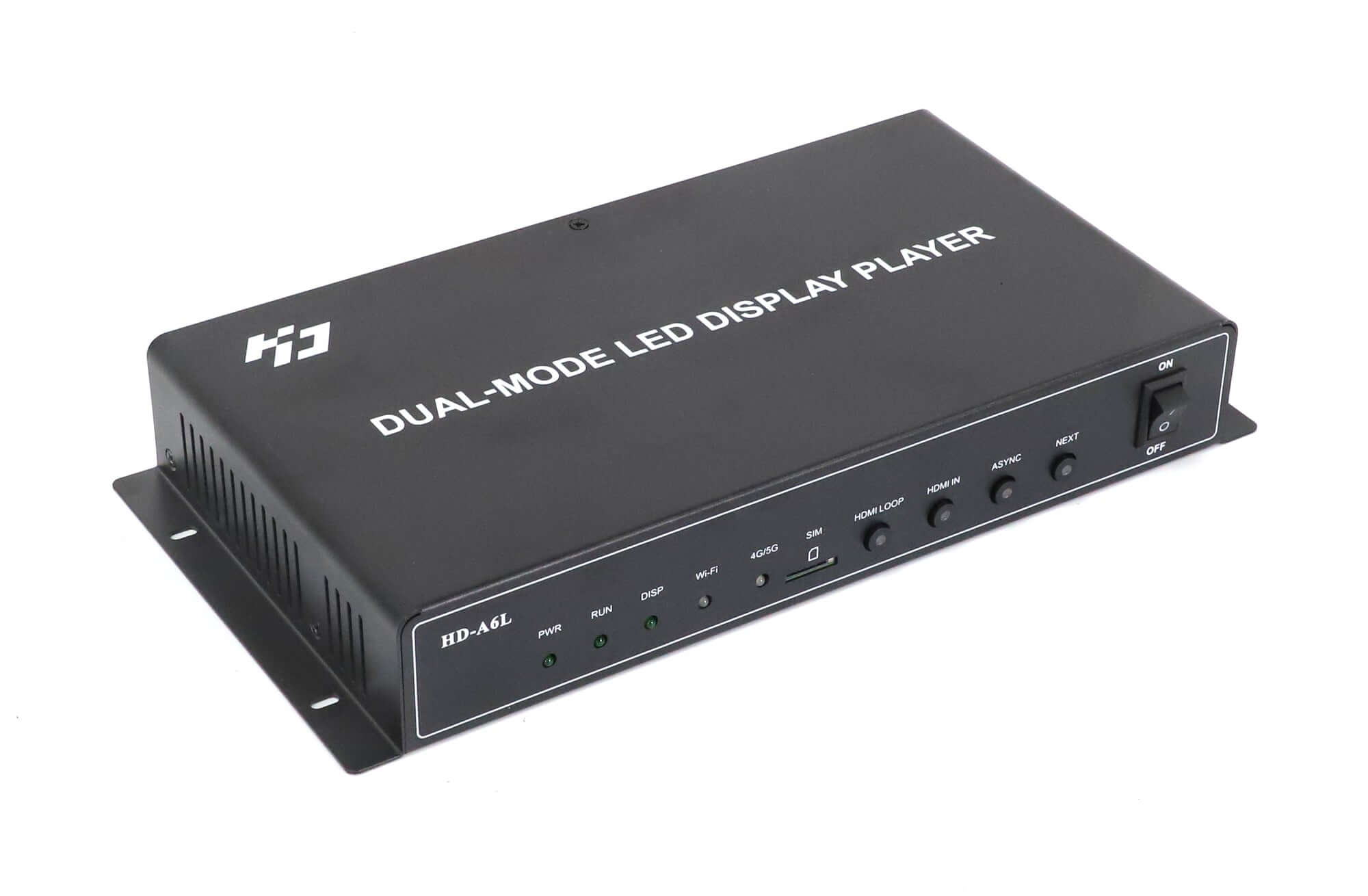

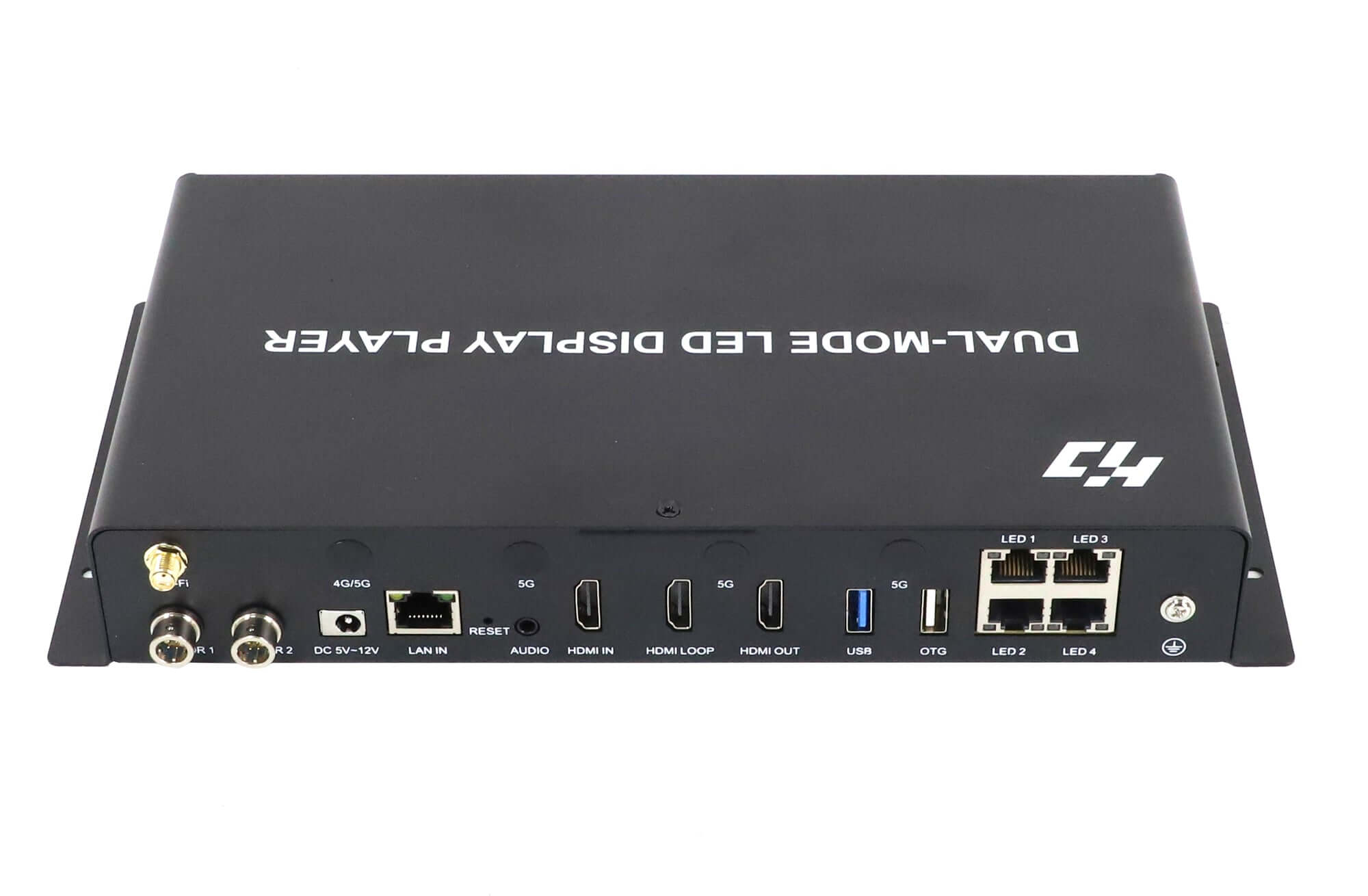

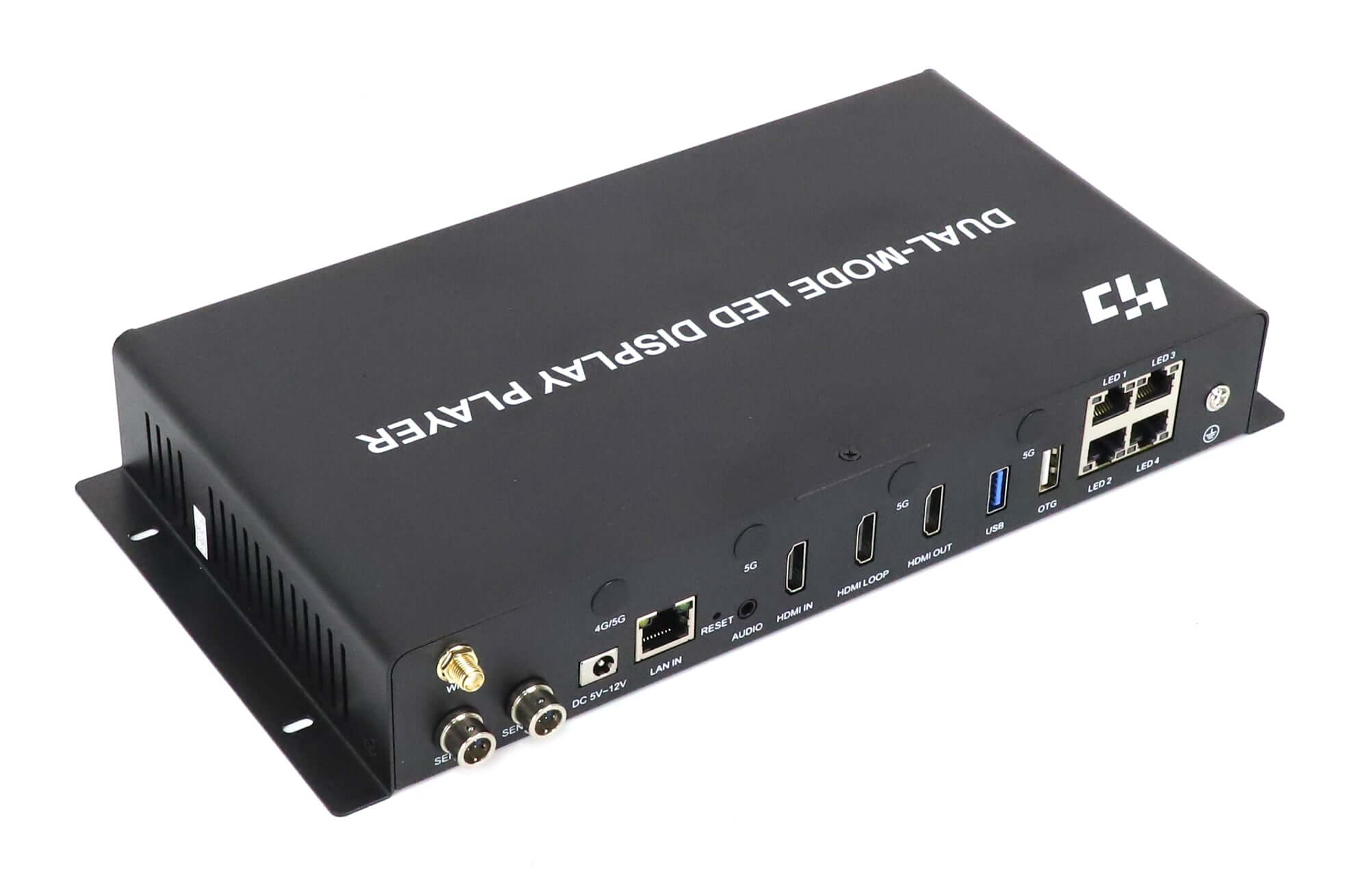

Product images
Download specification
Frequently Asked Questions
What is the HD-A6L control capacity?
The linked A6L V1.3 manual specifies 2.6 million pixels and four Gigabit output ports. Its extended horizontal maximum is subject to reduced loading.
Does A6L support synchronous and asynchronous playback?
Yes. It supports switching between the modes, HDMI splicing playback and synchronous/asynchronous picture-in-picture through HDMI IN.
Which software controls Huidu A6L?
The V1.3 manual names LedArt for wireless mobile control and XiaoHui Cloud for remote Internet management.
Are 4G/5G and wireless projection standard?
No. The A6L V1.3 manual marks 4G/5G and wireless phone, tablet or computer casting as optional. Dual-band Wi-Fi is standard.
Can I use older A6 specifications for A6L?
Use the A6L model-specific manual. The earlier A6 text on this listing described a different version, so its CPU, storage and loading values should not be assumed to apply to A6L.
| Weight | 3 kg |
|---|
