Kystar U2 LED Video Processor, PIP & Splicing Outputs
$ 365.00
Kystar U2 audio/video processor with two output channels, PIP/POP layouts and splicing up to 2560 × 1536 at 60 Hz. Supports copy and monitoring modes, synchronous cascading and audio/video transitions.
10000 in stock

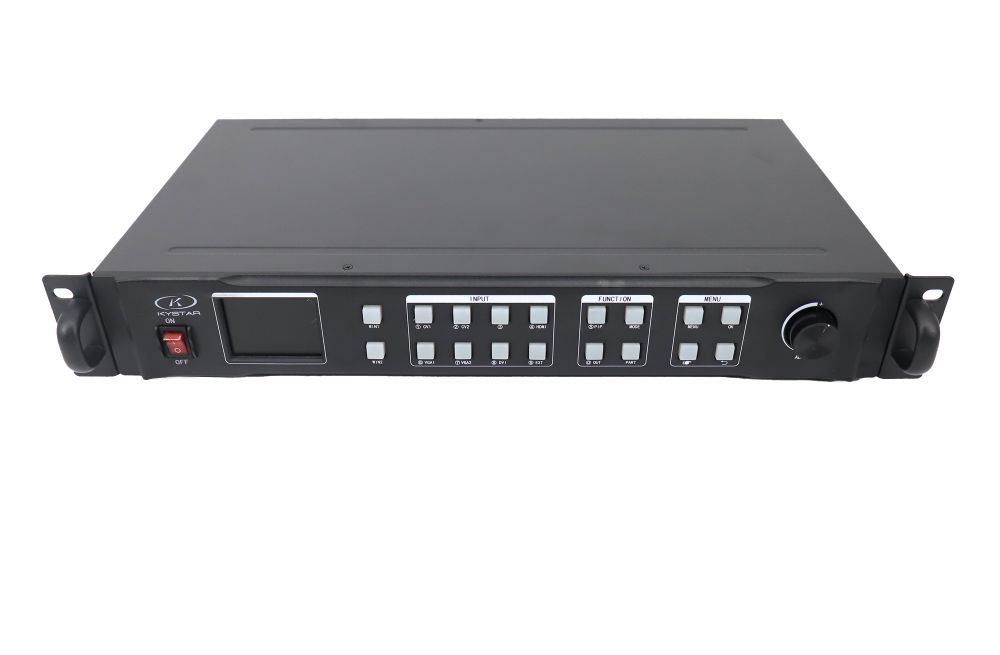

U2 LED video processor for splicing and PIP layouts
The Kystar U2 is an audio/video processor with two output channels and three output modes: splicing, copy and monitoring. It supports PIP and POP layouts, synchronized audio/video switching and multi-machine synchronous cascading.
Technical specifications
| Parameter | Specification |
|---|---|
| Splicing output | Up to 2560 × 1536 at 60 Hz |
| Copy-mode output | User-defined resolution up to 2.6 million pixels |
| Output channels | 2 |
| Output modes | Splicing, copy and monitoring |

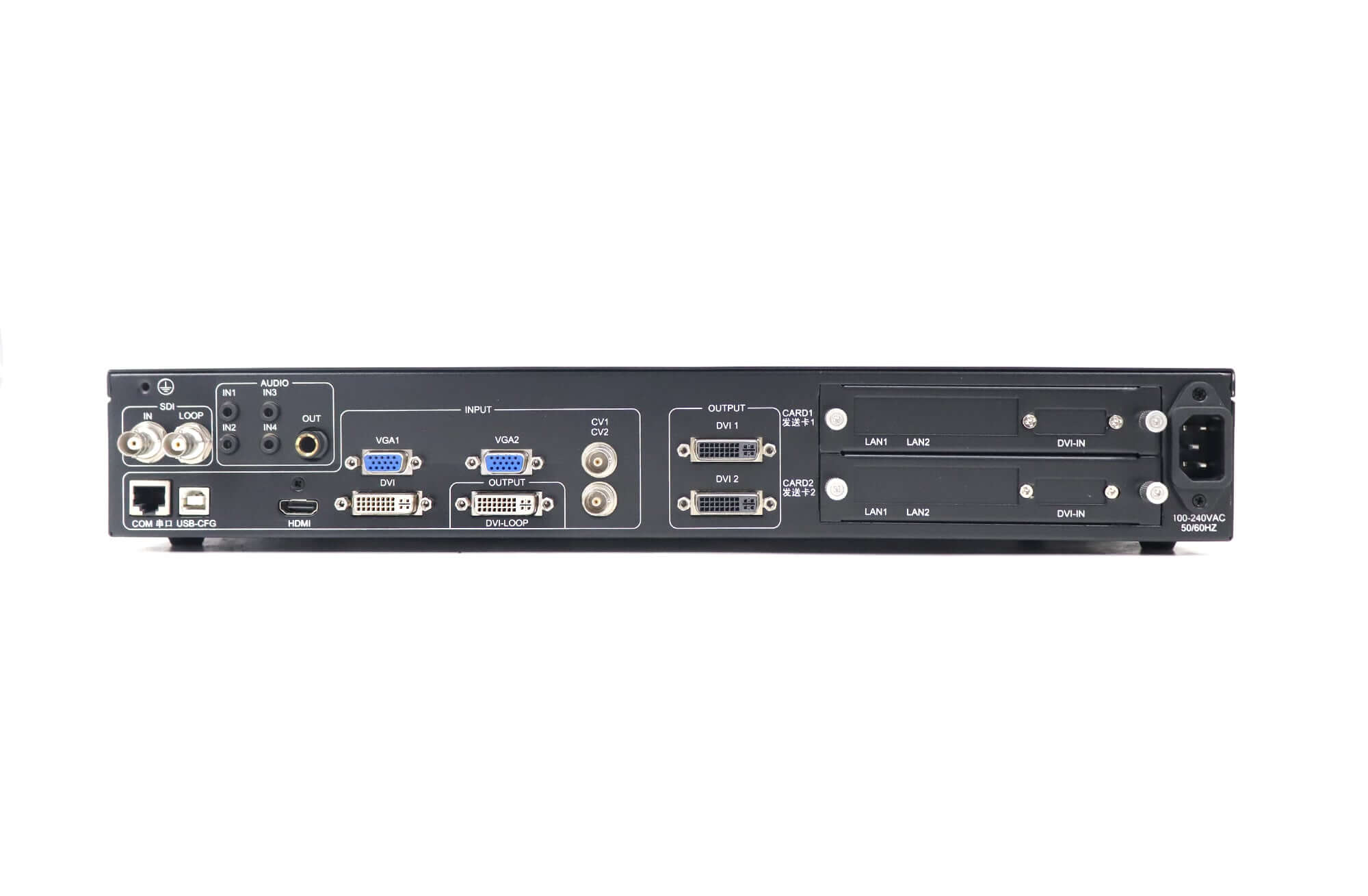

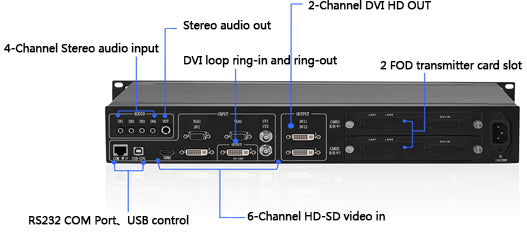

| Standard video inputs | 1 × HDMI, 1 × DVI, 2 × VGA, 2 × CVBS |
| Loop connection | 1 × DVI loop |
| Window layouts | PIP and POP |
| Monitoring | 1080p full-screen monitoring output |
| Sending-card accommodation | Space for 2 LED sending cards; confirm installed configuration |
| Control functions | Usage records and engineering lock |
Choose the right output mode
In splicing mode, the two outputs carry different portions of one image. Copy mode sends the same picture to both outputs, while monitoring mode provides a display feed and a local monitoring feed. The 2.6-million-pixel copy-mode figure and 2560 × 1536 splicing limit apply to different modes.
The U2 supports fade-in/fade-out switching, image scaling and LED color balancing. Confirm the audio connections and any installed sending cards for the supplied unit before building the signal chain.
Engineering lock and operation
The engineering lock can restrict operation after a configured usage period. When locked, the unit has no output until the unlock code is entered. Keep this setting in mind when preparing the processor for a rental or scheduled installation.
Frequently asked questions
What is the maximum U2 splicing resolution?
The listed maximum is 2560 × 1536 at 60 Hz. Its separate copy mode supports user-defined output up to 2.6 million pixels.
Can the U2 show picture-in-picture?
Yes. It supports PIP and POP layouts through its two-channel display processing.
Are two sending cards included?
The U2 has accommodation for two LED sending cards. Confirm which cards, if any, are installed in the offered configuration before ordering.
Why might the U2 stop output after a set period?
The engineering lock can stop output once its configured usage period expires. An unlock code is required to resume operation.
Where can I get the U2 manual and software?
The original specification PDF and control-software download links are retained below. Check compatibility with the unit and firmware before use.
Original parameter image and downloads
Download Specification:
Download Software
Kystar U2 Control Software (All Kystar Processor)
Kystar U2 Control Software (Three-in-One)
| Weight | 8 kg |
|---|
