Magnimage LED-550D LED Screen Video Processor
$ 559.00
Magnimage LED-550D offers dual-picture display, 16 switching effects and custom DVI input/output resolution. It includes two DVI outputs, image freeze, hot backup and multi-machine cascading functions.
10000 in stock
Source switching and screen-resolution setup
The Magnimage LED-550D is an LED screen video processor with dual-picture display and 16 switching effects, including fade-in and fade-out. Custom DVI input resolution and user-defined output resolution help match a source to the screen’s pixel layout.
Input specifications
| Ports | No. | Resolution Specification |
| AV | 2 | PAL NTSC SECAM |
| VGA | 2 | VESA |
| DVI | 1 | VESA(1080i) |
| HDMI | 1 | HDMI 1.3 |
| SDI* | 1 | 3G SDI |
Output specifications
| Ports | No. | Resolution Specification |
| DVI loop | 1 | Same as DVI input |
| SDI loop* | 1 | 3G SDI |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz 1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 1920×1200/60Hz 2048×640/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz Customized output resolution: Horizontal Max Resolution 3840pixel ; Min 640 Vertical Resolution: Max 1920; Min 480 |
| DVI | 2 |
* The SDI input and loop output are configuration-dependent options in the series information. Do not assume they are included with this LED-550D listing. The horizontal and vertical custom-resolution limits are separate bounds, not a combined 3840 × 1920 output specification.
Hardware specifications
| Power supply | 100～240 AC 50/60Hz |
| Power consumption | 25W |
| Operation temperature | 0～45℃ |
| Product dimension(LWH) | 483.0×288.0×54.5mm |
| Packing dimension(LWH) | 555.0×395.0×125.0mm |
| N.W. | 2.6kg |
| G.W. | 4.1kg |
Display and setup functions
The processor supports seamless switching and splicing, part/full display, image freeze, text overlay and brightness adjustment. Hot backup, test graphics, template settings and multi-machine cascading are also listed features. Supported output formats include 2560 × 816, 2304 × 1152 and 1536 × 1536 at 60 Hz.
Frequently asked questions
What video inputs are listed for the LED-550D?
The product table lists two AV inputs, two VGA inputs, one DVI input and one HDMI 1.3 input. The SDI connection is configuration-dependent and should be confirmed separately.
How many DVI outputs does it have?
The table lists two DVI outputs and a separate DVI loop connection that follows the DVI input.
Does it support dual-picture display and fades?
Yes. Dual-picture display and 16 switching effects, including fade-in and fade-out, are listed features.
Can it match a custom LED screen resolution?
Yes. It supports custom DVI input resolution and user-defined output resolution. Use a supported width, height and refresh-rate combination from the specifications.
Is a specification PDF available on this page?
The original LED-550D series specification link is retained below for reference. Check the exact model and optional connections against the supplied unit.

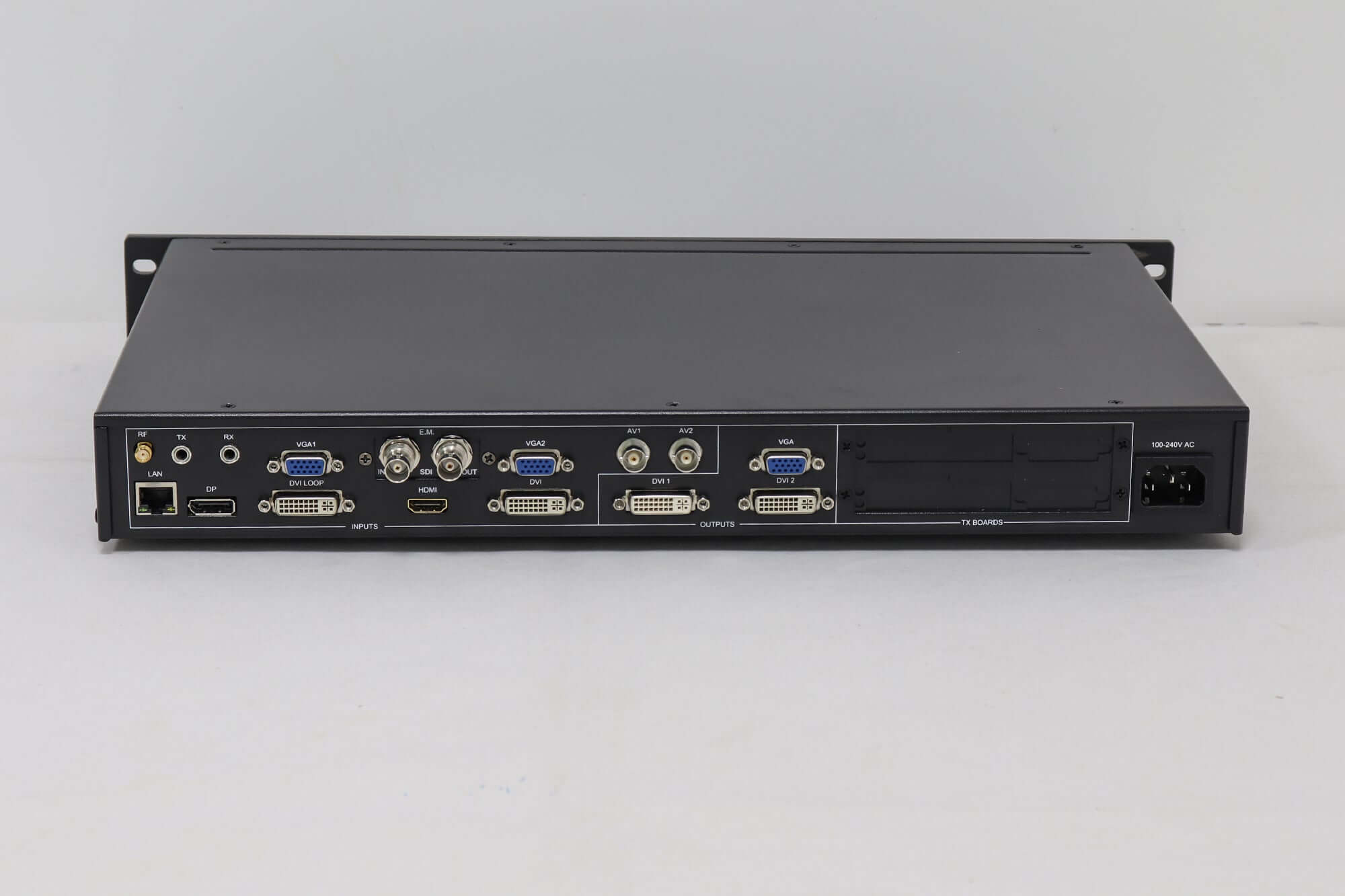

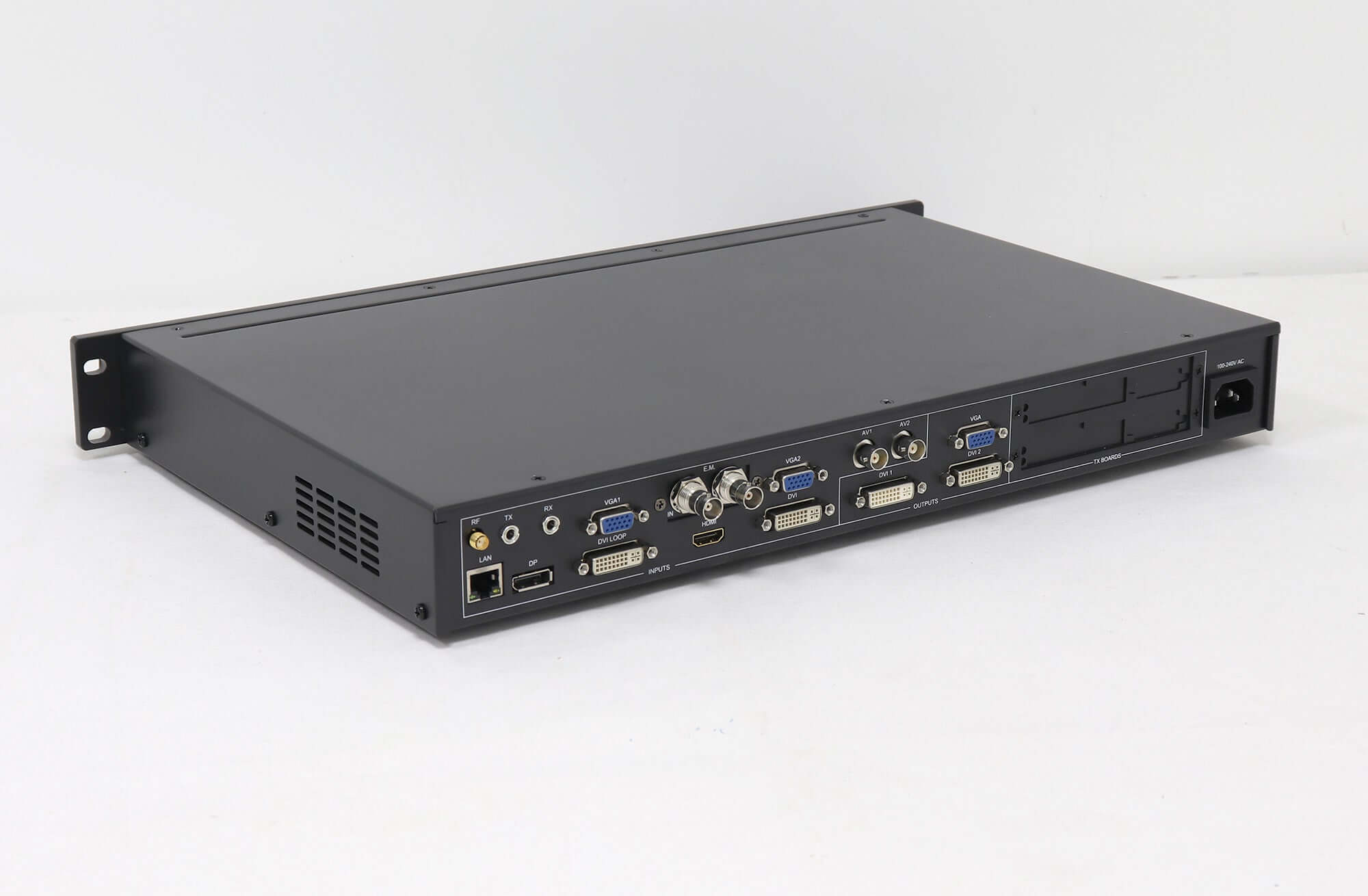

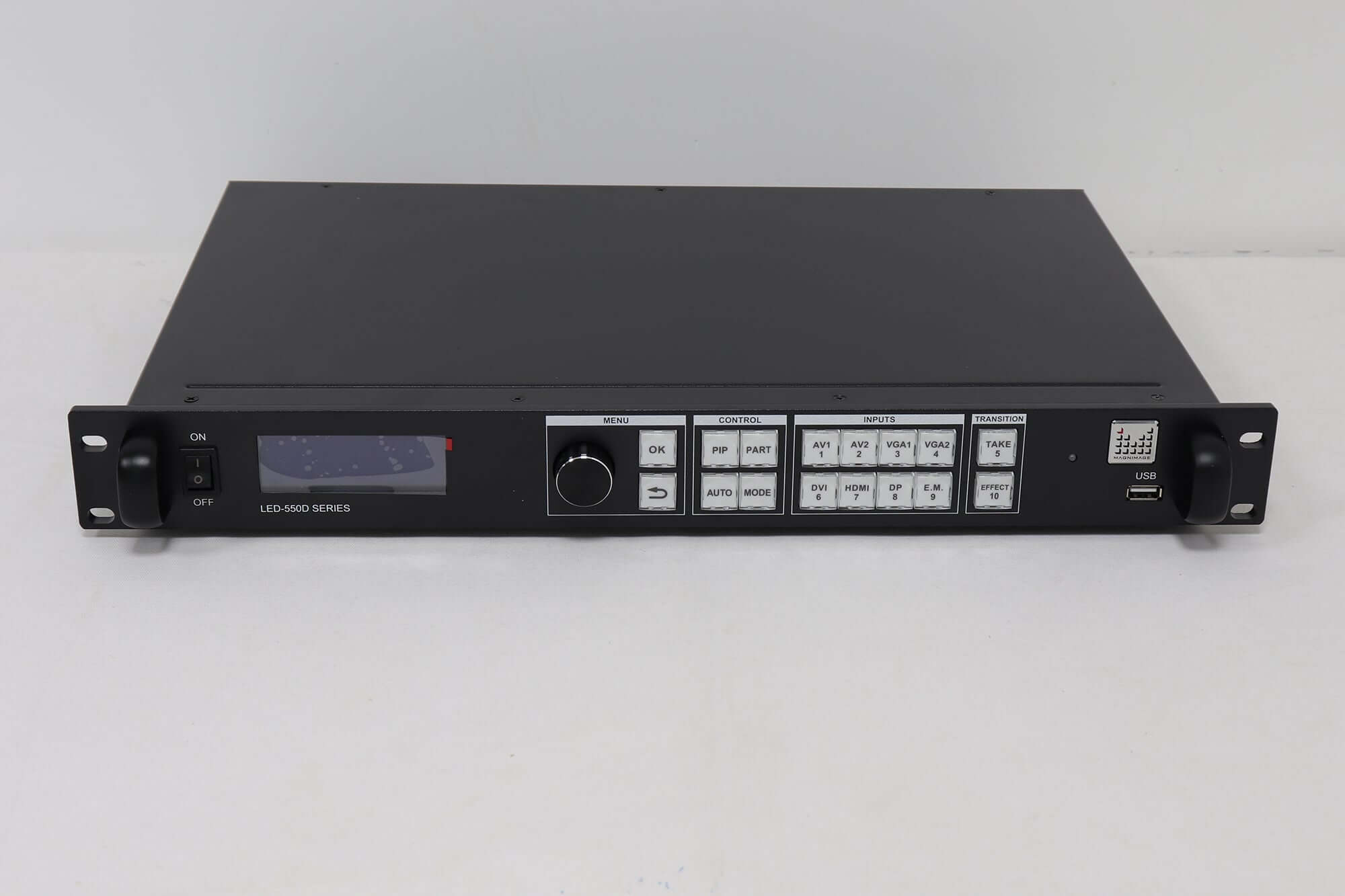

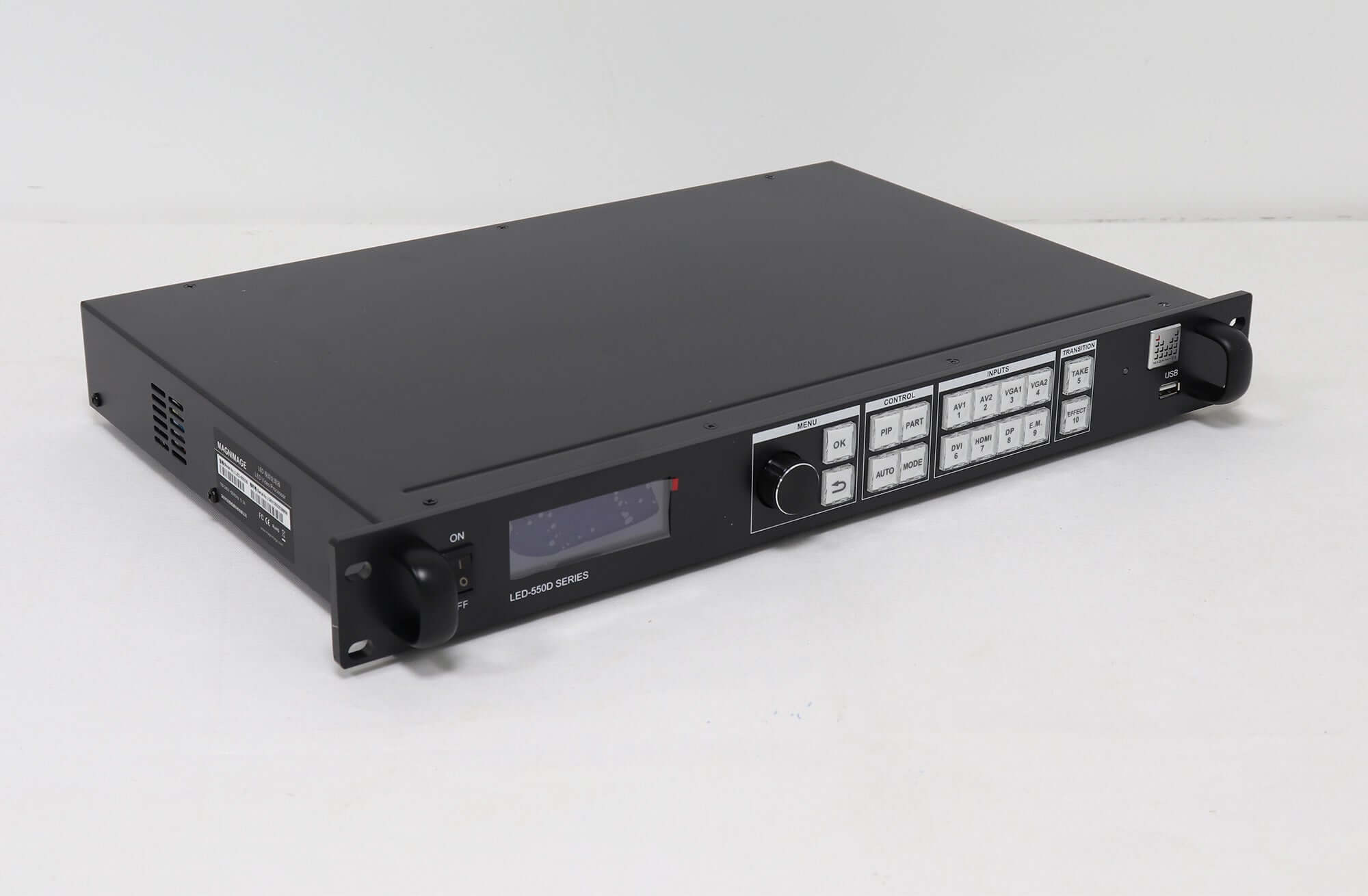

Product images and diagrams
Downloads
| Weight | 7 kg |
|---|
