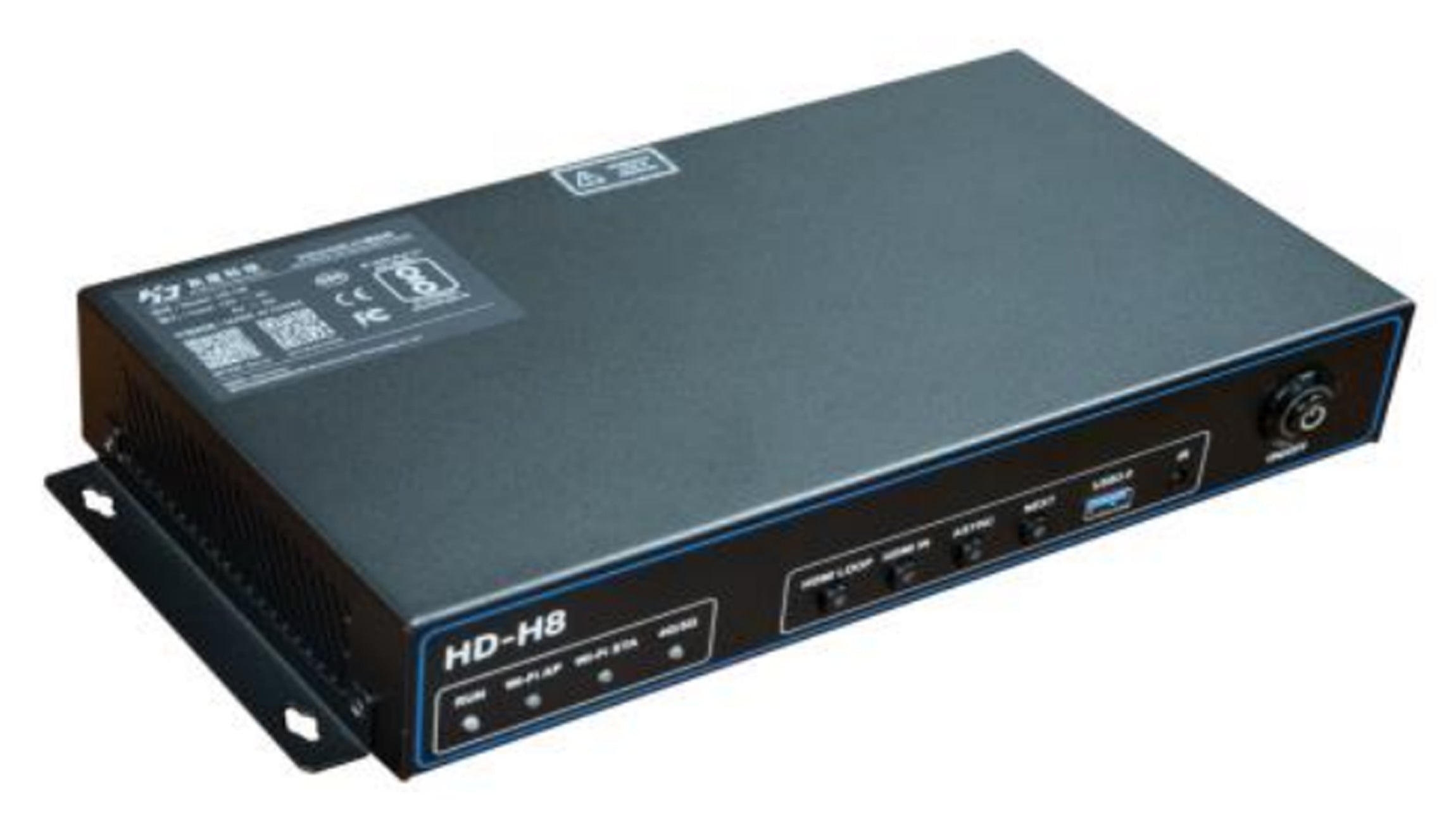

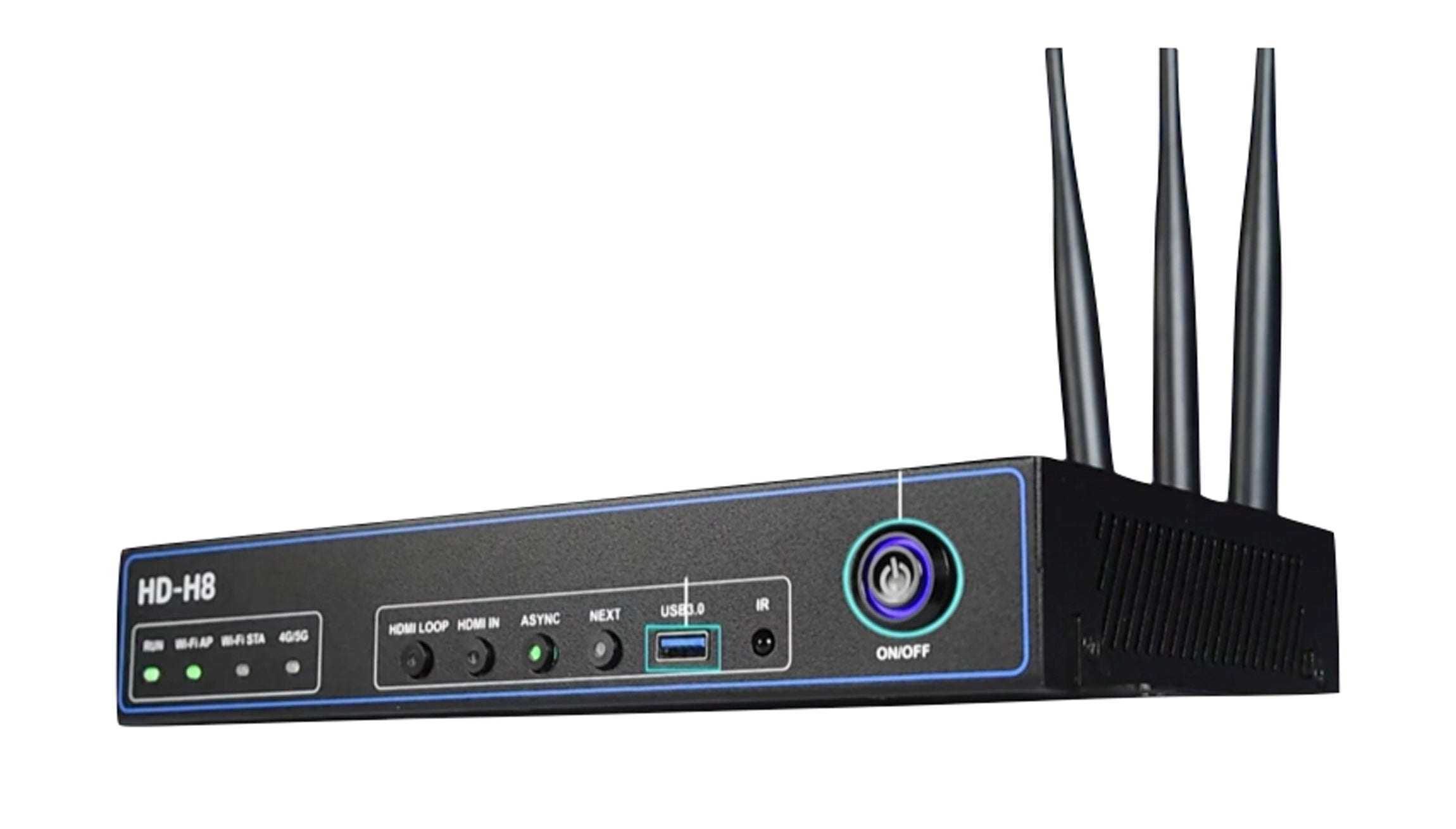

Huidu HD-H8 LED Screen Intelligent Multimedia Player

Huidu HD-H8 is a brand-new intelligent multimedia player with eight network ports, integrating a player, third-party APP messaging, and local program production into one. It can replace a computer to directly produce and play programs on terminal devices. With strong interaction and broadcast control capabilities, it supports remote control operation of LED screens, supports wireless screen projection from Windows, iOS, Android, and other platform terminals. It supports the connection of peripherals such as central control, cameras, speakers, and sensors, with a rich set of hardware interfaces and flexible broadcast control functions. It is widely used in various application scenarios such as meeting rooms, exhibition halls, educational spaces, and hotel lobbies.

Features

Inputs:
 One Gigabit Ethernet port for network connection, communicating with the outside world through TCP/UDP;
 Two HDMI 1.4 inputs, supporting cascade splicing and picture-in-picture functions;
 One SFP optical port input, supporting cascade splicing and duplicate display;
 Two USB ports (USB2.0/USB3.0) for U disk program playback, firmware upgrades, or capacity expansion;
 One OTG interface (custom OTG/USB mode, default to U disk function);
 One sensor interface for external environmental monitoring sensors or GPS, etc.;
 One RS232 and one RS485 interface (for central control connection);
 One RELAY relay interface.
Output:：
 Eight Gigabit Ethernet port outputs for cascading HD receiver card display;
 One HDMI OUT signal output for cascade signal loop out or screen monitoring;
 One SFP OUT cascade signal output, serving as the data source for the SFP IN of the next device;
 One TRS 3.5mm standard stereo audio output.
Functions：
 Support the information dissemination of third-party APPs.
 Support local program editing, production and playback.
 With a total load capacity of 5.24 million pixels, the maximum width is 65,536 pixels and the maximum height is 8,192 pixels.
 Multiple cascading modes are available, including HDMI cascading and optical port cascading, and it supports long-distance transmission via optical fiber.
 Wireless screen projection on multiple platforms is supported, enabling screen projection from Windows, iOS, Android platforms and screen projectors.
 Equipped with dual Wi-Fi chips, it supports 2.4G/5G frequency bands, high-resolution and low-latency screen projection, and also supports simultaneously turning on the Wi-Fi hotspot and accessing the Internet wirelessly.
 In terms of video playback performance, it can play 2 channels of 4K videos, or 6 channels of 1080P videos, or 10 channels of 720P videos, or 20 channels of 360P videos.
 Support Bluetooth voice control and the connection of commonly used peripheral devices such as Bluetooth speakers, keyboards and mice.
 Support infrared standby wake-up. When in standby mode, it enters a low-power consumption mode with a standby power consumption of less than 0.5W.
 One RS232 or one RS485 interface for connection with the central control system.

Product Parameters

Electrical Parameters: Input Power DC 5V-12V (5V 6A, 12V 3A), Maximum Power Consumption 21W
Storage: Operating Memory 4GB, Internal Storage 64GB
Storage Environment: Temperature -40℃～80℃, Humidity 0%RH～80%RH (no condensation)
Operating Environment: Temperature -40℃～70℃, Humidity 0%RH～80%RH (no condensation)
Dimensions: 289.2mm×141mm×44mm (with ears), Net Weight 1.34KG
Protection Level: IP20

Download Specification:
Huidu HD-H8 4K HDMI output Multimedia Player Specification (Chinese)
