4.5 V LED power supply for 200–240 V AC input
The Rong-Electric MDH200H4.5 is a 4.5 V DC, 40 A power supply for LED displays. Its listed mains input is 200–240 V AC at 50/60 Hz, with a maximum input current of 3.0 A.
Product parameters
The table below retains the specifications supplied in the product listing.
| Parameter | Specification |
|---|---|
| Model | MDH200H4.5 |
| DC output voltage | 4.5 V |
| Output current | 40 A |
| AC input | 200–240 V AC |
| Maximum input current | 3.0 A |
| Input frequency | 50/60 Hz |
| Protection listed | Input undervoltage, overload and short circuit |
| Cooling | Ventilation cooling |
Check the input supply before replacement
This model is intended for the listed 200–240 V AC range. A 4.5 V output match does not make it suitable for every installation, particularly one using 110 V AC mains. Check the full model code and input rating on the existing power supply.
Compare the cabinet mounting and terminal layout before ordering. Dimensions, operating-temperature limits and protection thresholds are not specified on this listing. The product uses ventilation cooling; the available information does not establish a cooling arrangement for every enclosure.

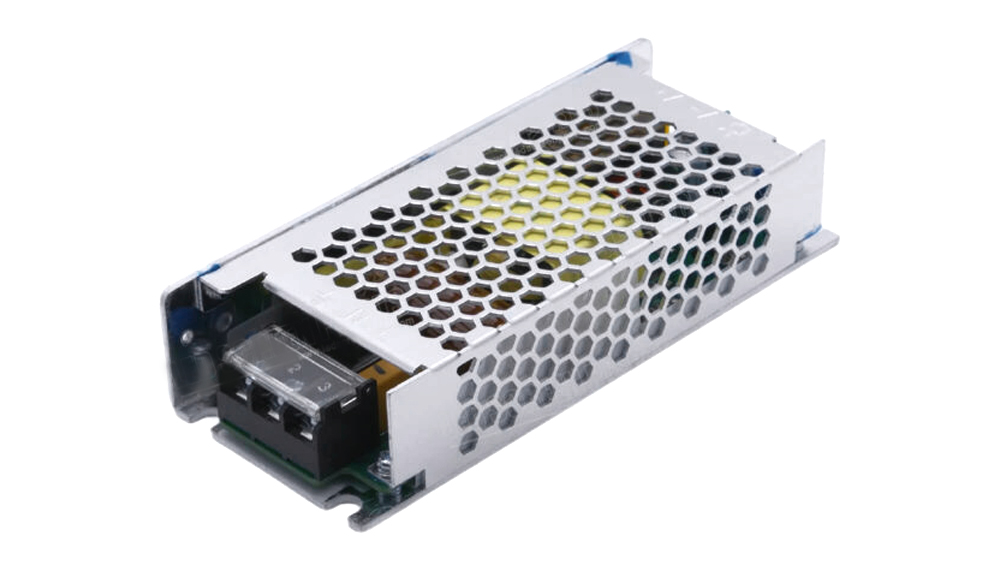

Product images


Frequently asked questions
What is the MDH200H4.5 used for?
It is listed as a power supply for LED display systems requiring 4.5 V DC, with an output current of 40 A. Confirm the display module requirements before selection.
Can the MDH200H4.5 run on 110 V AC?
110 V AC is outside the listed 200–240 V AC input range. This model should be selected for an input supply within its stated range.
What is the difference between the 3 A and 40 A ratings?
3.0 A is the maximum AC input current in the listing. 40 A is the DC output current; it is not the mains input rating.
Can I replace an MDH200PC4.5 with this model?
Both listings state 4.5 V and 40 A output, but their AC input specifications differ: this MDH200H4.5 lists 200–240 V AC, while the MDH200PC4.5 lists 100–240 V AC. Confirm mounting, terminals and other installation requirements before treating them as interchangeable.
What protection functions does this supply have?
The listing specifies input undervoltage, overload and short-circuit protection, plus ventilation cooling. It does not provide numerical protection thresholds or an operating-temperature range.
