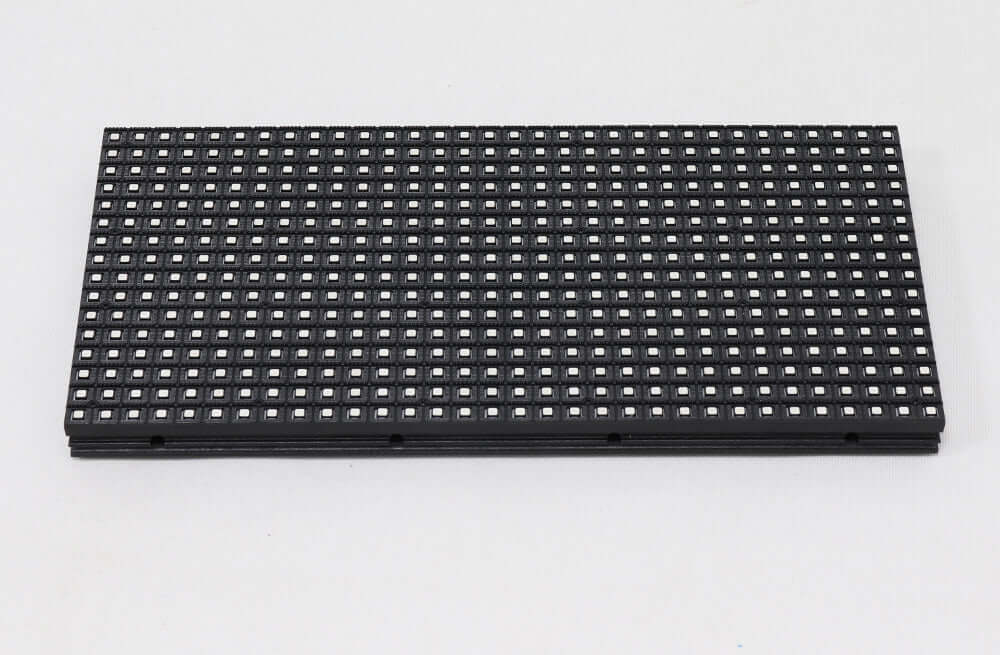

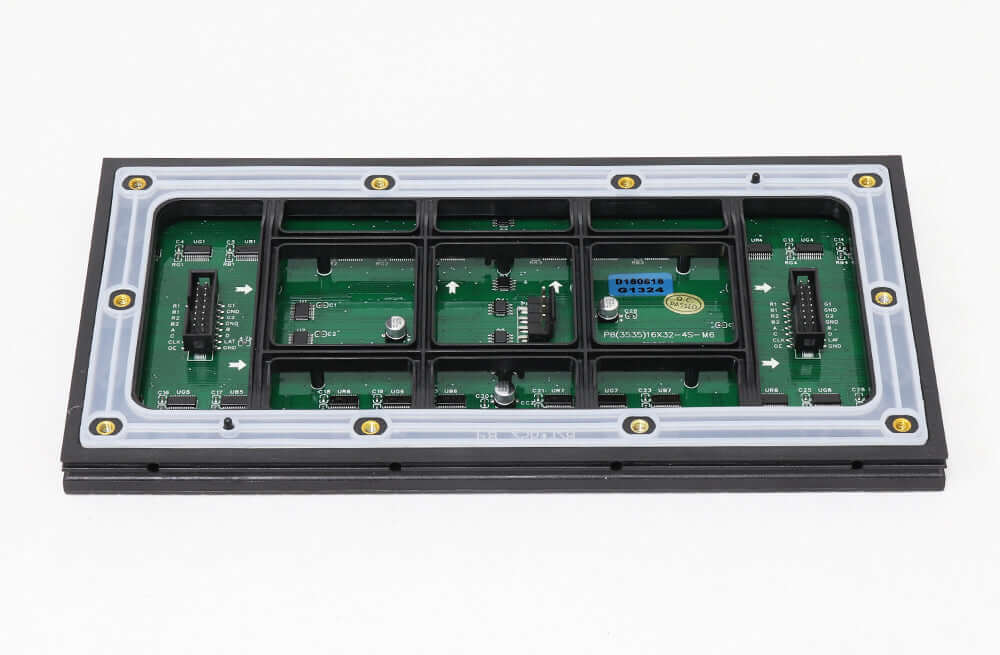

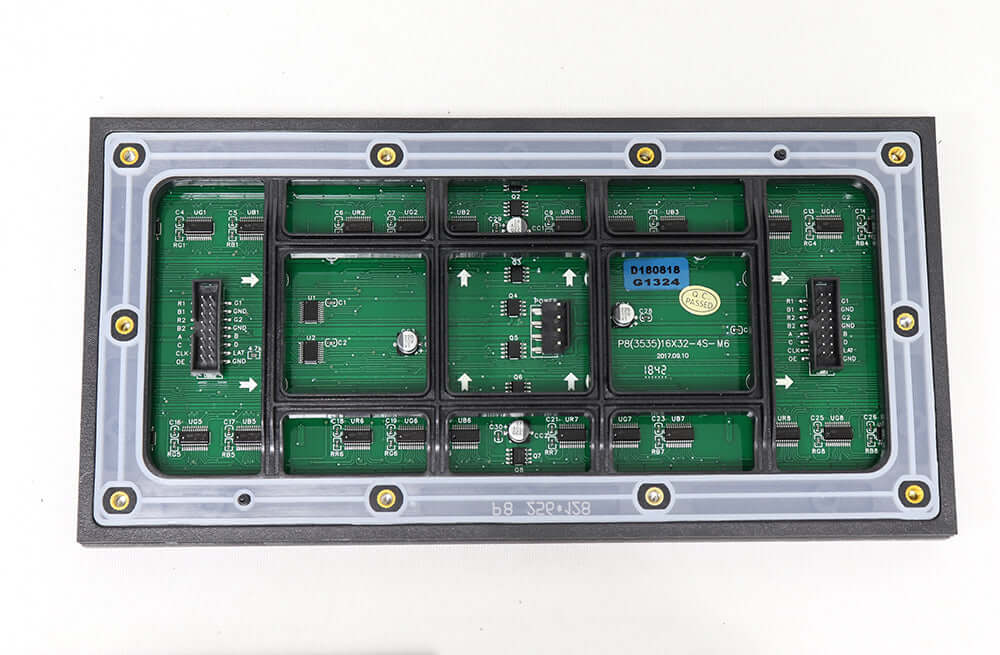

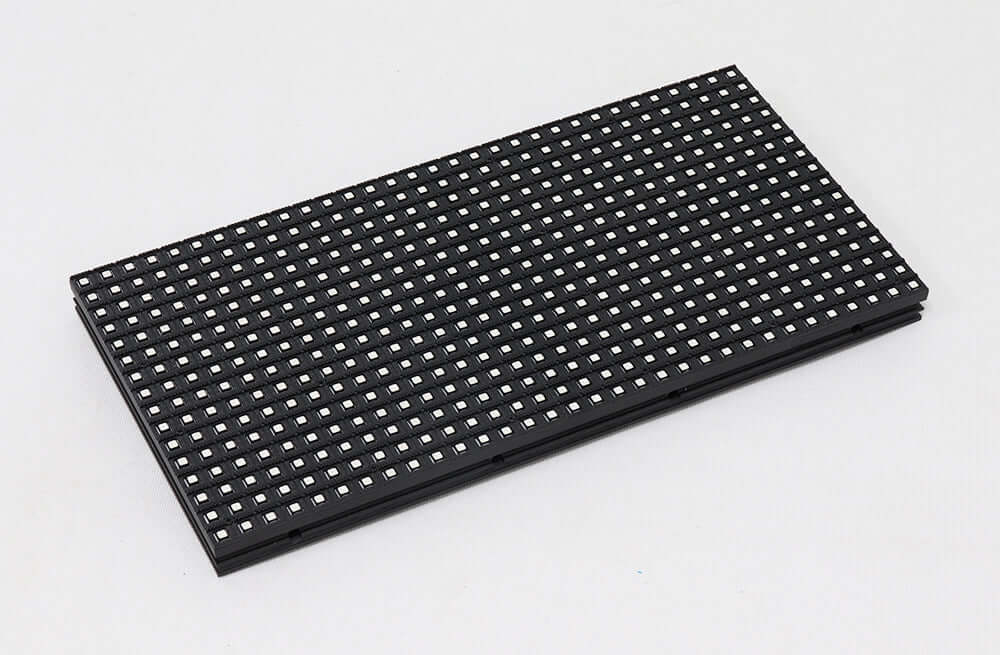

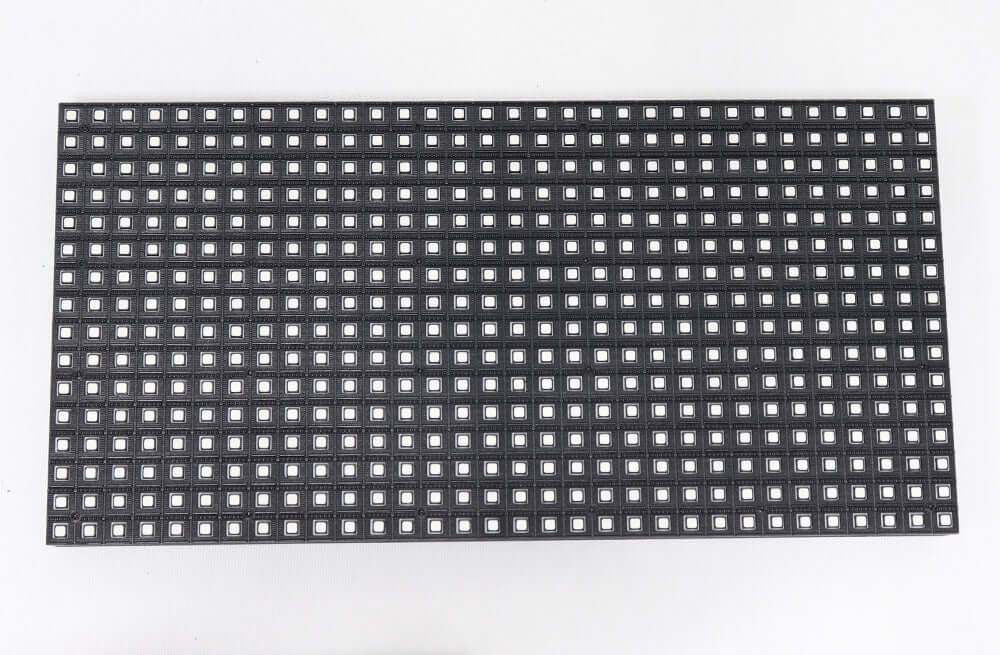

P8 Outdoor LED Module, 256 × 128 mm, 1/4 Scan SMD3535
$ 10.20
This 256 × 128 mm outdoor module uses Kinglight SMD3535 LEDs on an 8 mm pitch. It delivers at least 6500 cd/m² and has a listed maximum power consumption of 25 W.
9994 in stock
For an outdoor sign built from this size of P8 module, each board contributes 32 pixel columns and 16 rows. Specify the 1/4-duty version when planning the drive configuration. The electrical and optical figures below apply to the listed variant.
Technical specifications
LED Lamp Specification | ||||||
Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
Red | SMD3535 | 800-1100mcd | 120 | 620-625nm | 25℃,20mA | |
Green | 1600-2250mcd | 120 | 515-530nm | 25℃,20mA | ||
Blue | 350-500mcd | 120 | 465-475nm | 25℃,20mA | ||
Module Parameter | ||||||
Pixel Pitch | 8mm | |||||
Pixel configuration | SMD3535 | |||||
Density | 15,625 pixels/㎡(real pixel) | |||||
Module Resolution | 32pixel(L) * 16pixel(H) | |||||
Module Dimension | 256mm(L) * 128mm(H) * 25mm(D) | |||||
Driving Mode | Constant current, 1/4 duty | |||||
Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
Optical Ratings | ||||||
Brightness | ≥6,500 cd/㎡ | |||||
Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
Best Viewing Distance | ≥8m | |||||
Gray Grade | 16,384 levels for each color | |||||
Display Color | 4.4 Trillion Colors | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Max. Power Consumption | 25 W | |||||
Control System | ||||||
Correction Scale Level | 12bits | |||||
Frame Frequency | ≥60Hz | |||||
Screen Refresh Frequency | ≥1,920Hz | |||||
Gamma Correction | -5.0～5.0 | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | -20～+60 ºC | |||||
Stored Temperature | -30～+70 ºC | |||||
Working Humidity | 10%～90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Working Time | ≥72 hours | |||||
Protection Grade | IP65 | |||||
Out of Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Is this the 32 × 16 or the 40 × 20 P8 board?
This 256 × 128 mm board is 32 × 16 pixels with 1/4-duty drive. The 320 × 160 mm P8 board has a different footprint and pixel matrix.
How bright is this module for outdoor signage?
The listed minimum is 6500 cd/m². The optical ratings give a viewing angle of 120° horizontally and vertically.
Where can I find the P8 256 × 128 mm spec sheet?
The PDF under Product documentation gives the specifications for the 256 × 128 mm SMD3535 module. Use that footprint and LED package to identify the sheet.
| Weight | 1.3 kg |
|---|
