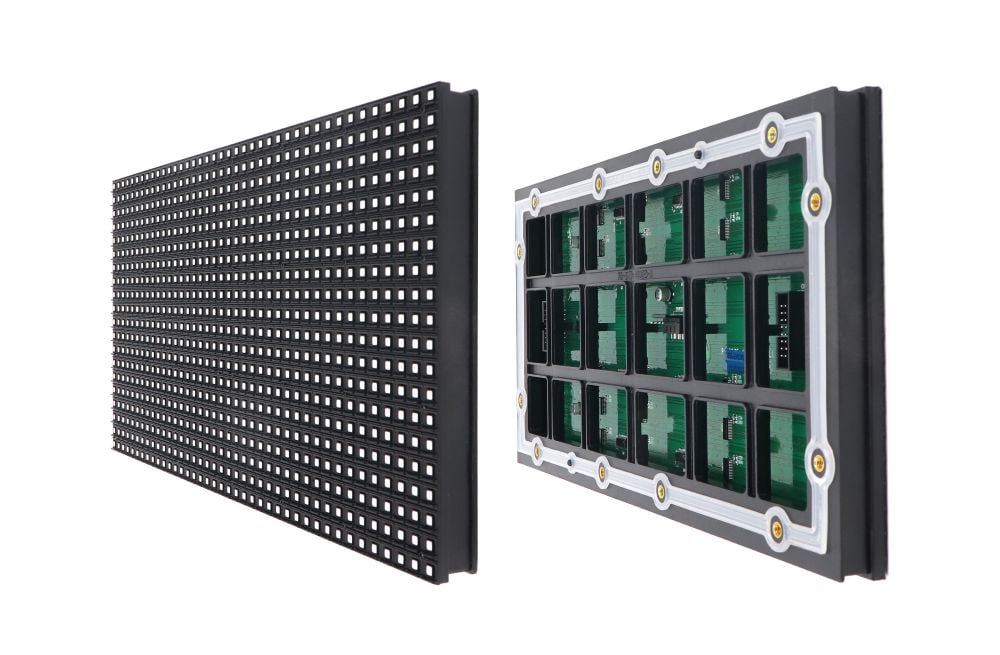

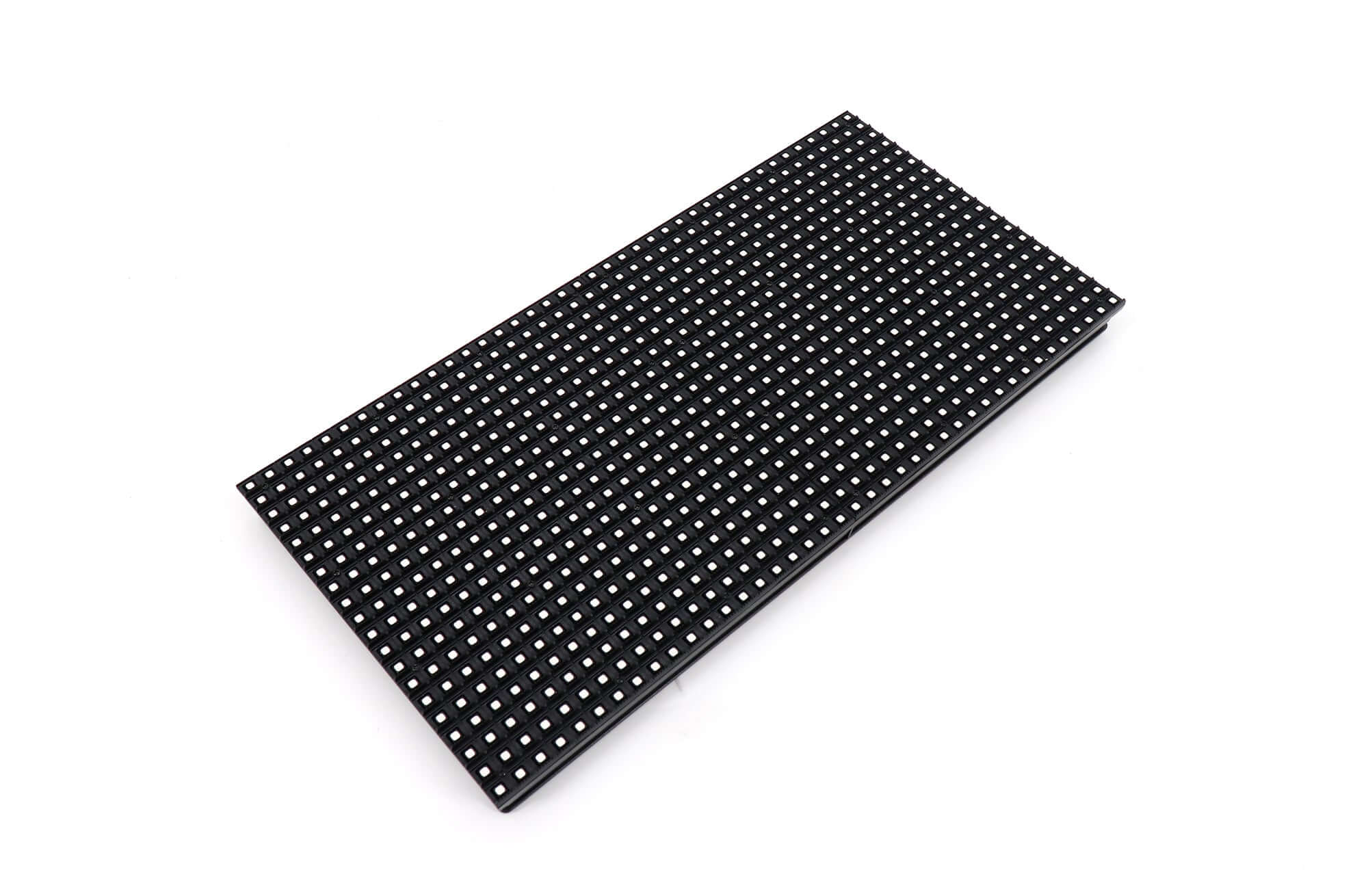

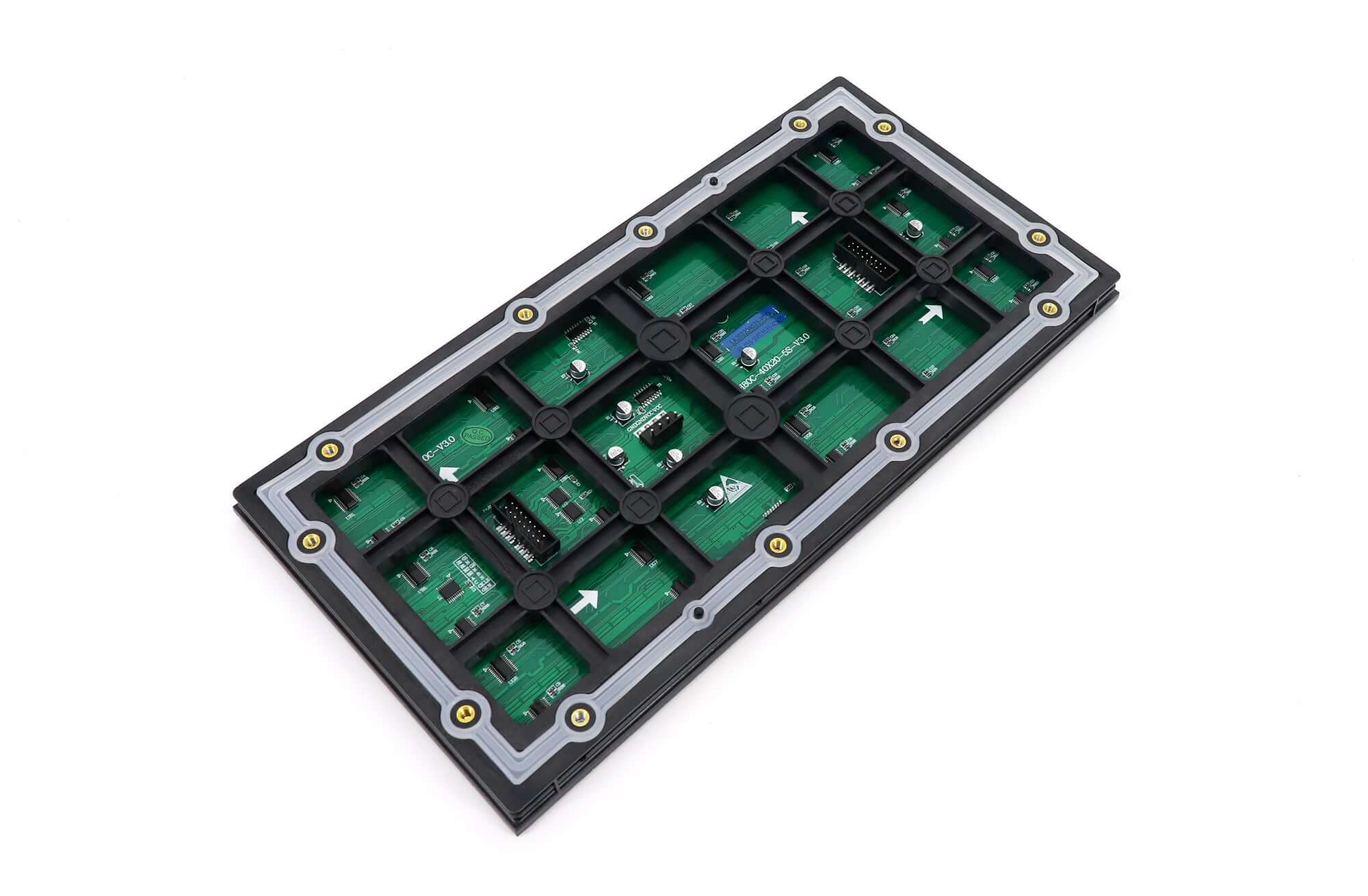

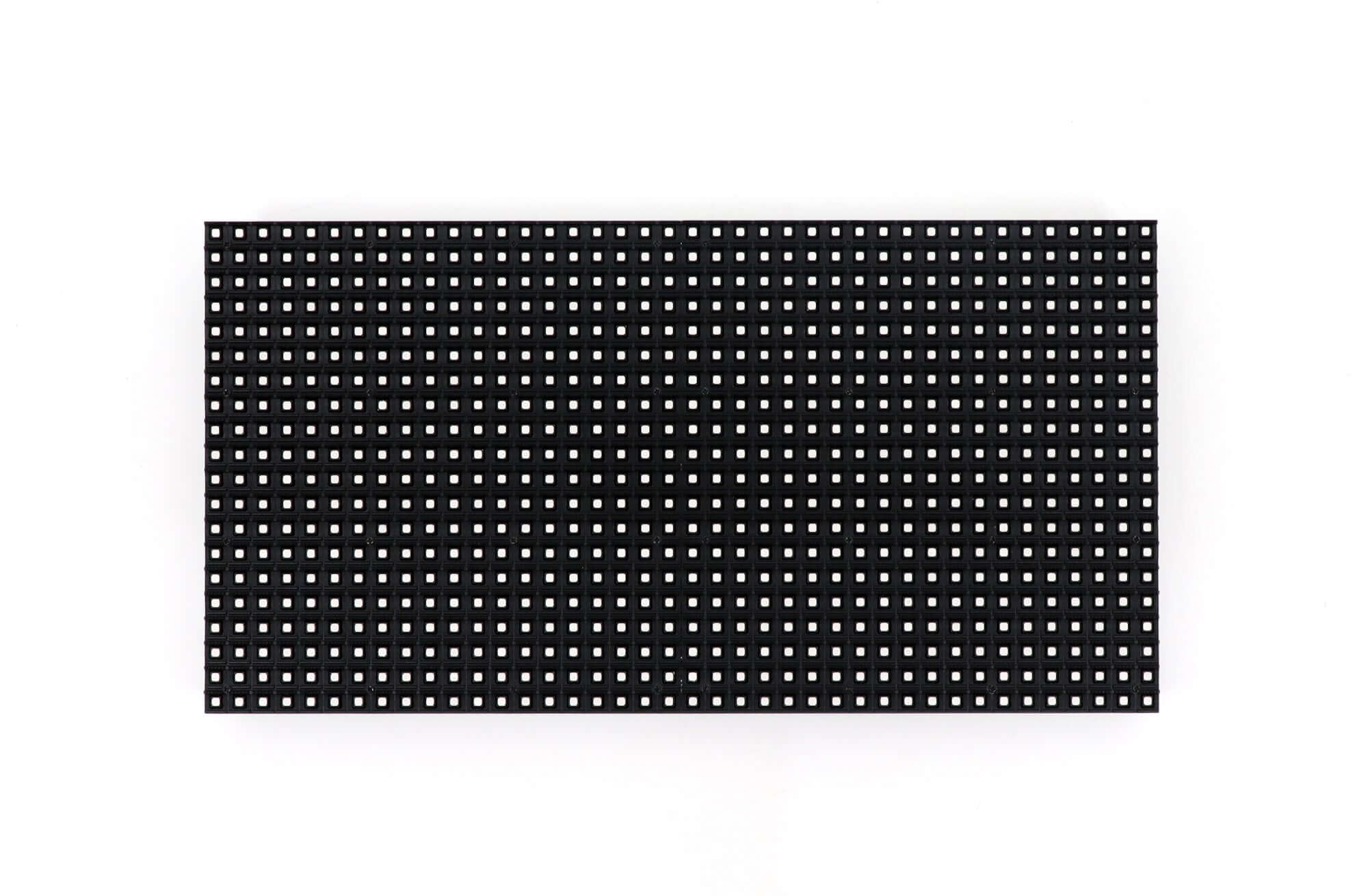

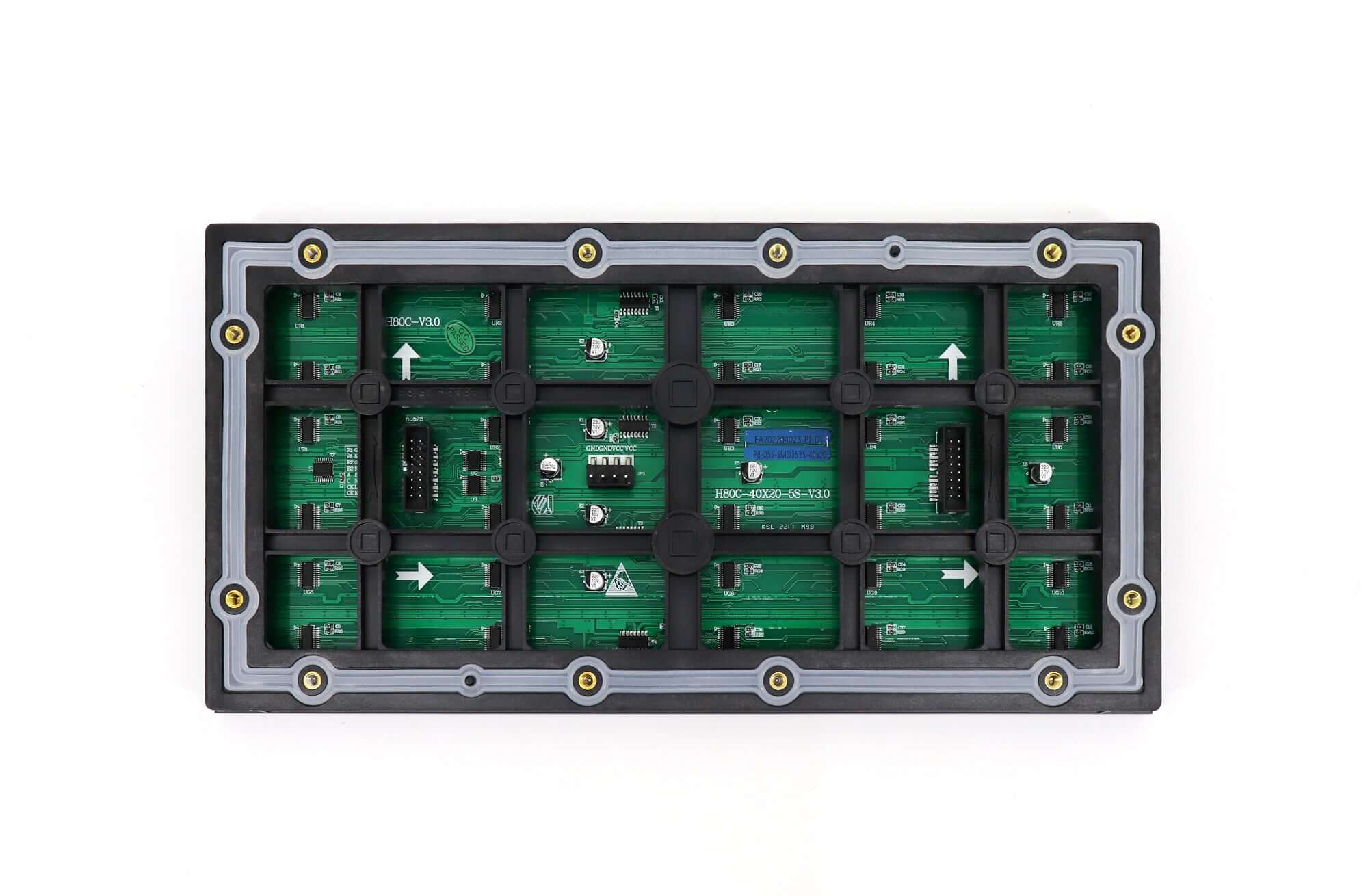

P8 Outdoor LED Module, 320 × 160 mm, SMD3535
$ 14.00
A 320 × 160 mm P8 outdoor LED module with SMD3535 LEDs and 40 × 20 pixels. The module is 25 mm deep and uses a constant-current 1/5-duty drive.
9860 in stock
For a new outdoor display, distinguish pixel pitch from module size: P8 means an 8 mm pitch, while this board measures 320 × 160 mm. Its rated brightness is at least 6500 cd/m². The controller specifications below describe the display system; they are not a list of sockets on the module.
Technical specifications
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD3535 | 800-1100mcd | 120° | 620-625nm | 25℃,20mA | |
| Green | 1600-2250mcd | 120° | 515-530nm | 25℃,20mA | ||
| Blue | 350-500mcd | 120° | 465-475nm | 25℃,20mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 8mm | |||||
|---|---|---|---|---|---|---|
| Pixel Configuration | SMD3535 | |||||
| Density | 15,625 pixels/㎡ | |||||
| Module Resolution | 40pixel(L) * 20pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
| Driving Mode | Constant current, 1/5 duty | |||||
| Module Mask | Pure black mask—high contrast screen | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥6500 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥8m | |||||
| Gray Grade | 14 bit | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 30W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
What does the P8 module price cover?
It covers the module, the cable between adjacent modules and the cable to the power supply. Destination tariffs and duties are separate.
How many pixels are on the 320 × 160 mm P8 module?
The matrix is 40 pixels wide by 20 high. This is the resolution of one module, not of the assembled display.
What power figure should I use for this board?
The specification lists 30 W maximum per module. This is a module rating, not the consumption of a complete cabinet.
Can I use it to replace one P8 tile on an old screen?
LED-Mall does not supply this module as a spare for existing older displays. Matching the 8 mm pitch alone does not match the board, drive or production batch.
| Weight | 2 kg |
|---|
