P4 Indoor Flexible LED Module, 240 × 120 mm, SMD2020
$ 9.20
P4 indoor full-color flexible LED module.
- 240 × 120 mm module format
- 60 × 30 pixel resolution
- SMD2020 LEDs
- Listed constant-current 1/15-duty driving
Out of stock
P4 flexible LED module overview
The P4 flexible LED module is listed for indoor full-color displays. Its 240 × 120 mm format, 60 × 30 pixel resolution and SMD2020 LEDs are summarized below, followed by the original optical, control-system and reliability parameters. Confirm the supplied version and cabinet layout before ordering.
Module Parameter
| Item | Published specification |
|---|---|
| Pixel Pitch | 4mm |
| Pixel Configuration | SMD2020 |
| Density | 62,500 pixels/㎡ |
| Module Resolution | 60pixel(L) * 30pixel(H) |
| Module Dimension | 240mm(L) * 120mm(H) * 8.5mm(D) |
| Driving Mode | Constant current, 1/15 duty |
| Module Mask | Pure black mask—high contrast screen |
Optical Ratings
| Item | Published specification |
|---|---|
| Brightness | ≥700 cd/㎡ |
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) |
| Best Viewing Distance | ≥4m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Max. Power Consumption | 9 W |
Control System
| Item | Published specification |
|---|---|
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1,920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
Reliability
| Item | Published specification |
|---|---|
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP31 |
| Out-of-Control Pixel Rate | ≤0.01% |
Prepare the cabinet layout and screen pixel map
Use 240 × 120 mm for the physical module layout and 60 × 30 pixels for the screen pixel map. Confirm the fixing points, connectors and service access against the exact module version before finalizing the cabinet drawing.
The listed module driving mode is constant current with 1/15 duty. Treat the control-system input formats, frame frequency and refresh frequency as separate configuration details, and confirm the controller and receiving hardware required for your source.

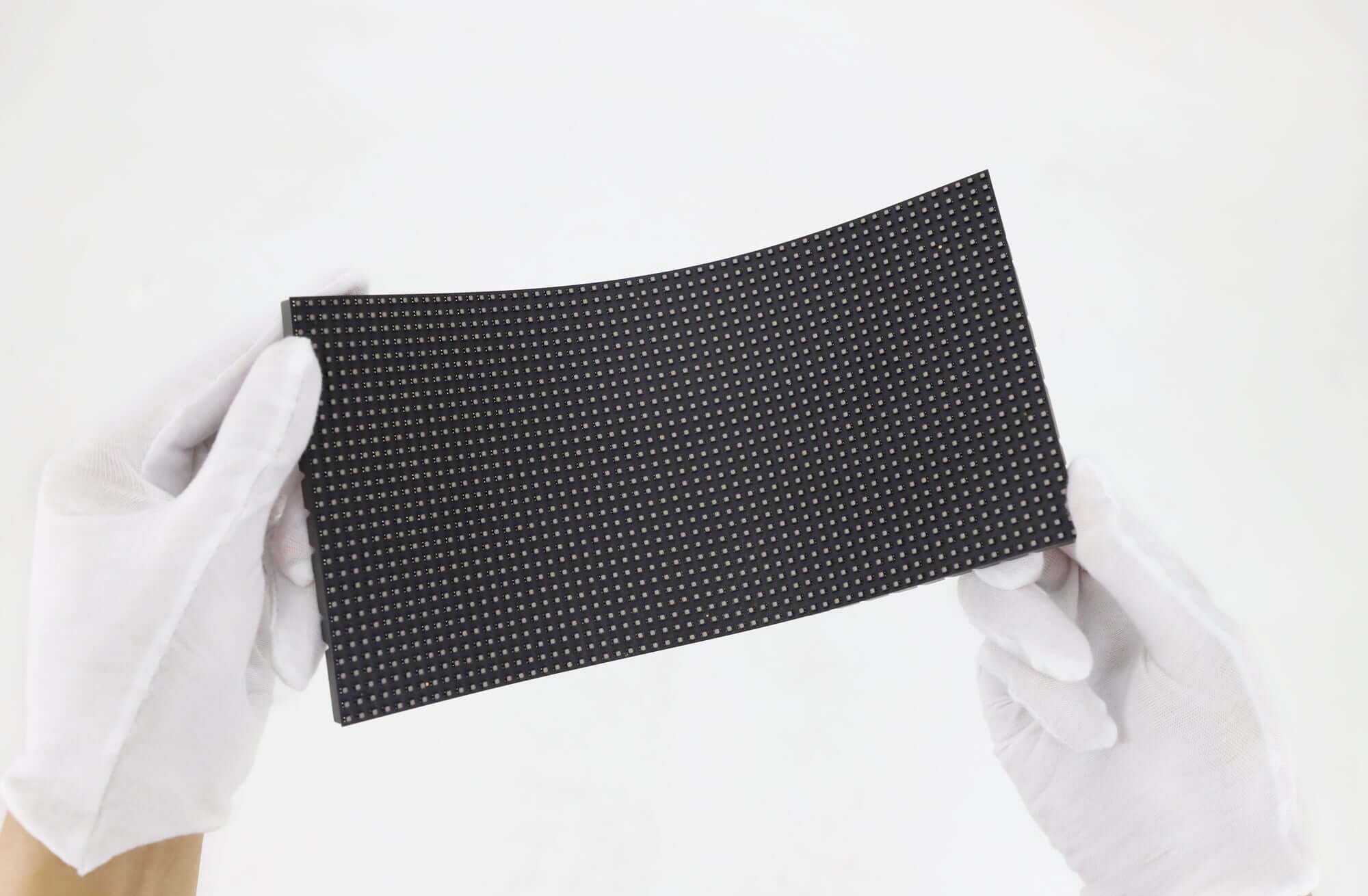

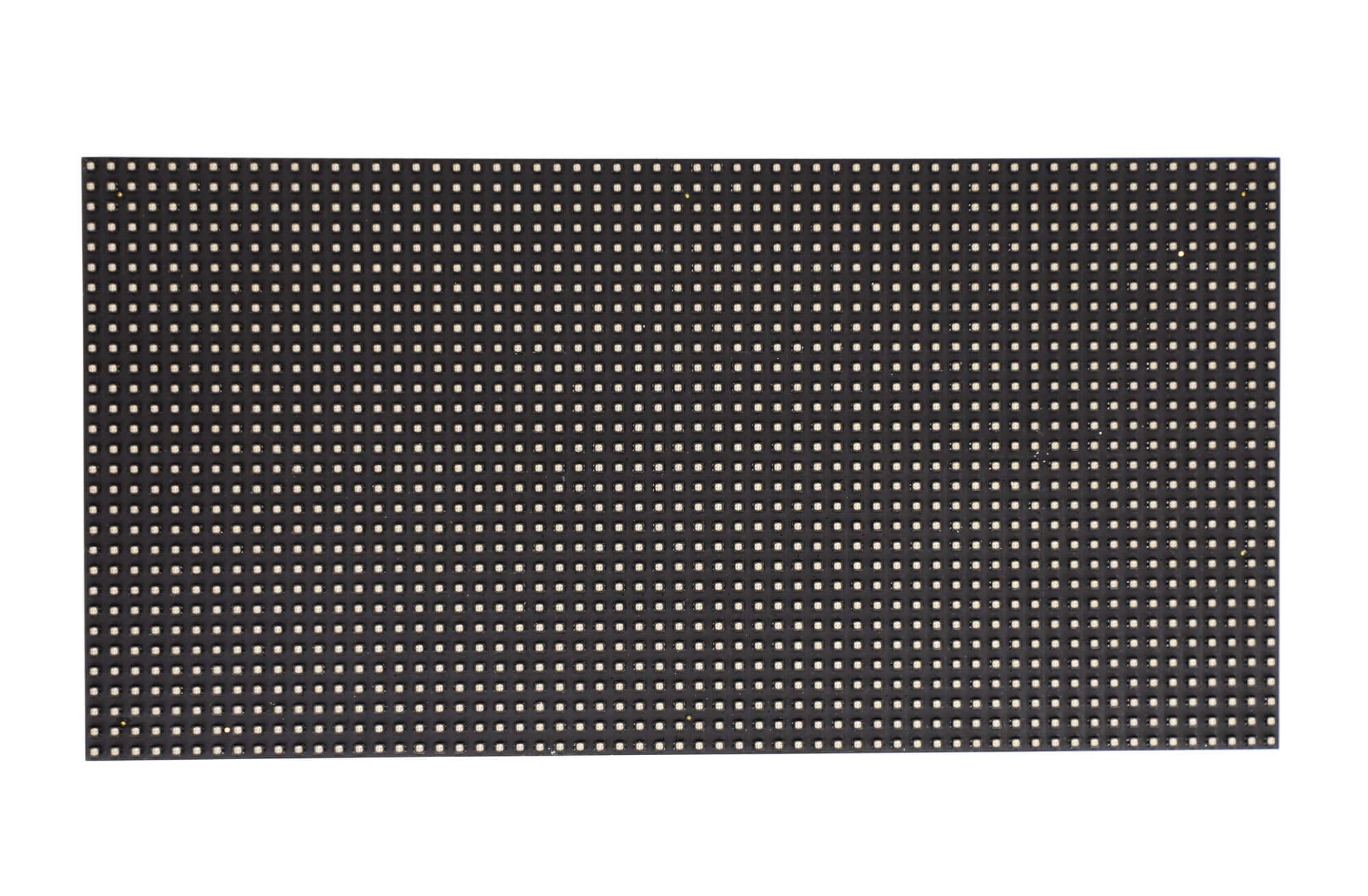

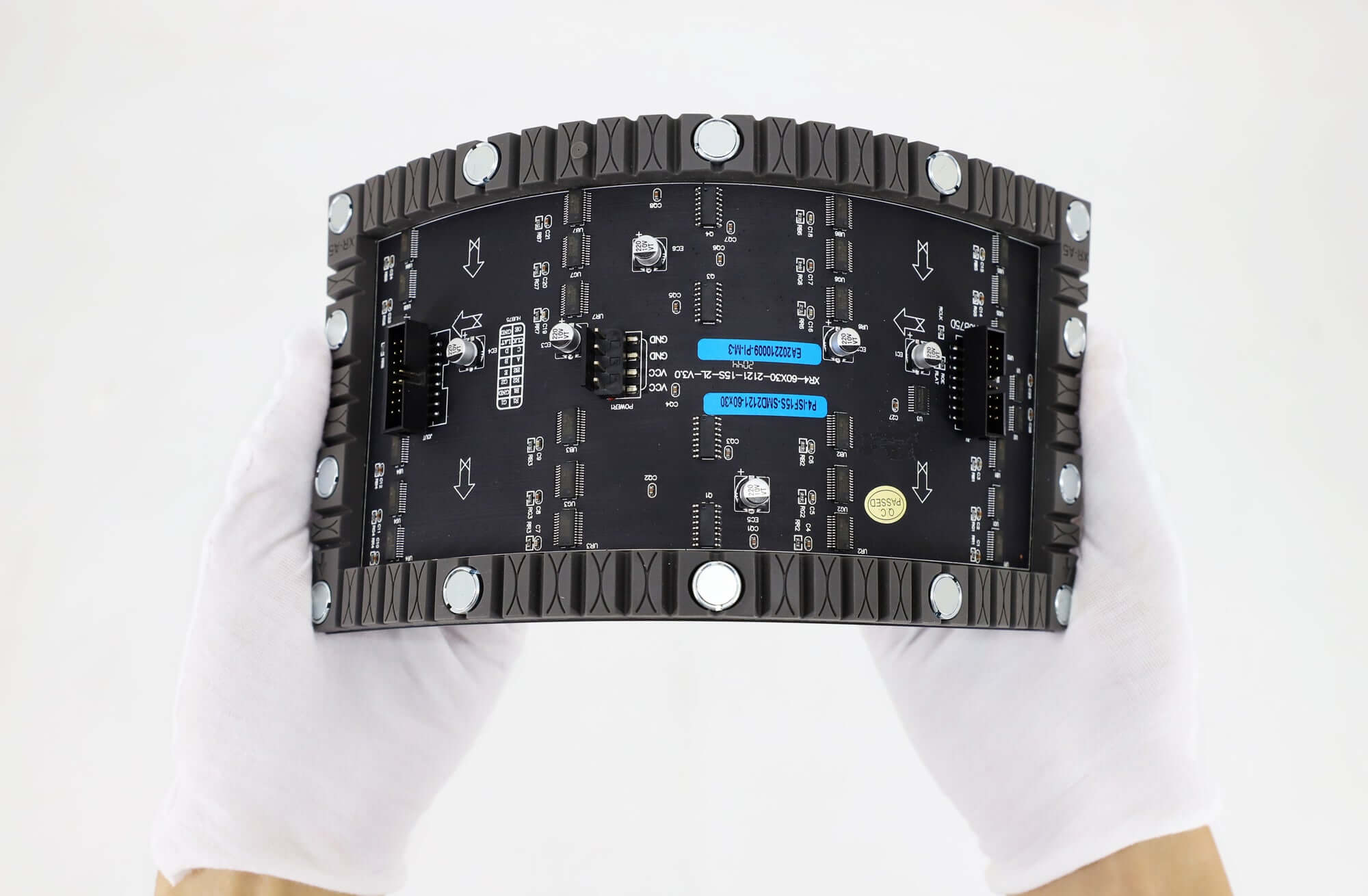

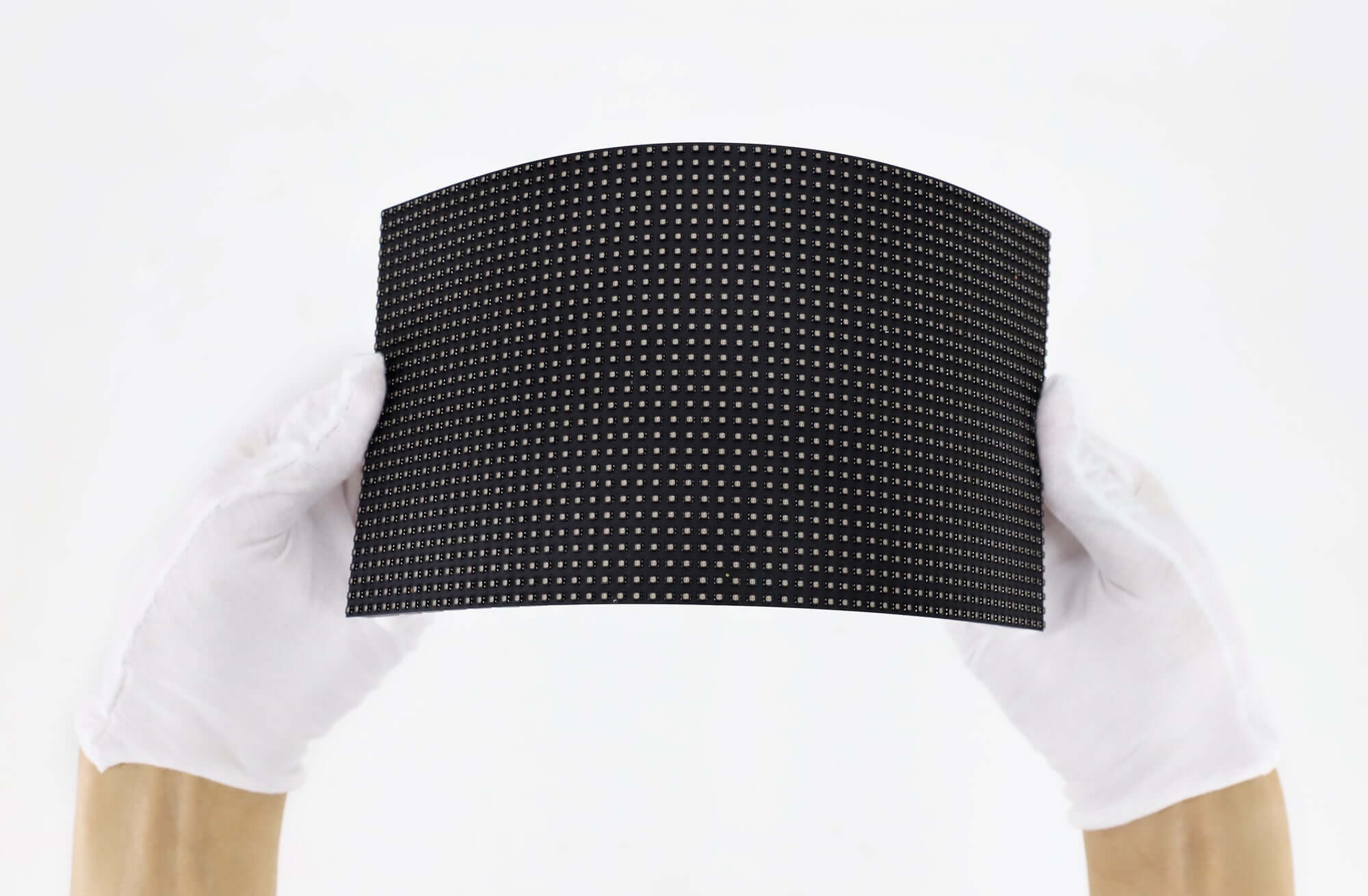

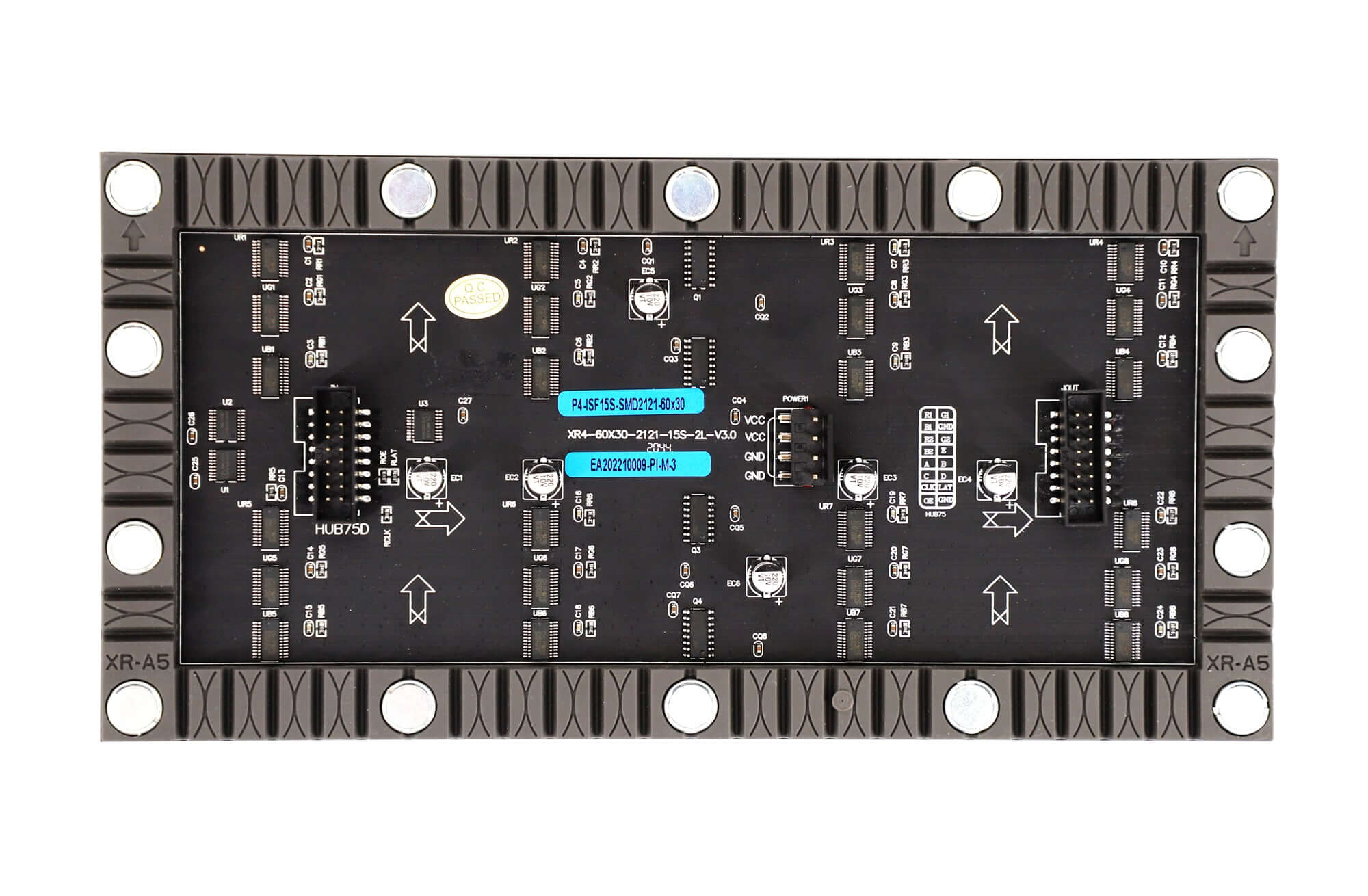

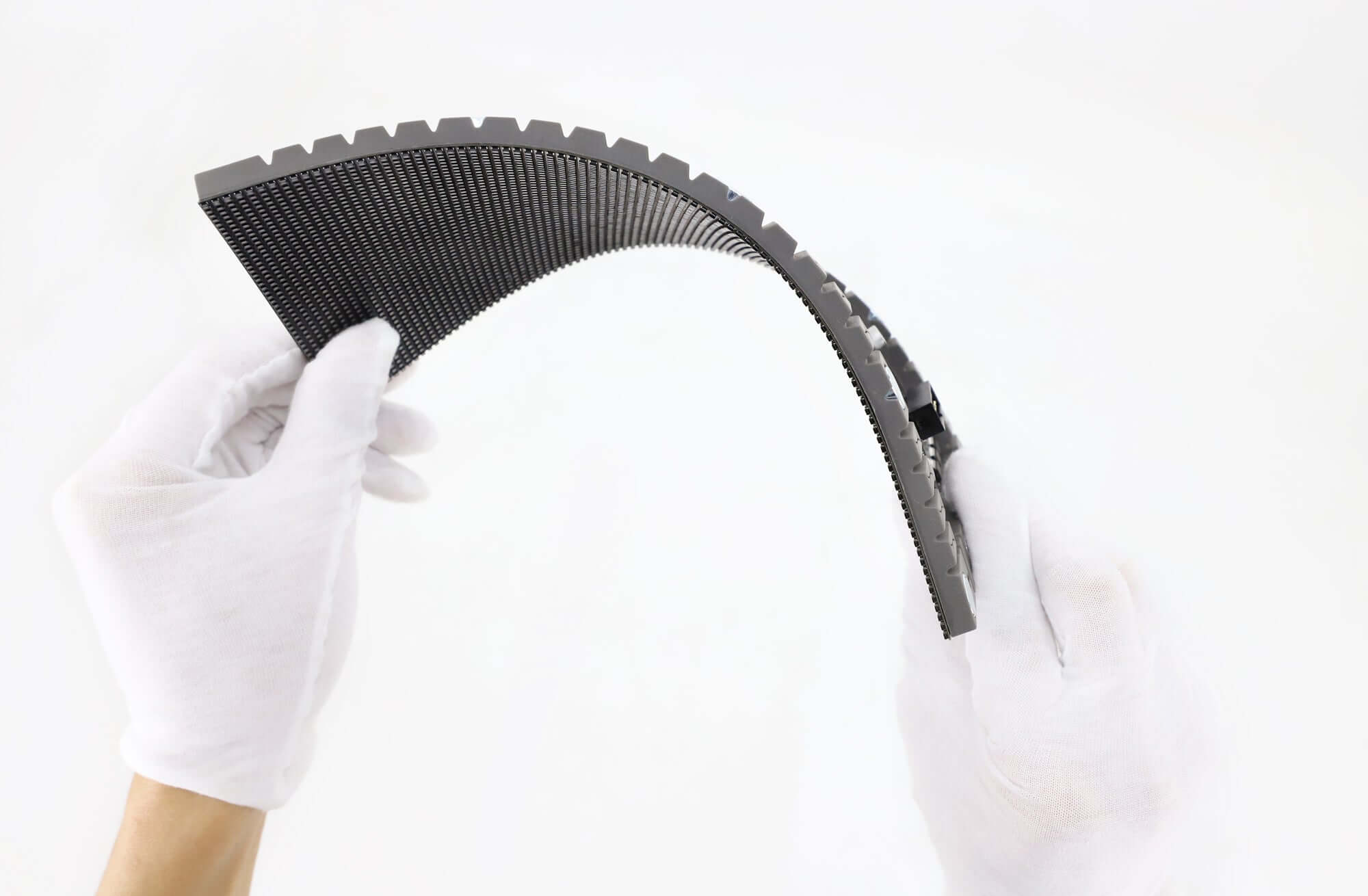

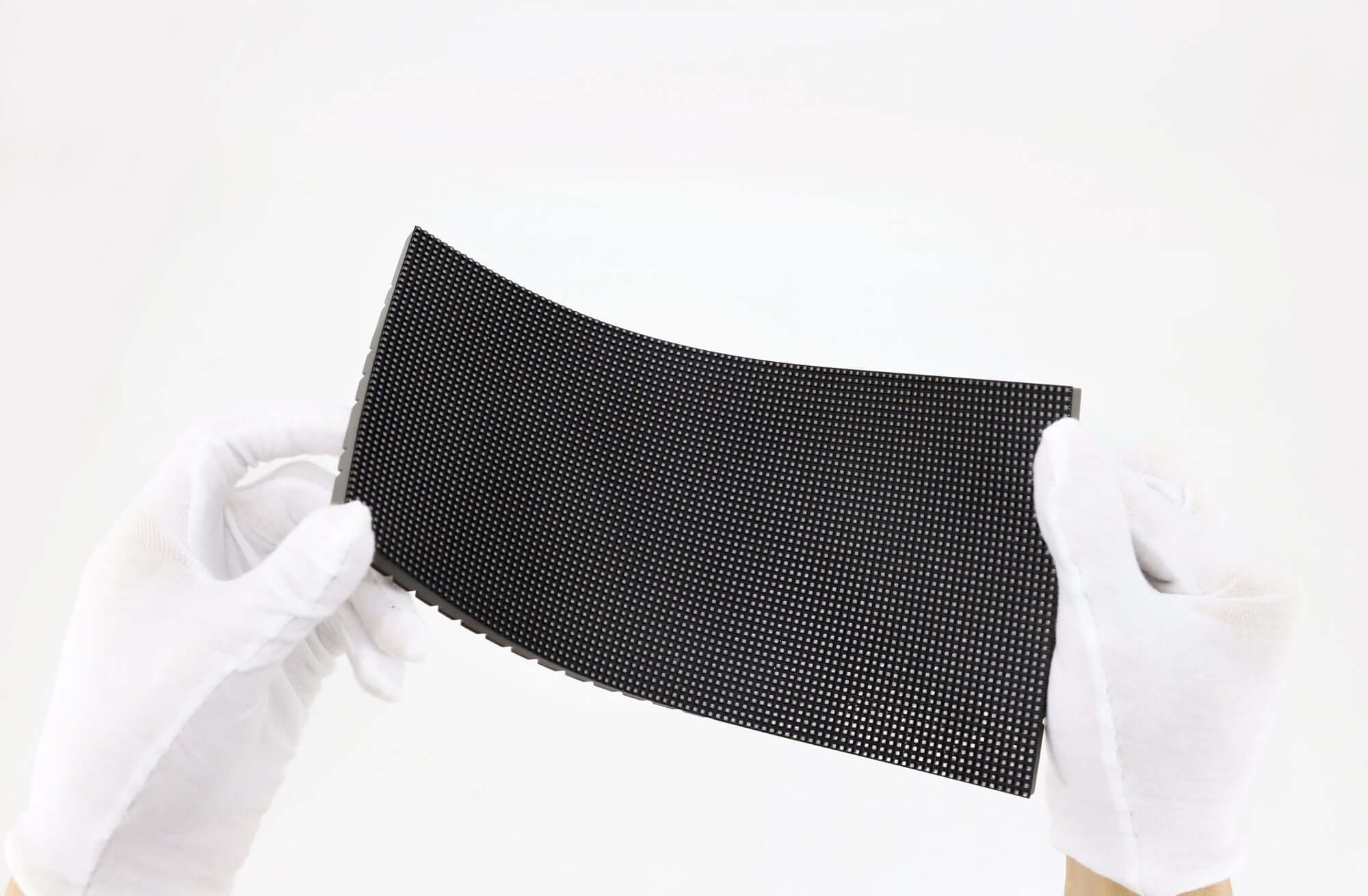

Product images and specification
Download the linked P4 module specification
Frequently asked questions
Q1How should the physical layout and pixel map be planned?
Use the listed 240 × 120 mm module dimensions for the physical layout and 60 × 30 pixel resolution for the pixel map. Confirm the cabinet drawing and connectors for the supplied module version.
Q2Are frame frequency and refresh frequency the same parameter?
The listing gives frame frequency as ≥60Hz and refresh frequency as ≥1,920Hz. Keep these separate when checking the complete display configuration.
Q3Can this module replace an old display’s existing modules?
The listing excludes using these modules as spare parts for an existing old display and excludes technical support or services for that replacement use.
Confirm your P4 module order
Send your module quantity, cabinet drawing and configuration requirements through LED Mall’s contact page. Review the flexible LED module category and ordering instructions before finalizing the order.
