P4 Indoor Flexible LED Module, 256 × 128 mm, SMD2020
$ 10.90

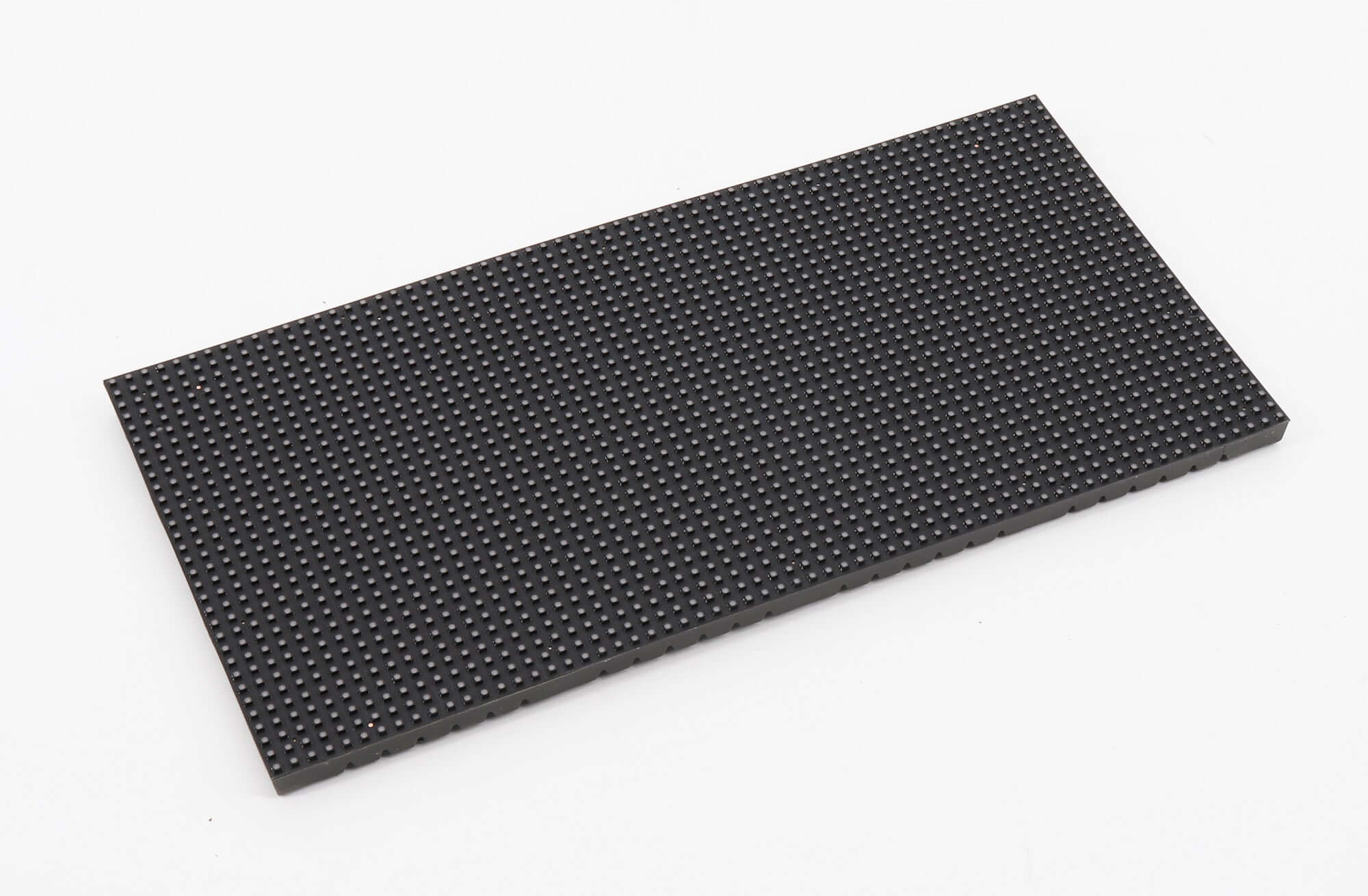

Each 256 × 128 mm module has 64 × 32 pixels on a 4 mm pitch. It uses SMD2020 LEDs.
10000 in stock

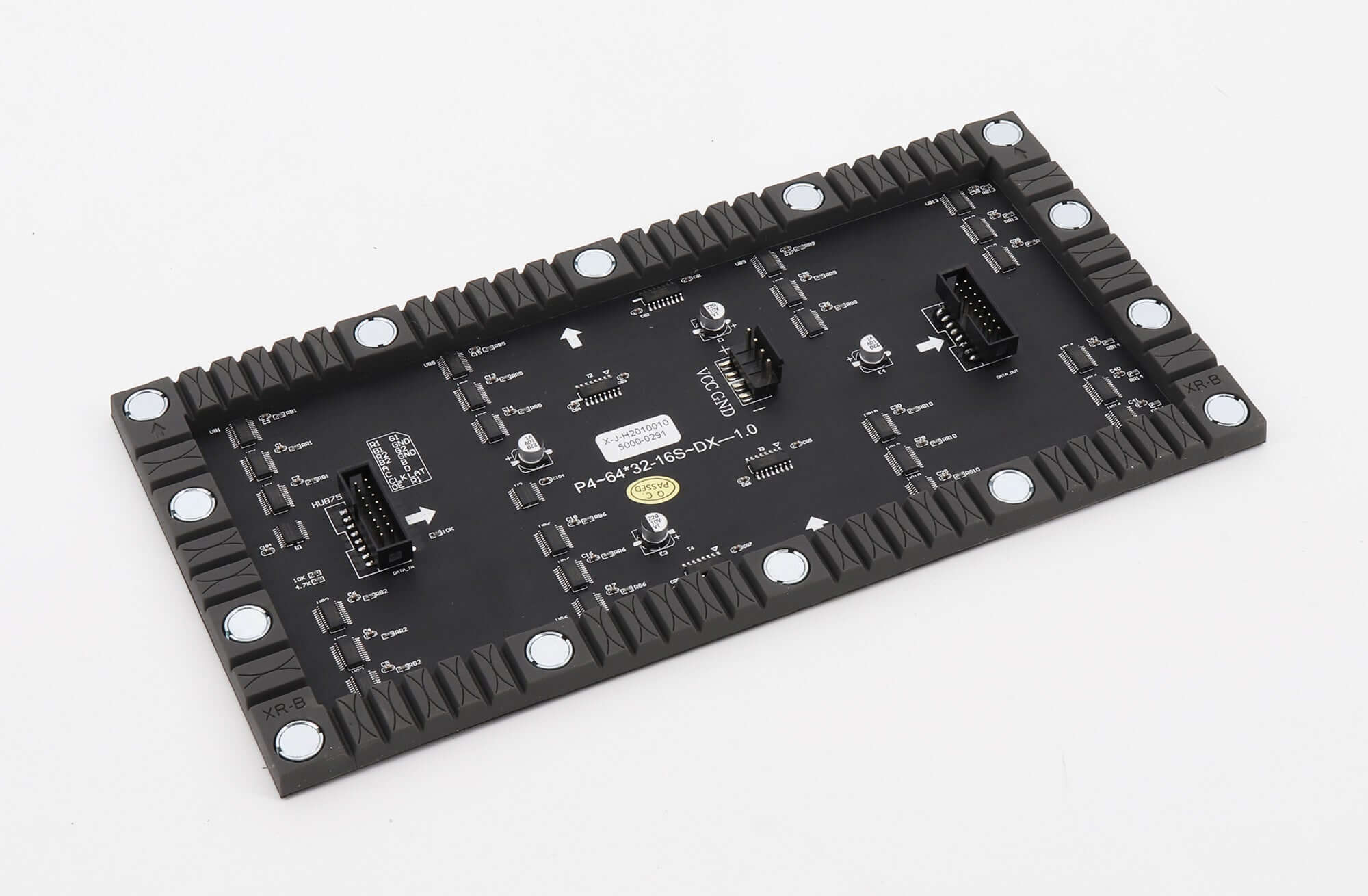

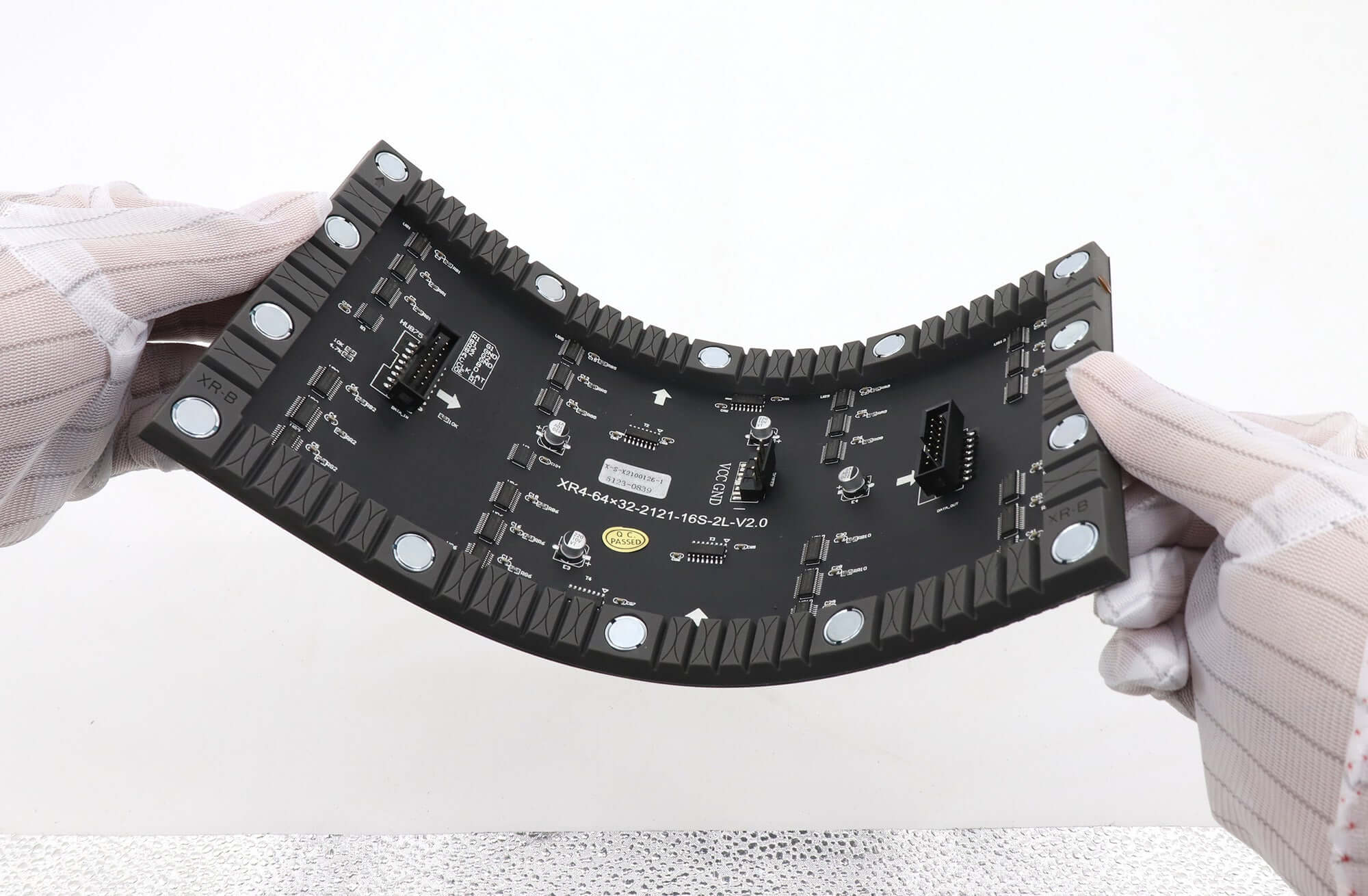

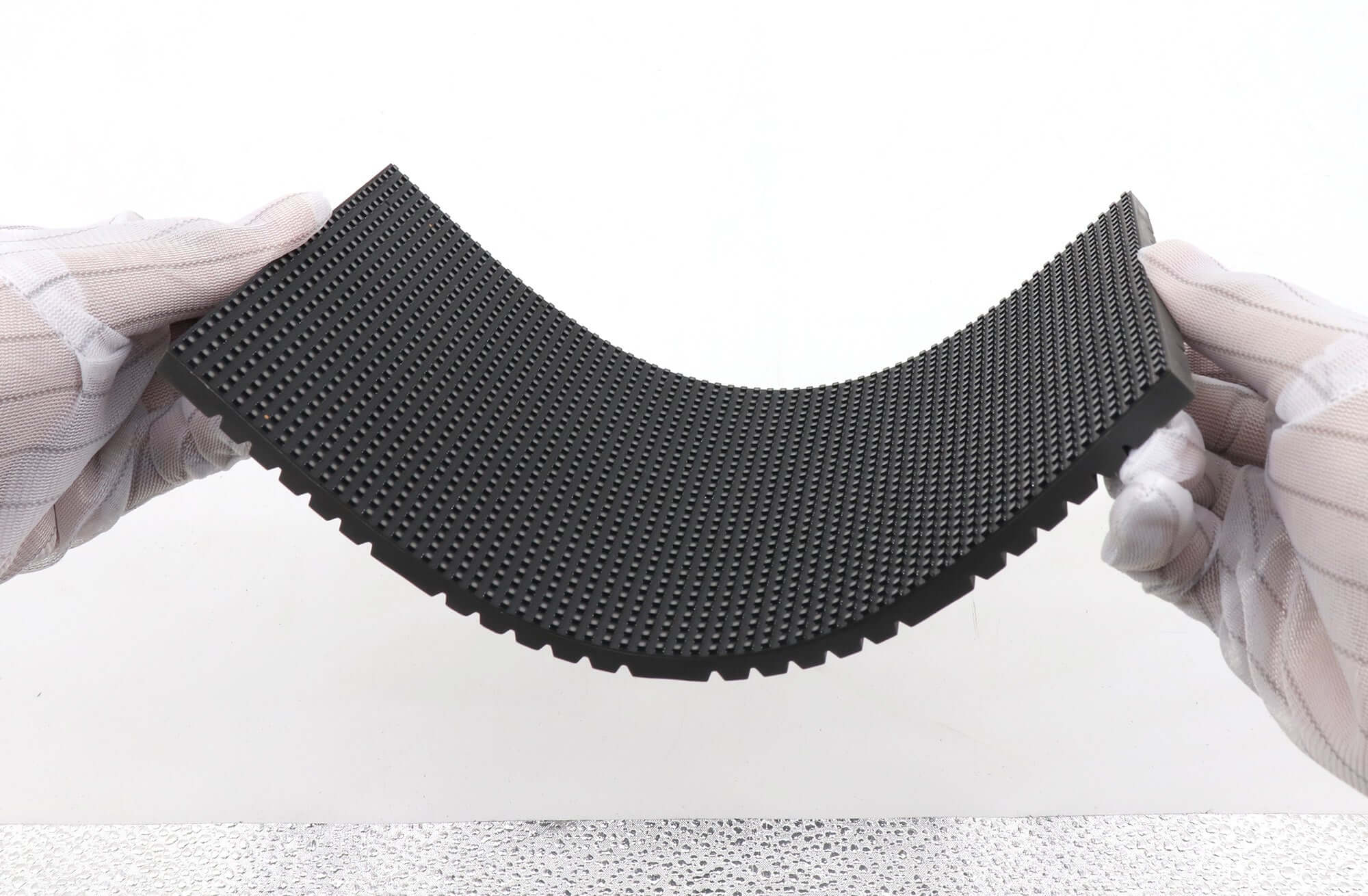

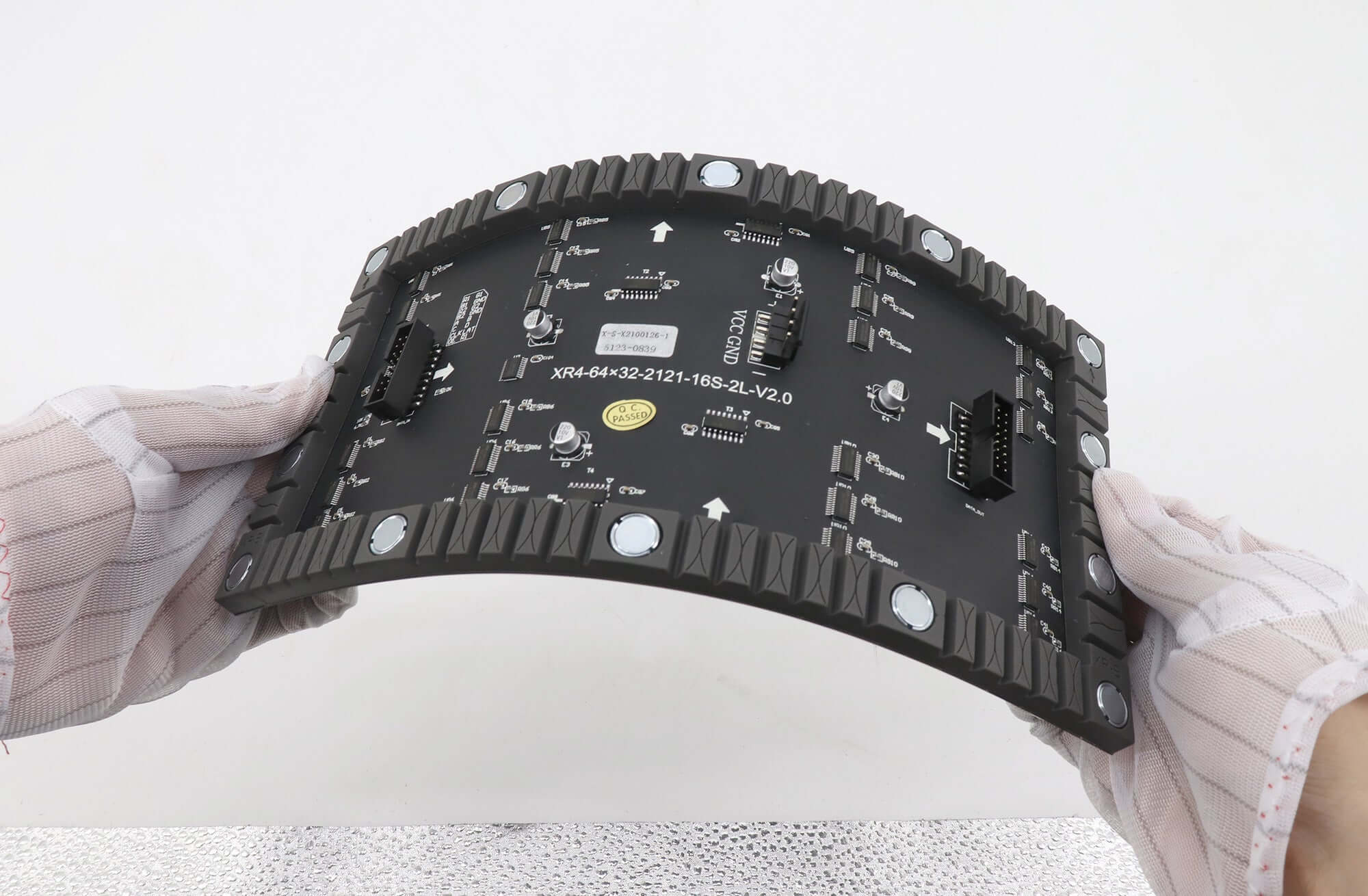

The flexible board is intended for curved display surfaces. Check the intended curve and mounting arrangement against the module documentation. The listed drive mode for this board is Constant current, 1/16 duty.
Technical specifications
| Module Parameter | |
| Pixel Pitch | 4mm |
|---|---|
| Pixel Configuration | SMD2020 |
| Density | 62,500 pixels/㎡ |
| Module Resolution | 64pixel(L) * 32pixel(H) |
| Module Dimension | 256mm(L) * 128mm(H) * 8.5mm(D) |
| Driving Mode | Constant current, 1/16 duty |
| Module Mask | Pure black mask—high contrast screen |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥1,000 cd/㎡ |
| Viewing Angle | 120°(Horizontal); 120°(Vertical) |
| Best Viewing Distance | ≥4m |
| Gray Grade | 16 bits |
| Display Color | 4.4 trillion colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Max. Power Consumption | 15 W |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1,920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable); |
| 20KM (Optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP31 |
| Out-of-Control Pixel Rate | ≤0.01% |
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Which scan mode does this board use?
The module table lists Constant current, 1/16 duty. Match that drive setting and the 64 × 32 pixel layout when preparing the receiver configuration.
How much power does one 256 × 128 mm board use?
The maximum power consumption is listed as 15 W per module. Use the figure for this board when planning the cabinet supply.
How do I check the fit for a curved display?
Use the 256 × 128 mm outline to check mounting space. Confirm that the planned bend and supports suit this module before you order the full screen.
What is the pixel resolution of one P4 module in this size?
The 256 × 128 mm board contains 64 × 32 pixels. Use this matrix when calculating the resolution of a multi-module screen.
| Weight | 1 kg |
|---|
