NovaStar TB6 Taurus LED Multimedia Player | 1.3M Pixels
$ 385.00
Taurus-series LED multimedia player with a 1.3 million pixel load, HDMI synchronous input and internal asynchronous playback. TB6 includes dual Wi-Fi, Ethernet port redundancy, 2 GB RAM and 8 GB storage. A compatible 4G module is optional.
10000 in stock
TB6 Taurus LED Multimedia Player
The NovaStar TB6 is a second-generation Taurus multimedia player for full-color LED displays. It supports up to 1.3 million pixels and combines local media playback with HDMI synchronous input. Retail signs, chain-store displays, advertising screens and commercial information displays can be managed from a PC, phone or tablet.
In asynchronous mode, TB6 uses its internal video source. In synchronous mode, it uses HDMI input and can fit content to the screen automatically. The specification supports manual or scheduled mode switching and an HDMI-priority setting.
| Parameter | Specification |
|---|---|
| Maximum LED load | 1,300,000 pixels |
| Maximum screen dimensions | 4096 pixels wide; 1920 pixels high, within the total load |
| LED port redundancy | 2 primary + 2 standby Ethernet ports |
| HDMI connections | HDMI 1.4 input and output; HDMI loop supported |
| Processor | Eight-core 1.5 GHz |
| RAM / storage | 2 GB / 8 GB |
| Media decoding | H.265 4K hardware decoding and 1080p video hardware decoding |
| Network | Gigabit Ethernet; Wi-Fi AP, Wi-Fi STA and AP+STA modes; optional 4G module |
| USB | USB 2.0; USB drive content import |

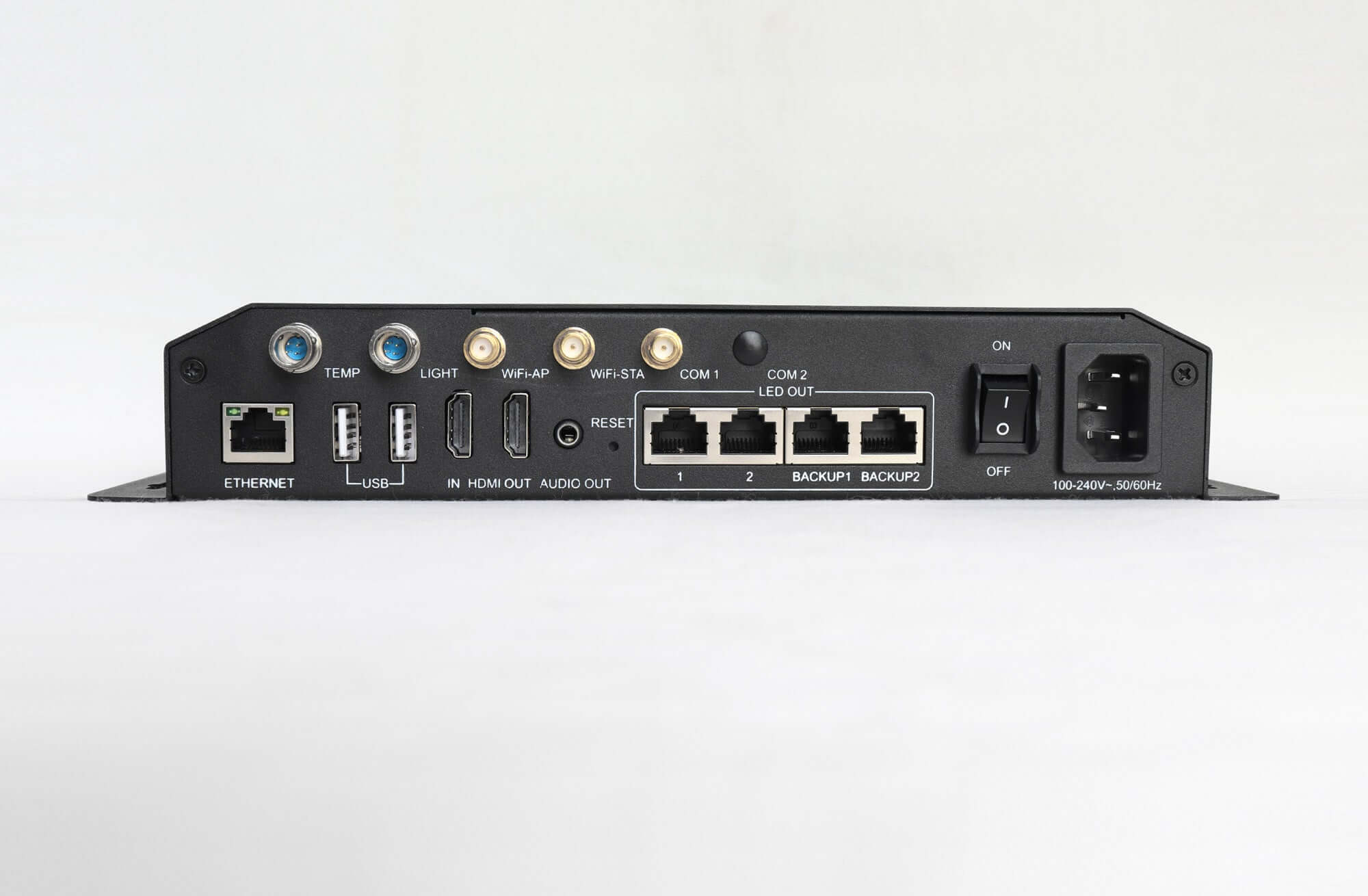

| Other connections | Stereo audio output; temperature and light sensor ports |
| Power supply / rated consumption | 100–240 V AC / 15 W |
| Dimensions / weight | 278.5 × 148.5 × 45.0 mm / 1352.1 g |
| Control software | ViPlex Handy for Android/iOS; ViPlex Express and NovaLCT for Windows |
| Third-party apps | Not supported in the linked specification |
Network Backup and Multi-Screen Playback
TB6 prioritizes wired Ethernet, then Wi-Fi STA, then 4G. Its separate LED Ethernet redundancy uses primary and standby connections to receiving cards. Purchase the 4G module according to the mobile network requirements of the deployment country or region.
For synchronized playback, different TB6 units must have synchronized time and play the same program. The specification recommends a time-synchronization module for applications with demanding synchronization requirements.
TB6 and TB60 Capacity Comparison
TB6 has a 1.3 million pixel load, 2 GB RAM and 8 GB storage in the linked specification. The TB60 has a 2.3 million pixel load, 1 GB RAM and 16 GB storage in its linked V1.0.0 specification. Confirm the required screen load and playback configuration when comparing these separate models.
Frequently Asked Questions
How many pixels can a NovaStar TB6 control?
TB6 supports up to 1.3 million pixels. The maximum width is 4096 pixels and maximum height is 1920 pixels, subject to that total pixel capacity.
Can TB6 switch between HDMI input and stored media?
Yes. HDMI input operates in synchronous mode, while the internal video source operates in asynchronous mode. Manual and scheduled switching and HDMI priority are supported.
Does the TB6 include a 4G module?
The specification instructs users to purchase and install a suitable 4G module if cellular access is required. Choose the module for the mobile network service requirements of the destination country or region.
How do I synchronize playback across several TB6 units?
Enable synchronous display, synchronize the device times and play the same program on each unit. For demanding synchronization requirements, the specification recommends a time-synchronization module.
How can I get a TB6 price quotation?
Contact sales with the required quantity, delivery destination and whether a compatible 4G or time-synchronization module is needed. This lets the quotation reflect the requested configuration.
Download Specification
NovaStar Taurus Series TB6 Multimedia Player Specification V1.2.0
