NovaStar TB50 LED Multimedia Player | 1.3M Pixels
NovaStar TB50 integrates media playback and LED sending for screens up to 1.3 million pixels. Two Ethernet outputs, HDMI input and internal playback support retail and commercial signage. Contact sales for specific pricing and optional 4G configuration.
TB50 Playback for Retail and Commercial LED Signs

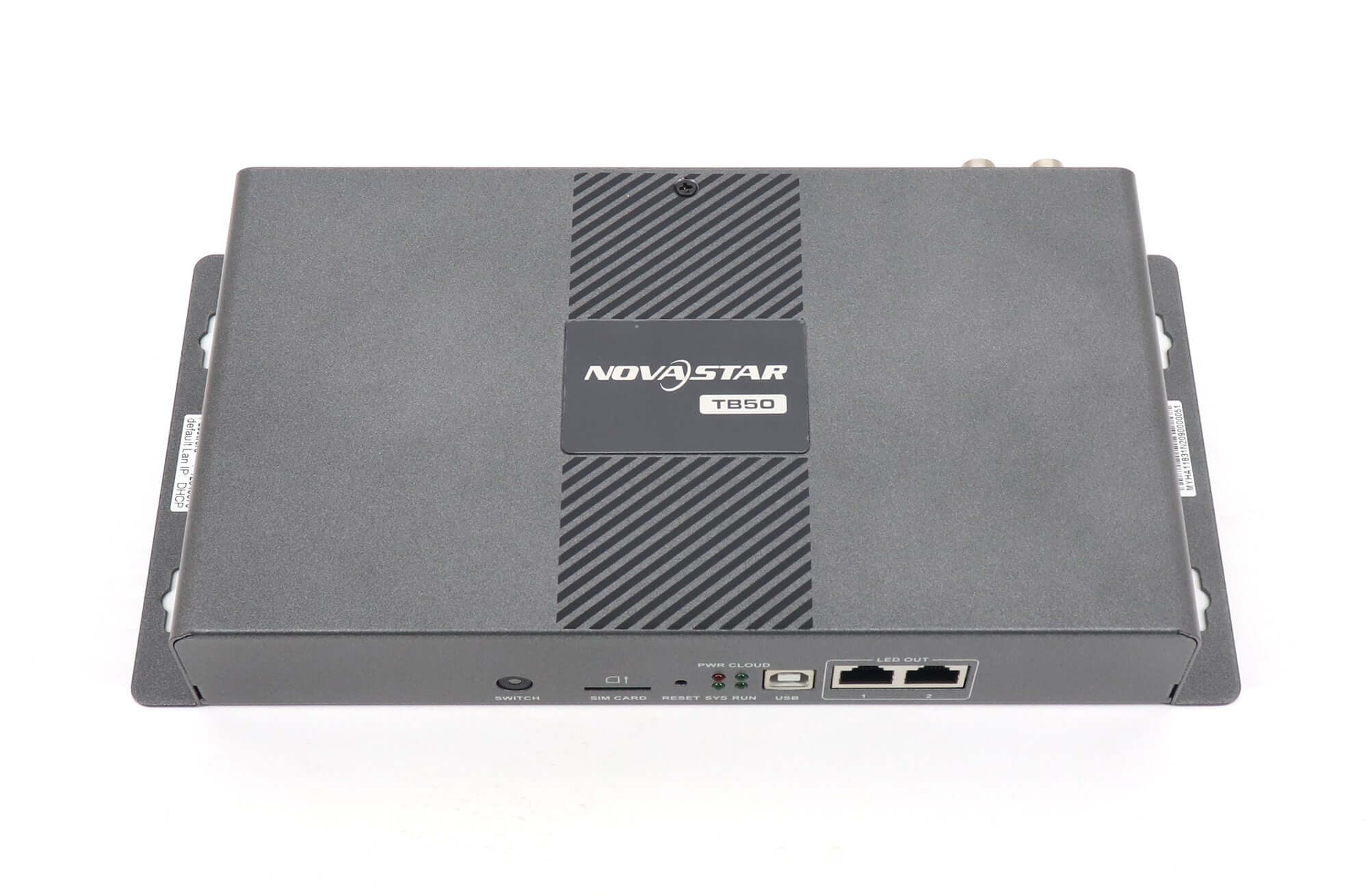

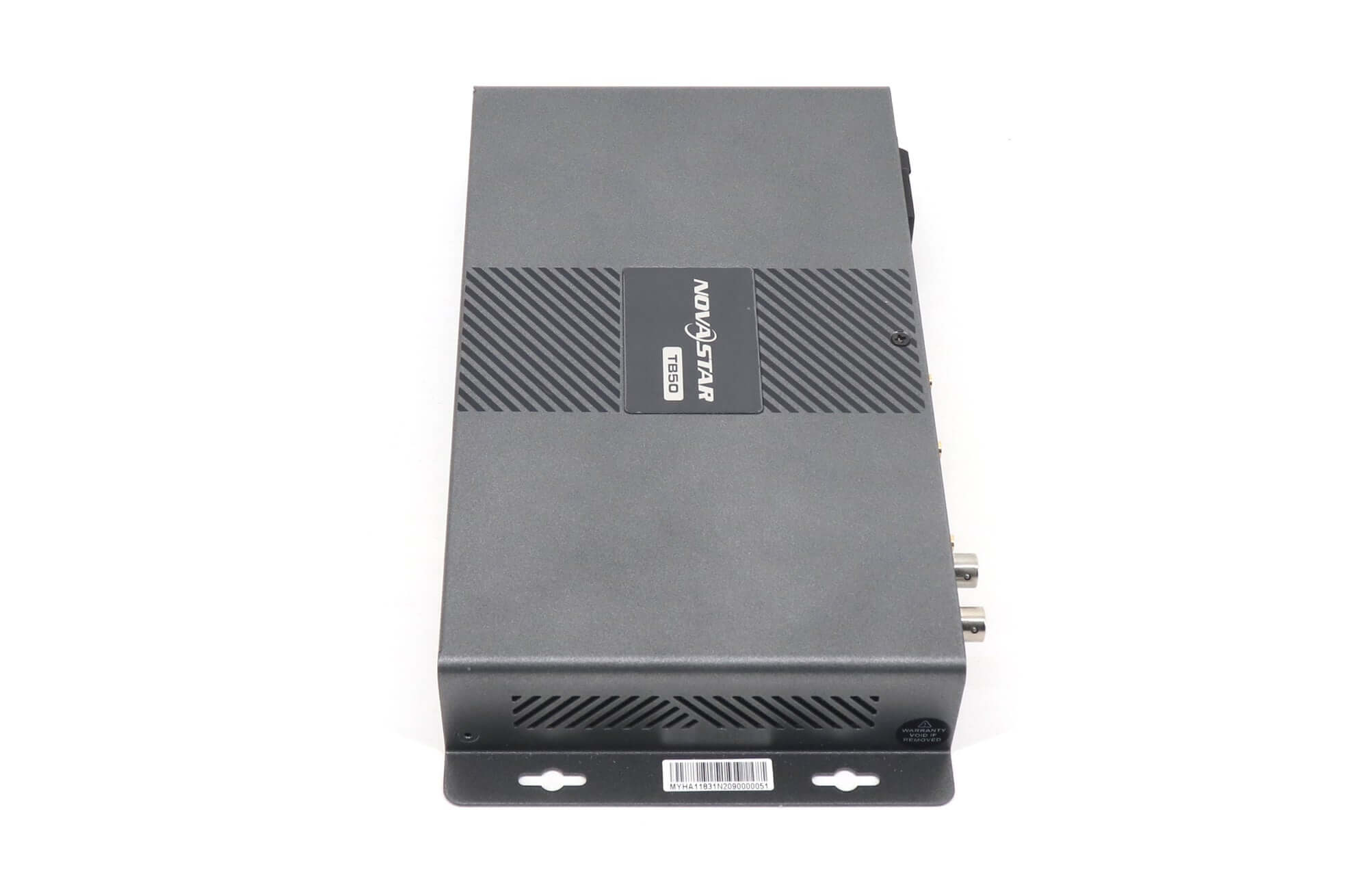

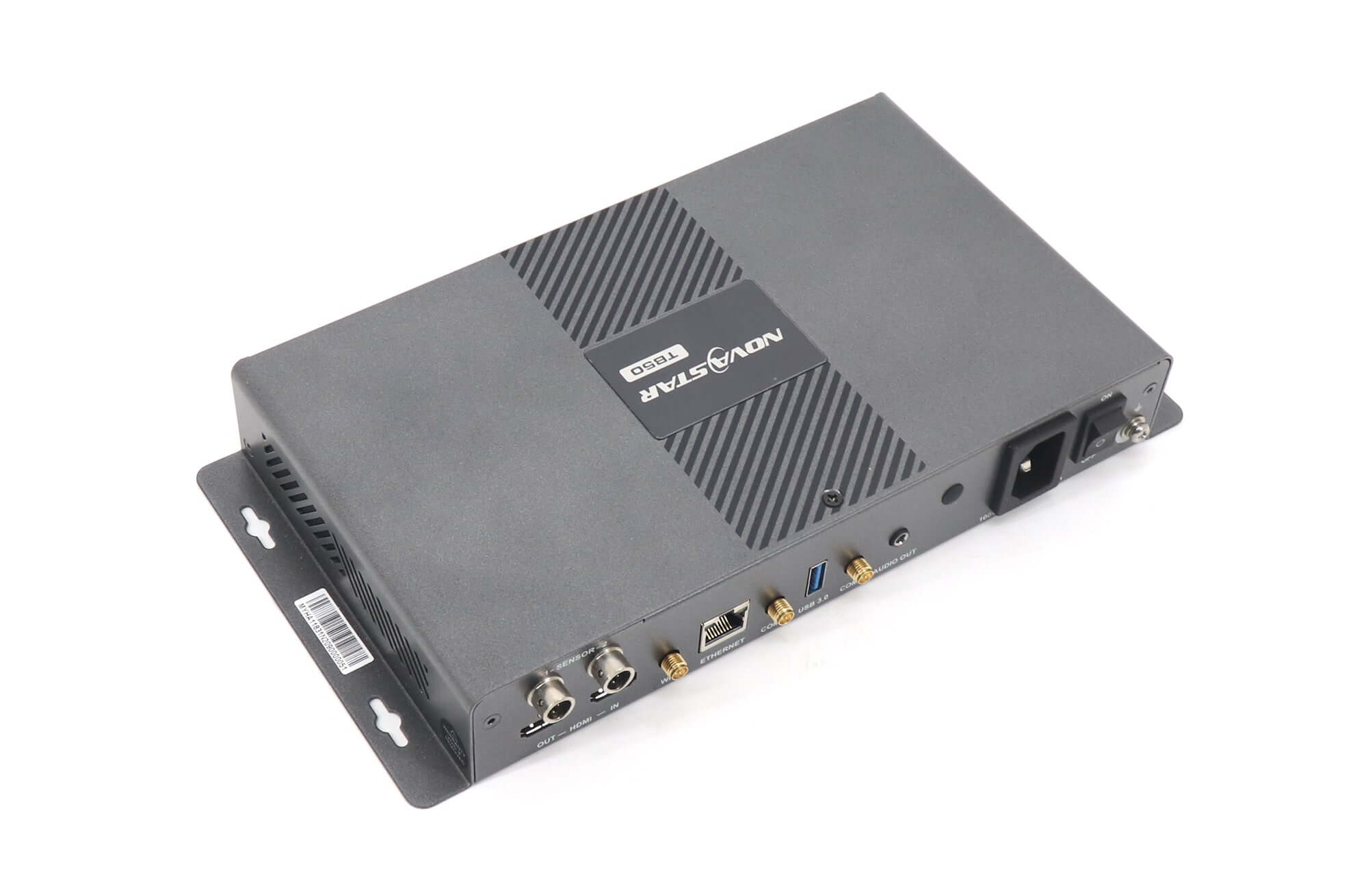

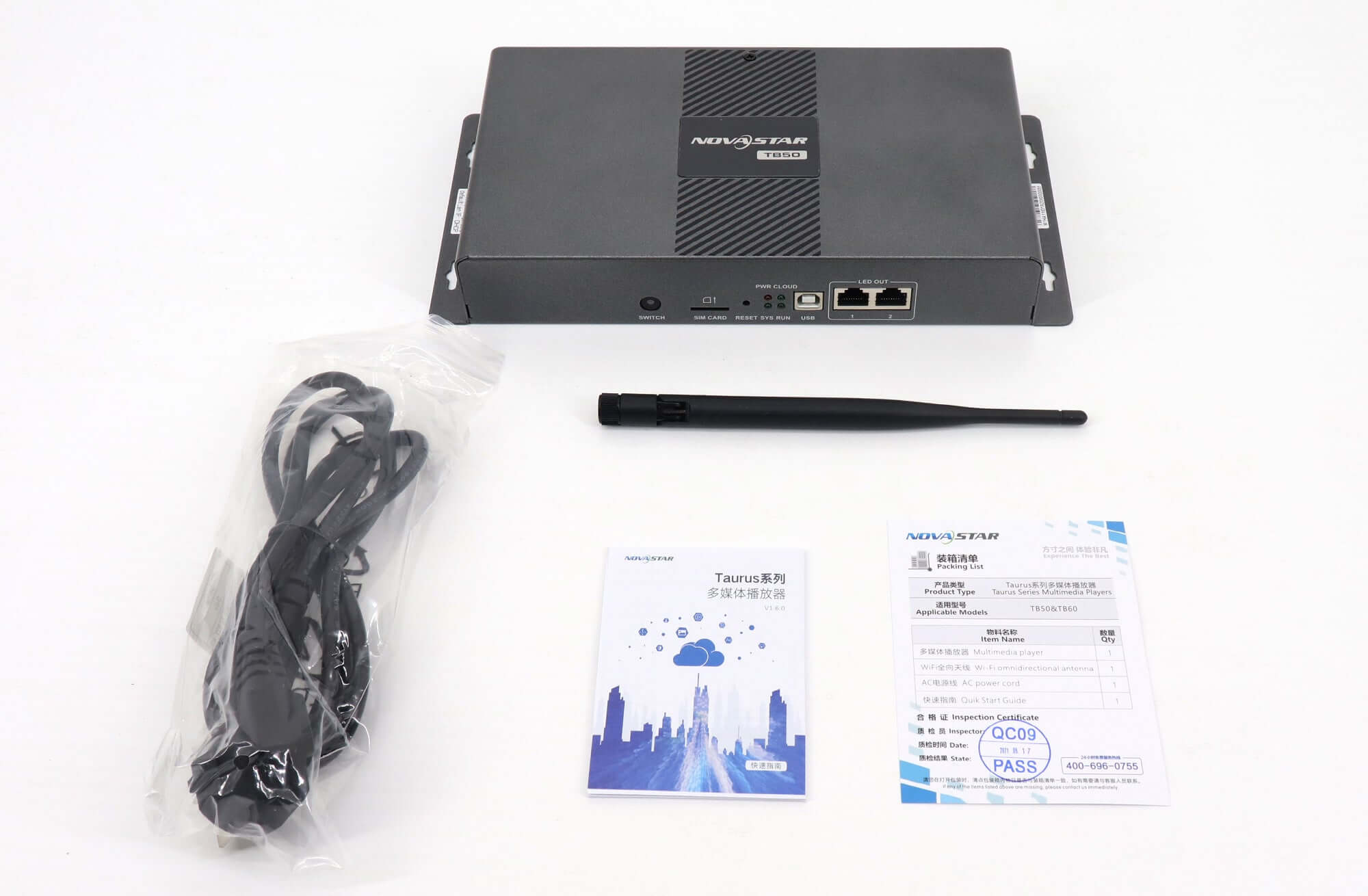

The NovaStar TB50 is a Taurus-series multimedia player with two Gigabit Ethernet LED outputs and a maximum load of 1.3 million pixels. For a shop display or advertising screen, it can play stored programs asynchronously or show an HDMI source synchronously. Content publishing and screen control are available from a computer, mobile phone or tablet.
The player includes 16 GB of internal storage and can play one 4K video or two 1080p videos. Its media-decoding capability is separate from the screen loading capacity. Connected installations can use cloud-based publishing and monitoring.
| Parameter | Specification |
|---|---|
| LED load | Up to 1,300,000 pixels |
| Screen width / height | Maximum 4096 pixels each, within the total load |

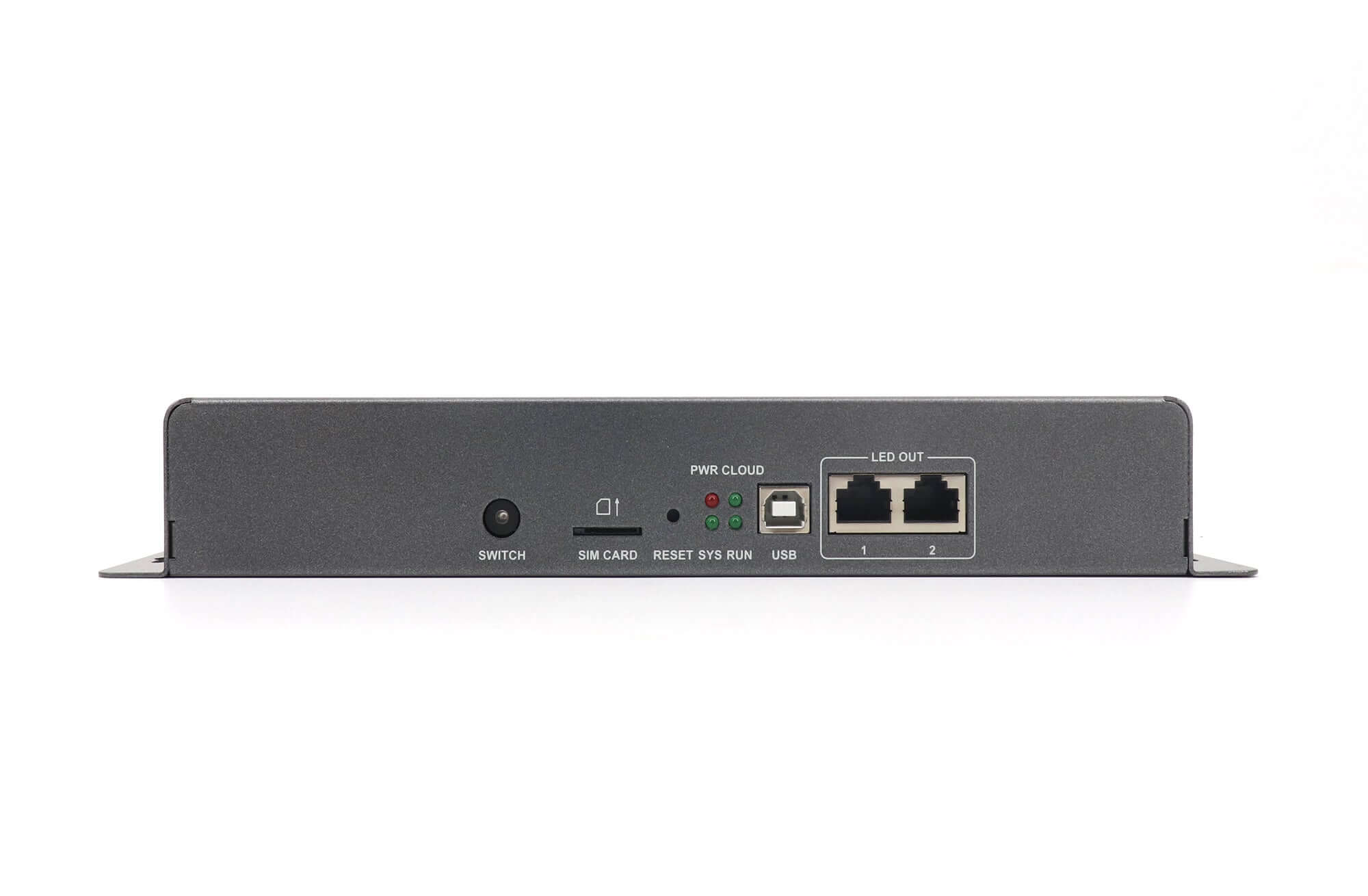

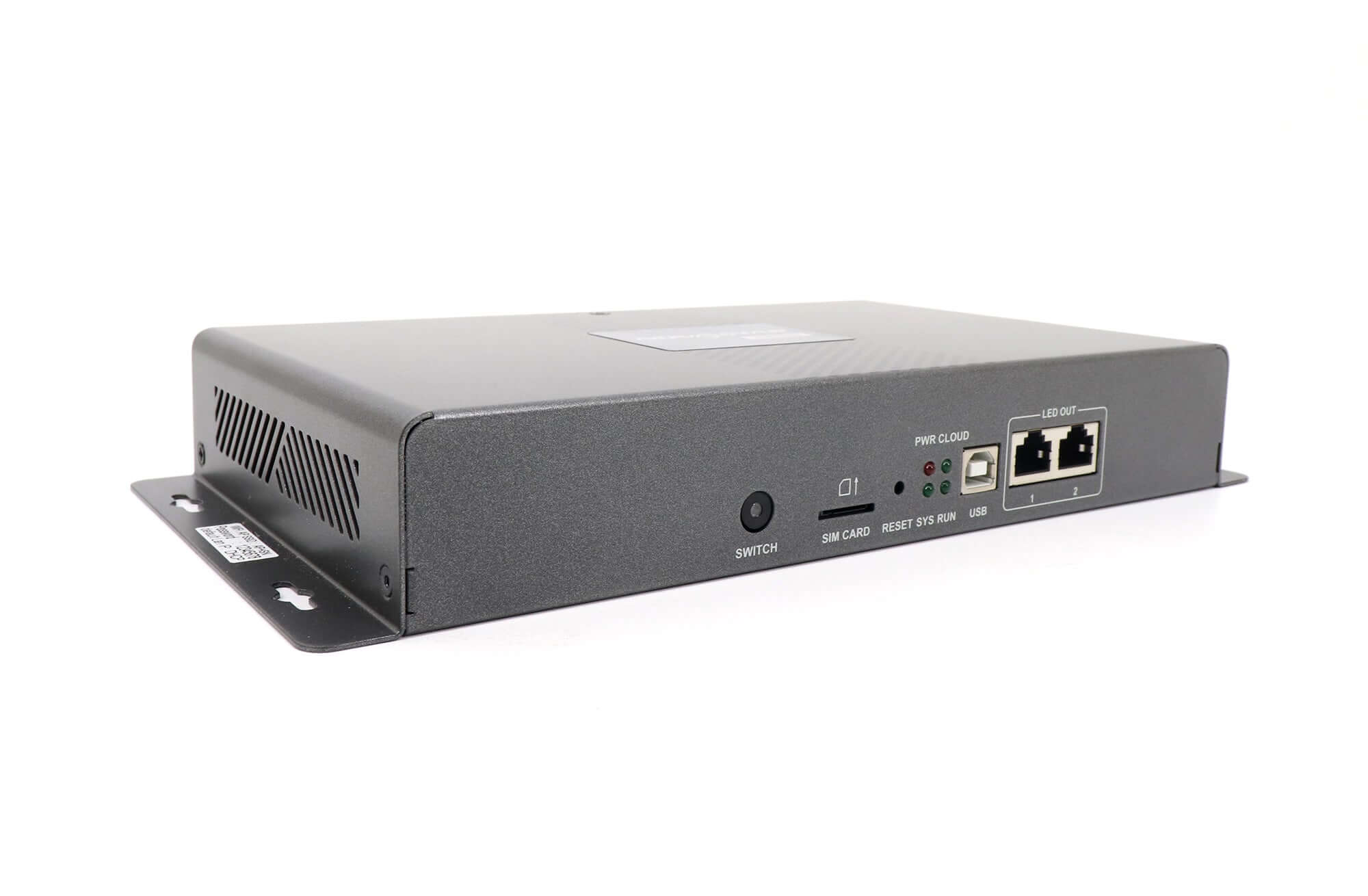

| LED Ethernet outputs | 2 × Gigabit Ethernet; both primary by default, or 1 primary + 1 backup |

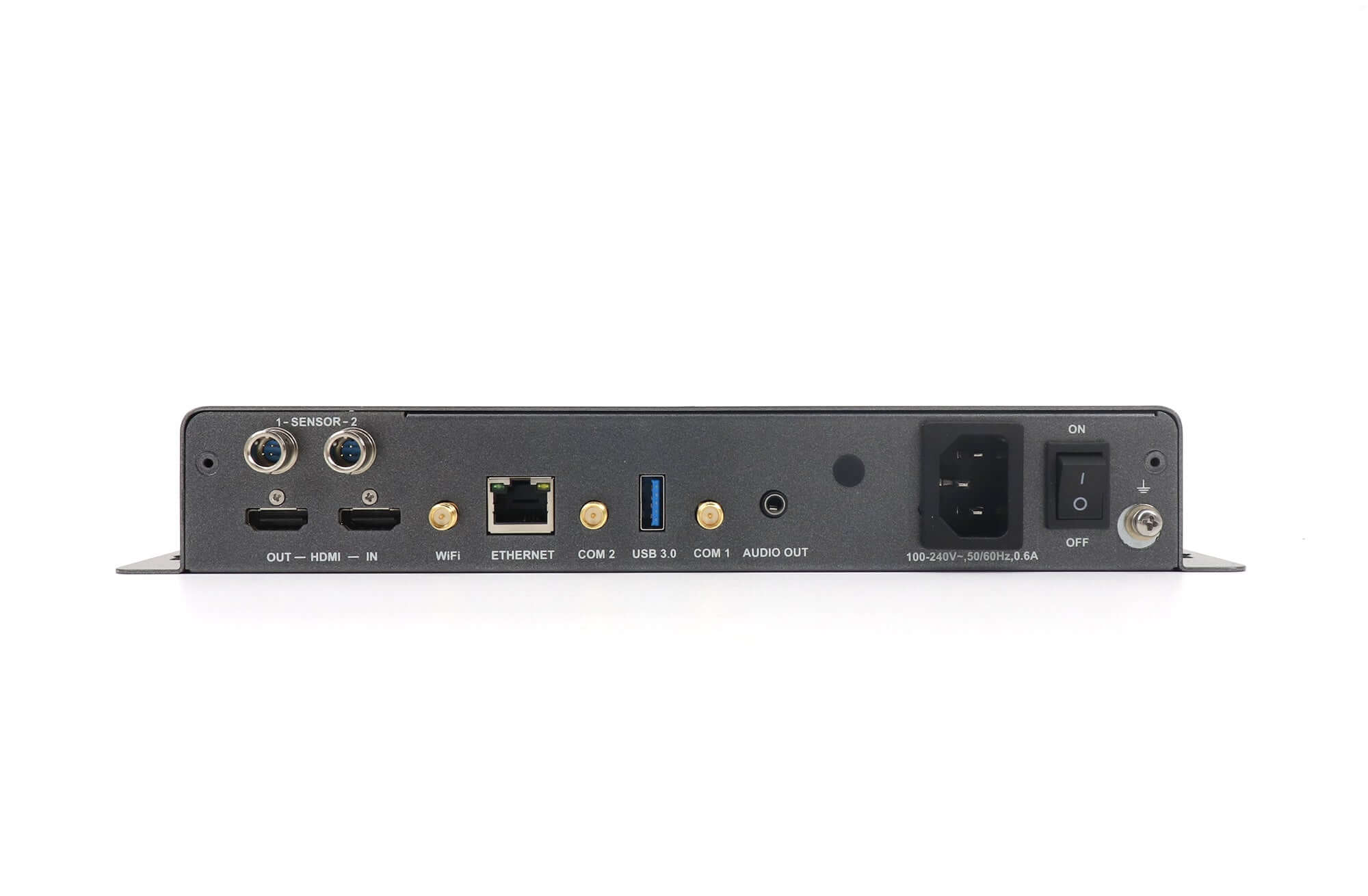

| HDMI input / output | HDMI 1.4 input; HDMI 1.4 output with loop support, up to 1080p@60 Hz |
| Processor | Quad-core ARM A55 at 1.8 GHz |
| RAM / internal storage | 1 GB / 16 GB |
| Video playback | 1 × 4K or 2 × 1080p videos |
| Decoding | H.264 and H.265 up to 4096 × 2304 at 60 fps in the detailed codec table |
| USB | USB 3.0 Type-A for content import and upgrades; Type-B reserved |
| File systems | Ext4 and FAT32 supported; exFAT and FAT16 unsupported |
| Network | Gigabit Ethernet, Wi-Fi AP/STA switching and optional 4G |
| Audio / sensors | Stereo audio output; 2 sensor connectors |
| Input power / maximum consumption | 100–240 V AC, 50/60 Hz, 0.6 A / 18 W |
| Dimensions / net weight | 274.3 × 139.0 × 40.0 mm / 1.22 kg |
| Operating environment | −20°C to +60°C; 0%–80% RH, non-condensing |
| System / IP rating | Android 11.0, without third-party app support / IP20 |
Configuration Before Installation
For HDMI synchronous playback, the documented full-screen scaling function accepts a source width of 64–2048 pixels and scales images down only. It cannot upscale in that mode. The two LED outputs can be used as primary ports, or one can serve as a backup for the other.

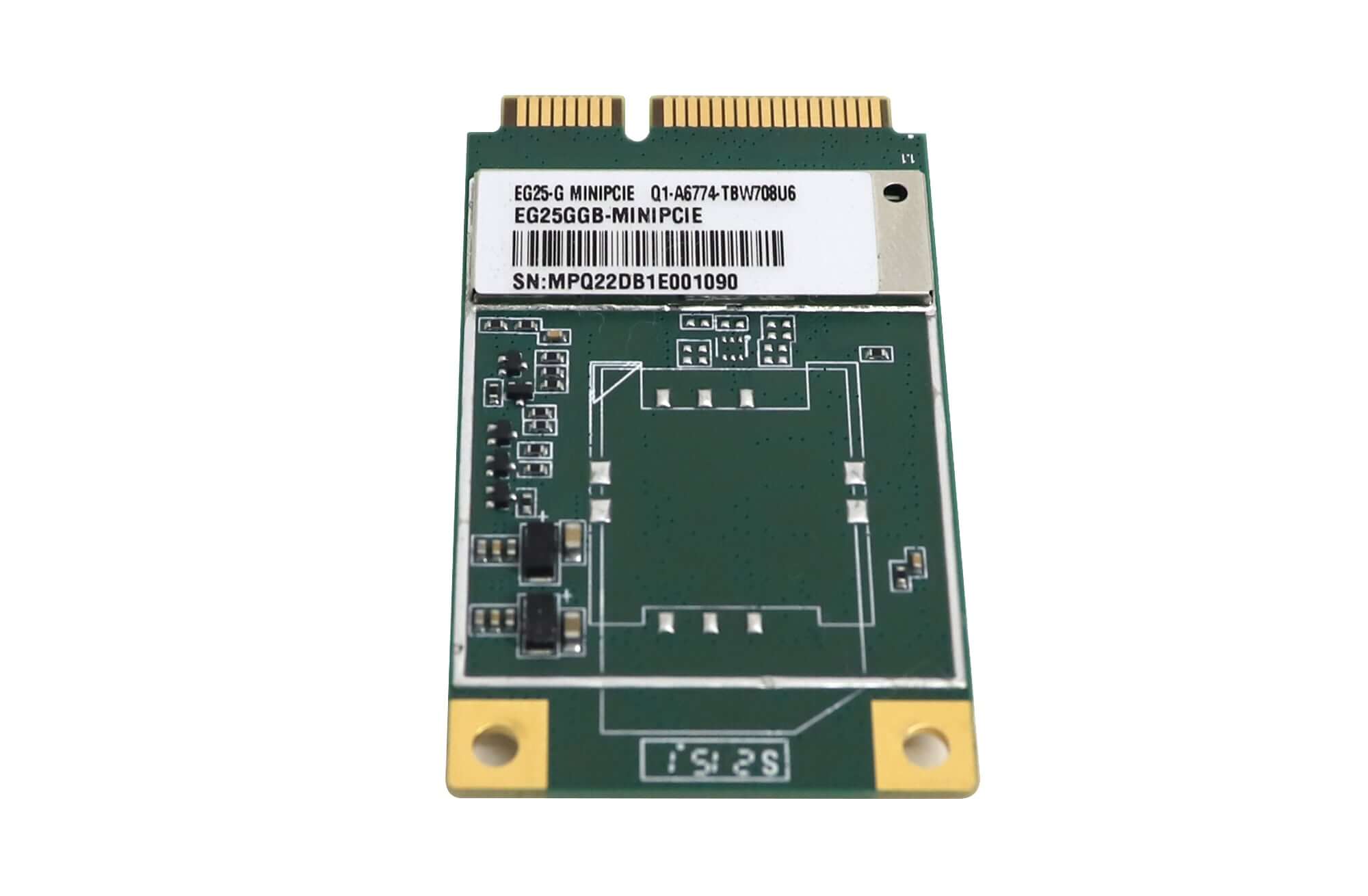

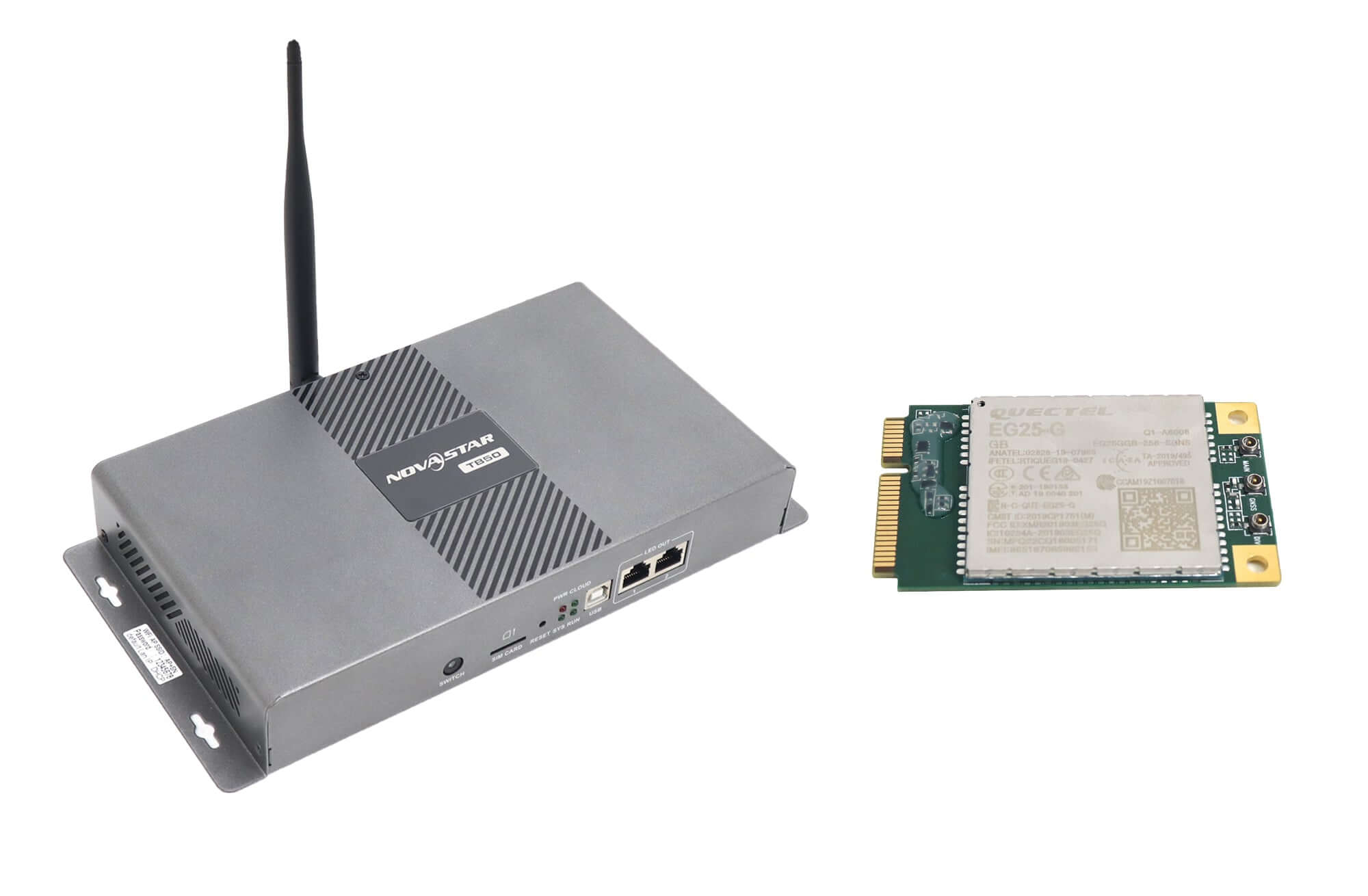

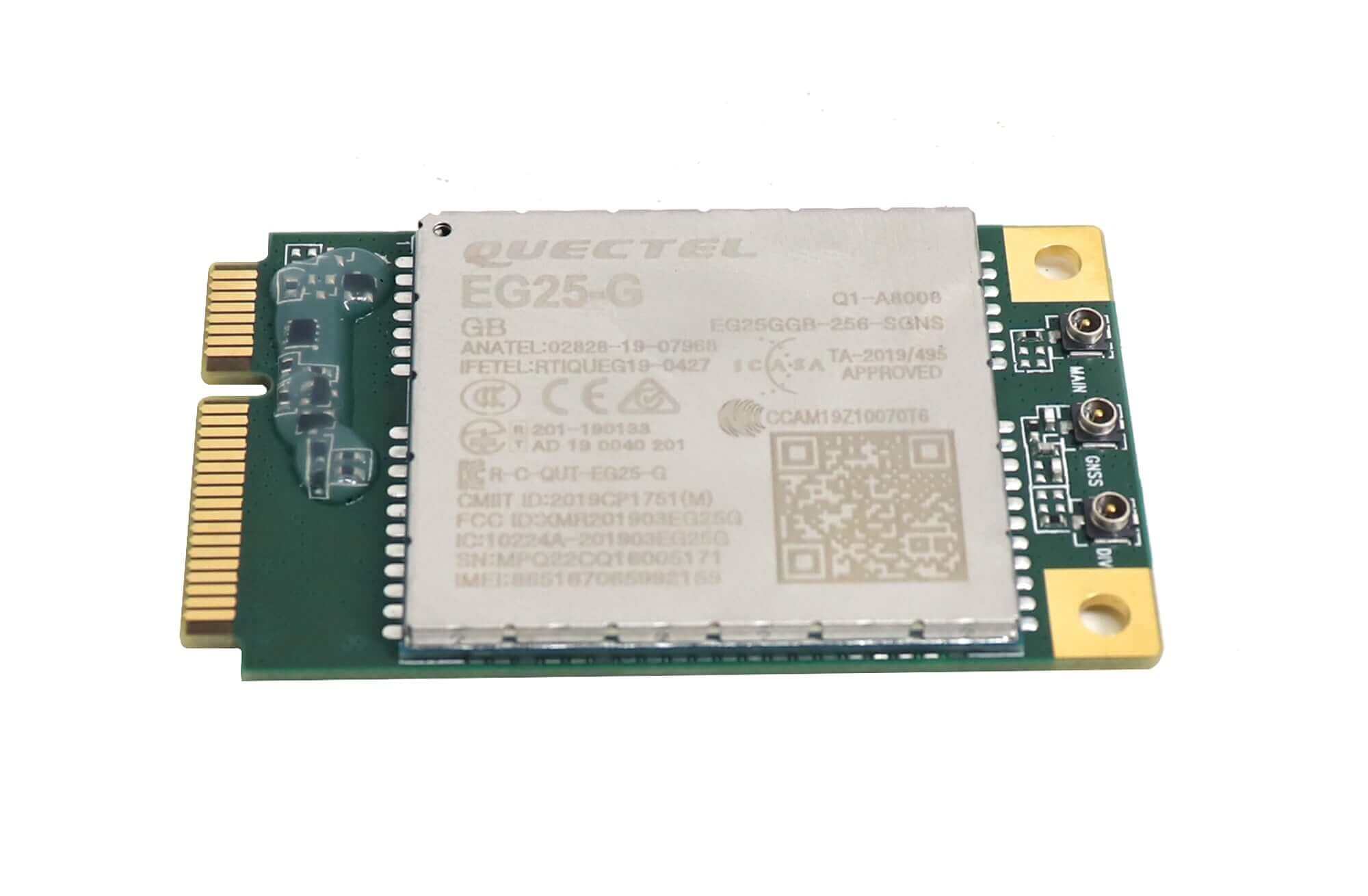

Network priority is wired Ethernet, then Wi-Fi, then 4G. A 4G module is not supplied as standard. GPS time synchronization requires the specified 4G module, while NTP synchronization is another option for multi-screen playback.
Frequently Asked Questions
What is the difference between TB50 and TB60?
The linked specifications give TB50 two LED Ethernet outputs and a 1.3 million pixel load. TB60 has four LED outputs and a 2.3 million pixel load. Both documents list 1 GB RAM and 16 GB storage.
Can TB50 use one Ethernet port as a backup?
Yes. Both ports are primary by default, but the device can be configured with one primary and one backup port. Account for the chosen arrangement when planning the screen connections.
Does TB50 upscale an HDMI input?
The synchronous full-screen scaling function in V1.0.0 supports downscaling only, with a video source width from 64 to 2048 pixels. It does not upscale the source.
Can I use 4G and GPS synchronization without extra hardware?

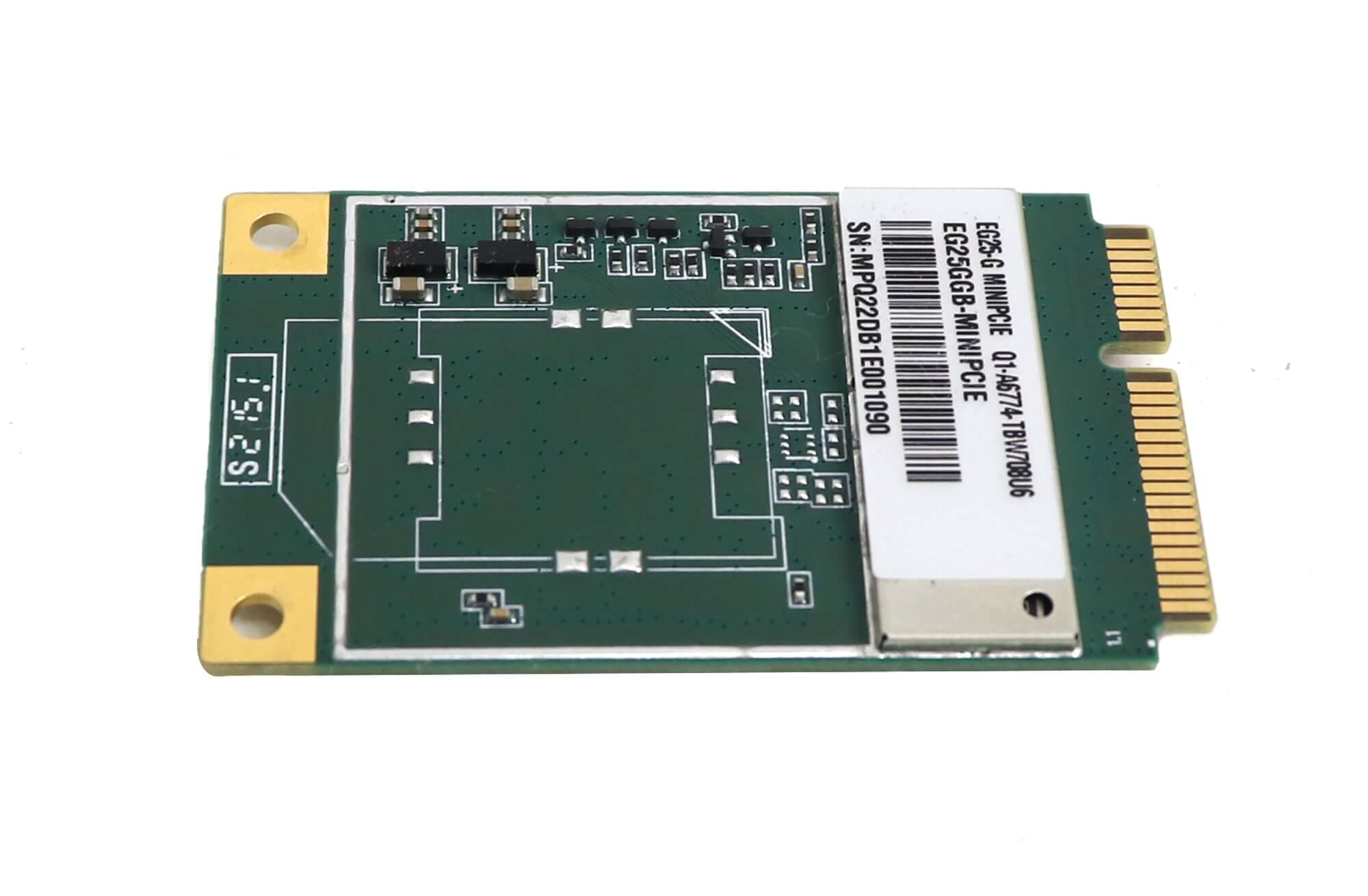

No. The TB50 ships without a 4G module. A compatible module is purchased separately, and GPS time synchronization requires the specified 4G module.
Can TB50 play from an exFAT USB drive?
The linked specification supports Ext4 and FAT32 and excludes exFAT and FAT16. The USB 3.0 Type-A port is used for imported media playback and firmware upgrades.
For a larger loading requirement, review the NovaStar TB60 specifications.
Download Specification
NovaStar Taurus Series TB50 Multimedia Player Specification V1.0.0
