VDWall VF2000 Multi-Window LED Video Wall Processor
$ 9,996.00
VDWall VF2000 modular video wall processor with up to 64 input signals, 32 simultaneous images and 16 DVI outputs. Supports window positioning, scaling, overlays, source preview and preset layouts.
10000 in stock
Multi-source processing for large LED walls
The VDWall VF2000 brings multiple SD and HD sources into a single video wall layout. Its plug-in hardware design supports window positioning, scaling and overlays, with real-time input preview for operators. Applications listed for the unit include rental stages, theaters, exhibitions and large or irregular LED displays.
Layout and control features
Any In Any Out (AIAO) processing supports input cropping and output assignment. Seamless switching and fade transitions are available, with up to 16 preset display modes. Frame-synchronized splicing supports coordinated outputs across the wall.
Faroudja Real Color, DCDI Cinema Processing and TrueLife image enhancement provide the listed image-processing functions. The unit uses a redundant power supply design and supports PC backup and restoration of settings. RS232, USB and TCP/IP control support system integration.
VF2000 technical specifications
| Parameter | Specification |
|---|---|

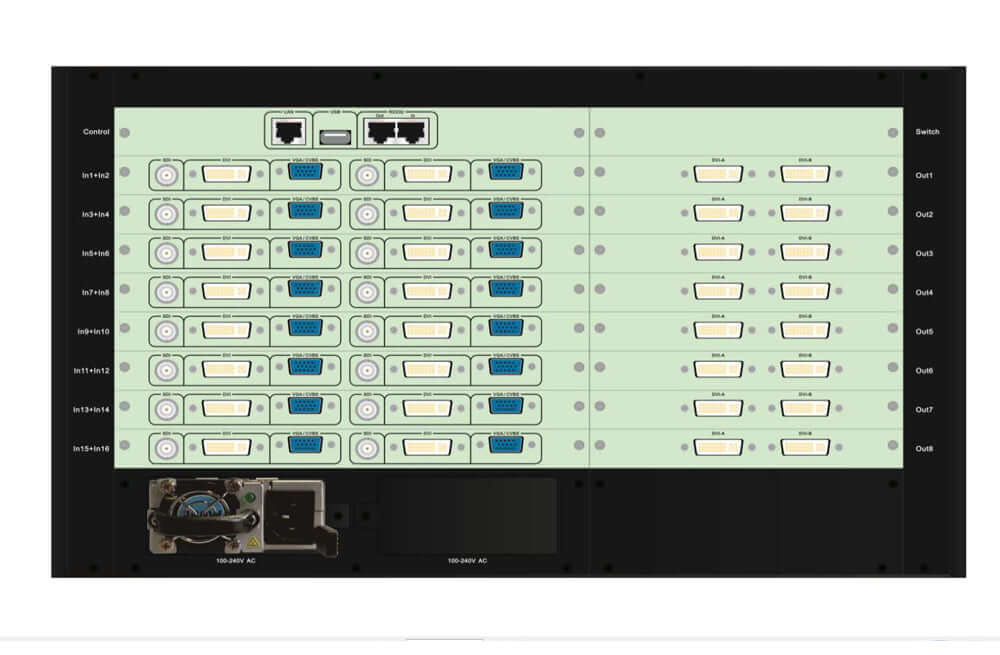

| Listed input configuration | 16 × CVBS; 16 × VGA; 16 × DVI (HDMI); 16 × SDI |
| Maximum input signals | 64 |
| Simultaneous image processing | Up to 32 signals / 32 different images |
| Preset display modes | Up to 16 |
| VGA / DVI PC input | Up to 1920 × 1200 at 60Hz |
| HDMI 1.3 input format | Up to 1920 × 1080 at 60Hz |
| SDI types | SD-SDI / HD-SDI / 3G-SDI |
| Composite video | PAL / NTSC |
| Outputs | 16 × DVI |
| Listed output resolution | 1920 × 1080p at 60Hz |
| Maximum splicing width or height | 20,480 pixels wide or 9,600 pixels high |
| Control | RS232 / USB / LAN |
| Input power | 100–240VAC, 50/60Hz |
| Maximum power consumption | ≤500W |
| Operating temperature | 0–45°C |
| Operating humidity | 15–85% |
| Product dimensions | 482.6 × 441.5 × 266 mm (L × W × H) |
| Package dimensions | 620 × 565 × 455 mm (L × W × H) |
Width and height maxima are separate limits. Confirm the required input-card configuration and output layout for your project.
Frequently asked questions
How many images can the VF2000 display at once?
The listing specifies up to 32 simultaneous signals and 32 different images, from a maximum of 64 input signals.
Can I save different screen layouts?
Yes. Up to 16 preset display modes are supported, with seamless selection and switching.
Which control connections are available?
The VF2000 supports RS232, USB and LAN/TCP-IP control. PC software can also back up and restore settings.
Does the VF2000 support preview and window positioning?
Yes. It supports real-time source preview, window positioning, scaling, overlays and input cropping.
Download VF2000 manual
VDWall VF2000 Multi-window LED Video Wall Panels Processor specification
| Weight | 35 kg |
|---|
