NovaStar A10s Plus LED Receiving Card | Specs & HDR Setup
Original price was: $ 75.00.$ 39.00Current price is: $ 39.00.
The NovaStar A10s Plus is a compact receiving card with a maximum load of 512 × 512 pixels and high-density connectors. It supports 32 parallel data groups or 64 serial groups, calibration, HDR with compatible control equipment and image rotation.
492 in stock
A10s Plus Receiving Card for LED Panels
The NovaStar A10s Plus combines a compact hub-board interface with up to 512 × 512 pixels of loading capacity. It supports up to 32 parallel data groups or 64 serial data groups. Its integrated network transformer and high-density connector support LED cabinet integration.
Model note: This product is A10s Plus. The original PDF link below opens an A10s Pro document, which is retained as an existing reference and is not the specification for this product. The A10s Plus parameters here have been checked against its own V1.0.0 and V1.0.3 manufacturer documents.
| Parameter | Specification |
|---|---|
| Maximum loading capacity | 512 × 512 pixels |
| Data outputs | Up to 32 parallel groups or 64 serial groups |
| Scan support | Up to 1/64 scan |
| Input voltage | 3.3–5.5 V DC |
| Rated current / power consumption | 0.5 A / 2.5 W |
| Dimensions / net weight | 80.0 × 45.0 × 7.3 mm / 22.3 g |
| Operating conditions | −20°C to +70°C; 10–90% RH, non-condensing |
| Storage conditions | −25°C to +125°C; 10–90% RH, non-condensing |
| Packing reference | 40 cards per box; 378.0 × 190.0 × 120.0 mm box |
Specification Revisions
The earlier listing also describes 18bit+ and ClearView. These legacy feature names are retained here as part of the earlier product description, distinct from the later Image Booster terminology.
V1.0.3, dated February 26, 2021, lists dimensions of 80.0 × 45.0 × 7.9 mm and storage humidity of 0–95% RH, non-condensing. These differ from the earlier values retained above. It also describes serial expansion to 128 groups and Image Booster with color management, precise grayscale and 22bit+, requiring NovaLCT V5.3.1 or later. Check the supplied revision before using a particular mechanical value or feature.
HDR and Rotation Requirements
The V1.0.0 document describes HDR10 and HLG with the MCTRL4K controller. V1.0.3 states the need for an HDR-capable controller. Free image rotation requires MCTRL R5 and SmartLCT; rotation in 90° increments is a separate function.
Pixel-level brightness and chroma calibration works with NovaLCT and NovaCLB. Individual RGB Gamma uses NovaLCT V5.2.0 or later and a supporting controller. One-frame low latency in V1.0.3 applies at the receiving-card end only with modules whose driver ICs contain built-in RAM.
Cabinet Maintenance
Mapping, temperature and voltage monitoring, firmware and configuration readback, and backup functions support maintenance. Smart-module and LVDS functions require dedicated firmware. Automatic module calibration and module Flash management require modules with flash memory.
Frequently Asked Questions
Is this A10s Plus or A10s Pro?
This listing is for A10s Plus. The original download points to A10s Pro and is labelled separately so its parameters are not confused with this product.
What is the maximum A10s Plus loading capacity?
The checked A10s Plus V1.0.0 and V1.0.3 specifications both list up to 512 × 512 pixels.
Why are 7.3 mm and 7.9 mm heights both shown?
The earlier V1.0.0 document lists 7.3 mm, while V1.0.3 lists 7.9 mm. Check the supplied card revision before designing mounting clearance.
What controller is needed for HDR?
The original V1.0.0 reference specifies MCTRL4K for HDR10 and HLG. The later V1.0.3 description requires a controller that supports HDR.
Can A10s Plus rotate content at any angle?
Yes, when used with MCTRL R5 and SmartLCT. Rotation in 90° increments is documented separately.

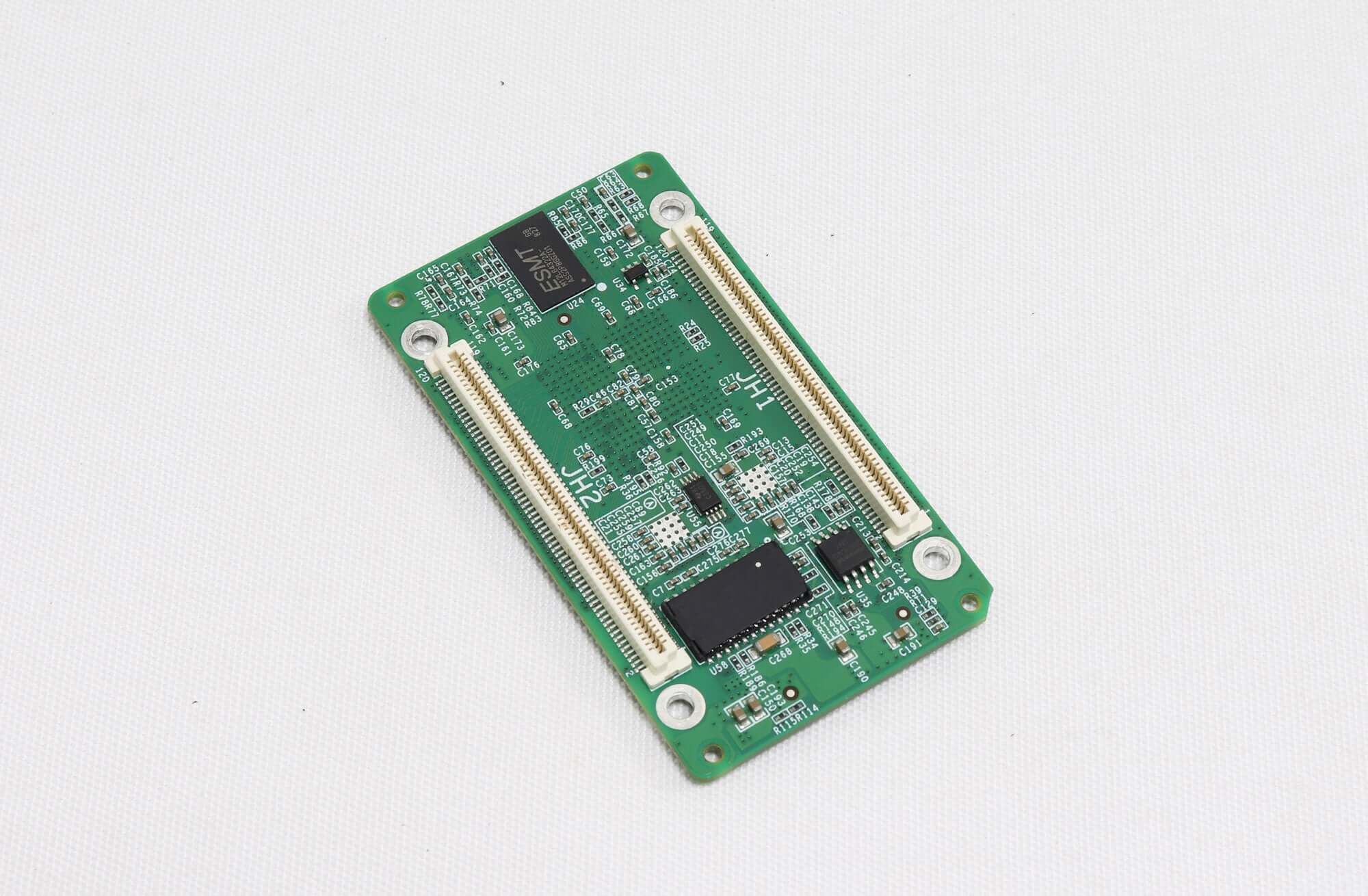

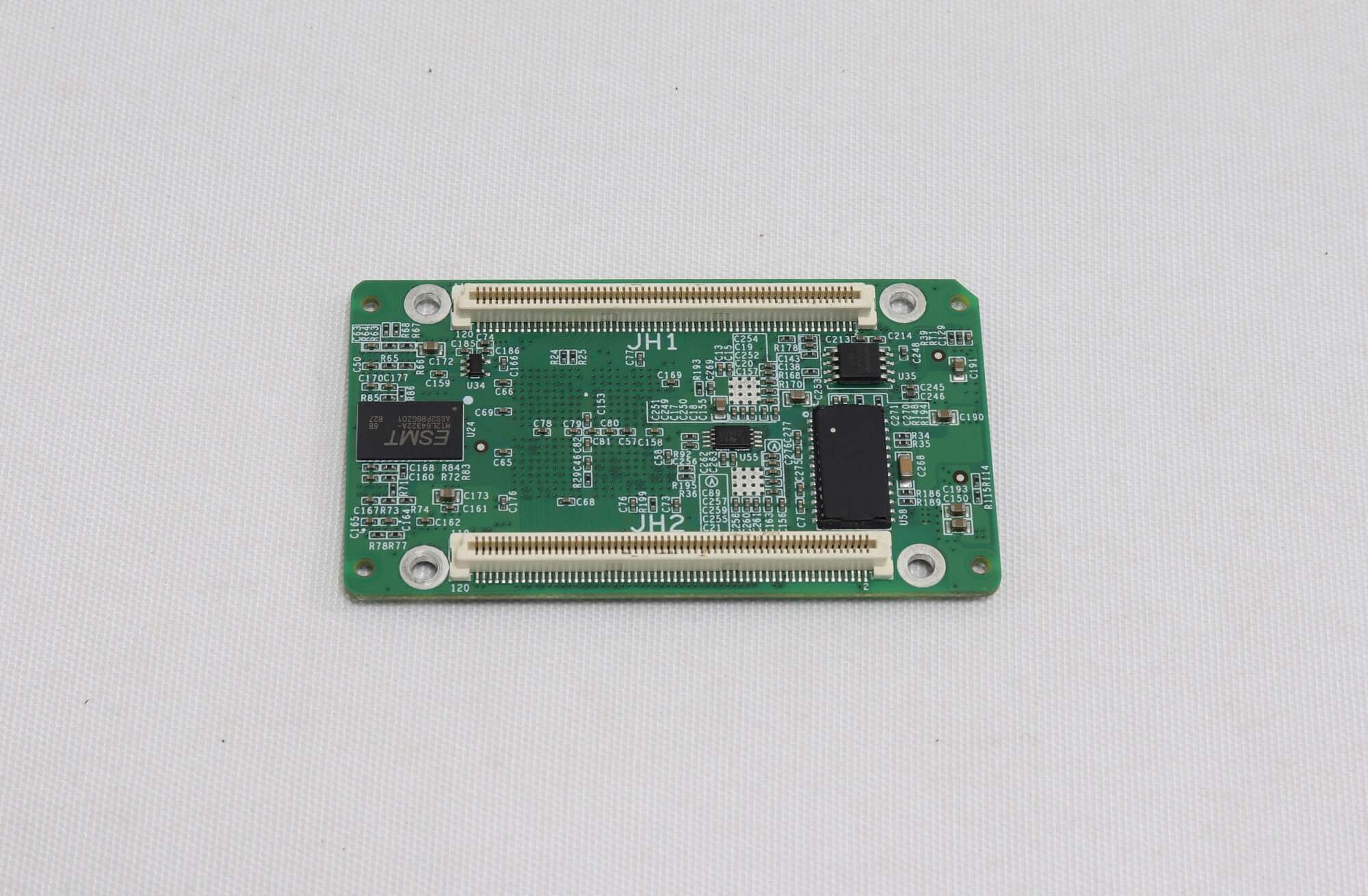

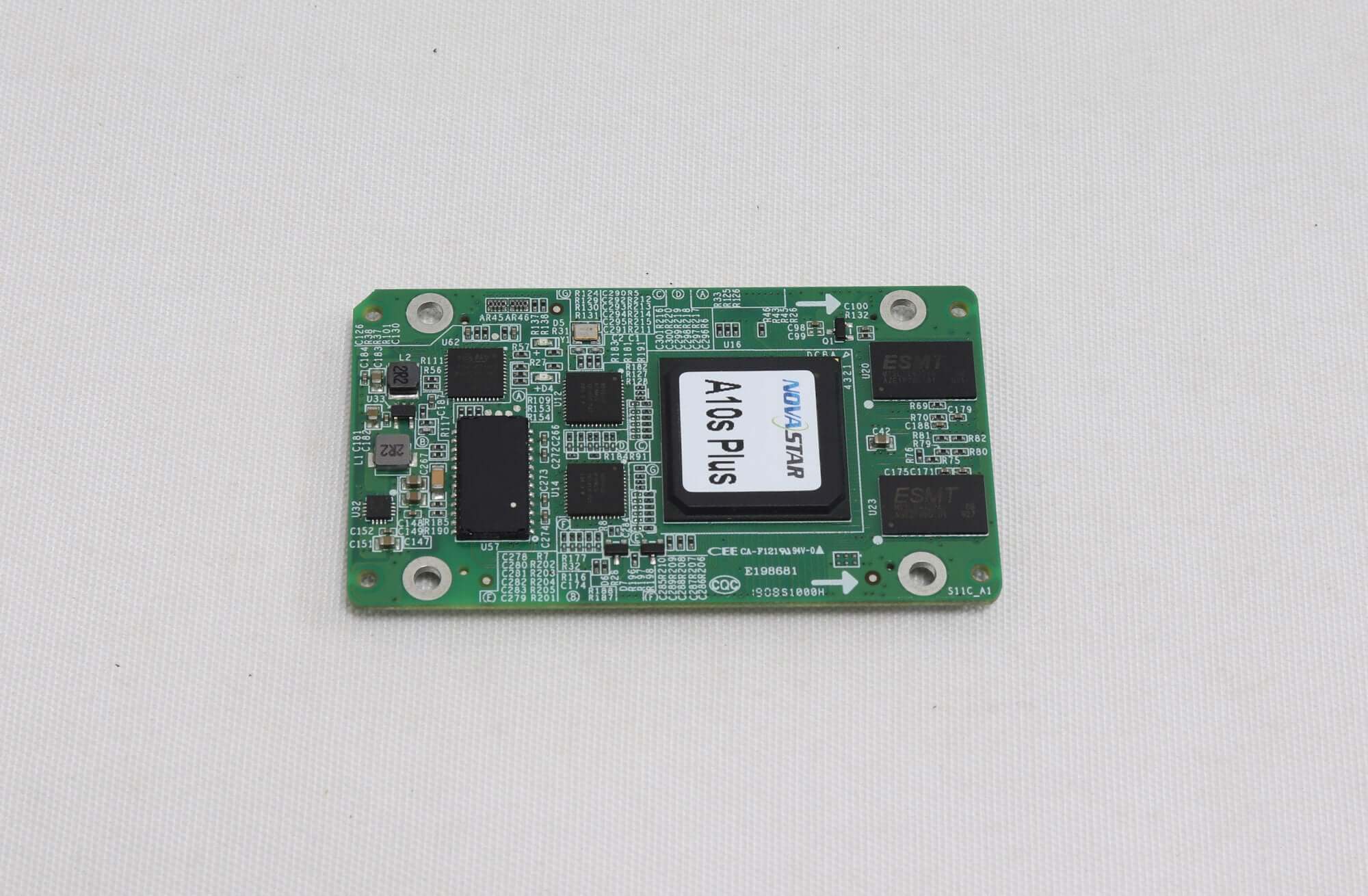

Product Images
Retained Download Reference
Original linked A10s Pro specifications V1.1.2 — different model from A10s Plus
