NovaStar A10s Pro LED Receiving Card | Specs & Price
$ 54.00
The NovaStar A10s Pro is a compact LED receiving card with Full-Grayscale Calibration, Dynamic Booster and HDR support.
- Up to 512 × 512 at 60 Hz; source bit depth and system configuration affect capacity.
- High-density connectors; up to 32 parallel RGB data groups.
- Check hub board, driver IC, controller and firmware compatibility before ordering.
9998 in stock
NovaStar A10s Pro: Key Specifications
The NovaStar A10s Pro is a compact LED receiving card for cabinets that need grayscale calibration, HDR and backup functions. It uses high-density connectors and supports up to 32 parallel RGB data groups or 64 serial data groups, expandable to 128. Match the card to your cabinet hub board, driver IC and NovaStar controller before ordering.
Calibration and Image Quality
Dynamic Booster adjusts display contrast and image detail while managing display power consumption. Full-Grayscale Calibration assigns calibration coefficients to each source grayscale level, addressing brightness and chroma uniformity across bright, mid-tone and dark content.
Image Booster combines color management, precise grayscale and 22bit+. The specification requires NovaLCT V5.4.0 or later and notes that the actual result depends on the driver IC. Match these functions to the cabinet’s driver IC and control system.
| Parameter | Specification |
|---|---|
| Maximum resolution | 512 × 512 @ 60 Hz |
| Data groups | Up to 32 parallel RGB or 64 serial; expandable to 128 serial |
| Interface | High-density connectors |
| Input voltage | 3.3–5.5 V DC; recommended input 5.0 V |
| Rated current / power consumption | 0.5 A / 2.5 W |
| Dimensions / net weight | 80.0 × 45.0 × 8.0 mm / 22.8 g |
| Operating conditions | −20°C to +70°C; 10–90% RH, non-condensing |
| Storage conditions | −25°C to +125°C; 0–95% RH, non-condensing |
| HDR formats | HDR10 and HLG with a supporting sending card |
Version note: This table preserves the original V1.1.2 download’s figures. Later V1.3.0 documentation lists 3.8–5.5 V DC, 0.8 A, 4.0 W and 80.0 × 45.0 × 8.6 mm. Do not mix revisions when sizing a power supply or mounting a card; confirm the supplied hardware revision first.
HDR, Rotation and Low-Latency Requirements
HDR10 and HLG require a sending card that supports HDR and can parse the source. 3D output also requires a 3D-capable sender. The retained V1.1.2 document describes RGB Gamma adjustment with NovaLCT V5.2.0 or later and a supporting sender; verify availability for the firmware supplied.
Rotation is available in 90° increments; arbitrary-angle rotation requires SmartLCT and the MCTRL R5 controller. One-frame latency at the receiving-card end requires modules with driver ICs that contain built-in RAM. This does not specify the latency of the entire video chain.
Module Maintenance and Backup
Modules with flash memory can supply calibration coefficients automatically after replacement. Module Flash management supports coefficient and module-ID readback. The documented LVDS function requires dedicated firmware.
Dual-card backup on a suitable hub board, loop backup, dual program storage, dual configuration storage and dual calibration-coefficient storage support recovery. Mapping, temperature and voltage monitoring, bit-error detection and readback functions assist cabinet service. The original PDF provides the pin assignments and mounting dimensions.
Before You Order or Replace a Card
- Identify the cabinet: provide the module model, driver IC, scan mode and cabinet pixel dimensions.
- Check the connections: match the hub board, connector pin assignments and mounting clearance. The card’s maximum capacity is a total per card, not per connector.
- Confirm the signal chain: share the controller model, source bit depth, frame rate, firmware and any HDR or backup requirements.
- Plan commissioning: retain the working cabinet configuration and calibration files. Test one cabinet before applying settings across the screen.
Check A10s Pro Compatibility Contact LED-Mall
Compare other LED receiving cards or browse NovaStar control products.
A10s Pro Questions and Answers
What is the maximum resolution of A10s Pro?
The original V1.1.2 document lists 512 × 512 at 60 Hz per card. V1.3.0 specifies 512 × 512 at 60 Hz for 8-bit and 10-bit sources with PWM driver ICs, or 512 × 256 at 60 Hz for 12-bit sources. Confirm the controller and firmware combination.
What is Full-Grayscale Calibration?
It uses calibration coefficients for each grayscale level of the input source to improve brightness and chroma consistency across high, medium and low grayscale content.
Does A10s Pro support HDR10 and HLG?
Yes, when working with a sending card that supports HDR and can correctly parse the HDR source.
Which NovaLCT version is required for Image Booster?
The V1.1.2 specification requires NovaLCT V5.4.0 or later. The effect also depends on the LED driver IC.
Can A10s Pro rotate an image at any angle?
Yes, with SmartLCT and the MCTRL R5 controller. Its separately listed 90° rotation supports 0°, 90°, 180° and 270°.

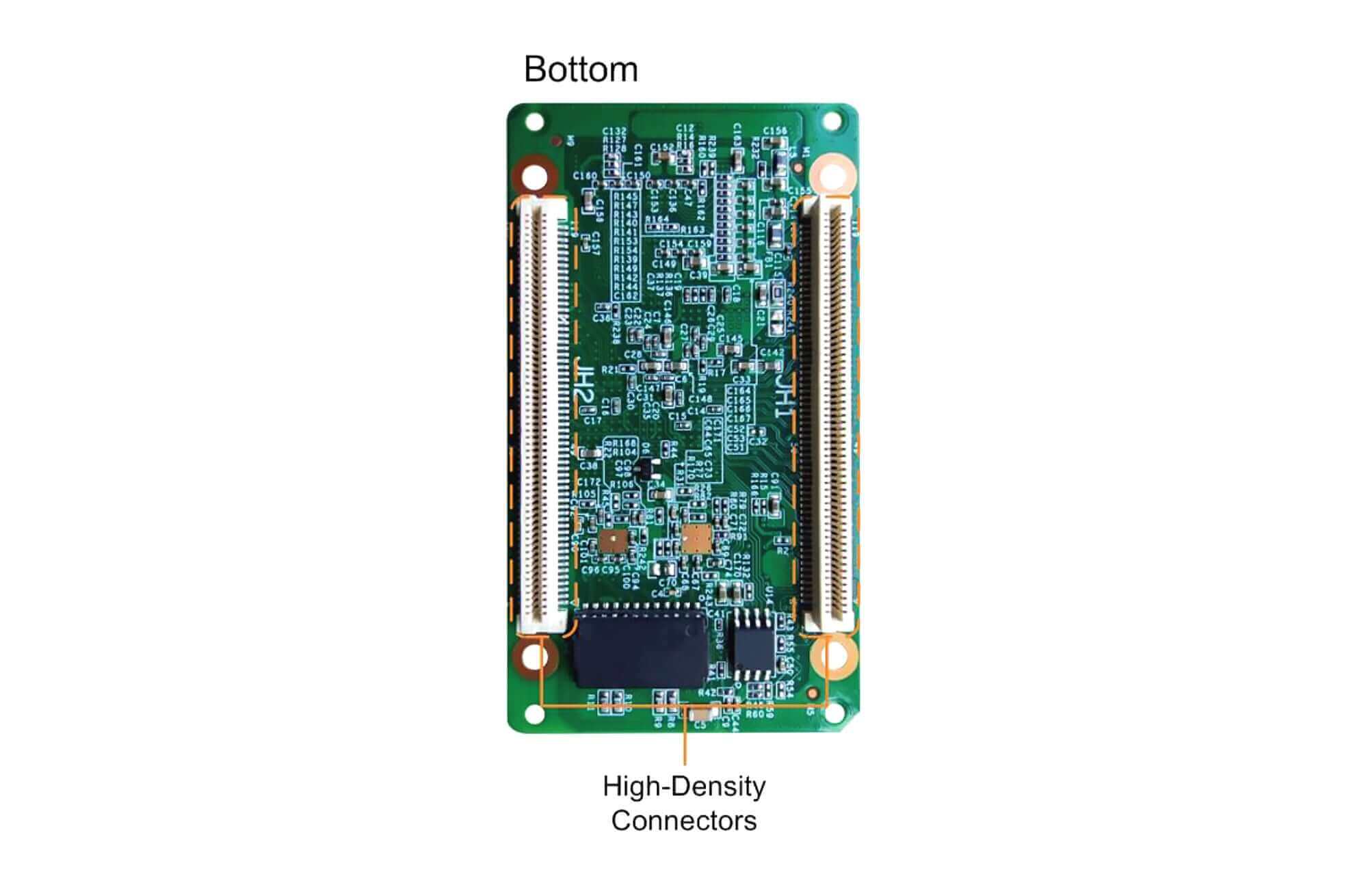

Original Product and Indicator Images
A10s Pro Specification Download
Original A10s Pro receiving card specifications V1.1.2
Product information reviewed by LED-Mall · Updated November 6, 2026. The original PDF is retained for reference; check revision and compatibility before purchase.
