Colorlight N6 Mini LED Receiving Card
$ 11.50
Colorlight N6 mini receiving card for LED lighting and outdoor fixed displays. V2.0.1 specifications list a 512 × 384-pixel maximum load, 24 parallel or 64 serial data groups, and a 66.0 × 25.4 × 8.4 mm format.
The Colorlight N6 is a mini LED receiving card for outdoor fixed displays and LED lighting screens. Its compact 66.0 × 25.4 × 8.4 mm format suits light-bar, mesh, point-light-source and irregular-shaped display designs.
N6 specifications
The following parameters are documented in Colorlight N6 Specification V2.0.1. Verify the card revision and module configuration before installation.
| Parameter | Specification |
|---|---|
| Model | Colorlight N6 mini receiving card |
| Maximum load | 512 × 384 pixels in Specification V2.0.1 |
| Data groups | Up to 24 parallel or 64 serial groups |
| Dimensions | 66.0 × 25.4 × 8.4 mm |
| Video source input | 8-bit |
| Listed frame rates | 30 / 50 / 60 / 100 / 120 Hz |
| Calibration | Per-pixel brightness and chromaticity |
| Image adjustment | Color temperature, low-brightness grayscale and screen rotation |
| Maintenance | Data-group offset, test input key, firmware and calibration-coefficient updates |
| Redundancy | Loop redundancy; firmware redundancy and readback |
| Monitoring | Network cable status |
Setup and maintenance
Screen rotation and data-group offset assist display mapping. The test input key and no-signal display state help with setup checks. Loop redundancy, cable-status monitoring and firmware readback provide maintenance functions for a configured control system.

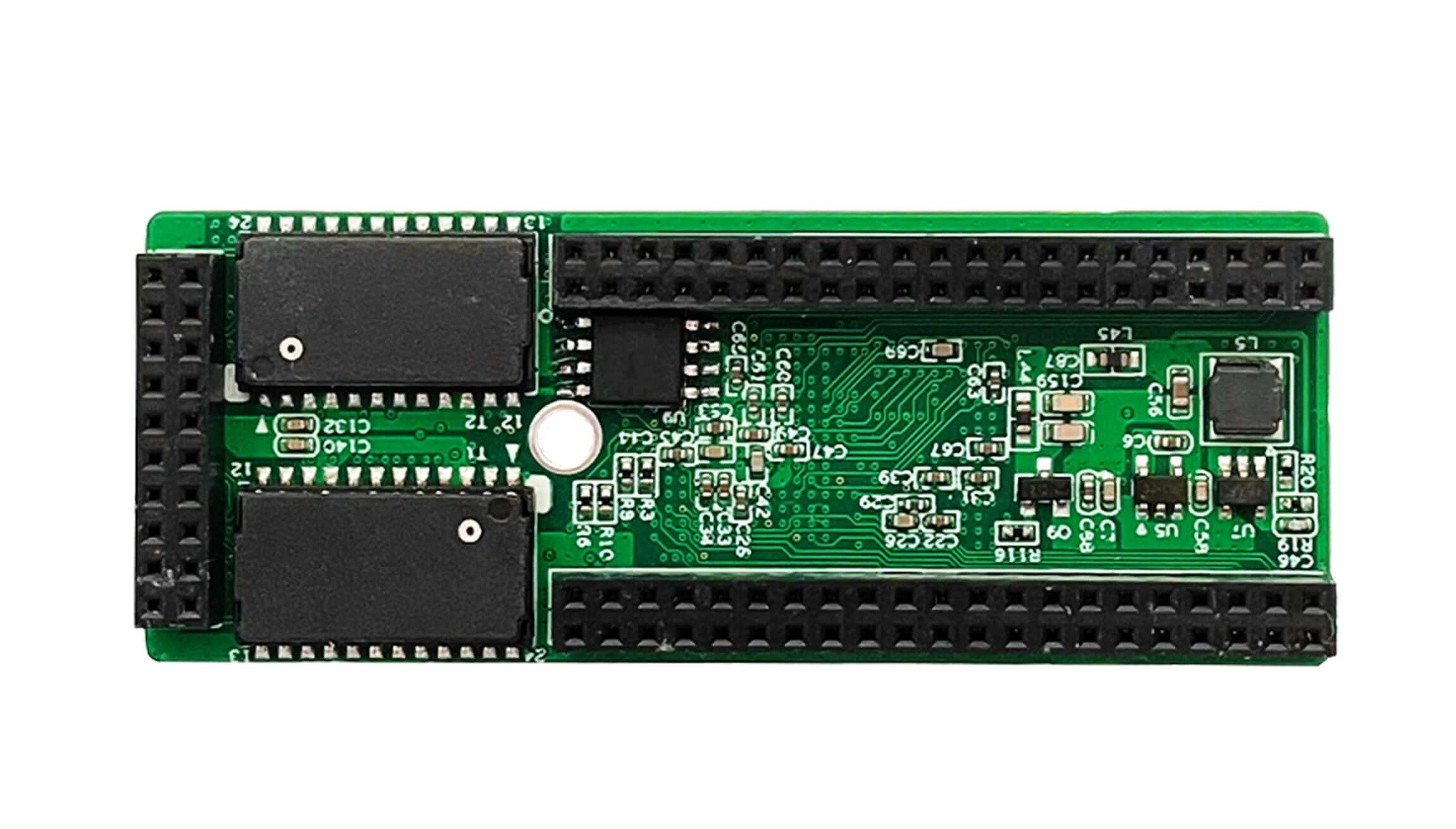

N6 product photos
Frequently Asked Questions
What is the Colorlight N6 receiving card used for?
The N6 is a compact receiving card for LED display modules. It provides image adjustment, calibration and maintenance functions within a compatible LED control system.
Which video input bit depth and frame rates does N6 support?
The N6 feature list specifies 8-bit video input and frame rates of 30, 50, 60, 100 and 120 Hz. Confirm the cabinet configuration for the selected operating mode.
Can N6 adjust brightness and color consistency?
Yes. N6 supports per-pixel brightness and chromaticity calibration, color-temperature adjustment and improved grayscale at low brightness.
What should I check before replacing an N6 card?
Match the exact card revision, cabinet connector pinout, module driver and scan settings, firmware and saved screen configuration. The model name alone does not establish compatibility with every cabinet.
Specification download
Colorlight N6 receiving card specification — original PDF link
The original download address is retained for reference but currently returns a page-not-found response. Confirm access to the correct N6 revision document before installation.
| Weight | 0.2 kg |
|---|
