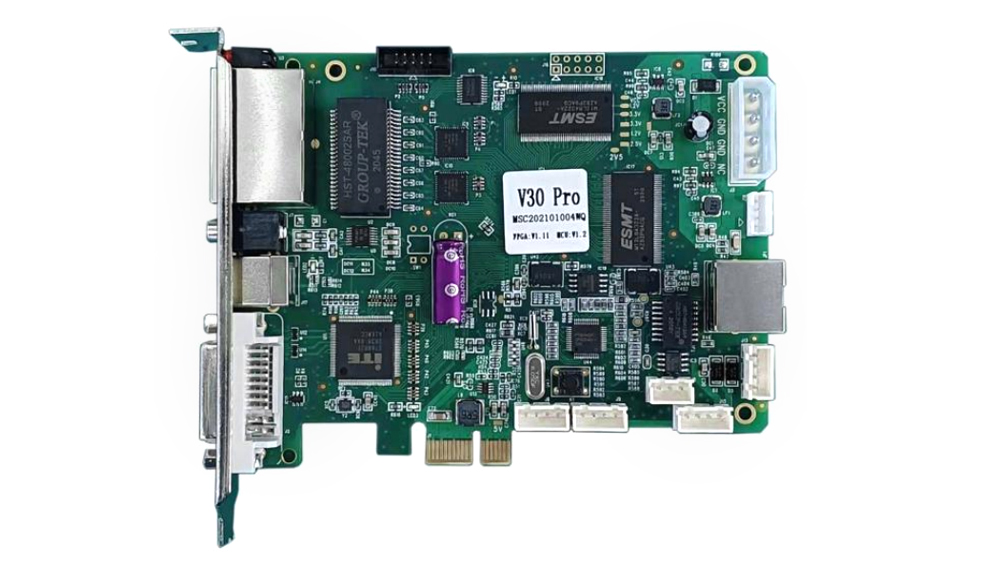

Mooncell V30 Pro LED Sending Card with DVI Input
$ 75.00
The Mooncell V30 Pro LED sending card supports DVI input, two Gigabit Ethernet outputs and up to 1.3 million pixels. It includes configuration readback and supports automatic brightness adjustment with a light sensor.
10000 in stock
V30 Pro sending card for synchronous LED displays
The Mooncell V30 Pro, also written V30PRO, accepts DVI video and sends display data through two Gigabit Ethernet output ports. Its stated loading capacity is up to 1.3 million pixels. A separate audio input supports synchronous audio transmission.
For display operation, the serial interface can work with a light sensor to adjust brightness automatically. USB cascading allows multiple sending cards to be controlled from one computer. The card also supports backup arrangements, configuration readback and operating-status monitoring.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Mooncell V30 Pro / V30PRO |
| Maximum loading capacity | 1.3 million pixels |
| Video input | 1 × DVI |
| Audio input | 1 × AUDIO |
| LED data outputs | 2 × Gigabit Ethernet ports |
| Additional Ethernet interface | 1 × 100 Mbps Ethernet port |
| USB communication | 1 × USB; multiple sending cards can be cascaded for control from one computer |
| Automatic brightness adjustment | Serial port used with a light sensor |
| Card interface | PCI-E |
| Preset input resolutions | 1024 × 768; 1280 × 1024; 1366 × 768; 1600 × 1200; 1920 × 1080; 2048 × 1152; 2560 × 960 |
| Custom resolution | Supported |
| Listed input frame rates | 30, 50, 60 and 120 Hz |
| Backup | Ethernet-port loop dual backup; dual master-controller backup |
| Software monitoring | Sending-card operating parameters and status; Gigabit network error rates |
| Configuration readback | Supported |
Input resolution presets and input frame-rate support do not increase the stated 1.3-million-pixel loading capacity. Check the screen mapping and source format as separate setup requirements.
Product images and specification download
Download Specification:
Mooncell V30 Pro Led Display Sending Card Specification
Frequently asked questions
How many pixels can one V30 Pro load?
The stated maximum loading capacity is 1.3 million pixels. The listed video input presets are separate from the maximum screen load.
What input and output connections does the card provide?
It has one DVI video input, one audio input and two Gigabit Ethernet LED data outputs. USB communication, an additional 100Mbps Ethernet port and a PCI-E interface are also listed.
Can screen brightness adjust automatically?
Yes. The product description specifies using the serial port together with a light sensor for automatic screen-brightness adjustment.
Does it support a backup arrangement?
The listed backup functions are Ethernet-port loop dual backup and dual master-controller backup. Configure the rest of the LED control system for the chosen arrangement.
Can I recover the saved configuration and monitor the card?
Configuration readback is supported. Host software can also monitor operating parameters and status, and detect Gigabit network error rates.
| Weight | 2 kg |
|---|
