Mooncell FOT2000 4K LED Sending Controller with Fiber Outputs
$ 1,171.00
The Mooncell FOT2000 processes up to 3840 × 2160 at 60Hz from HDMI 2.0 or DP 1.2 and transmits through two 10Gbit/s fiber outputs. It supports active 3D, backup functions and configuration readback.
4K LED sending controller with two optical outputs
The Mooncell FOT2000 receives video through HDMI 2.0 or DisplayPort 1.2 and supports 3840 × 2160 at 60Hz. Two fiber-optic outputs, each rated at 10Gbit/s bandwidth, transmit the processed display data.
The V4.0 specification also lists USB and LAN communication for PC setup, RS232 for central control, and a 3D transceiver interface. Configuration readback, operating-status monitoring and backup functions support system maintenance. The frame-rate options listed below do not imply 4K at 120Hz.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Mooncell FOT2000 |
| Video inputs | 1 × HDMI 2.0 and 1 × DisplayPort 1.2; select one input |
| Maximum listed input resolution | 3840 × 2160 at 60 Hz on HDMI 2.0 or DP 1.2 |
| Listed input frame rates | 30, 50, 60 and 120 Hz; resolution-dependent setup must be checked separately |
| Optical outputs | 2 fiber-optic output interfaces |
| Bandwidth per optical interface | 10 Gbit/s |
| Audio input | 1 × 3.5 mm audio input |
| PC communication | USB Type-B; 100 Mbps LAN for debugging |
| Central control | 1 × RS232 |
| 3D interface | 3D transceiver communication interface; active 3D supported |
| Backup | Ethernet loopback backup; dual master-controller backup |
| Brightness expansion | Supports ST_EXT for cascaded brightness control and automatic brightness adjustment |
| Monitoring and readback | Operating parameters/status, configuration readback and Gigabit Ethernet error-rate detection |
| Input power | 100–240 V AC, 50/60 Hz |
| Rated power | 70 W |
| Operating temperature | −20 to +60°C |
| Operating humidity | 10–90% RH, non-condensing |
| Storage temperature | −20 to +70°C |
| Chassis size | 481.6 × 398.6 × 99.3 mm |
| Net weight | 4.2 kg |

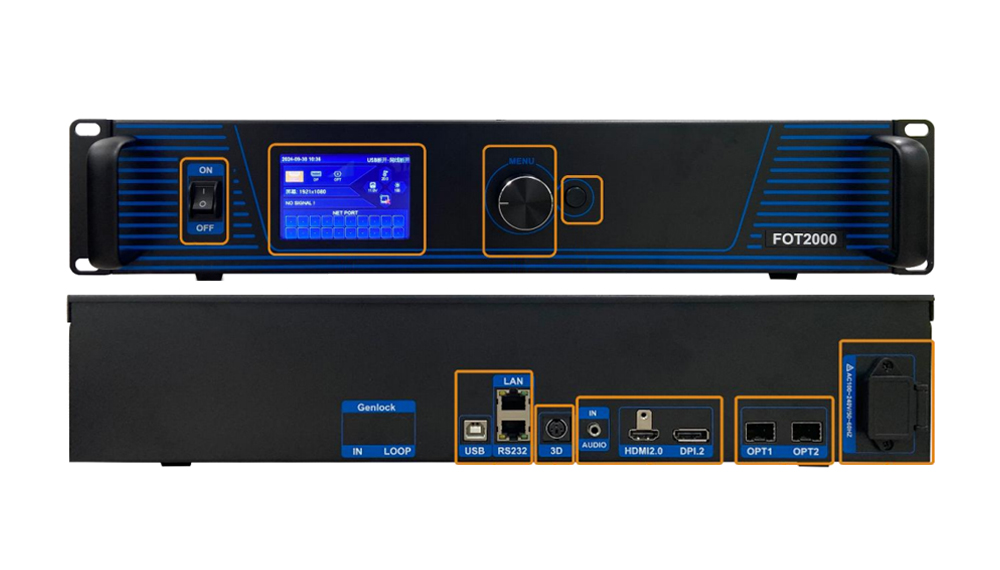

Product images and specification download
Download Specification:
Mooncell FOT2000 Led Display Sending Controller Box Specification
Frequently asked questions
Does the FOT2000 accept a 4K signal at 60Hz?
Yes. The V4.0 specification lists HDMI 2.0 and DisplayPort 1.2 inputs supporting up to 3840 × 2160 at 60Hz. One of the two video inputs is selected.
How many optical outputs does it have?
There are two fiber-optic output interfaces, each with a stated bandwidth of 10Gbit/s. The document does not provide a transmission distance in the specifications summarized here.
Can the LAN port be used for PC setup?
Yes. The 100Mbps LAN interface connects to the host computer for debugging. USB Type-B provides PC software communication, and RS232 connects to central control equipment.
Does it support active 3D?
Active 3D display is listed, and the rear panel includes a 3D transceiver communication interface. Check the complete 3D system configuration before deployment.
Which backup and brightness-control functions are listed?
The controller supports Ethernet loopback backup and dual master-controller backup. ST_EXT expansion support provides cascaded brightness control and automatic brightness adjustment.
