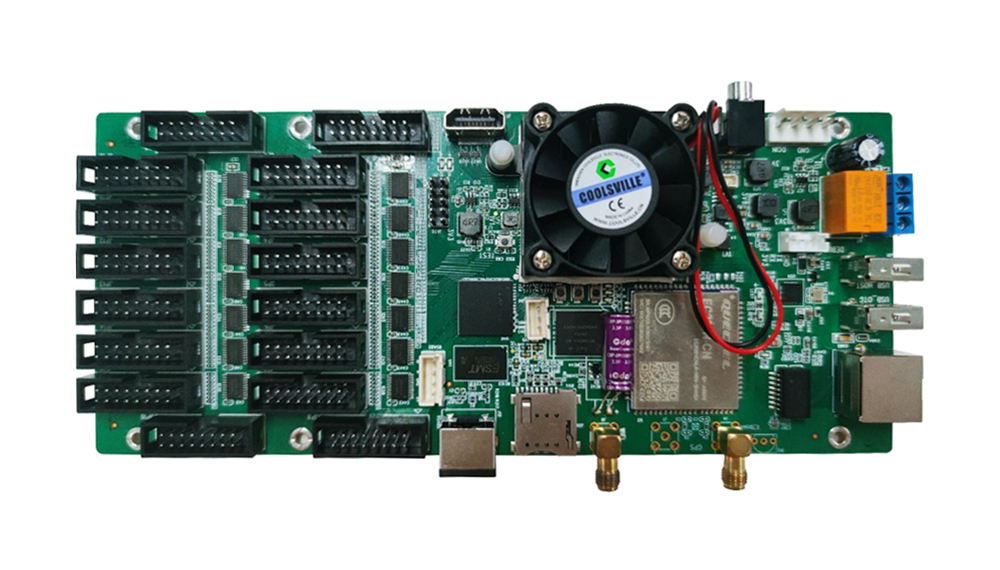

Mooncell MBR16 Asynchronous LED Control Card – 16 HUB75E
$ 100.00
The Mooncell MBR16 combines sending and receiving functions with 16 HUB75E interfaces and a 190,000-pixel maximum load. It supports network or USB content updates, Wi-Fi AP and cloud management.
10000 in stock
Integrated asynchronous controller for LED content playback
The Mooncell MBR16 combines sending and receiving control on one board. Its 16 HUB75E interfaces support up to 32 parallel RGB data groups, with a maximum screen load of 190,000 pixels. The four-core CPU and GPU platform runs Android 7.1.
The card plays video, images and text, with configurable windows and overlays. Programs can be updated through network management or a USB flash drive. Wi-Fi AP and cloud cluster control support local and remote content workflows for applications such as shop signs, advertising displays and fixed installations.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Mooncell MBR16 |
| Architecture | Integrated sending and receiving control; 4-core CPU + GPU |
| Operating system | Android 7.1 |
| Memory / storage | 1 GB DDR3 / 8 GB eMMC |
| Maximum loading capacity | 190,000 pixels |
| Independent dimension limits | Maximum width 1920 pixels; maximum height 1080 pixels; total load remains 190,000 pixels |
| LED interfaces | 16 × HUB75E |
| RGB data groups | Up to 32 parallel RGB data groups |
| Network access | LAN, Wi-Fi AP and 4G module support |
| USB | 2 × USB 2.0 |
| Audio output | 3.5 mm TRS |
| Sensor interface | RS485; external brightness sensor connection |
| Playback | Video, images and text; multi-window layouts and overlays |
| Content management | PC, Android/iOS devices; cloud cluster management |
| Program update | USB flash drive plug-and-play or network management |
| Power input | 5 V DC; specified supply DC 5 V / 3 A |
| Rated power consumption | 10 W |
| Operating temperature | −20 to +70°C |
| Operating humidity | 0–85% RH, non-condensing |
| Dimensions | 210 × 90 × 24 mm |
| Weight | 206 g |
Product images and specification download
Download Specification:
Mooncell MBR16 Led Display Asynchronous Control Card Specification
Frequently asked questions
Does MBR16 combine sending and receiving functions?
Yes. It integrates sending and receiving control on one board and provides 16 HUB75E interfaces with up to 32 parallel RGB data groups.
Can it drive a full 1920 × 1080 LED screen?
No. The specification states a maximum total load of 190,000 pixels. The separate maximum width of 1920 pixels and height of 1080 pixels do not mean those dimensions can be used together at full resolution.
How can I update the displayed content?
Programs can be managed over the network or updated with a USB flash drive. PCs, phones and tablets are supported, along with cloud cluster management.
Is 4G connectivity available?
The specification supports a 4G module and Micro SIM interface and lists the 4G antenna interface as optional. Confirm the module configuration and network compatibility for the unit you order.
What power supply does the MBR16 require?
The specification lists 5V DC input and a DC 5V/3A supply. Rated power consumption is 10W. Match the connector and polarity to the hardware documentation.
