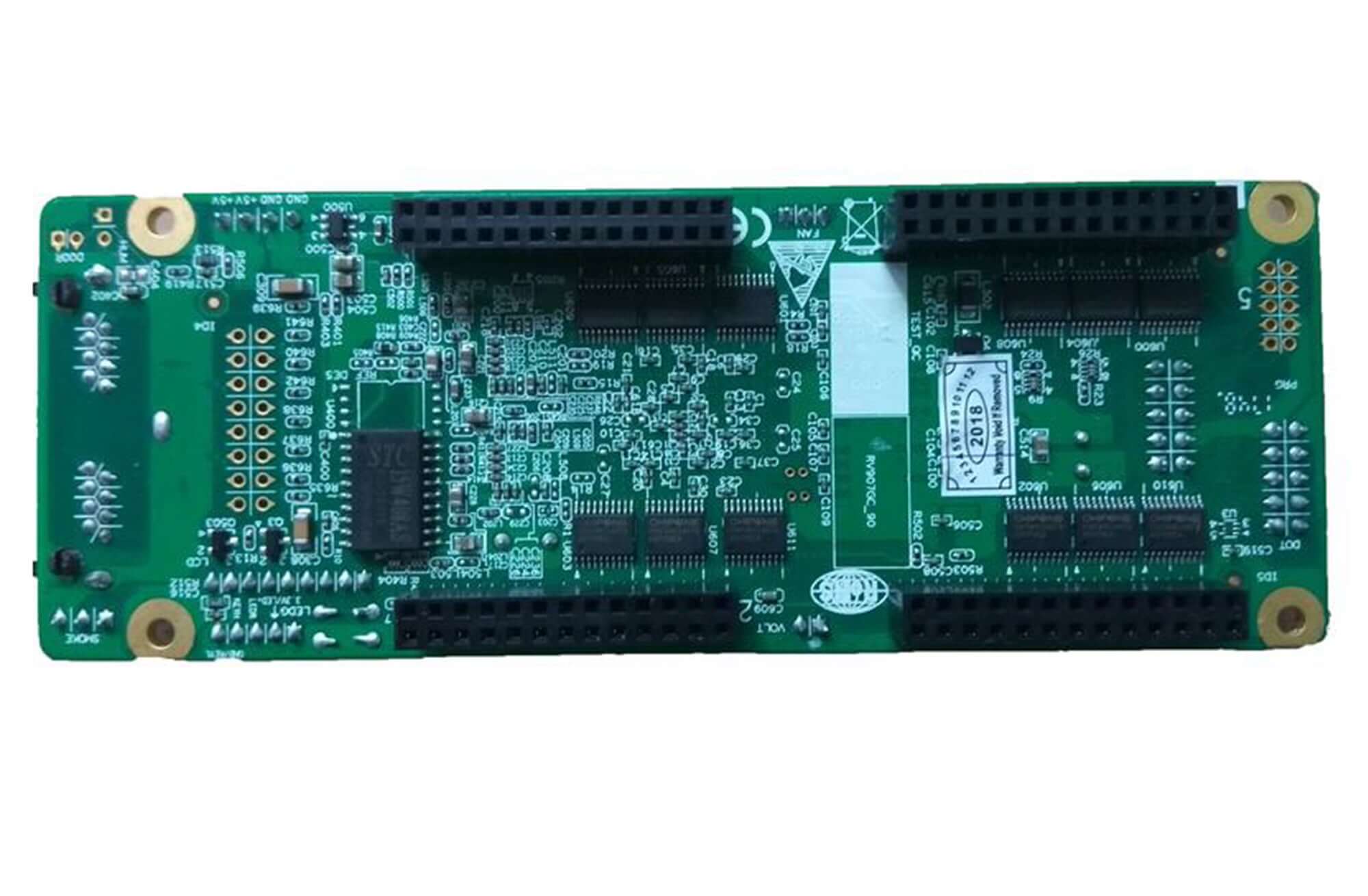

Linsn RV927H LED Receiving Card with Cabinet Monitoring
$ 19.00
Linsn RV927H receiving card supports cabinet monitoring, pixel brightness correction and dual-receiver hot backup. Optional sensors are required for humidity and smoke.
The Linsn RV927H is an LED receiving card for cabinet control and monitoring. It supports module data output, pixel brightness correction and dual-receiver hot backup. The original title called it a sending card; the receiving-card role is reflected here. The original listing gives a 512 × 384 load, while Linsn’s shared RV907H/RV927H/RV937H page gives a different layout, so confirm the hardware version before planning cabinet capacity.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV927H |
| Product role | LED receiving card |
| Listed data modes | 16 RGBR′ groups; 20 or 24 RGB groups; 32 serial groups |
| Original listed load | 512 × 384 pixels; confirm hardware version and layout |
| Monitoring | Temperature; cabinet door; two fan-speed channels; three voltage channels |
| Optional sensor functions | Humidity and smoke require additional modules |
| Calibration | Pixel brightness correction; single-card color-space conversion |
| Backup / diagnostics | Dual-receiver hot backup; network cable error test |
RV927H specification download (original link)
Frequently asked questions
Is the RV927H a sending or receiving card?
It is a receiving card used at the LED cabinet. The original product title incorrectly described it as a sender.
Are humidity and smoke sensors included?
The listed monitoring functions require additional humidity and smoke sensor modules. Check the supplied accessories separately.
Can the RV927H use a backup receiving card?
Yes. Dual-receiver hot backup is listed. Confirm the receiver version, wiring and configuration when setting up redundancy.
| Weight | 0.3 kg |
|---|
