Magnimage MIG-F4-1U 4K Video Mosaic Box
$ 1,018.00
Magnimage MIG-F4-1U combines DP and HDMI inputs with four DVI outputs for video wall mosaics. It supports 4K × 2K at 60 Hz 4:4:4 input, custom output resolutions and input backup.
10000 in stock
Four-output video wall processing
The Magnimage MIG-F4-1U is a 4K video mosaic box for distributing and arranging a source across multiple screens. DP and HDMI inputs, four DVI outputs and custom output resolutions support flexible screen layouts.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | MIG-F4-1U |
| Inputs | 1 DP; 1 HDMI |
| Supported input formats | 4K × 2K at 60 Hz, 4:4:4; 8K × 1K at 60 Hz |
| Outputs | 4 DVI |
| Resolution processing capacity | Up to 9 million pixels |
| Output resolution | Customizable |
| Control | PC software or Android app |
| Wireless function | Wi-Fi hotspot |
Configuration and operation
Use EDID management to configure the input signal and image cropping or layer zoom to select the area shown on each screen. Input backup, preset saving and recall, cascading and edge blending are supported.
Frequently asked questions
Does the MIG-F4-1U accept a 4K 60 Hz source?
Yes. It supports 4K × 2K at 60 Hz with 4:4:4 input, as well as 8K × 1K at 60 Hz.
How many DVI outputs are available?
The unit has four DVI outputs for quad-output mosaic layouts.
Can I set a different resolution for each screen?
Yes. Each output resolution can be customized for screens of different sizes.
How is the MIG-F4-1U controlled?
Use PC software over USB, or the Android app through the unit’s Wi-Fi connection.
Can I save a layout and use input backup?
Yes. Preset saving and loading and input signal backup are supported.

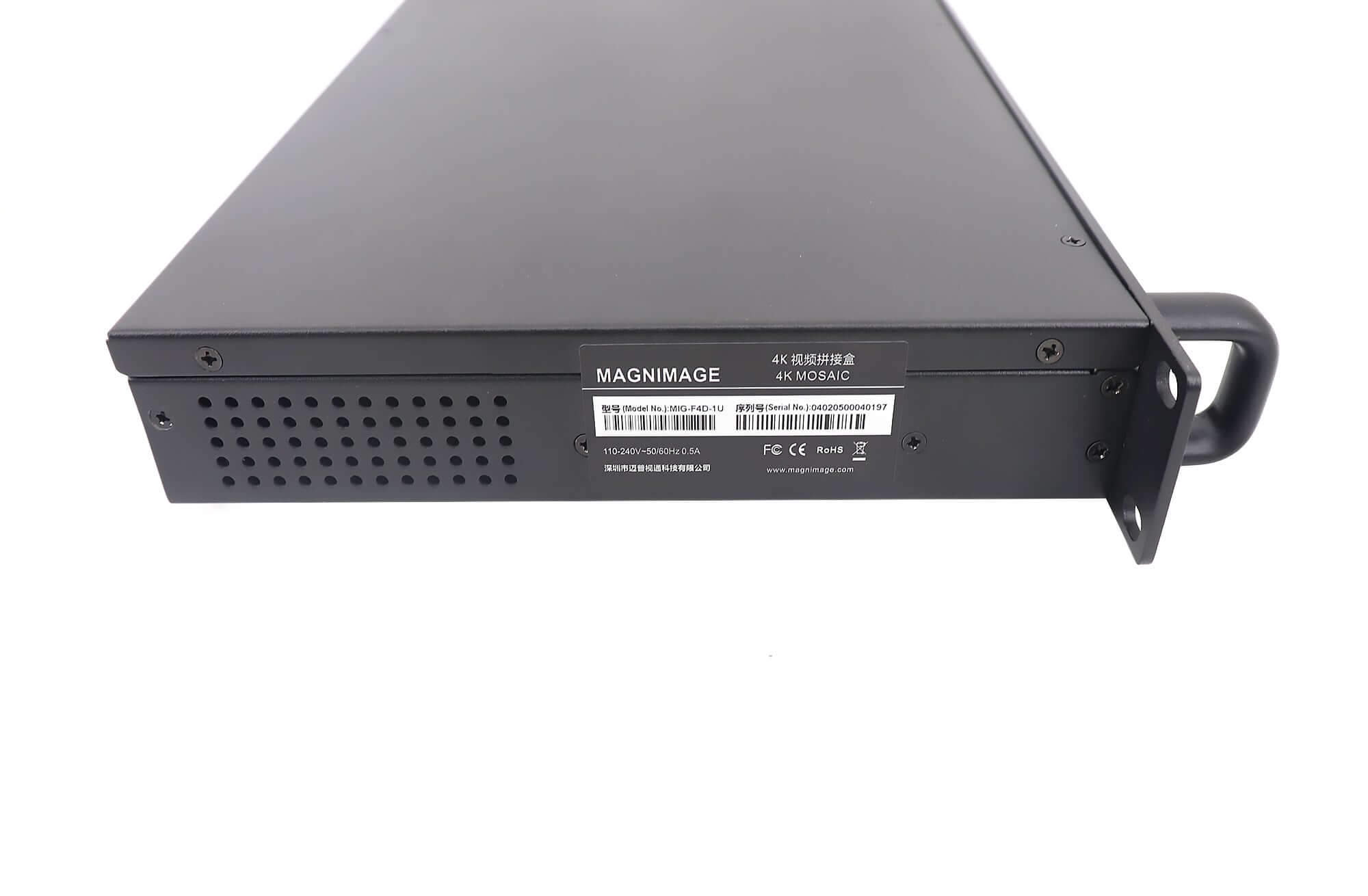

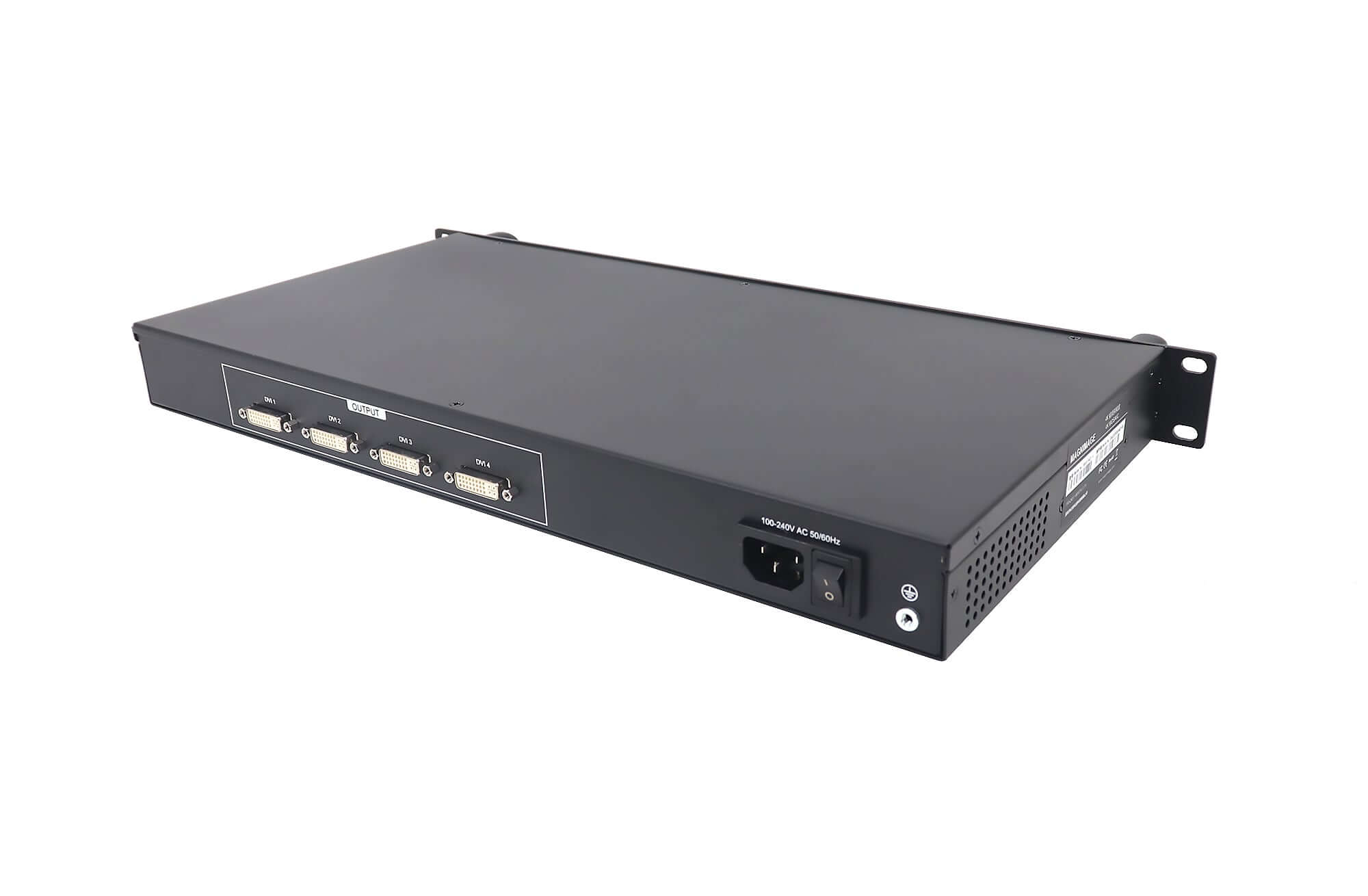

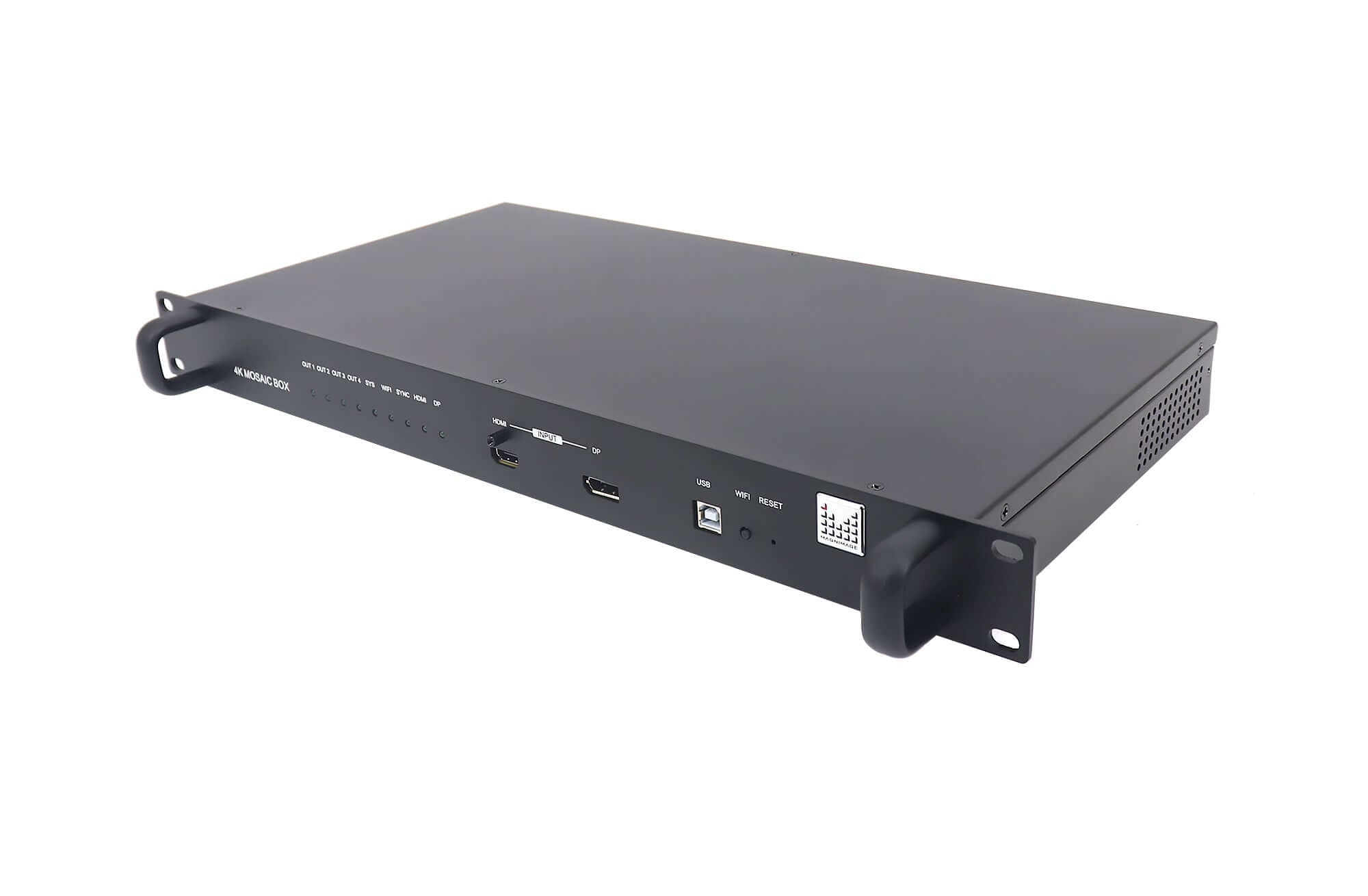

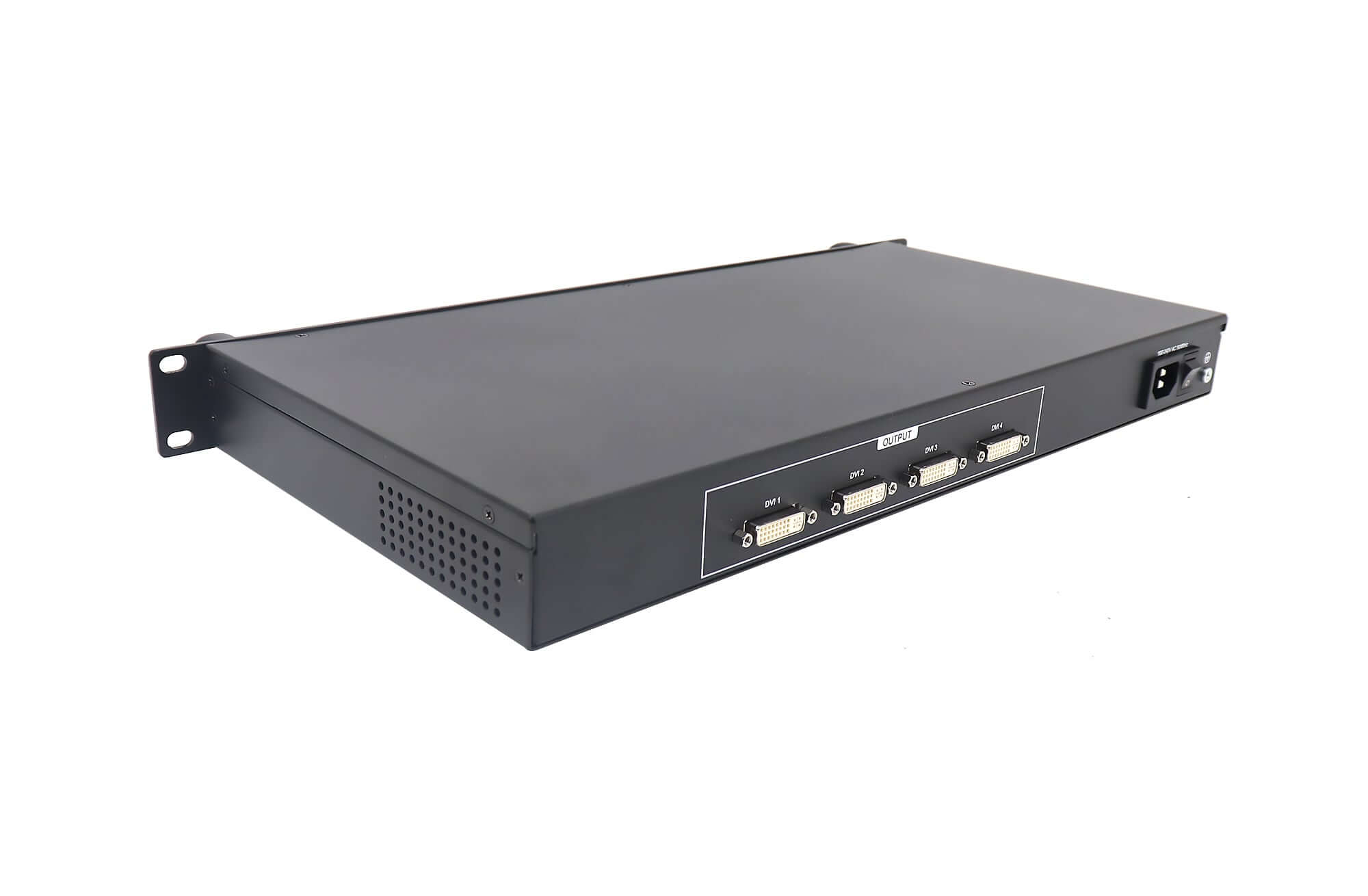

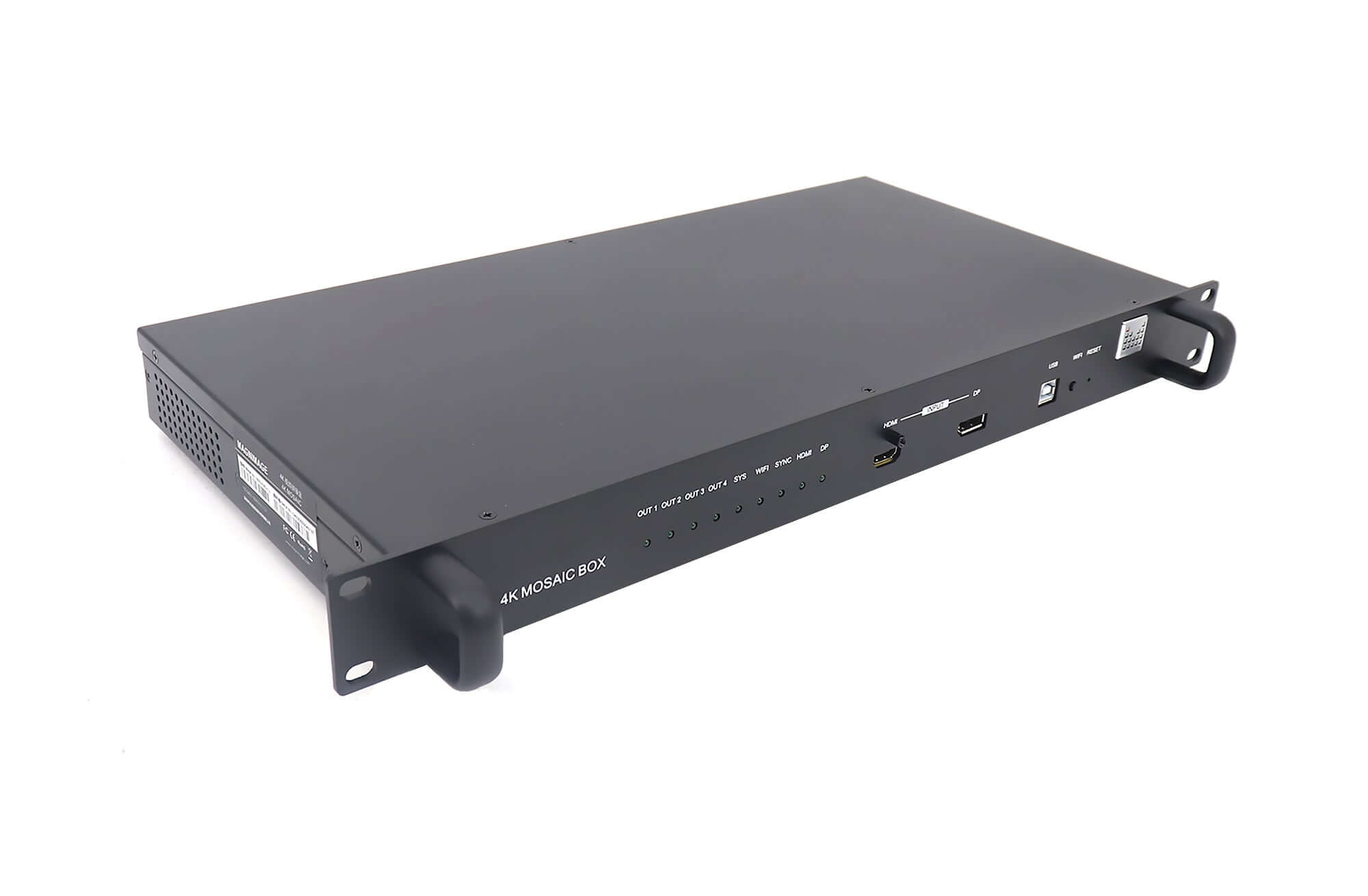

Product images
Download Specification:
Magnimage-MIG-F4-1U-series-4K-video-mosaic-box-Specification
| Weight | 4.1 kg |
|---|
