Colorlight X2 LED Display Controller with SDI, HDMI and VGA
$ 203.00
Colorlight X2 LED controller with 2 Gigabit Ethernet outputs and 1.3-million-pixel capacity. Connect SDI, HDMI, DVI, VGA or CVBS sources and configure the display through USB.
The Colorlight X2 is an LED display controller with two Gigabit Ethernet outputs and a 1.3-million-pixel loading capacity. It accepts SDI, HDMI, DVI, VGA and CVBS sources, making it suitable for connecting both digital and analog video equipment to an LED screen.
Source selection and screen adjustment

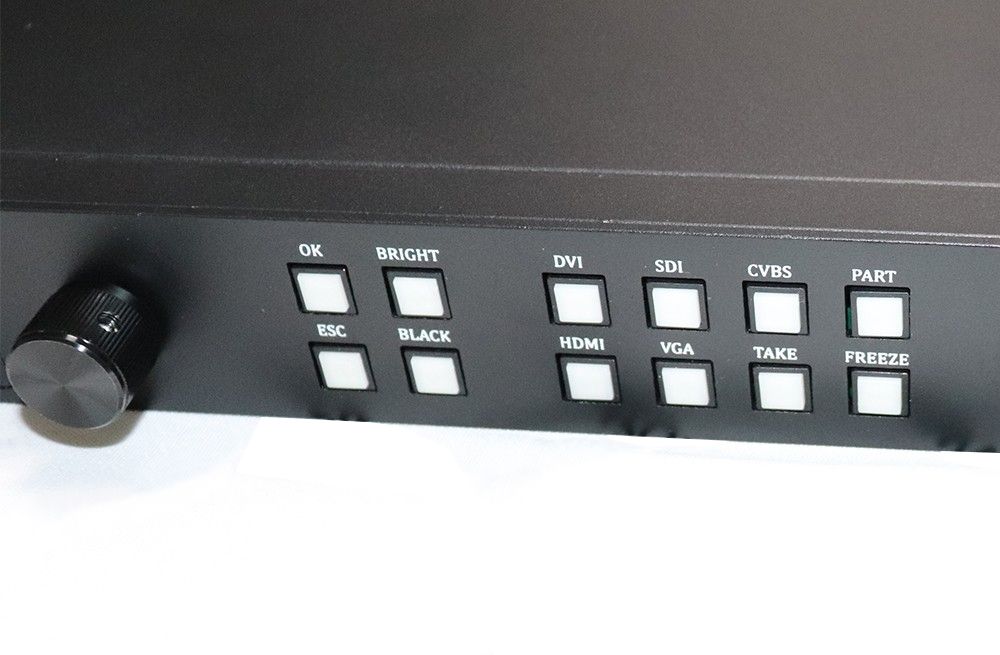

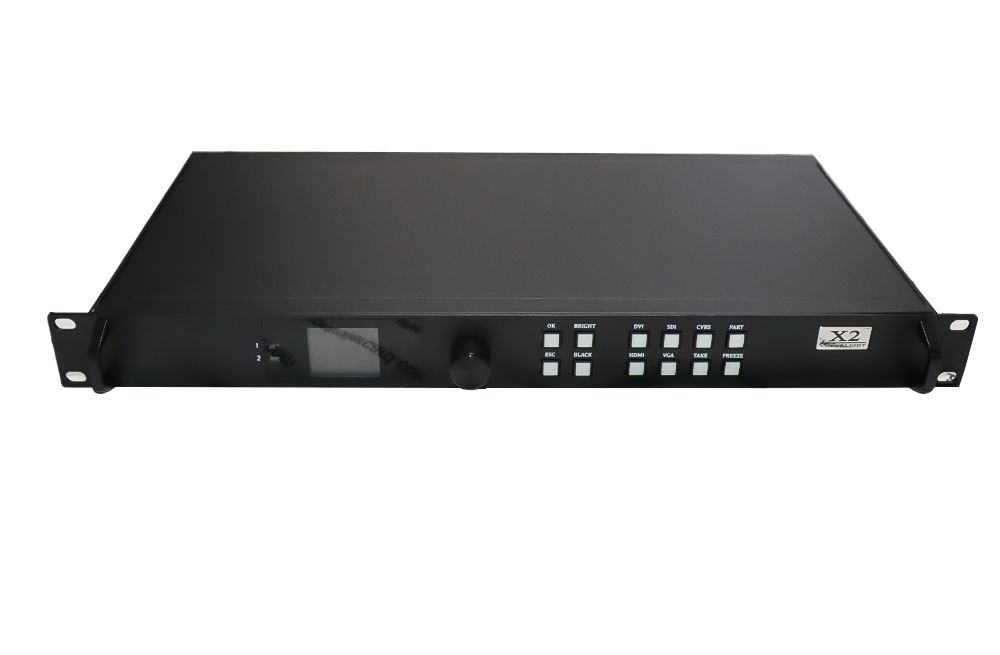

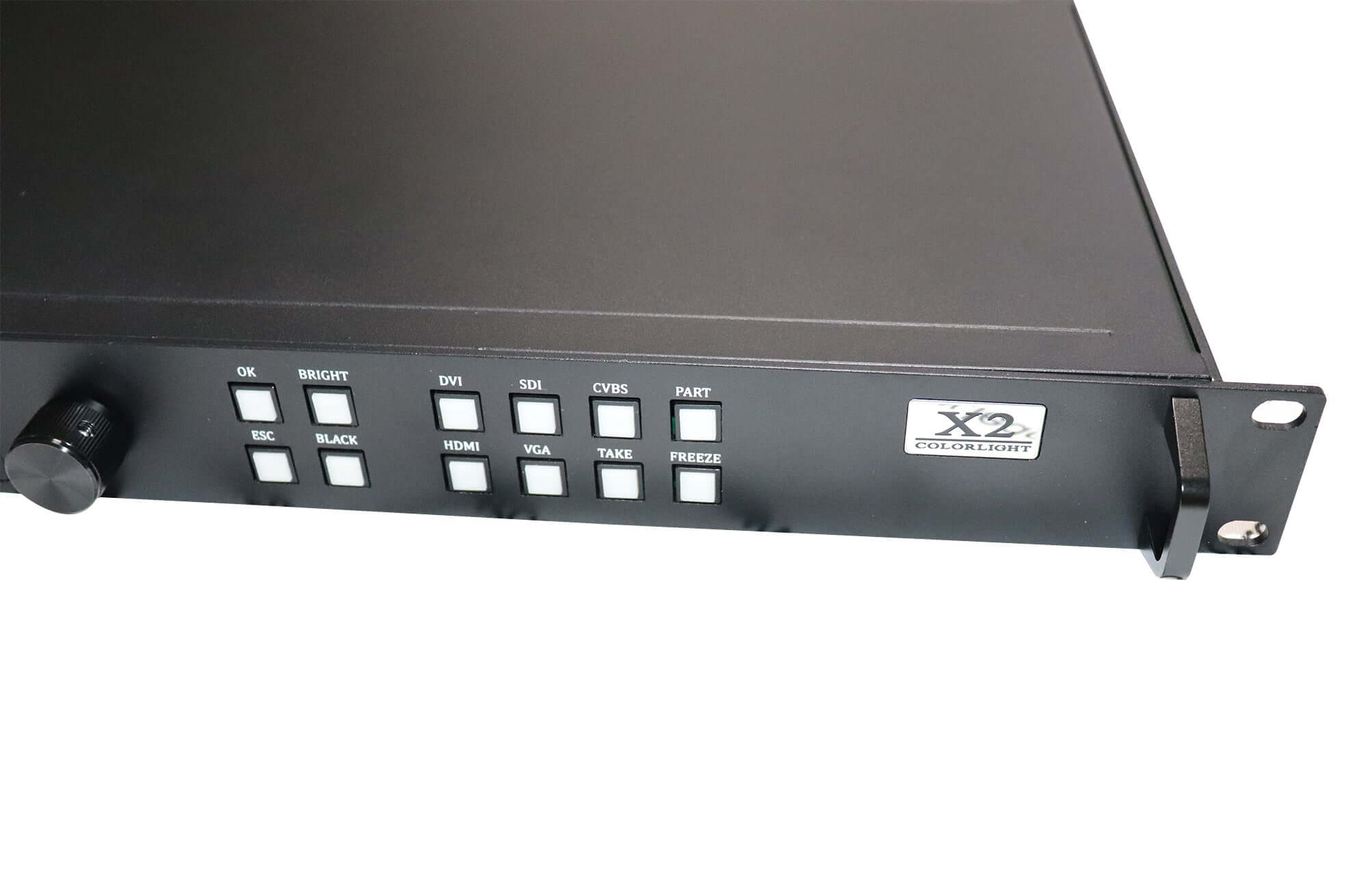

Switch between video inputs and scale the image to fit the display. Front-panel controls provide source selection, brightness adjustment, screen clipping, black screen and freeze functions, with a 1.8-inch LCD for menus and system information.

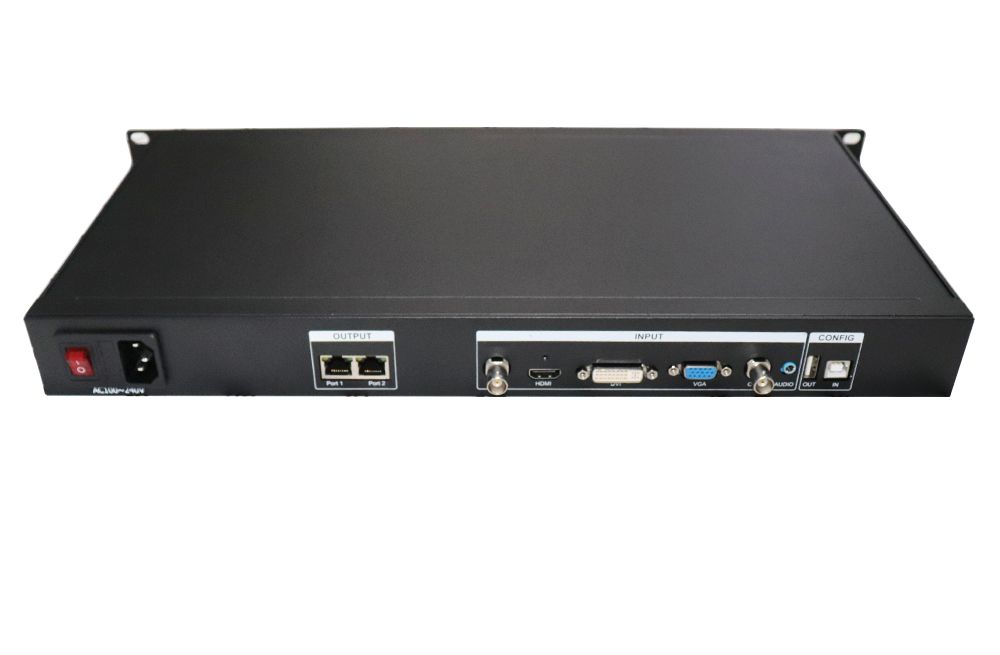

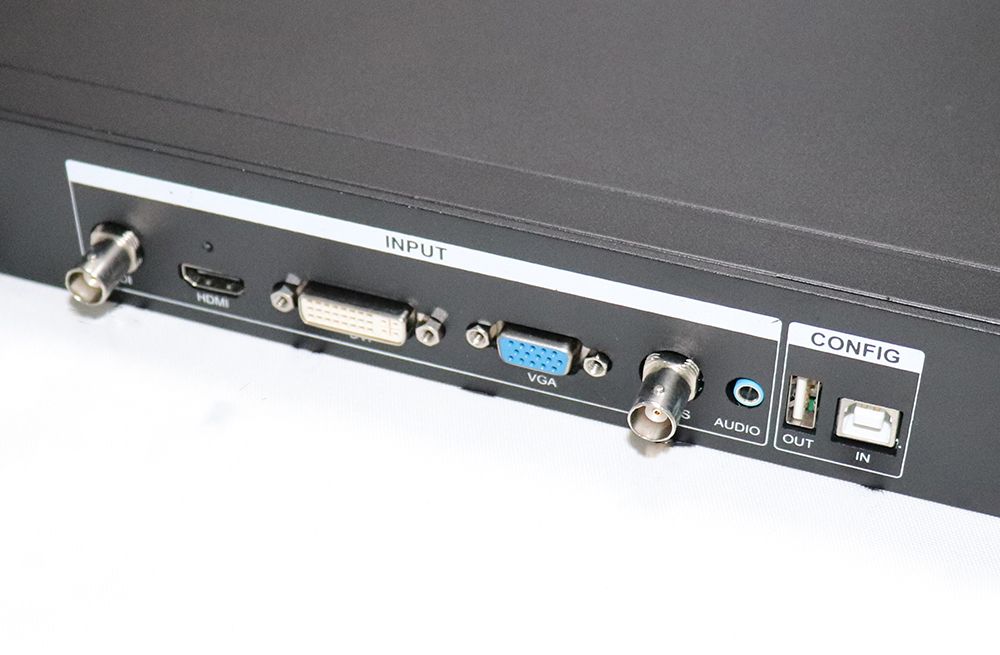

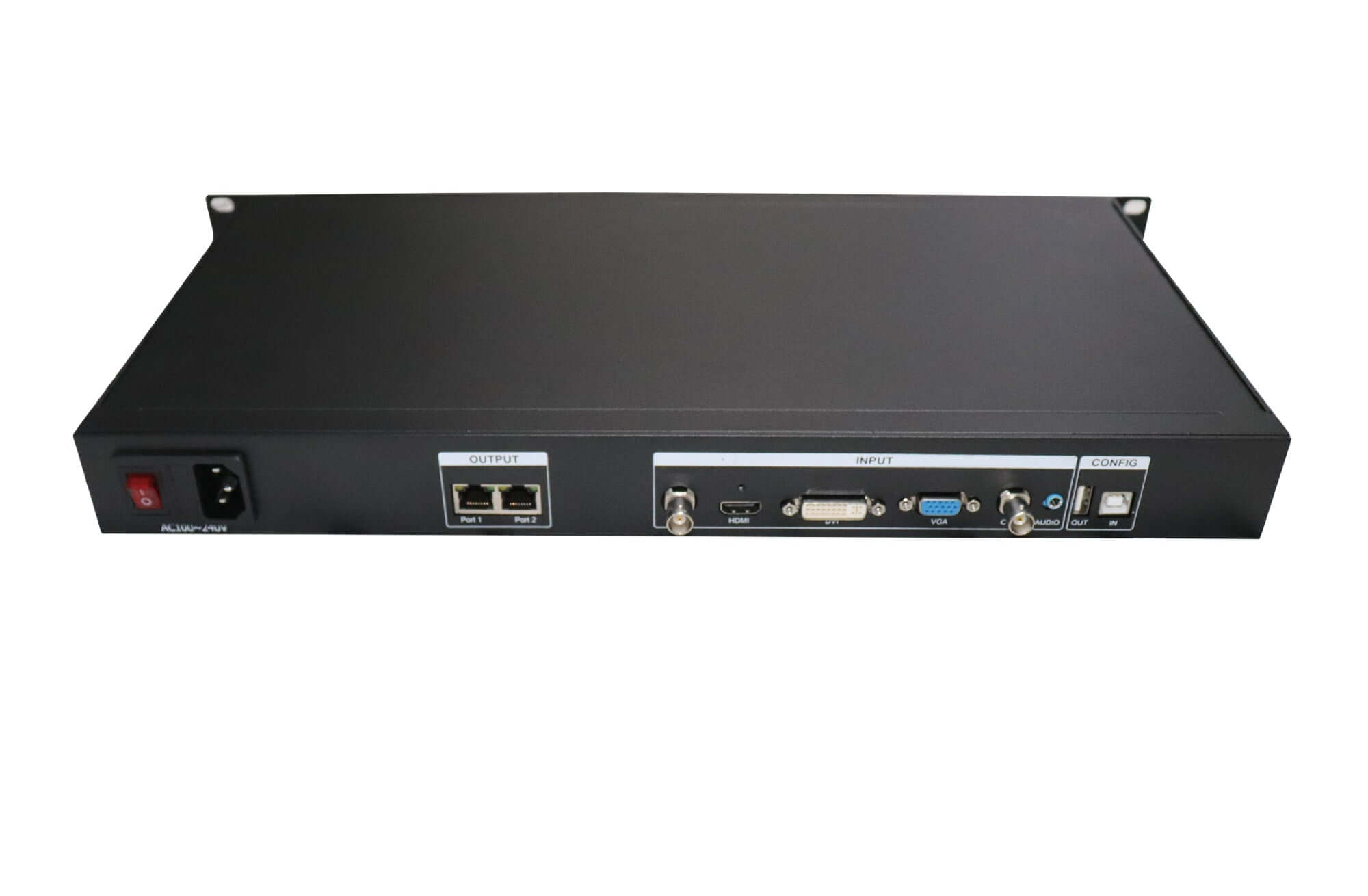

USB IN connects to a PC for configuration, and USB OUT cascades to the next controller. The X2 supports brightness and chromaticity adjustments, improved grayscale at low brightness and HDCP 1.4. Its audio input sends audio to a multifunction card.
Colorlight X2 specifications
| Parameter | Specification |
|---|---|
| Loading capacity | 1.3 million pixels |
| LED outputs | 2 × RJ45 Gigabit Ethernet |
| Maximum screen width / height | 2560 / 2560 pixels, subject to total loading capacity |
| SDI input | 1 × SDI, 1080p |
| HDMI input | 1 × HDMI, up to 1920 × 1200 at 60 Hz; HDCP supported |
| DVI input | 1 × DVI, up to 1920 × 1200 at 60 Hz; HDCP supported |
| VGA input | 1 × VGA, up to 1920 × 1200 at 60 Hz |
| CVBS input | 1 × CVBS, PAL / NTSC |
| Audio | Audio input for transmission to a multifunction card |
| Control | USB IN for PC configuration; USB OUT for cascading |
| Front-panel display | 1.8-inch LCD |
| Enclosure | 1U standard box |
| Supply | AC 100–240 V |
| Rated power consumption | 20 W |
| Working temperature | −25°C to 80°C |
| Weight | 2 kg |
The maximum width and height are separate limits. A proposed screen must also fit within the 1.3-million-pixel total capacity.
Product photos
Frequently Asked Questions
Does the Colorlight X2 have two or four Ethernet outputs?
The X2 has two RJ45 Gigabit Ethernet outputs, labeled Port 1 and Port 2 in the V1.2 specification.
What is the maximum screen capacity of the X2?
The total capacity is 1.3 million pixels. Maximum width and maximum height are each 2560 pixels, with the total pixel limit applying to the selected layout.
Can the X2 accept SDI and analog video?
Yes. It has one SDI input listed at 1080p, one VGA input up to 1920 × 1200 at 60 Hz, and one CVBS input supporting PAL and NTSC. HDMI and DVI inputs are also provided.
What are USB IN and USB OUT used for?
USB IN connects to a PC to configure the controller. USB OUT is used to cascade the next controller.
How is audio handled by the X2?
The audio input receives an audio signal and transmits it to a multifunction card. Plan for that card when the display system requires audio.
Download the specification
| Weight | 7 kg |
|---|
