Mooncell C10/C12/C40/C60/C120 LED Receiving Cards
Price range: $ 6.60 through $ 13.50
Mooncell C-series FPGA LED receiving cards for different module and cabinet layouts. Compare the C10, C12, C40, C60 and C120 by connector, output groups, scan mode and correction-dependent loading before choosing a model.
Mooncell C-series receiving card comparison
The Mooncell C10, C12, C40, C60 and C120 are FPGA LED receiving cards with distinct connection and loading specifications. This series listing brings the five model manuals together so you can select a card for the actual module interface and screen layout.
Check the output type and calibration limits as well as the headline pixel capacity. The C10 capacity statements differ within its manual, and customized backup functions should be specified when ordering.
Technical specifications
| Parameter | Specification |
|---|---|
| Models | Mooncell C10, C12, C40, C60 and C120; specifications below are model-specific. |
| C10 data and scan | 1 data group; 1–2 scan; cascade limit ≤256 cards. |
| C10 loading | Basic parameter table: 512 pixels. The overview states 512 pixels with a maximum of 1,024; the conditions for the higher figure are not explained. |
| C12 serial output | 24 groups; maximum 8,192 pixels; brightness correction 8,192; chromaticity correction 4,096. |
| C12 parallel output | 8 groups; maximum and brightness correction 64 × 128; chromaticity correction 64 × 64. |
| C12 clock extension | 4 groups. |
| C40 output and loading | 10 parallel RGB groups; maximum and brightness correction 256 × 384; chromaticity correction 384 × 224. |
| C60 output and loading | 24 parallel RGB groups; maximum 256 × 512; brightness correction 510 × 256; chromaticity correction 510 × 160. |
| C120 output and loading | 32 parallel RGB groups / 96 serial groups; maximum and brightness correction 768 × 256; chromaticity correction 510 × 160. |
| C12 / C40 / C60 / C120 scan | 1–64 scan; cascade limit ≤1,000 cards. |
| C10 connection | 2.0 mm pitch connector; J2 display output, JP1 input from SH100 splitter and JP2 connection to the next card. |
| C12 connection | 2 mm connector; the specification describes transmission over two conductors of Cat5e cable. |
| C40 connection | High-density connection; optional connector listing includes two 2 × 20-pin female connectors. |
| C60 connection | 60-pin connector design; optional 2 × 30-pin, 0.8 mm male and female connectors are listed. |
| C120 connection | 120-pin connector design. |
| Input voltage | DC 3.5–5.5 V for all five models, according to their electrical tables. |
| C10 / C12 current and power | 0.4 A; 2 W. |
| C40 / C60 / C120 current and power | 0.6 A; 3 W. |
| C10 dimensions / weight | 85 × 12 mm; 10 g. |
| C12 dimensions / weight | 70 × 24 mm; 20 g. |
| C40 dimensions / weight | 75.1 × 28 mm; 11.9 g. |
| C60 dimensions / weight | 72 × 29 mm; 12 g. |
| C120 dimensions / weight | 74 × 29 mm; 12 g. |
| Operating temperature | C10: −20 to 75°C; C12: −40 to 80°C; C40, C60 and C120: −20 to 70°C. |
| Operating humidity | 10–90% RH in each model specification. |
| Storage temperature | −25 to 125°C in the model specifications. |
| Configuration | AutoLED configuration, including display layout and rotation functions described in the individual manuals. |
| Backup | Cable loop backup is described. Receiving-card hot backup for C40, C60 and C120 is identified as a customized function. |
Product images and specification download
Mooncell C10 LED receiving card Specification

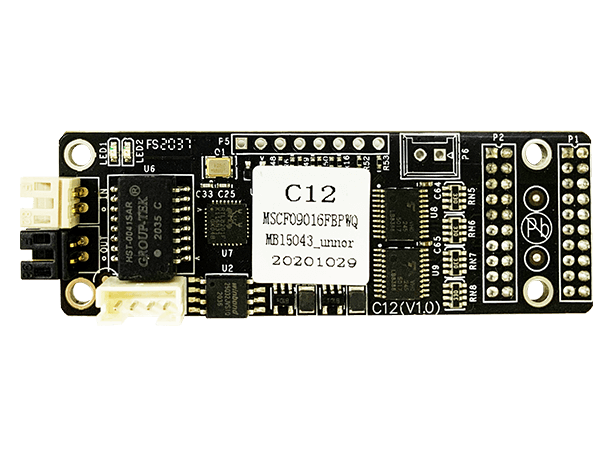

Mooncell C12 LED receiving card Specification

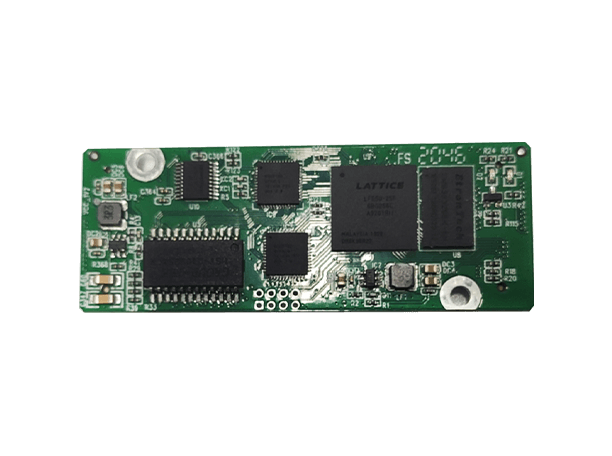

Mooncell C40 LED receiving card Specification

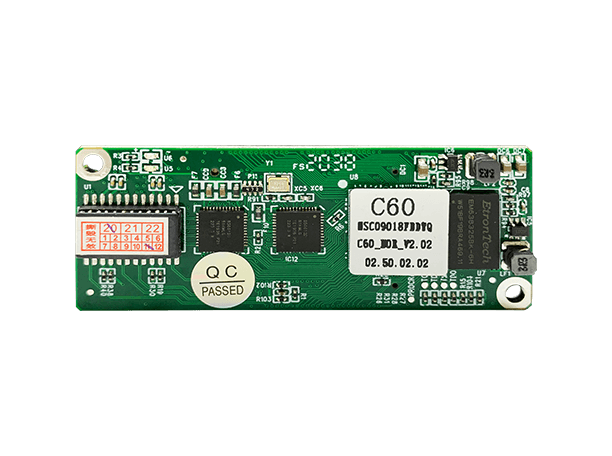

Mooncell C60 LED receiving card Specification

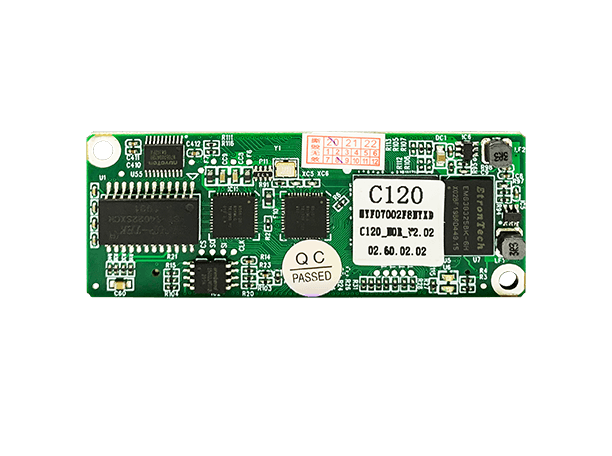

Mooncell C120 LED receiving card Specification
Frequently asked questions
Which Mooncell C-series receiving card should I choose?
Match the card to the module interface, scan mode and required loading under your correction settings. C10 is intended for small light-bar, film or glass-screen arrangements, while C12, C40, C60 and C120 have different output-group and connector designs. They are not interchangeable solely because they belong to the same series.
Does brightness or chromaticity correction change the loading capacity?
Yes. The manuals list separate limits for maximum loading, brightness correction and chromaticity correction. For example, C60 lists 256 × 512 maximum loading, 510 × 256 with brightness correction and 510 × 160 with chromaticity correction. Use the relevant row for your configuration.
Can C10 drive 1,024 pixels?
The C10 overview mentions a maximum of 1,024 pixels, but its basic parameter table lists 512. The document does not explain the conditions for 1,024, so confirm the exact hardware and display configuration before designing above the table value.
Can I reuse the same connector or cable arrangement for all five cards?
No. C10 and C12 describe 2 mm connections, C60 uses a 60-pin design and C120 uses a 120-pin design. Check the connector orientation, pinout, power supply and adapter board against the PDF for the specific model. The two-conductor description for C12 does not establish standard PoE compatibility.
Is receiving-card hot backup included as standard?
Cable loop backup and receiving-card hot backup are different functions. The C40, C60 and C120 manuals label receiving-card hot backup as customized. Confirm that the required firmware and hardware configuration are supplied for the intended backup arrangement.
