MEAN WELL UHP-200-5 5V 40A 200W Slim LED Power Supply
$ 34.00
MEAN WELL UHP-200-5 is a 5V, 40A, 200W enclosed power supply with a 26mm profile, active PFC and fanless cooling. Check installation clearances and the datasheet derating curves when selecting it for an LED cabinet.
10000 in stock
UHP-200-5 slim 5V power supply
The MEAN WELL UHP-200-5 provides a rated 5V DC output at 40A, with 200W rated power. Its 194 × 55 × 26mm enclosure suits installations where power-supply height and cabinet space matter. Active PFC and a fanless design are built into this model.
Electrical and mechanical specifications
| Parameter | Specification |
|---|---|
| Rated DC output | 5V |
| Rated output current | 40A |
| Rated power | 200W |
| Output voltage adjustment | 4.5–5.5V |
| AC input range | 90–264VAC, 47–63Hz |
| Typical efficiency | 91% |
| Ripple and noise (maximum) | 200mVp-p; datasheet measurement conditions apply |
| Dimensions (L × W × H) | 194 × 55 × 26mm |
| Working temperature | −30°C to +70°C; follow derating curves |
| Cooling | Fanless |
| Power factor correction | Built-in active PFC |
Selection and installation
Match the supply to the LED module voltage and calculated load before ordering. The rated current is 40A, not 45A. Available output depends on ambient temperature, input voltage and the mounting arrangement specified in the datasheet.
DC-OK and built-in redundancy are associated with the optional R version. Check the complete model code if your installation requires those functions.
Frequently asked questions
What is the output rating of the UHP-200-5?
Its rated output is 5V DC, 40A and 200W. The output voltage adjustment range is 4.5–5.5V.
Does this power supply have a cooling fan?
No. The UHP-200 series uses fanless cooling. Follow the mounting and thermal guidance in the specification when integrating it into a cabinet.
Does the standard UHP-200-5 include DC-OK and redundancy?
These are optional R-version functions. Confirm the full model code before choosing the supply for a redundant system.
Where can I find the UHP-200-5 dimensions and wiring information?
The UHP-200 specification PDF below includes the 5V electrical ratings, enclosure drawings, terminal assignments and derating curves.

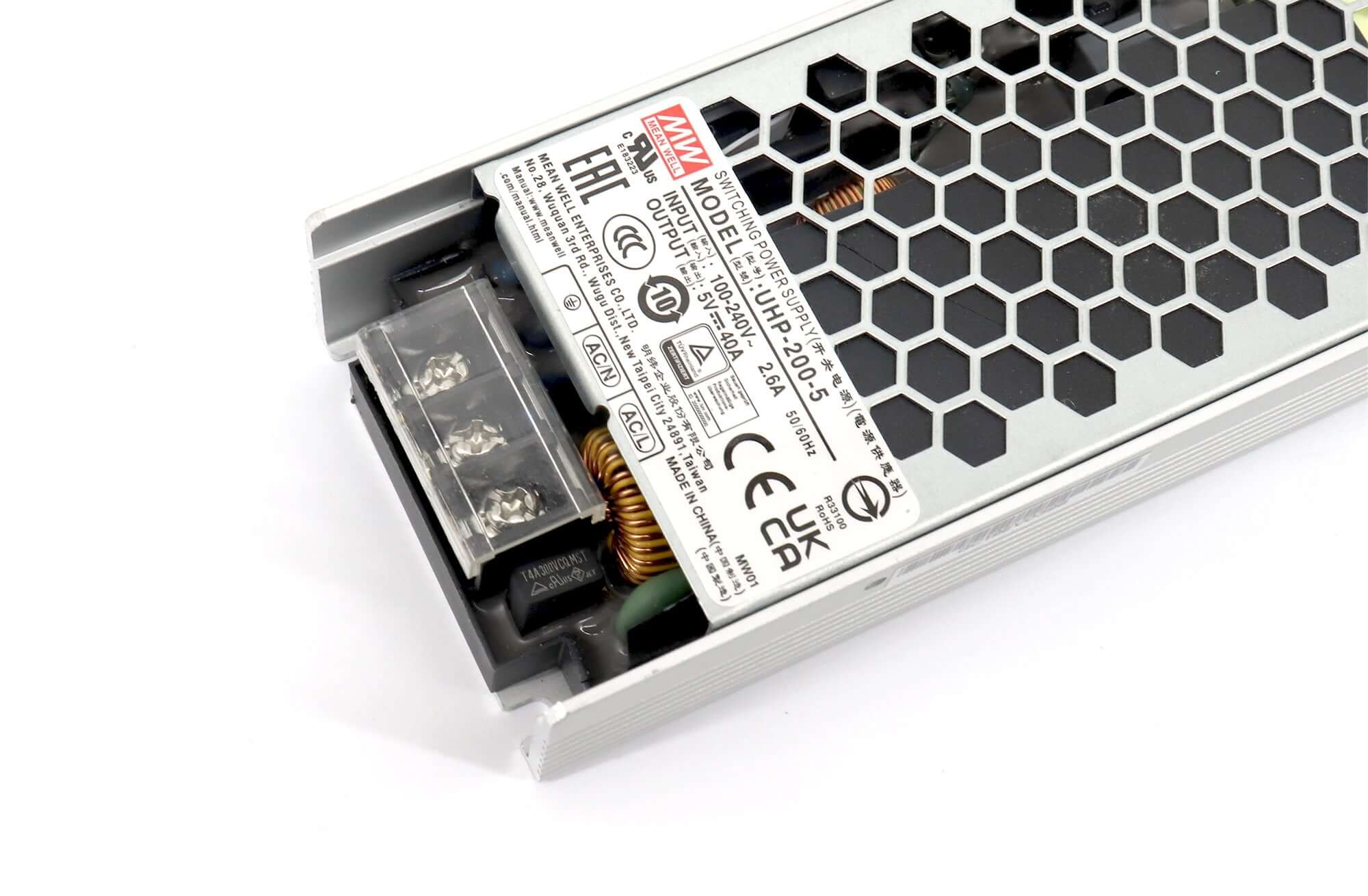

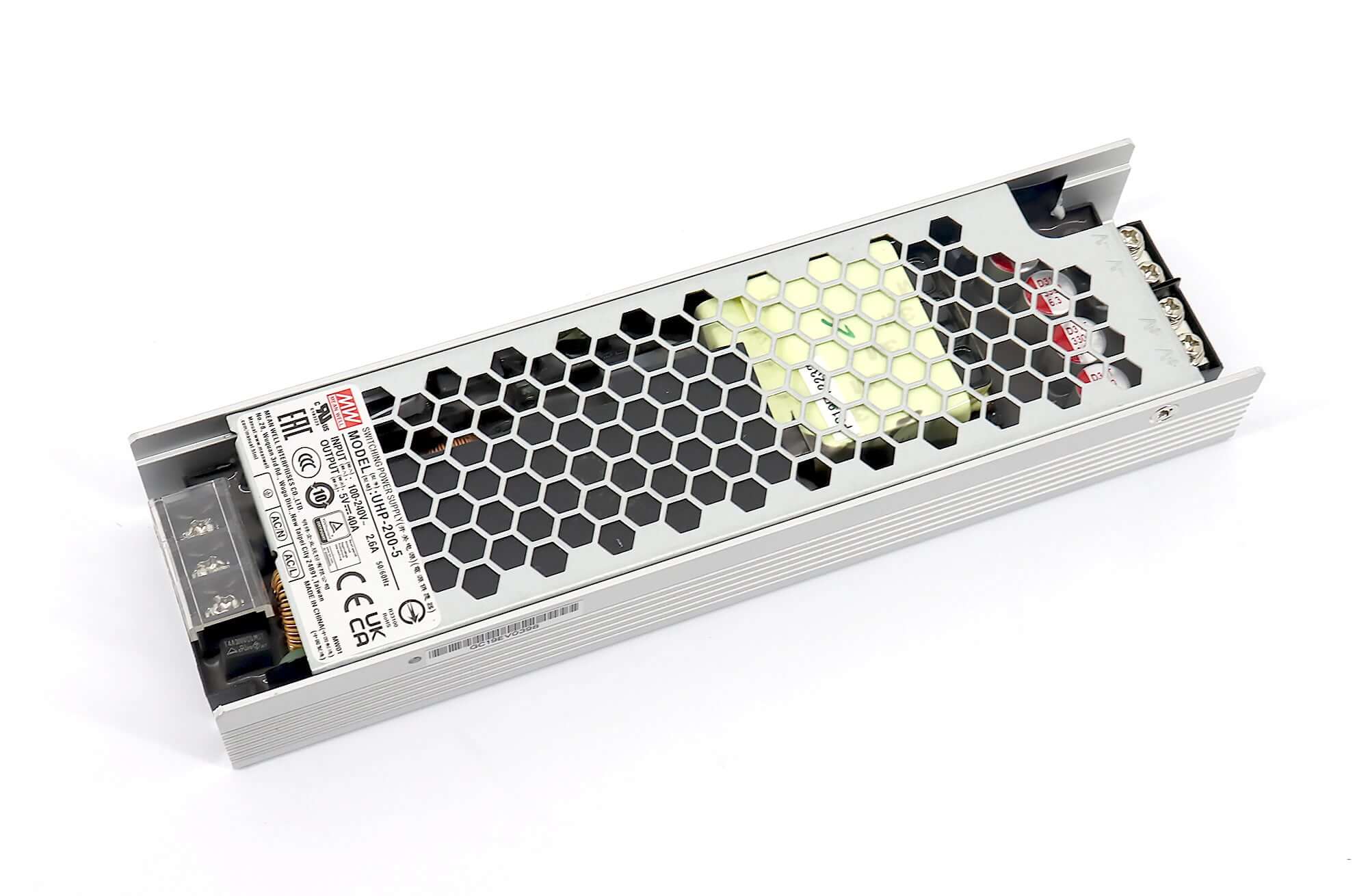

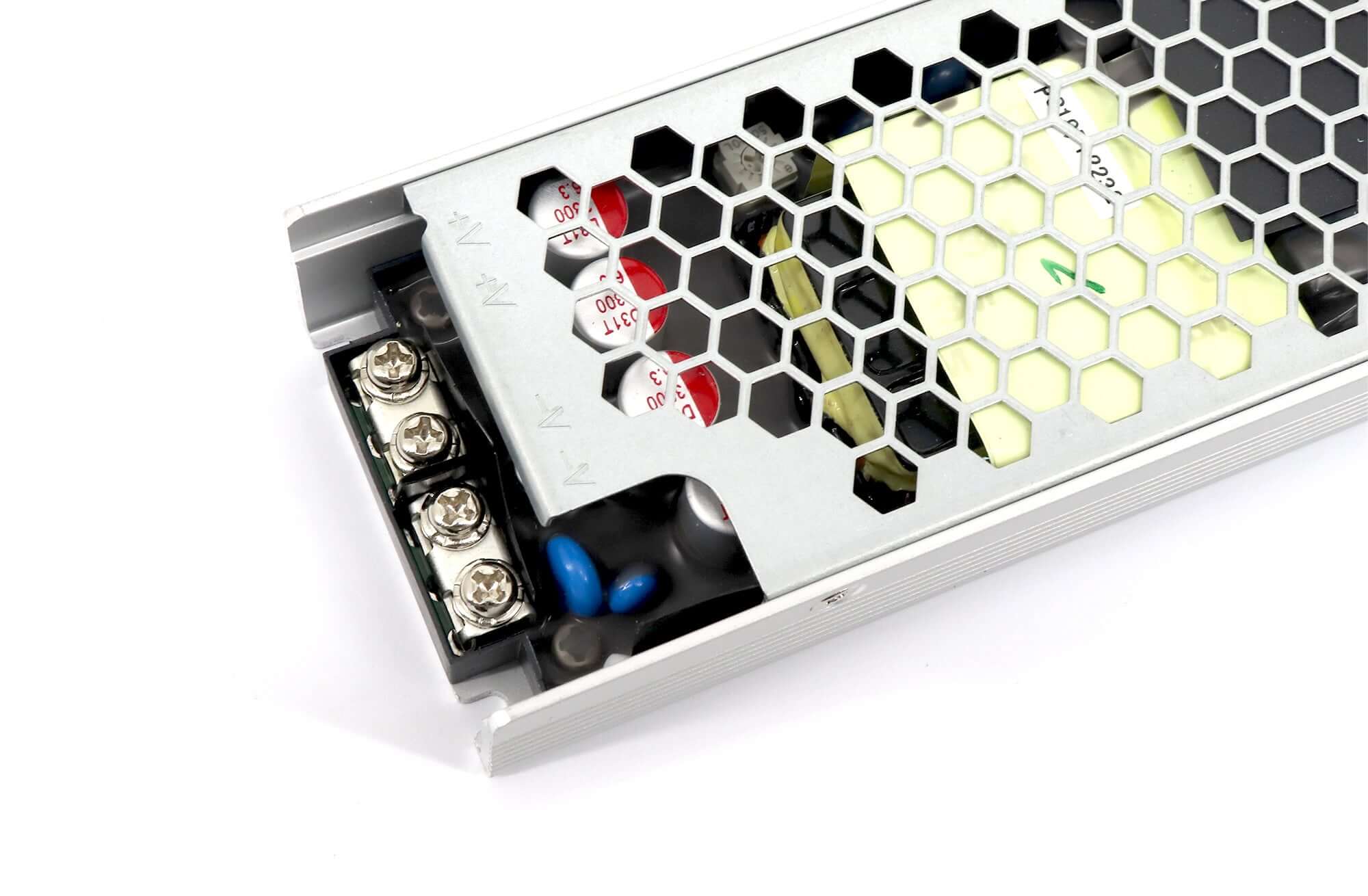

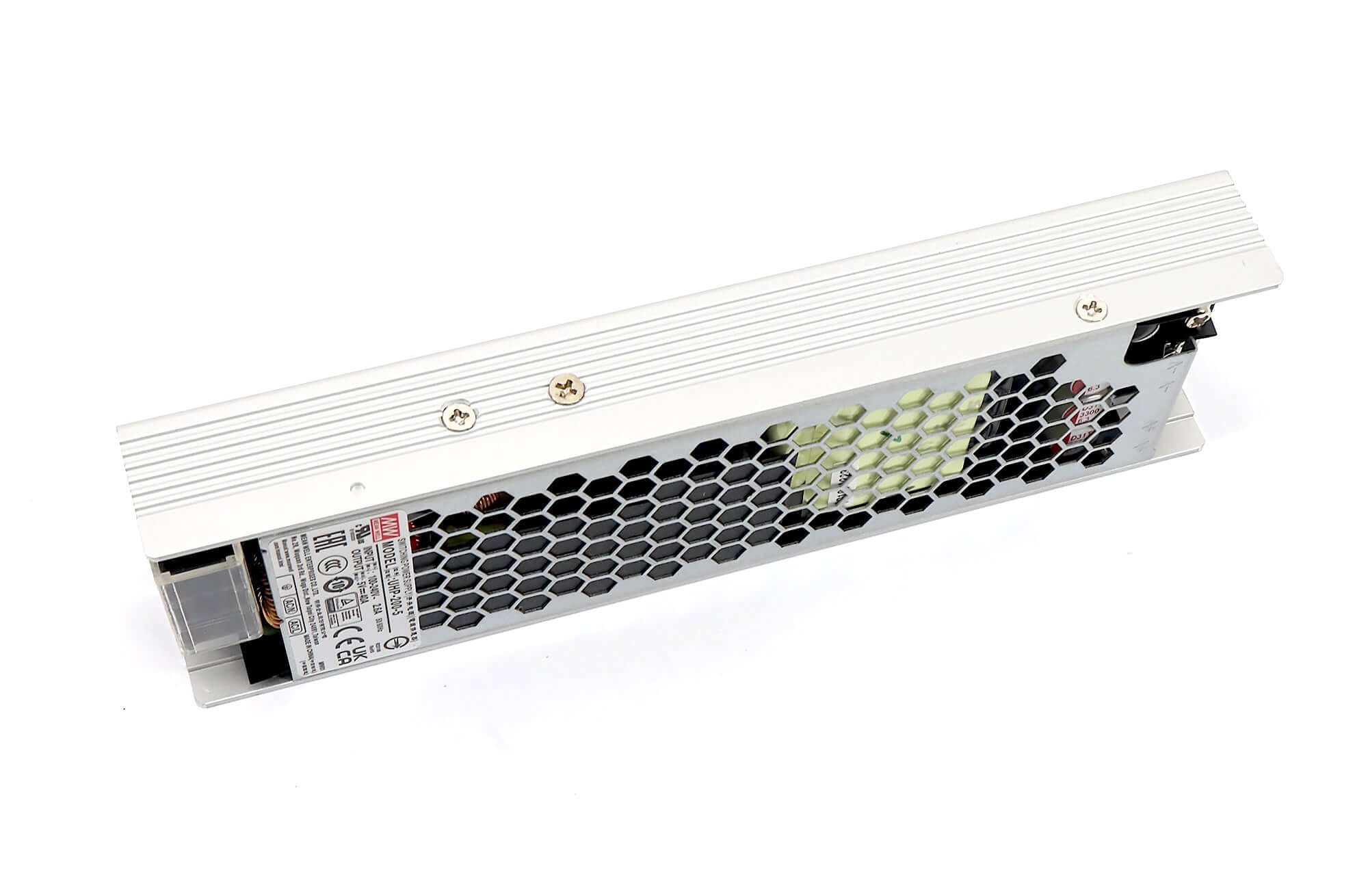

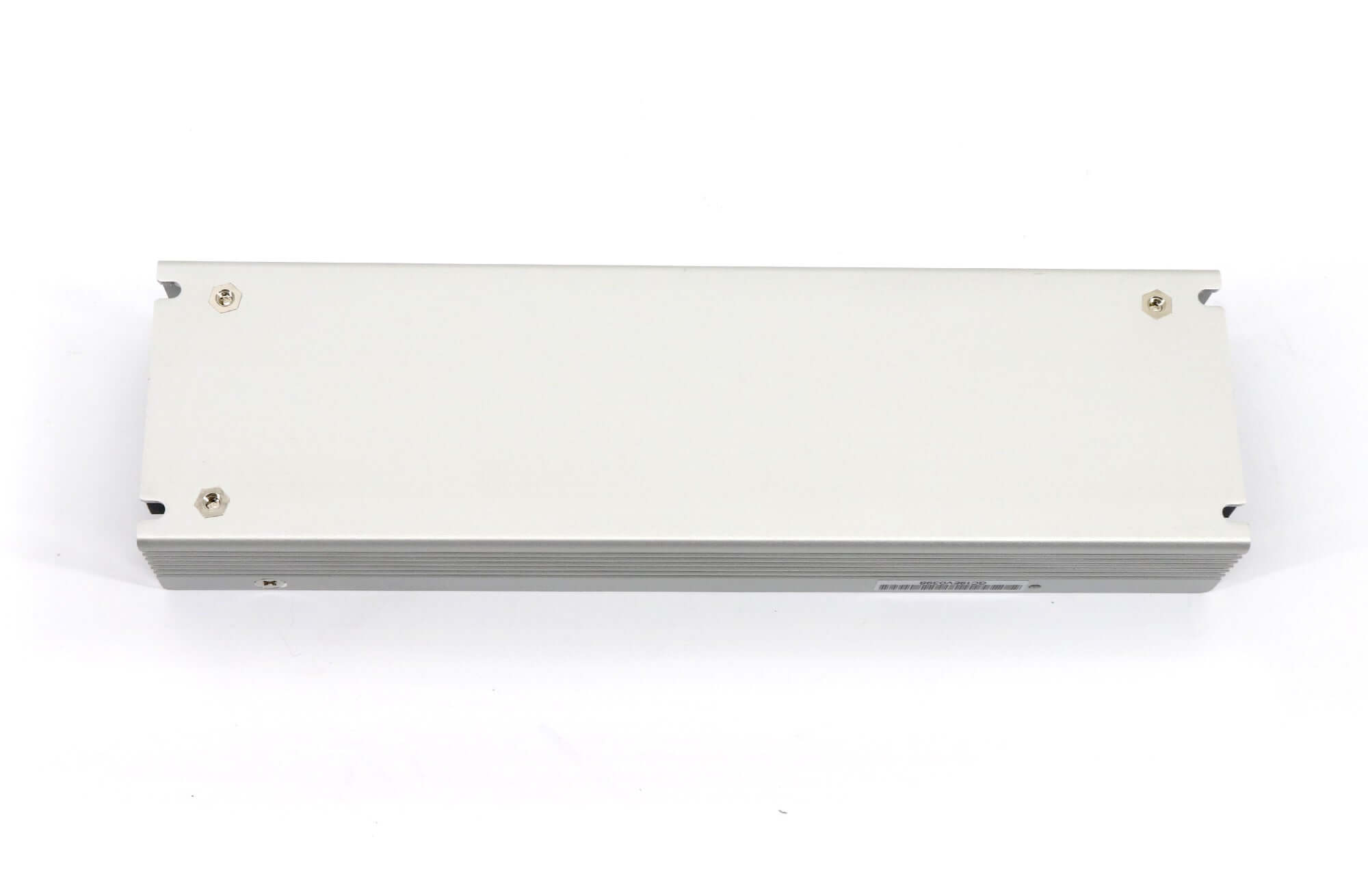

Product images and specification download
| Weight | 0.55 kg |
|---|
