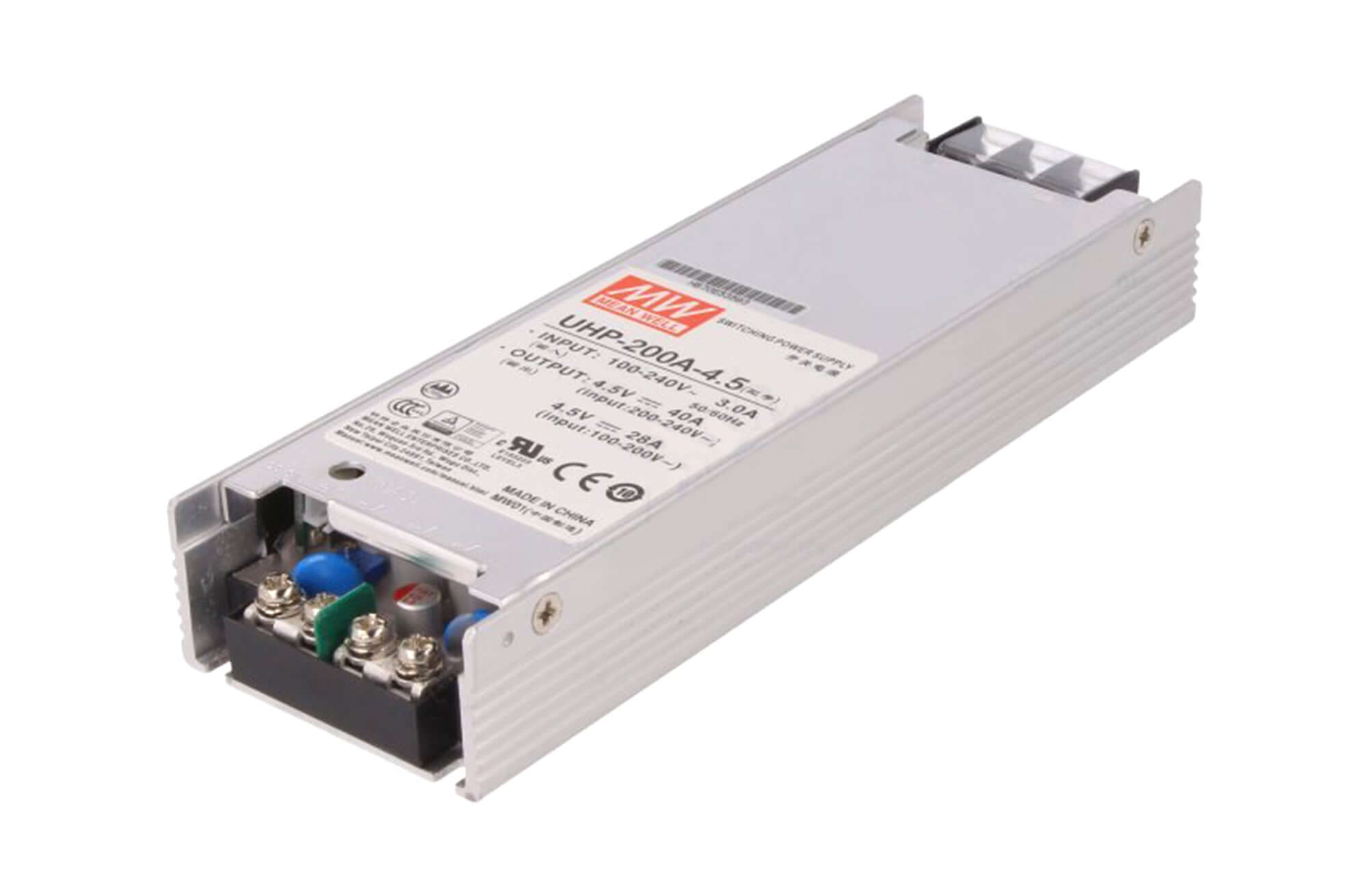

MEAN WELL UHP-200A-4.2 / UHP-200A-4.5 LED Power Supply
$ 29.50
Choose the UHP-200A-4.2 or UHP-200A-4.5 LED power supply to match your module voltage. Both models are rated at 40A and use a slim 167 × 55 × 26mm enclosure.
The MEAN WELL UHP-200A-4.2 and UHP-200A-4.5 are separate low-voltage power-supply options for LED signage. Both use fanless convection cooling and active PFC. Select the voltage model required by your LED modules before ordering.
Model comparison and specifications
| Parameter | UHP-200A-4.2 | UHP-200A-4.5 |
|---|---|---|
| DC output | 4.2V | 4.5V |
| Rated current | 40A | 40A |
| Rated power | 168W | 180W |
| Voltage adjustment | 4.0–4.4V | 4.3–4.7V |
| Typical efficiency | 88% | 88% |
| AC input | 90–264VAC, 47–63Hz | 90–264VAC, 47–63Hz |
| Dimensions (L × W × H) | 167 × 55 × 26mm | 167 × 55 × 26mm |
| Working temperature | −30 to +70°C; derating applies | −30 to +70°C; derating applies |
Values come from the corresponding model columns in the linked specification. Unless otherwise stated, ratings are measured at 230VAC input, rated load and 25°C ambient temperature.
Matching your LED display
Check the required module voltage and load current, then compare the mounting dimensions and terminal positions with your cabinet. Use the model selector to choose the required version; the two voltage options are not interchangeable by default.
Product images and specification download
Meanwell UHP-200A-4.2 UHP-200A-4.5 Power Supply for LED Screen Specification
Frequently asked questions
Are both versions rated at 200W?
No. The UHP-200A-4.2 is rated at 168W, and the UHP-200A-4.5 is rated at 180W. The series name should not replace the individual model rating.
Which version should I choose for my LED screen?
Choose the output voltage specified for your LED modules. Also check load current and the installation conditions against the matching datasheet column.
Are these fanless power supplies?
Yes. Both use free air convection. The output-load and temperature guidance in the PDF still applies.
Does the PDF cover both voltage options?
Yes. The linked UHP-200A specification lists the 4.2V and 4.5V models in separate columns for direct comparison.
