MEAN WELL HSP-200-5 5V 40A 200W LED Sign Power Supply
$ 32.00
The MEAN WELL HSP-200-5 is a 5V, 40A, 200W enclosed power supply for LED signs and display cabinets. It combines active PFC, 90–264VAC input and a 210 × 62 × 31mm enclosure.
9996 in stock
The MEAN WELL HSP-200-5 supplies 5V DC at a rated 40A for a 200W output. Its narrow, 31mm-high enclosure suits LED sign and display cabinets where space is limited. Built-in active PFC and a conformal coating are included.
HSP-200-5 specifications
| Parameter | Specification |
|---|---|
| DC output | 5V |
| Rated output current | 40A |
| Rated output power | 200W (convection) |
| Output adjustment | 4.5–5.5V |
| AC input | 90–264VAC, 47–63Hz |
| Typical efficiency | 88.5% |
| Power factor | ≥0.95 at 230VAC; ≥0.98 at 115VAC, full load |
| Dimensions (L × W × H) | 210 × 62 × 31mm |
| Weight | 0.52kg |
| Working temperature | −30 to +70°C; follow the datasheet derating curve |
| Protection | Short circuit, overload, overvoltage and overtemperature |
| Construction | Conformal coating; power-on LED indicator |
Values are from the linked HSP-200 series specification, using the HSP-200-5 column. Typical values are specified at 230VAC, rated load and 25°C unless otherwise stated. Low input voltage and temperature may require output derating.
Choosing a supply for an LED cabinet
Match the module voltage, total load and cabinet space to this model. Check the voltage at the load after allowing for cable losses, and keep any adjustment within the connected equipment’s permitted range. The enclosed construction and conformal coating do not establish an outdoor waterproof rating.
Frequently asked questions
What is the output of the HSP-200-5?
It is rated for 5V DC, 40A and 200W. The output can be adjusted from 4.5V to 5.5V.
Does the HSP-200-5 have active PFC?
Yes. The specification lists built-in active PFC, with a typical power factor of at least 0.95 at 230VAC and 0.98 at 115VAC under full load.
Will it fit a slim LED display cabinet?
Its dimensions are 210 × 62 × 31mm. Check the mechanical drawing and allow the installation clearances required for wiring and heat dissipation.
Where can I find the HSP-200-5 datasheet?
The original specification download is retained below. It includes the model-specific ratings, derating information and mechanical drawing.

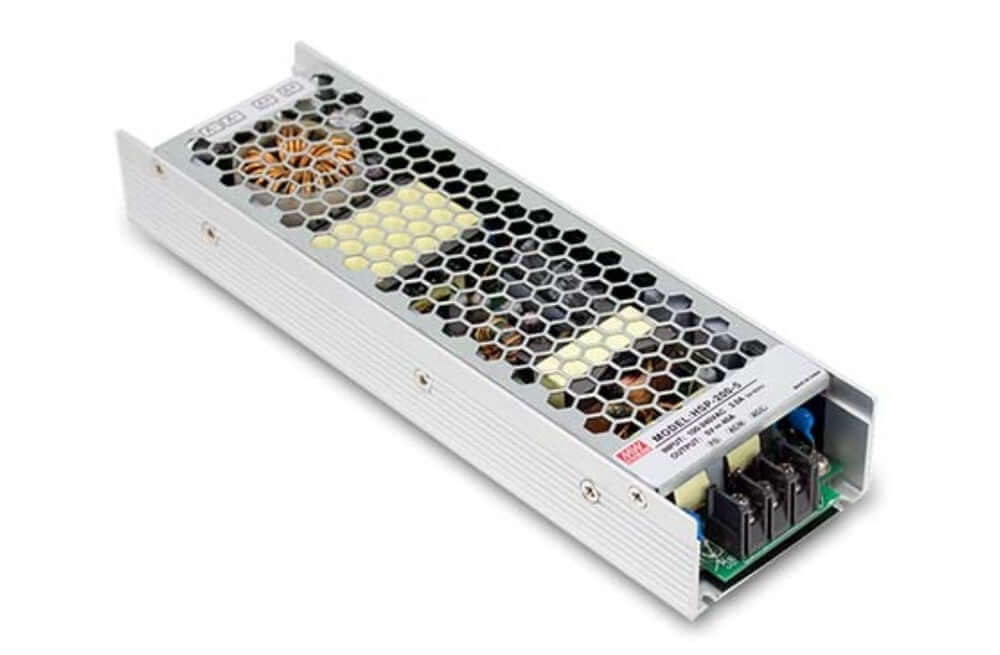

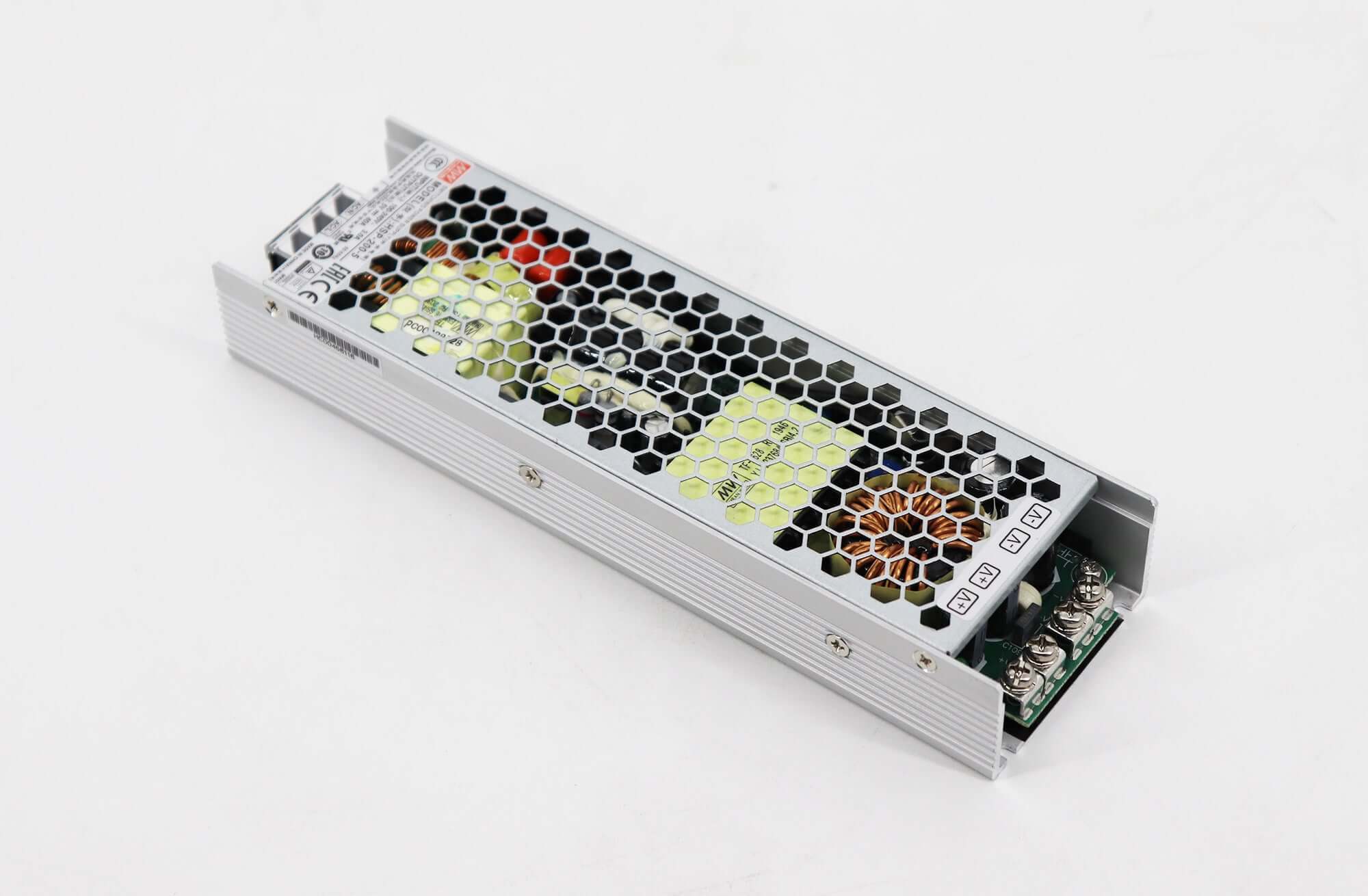

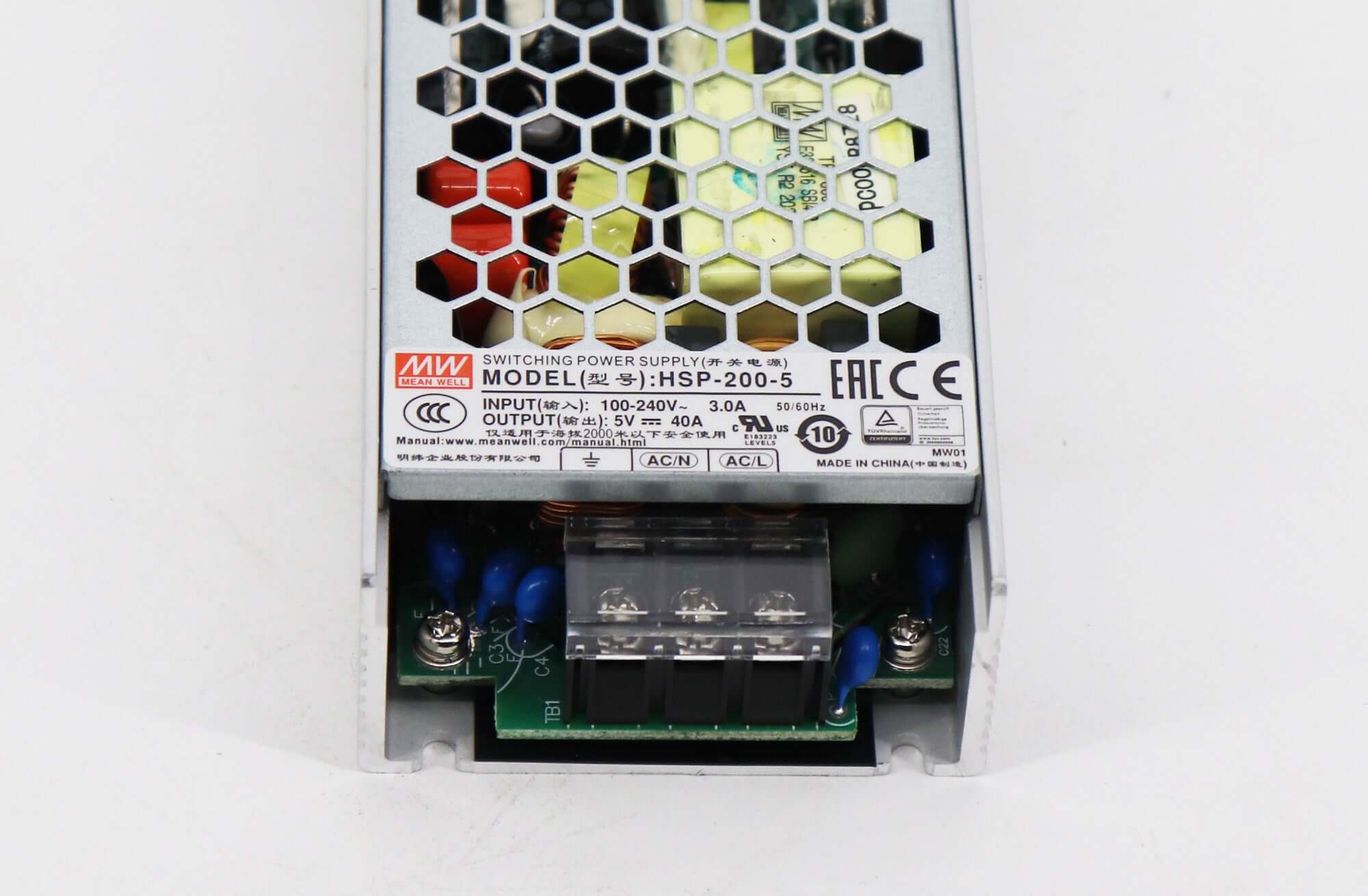

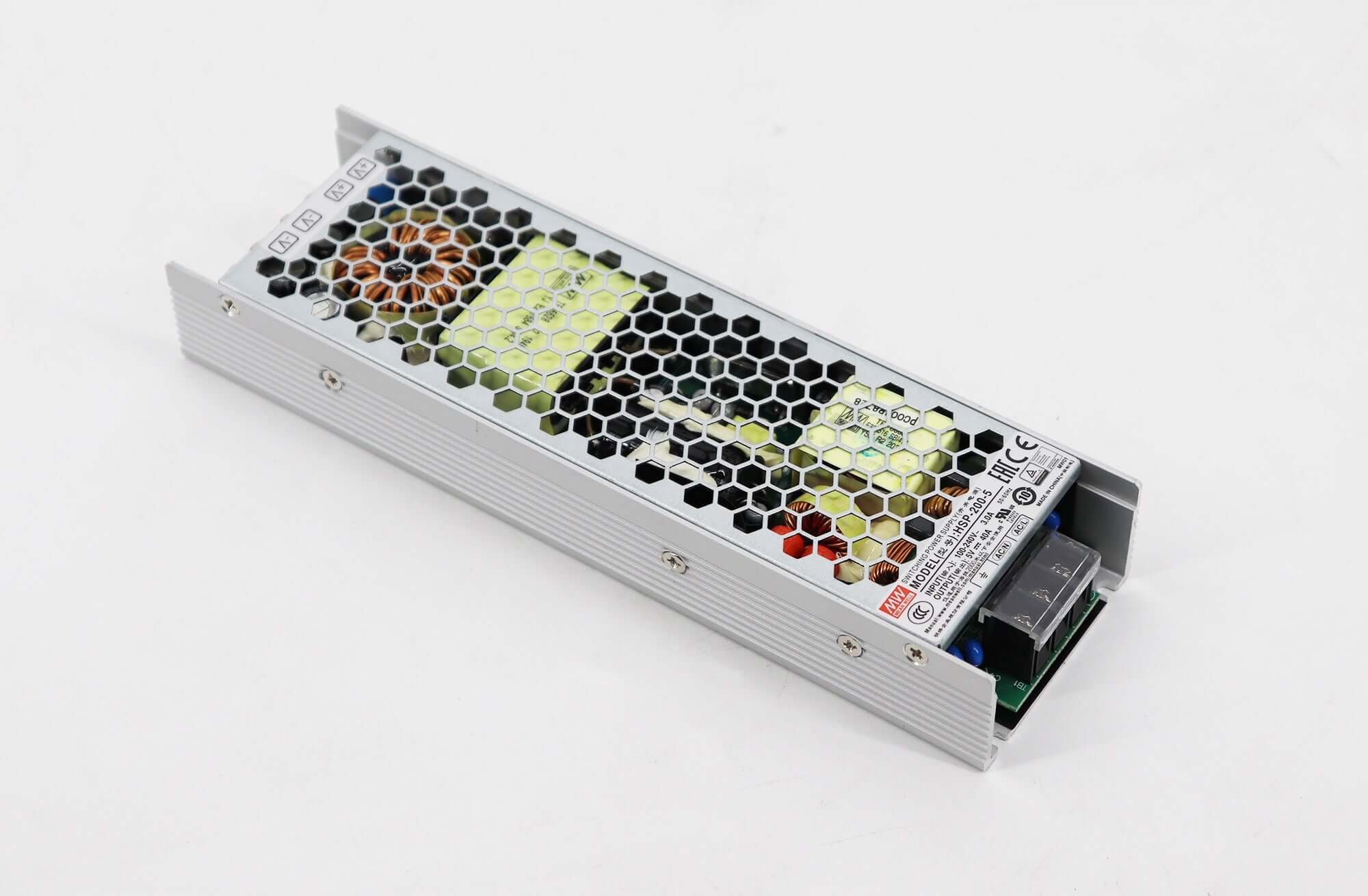

Product images and specification download
