MEAN WELL HLG-320H-24A 24V 13.34A LED Driver
$ 58.00
The MEAN WELL HLG-320H-24A supplies 24V at a rated 13.34A and 320.16W. This IP65 LED driver has active PFC and built-in potentiometers for voltage and current adjustment.
10000 in stock
The MEAN WELL HLG-320H-24A is a 24V constant-voltage and constant-current LED driver rated for 13.34A and 320.16W. It has a metal enclosure, active PFC and fanless cooling. The A version provides local output adjustment through built-in potentiometers.
HLG-320H-24A specifications
| Parameter | Specification |
|---|---|
| Rated DC voltage | 24V |
| Rated current | 13.34A |
| Rated power | 320.16W |
| Constant-current region | 12–24V |
| Voltage adjustment | 21–26V |
| Current adjustment | 6.67–13.34A |
| AC input | 90–305VAC, 47–63Hz |
| Typical efficiency | 93% at 230VAC; 94.5% at 277VAC |
| Ingress protection | IP65 (A type) |
| Dimensions (L × W × H) | 252 × 90 × 43.8mm |
| Working case temperature | −40 to +90°C; observe output-load derating |
| Protection | Overcurrent, short circuit, overvoltage and overtemperature |

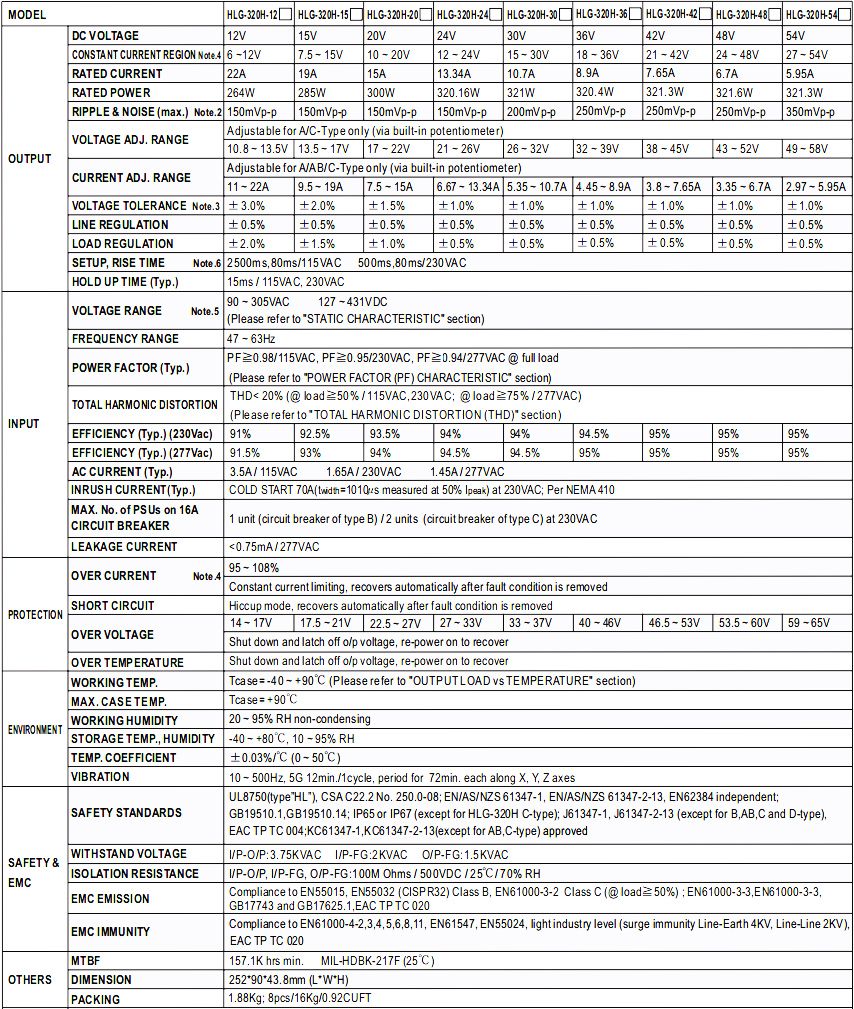

The linked HLG-320H specification supplies the model-specific ratings and A-type function details. Check its load curves before operation at high case temperature or low AC input voltage.
Matching the driver to a 24V lighting load
Confirm the LED load’s voltage, current and control requirements. Constant-voltage loads must stay within the driver’s output ratings; constant-current operation must stay within the specified operating region. The A model does not provide the external 3-in-1 dimming input found on B and AB versions.
Frequently asked questions
How much power does the HLG-320H-24A provide?
Its model-specific rating is 24V, 13.34A and 320.16W. HLG-320H is the series designation.
Can I adjust the voltage and current?
Yes. Built-in potentiometers provide 21–26V voltage adjustment and 6.67–13.34A current adjustment. Set them to suit the connected LED load.
Is the HLG-320H-24A dimmable with a 1–10V signal?
The A model has built-in adjustment only. The datasheet lists external 3-in-1 dimming for B and AB versions, so verify the full suffix when choosing a control method.
What are the enclosure size and IP rating?
The A version is IP65 and measures 252 × 90 × 43.8mm. Installation and wiring must follow the datasheet and preserve the protection of the complete lighting assembly.

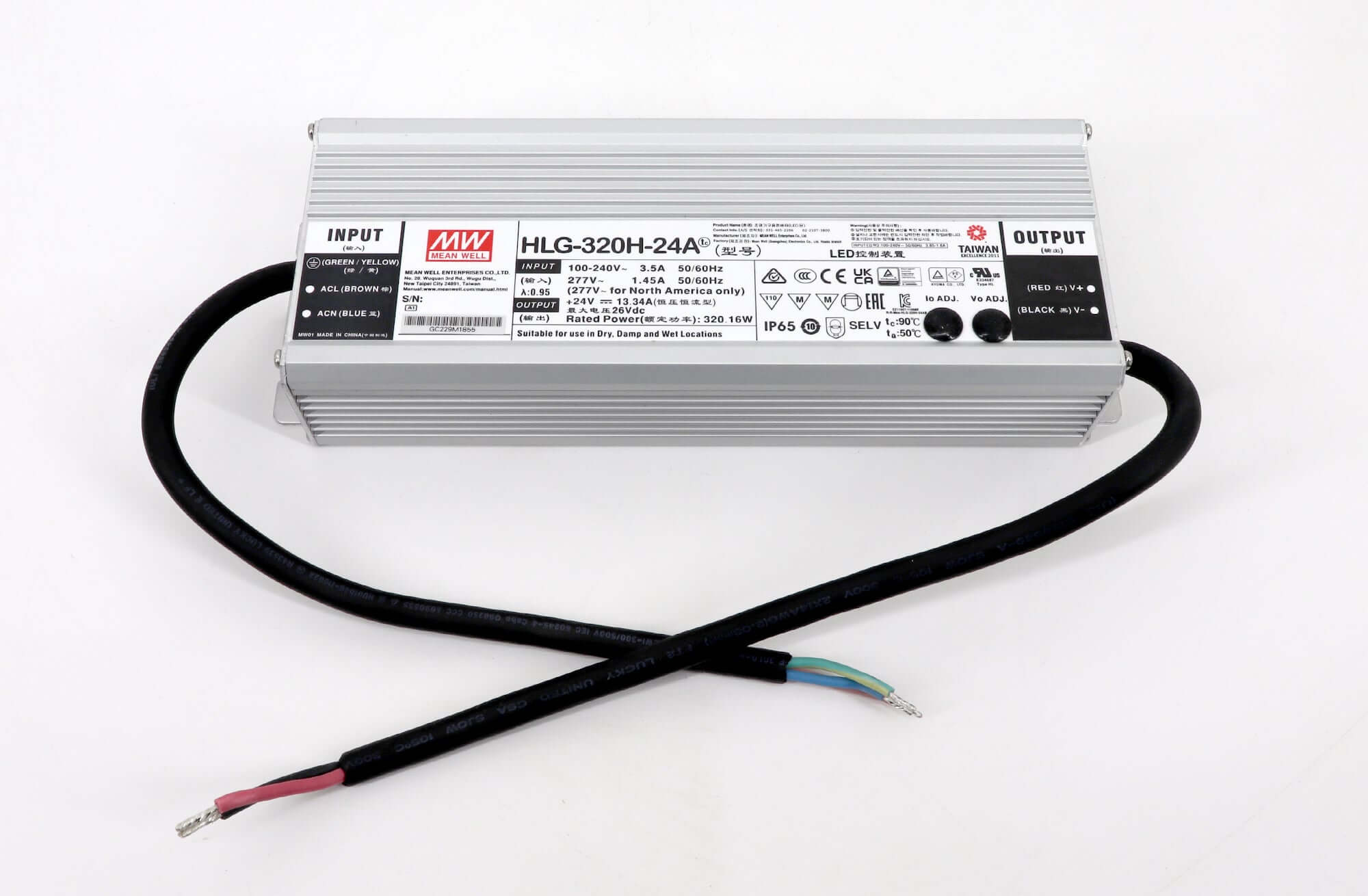

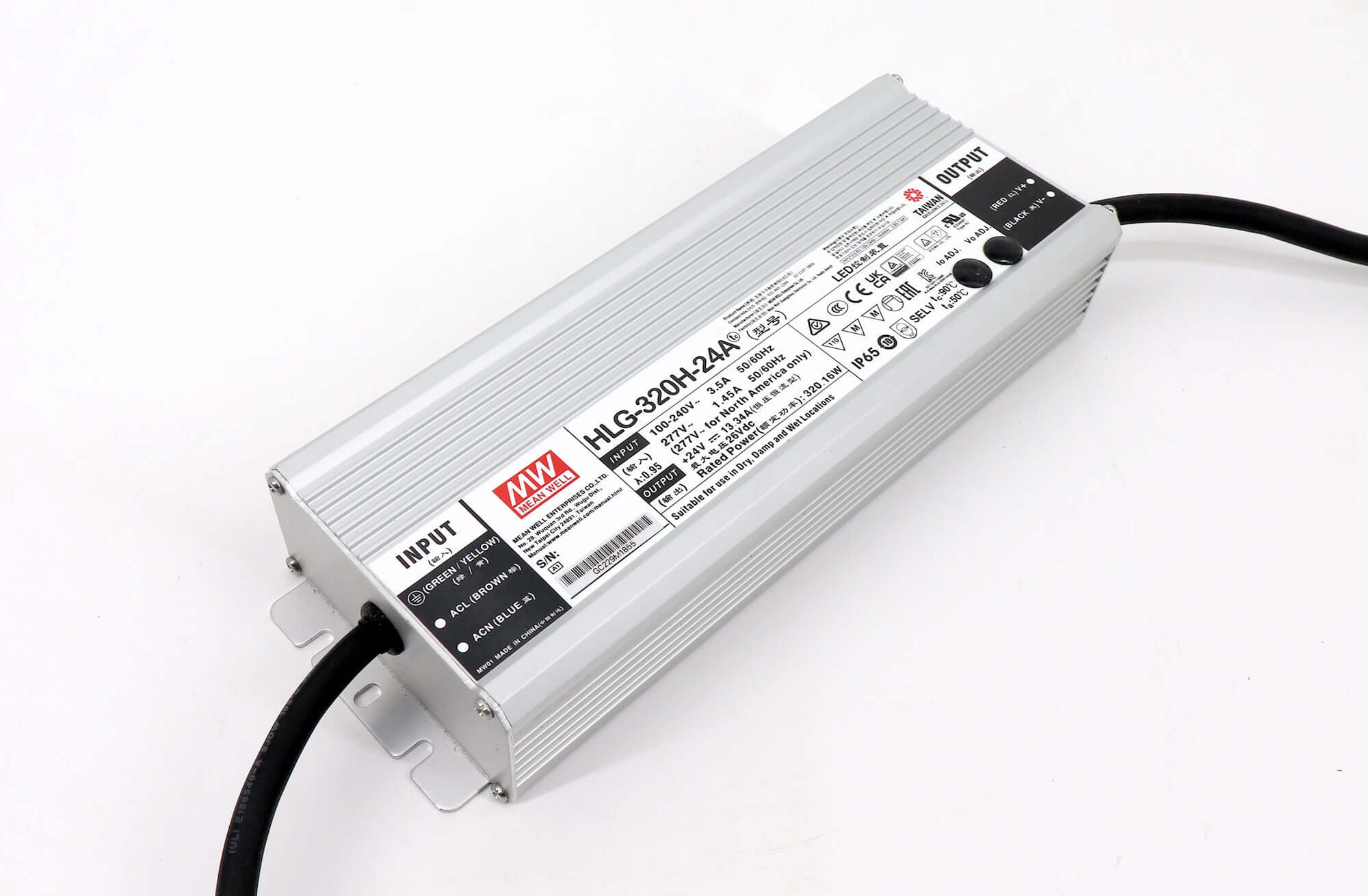

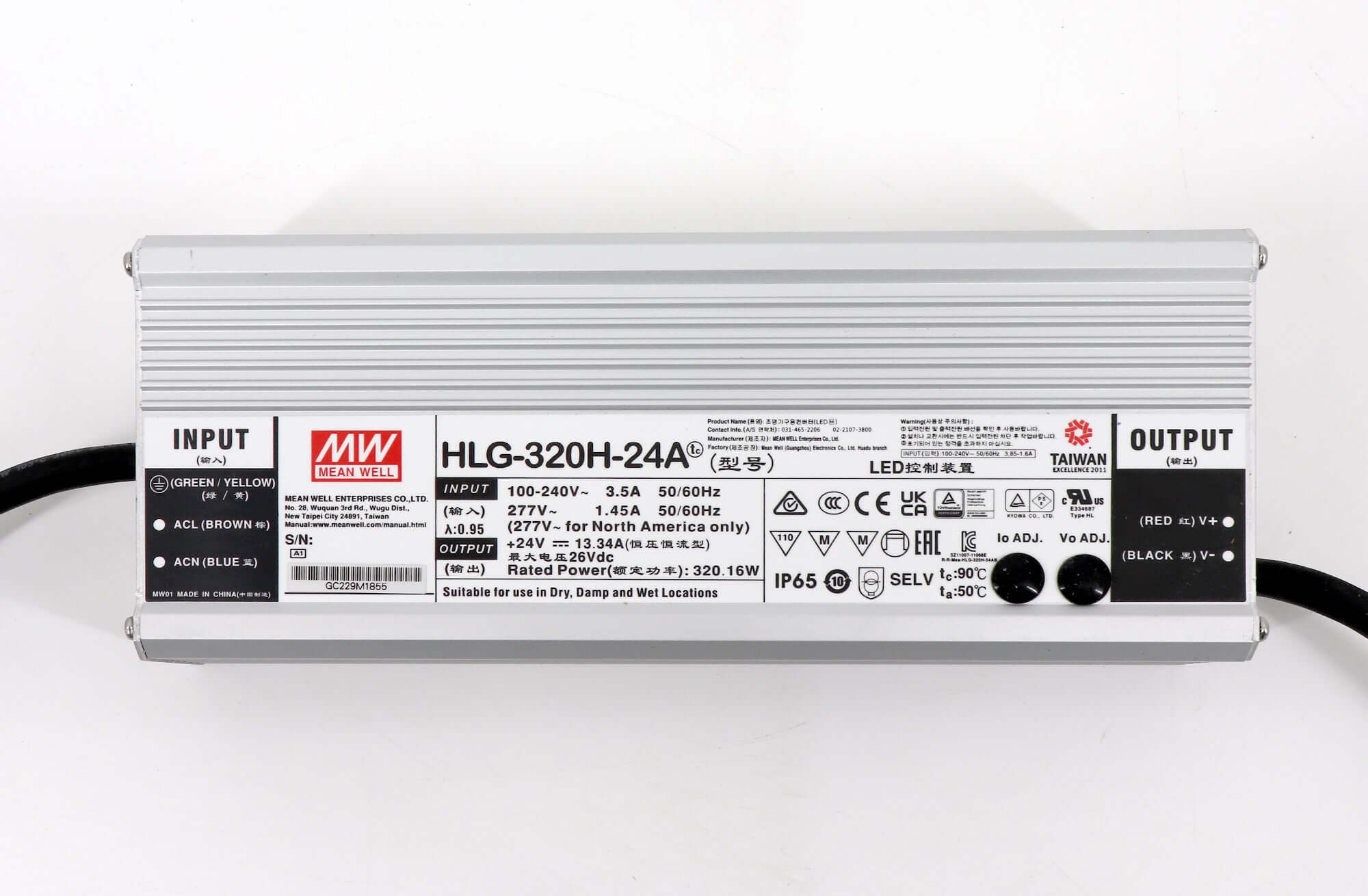

Product images and specification download
Meanwell HLG-320H-24A Single Output LED Lamp Power Supplies Specification
| Weight | 2.1 kg |
|---|
