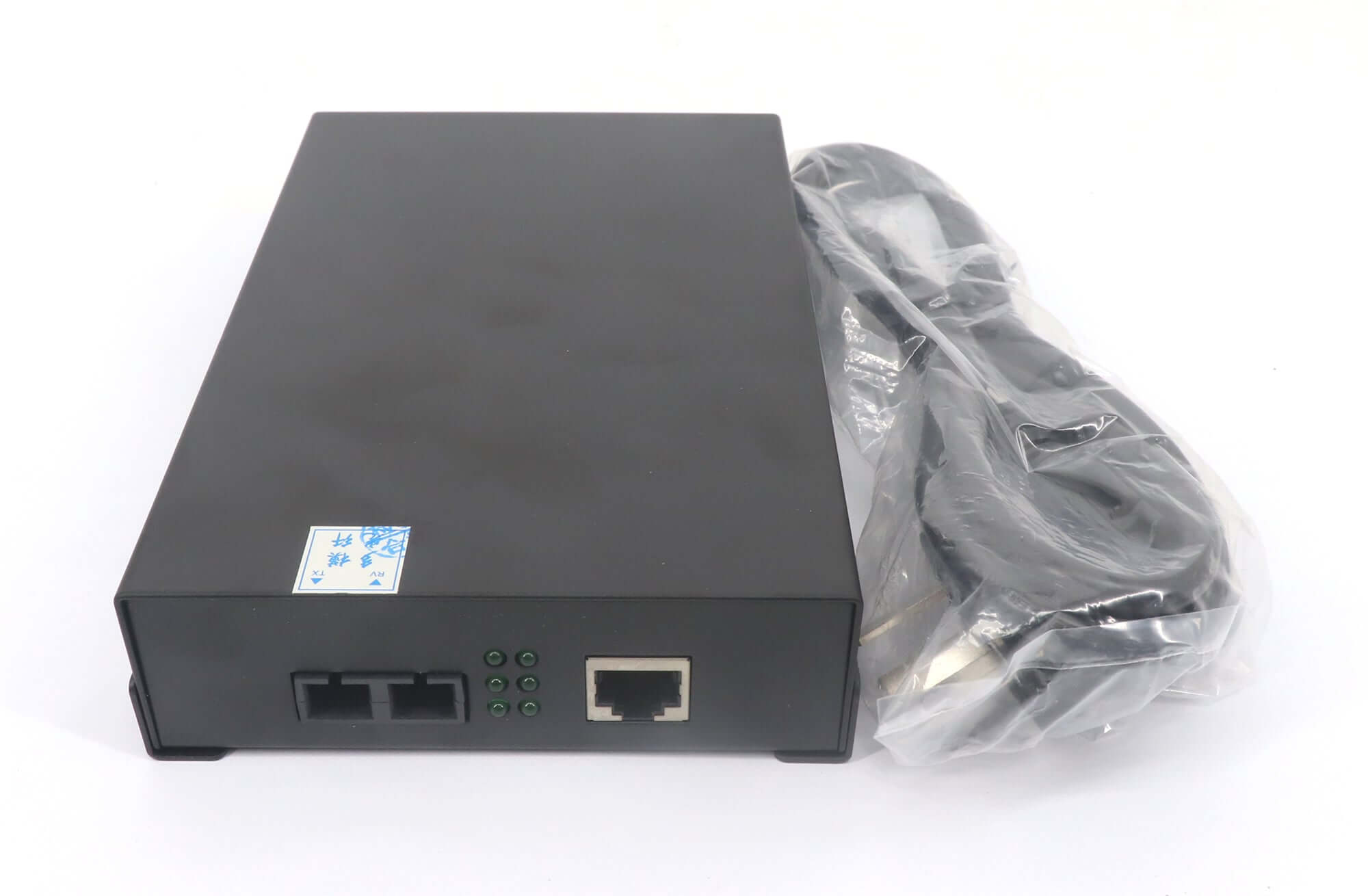

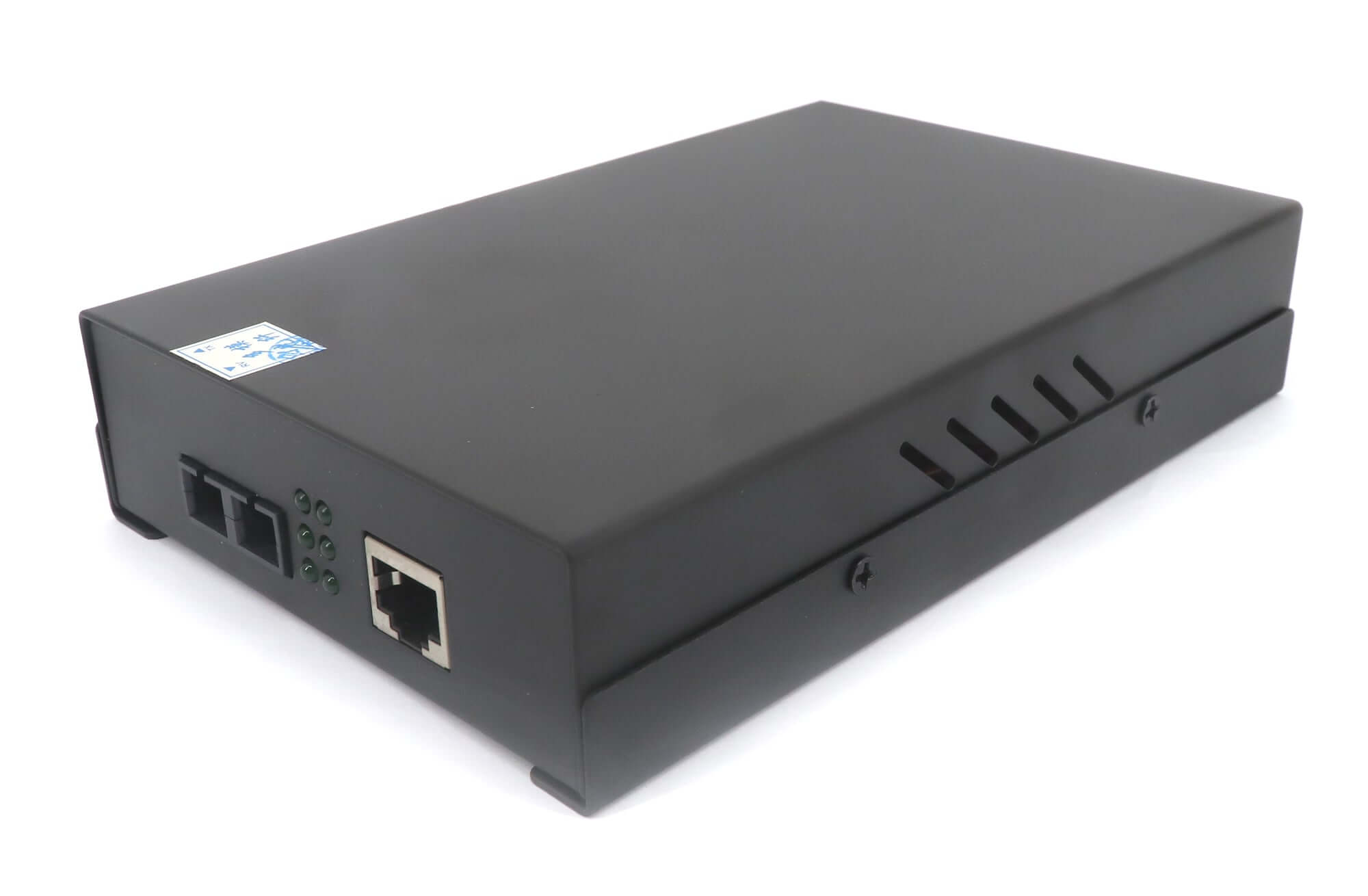

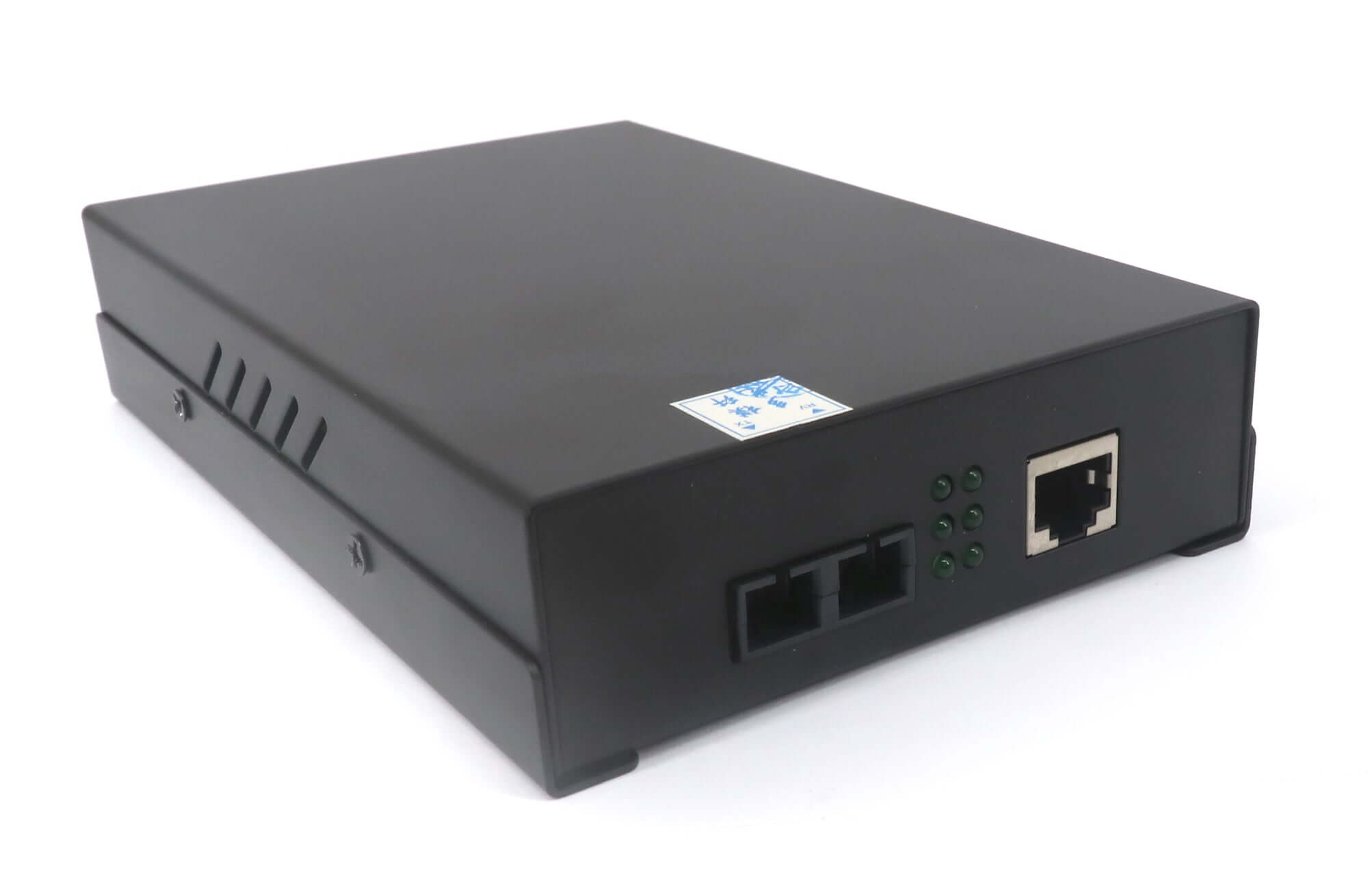

The Linsn MC801 converts a compatible LED control-system link to multi-mode optical fiber. It is intended for optical runs within 500 m. The converter carries the control link; screen loading, calibration and scan settings depend on the sending and receiving equipment.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | MC801 |
| Fiber type | Multi-mode |
| Listed transmission distance | Within 500 m |
| Optical connector | SC |
| Recommended fiber | 50/125 µm |
| Fiber cores | Two or more |
| Multi-mode wavelength | 850 nm |


LINSN MC801 Multi-Mode Ethernet Media Converter Specifications
Frequently asked questions
Can the MC801 transmit over 20 km?
The MC801 multi-mode rating is within 500 m. The 20 km figure in the combined family description belongs to the single-mode SC801.
What fiber does the MC801 use?
The manufacturer’s shared converter specification recommends 50/125 µm multi-mode fiber, with two or more cores and SC optical connectors.
Does the MC801 set the LED screen pixel capacity?
The sending and receiving system determines the screen load. Choose the MC801 for a compatible multi-mode optical link rather than treating a system resolution example as its standalone capacity.
