Kystar G616 LED Receiving Card, 16 HUB75E Interfaces
$ 17.93
Kystar G616 Gold Card receiving card with 16 HUB75E interfaces and 32 parallel data groups. Supports point-by-point correction and low-brightness grayscale processing. Confirm module and driver compatibility.
10000 in stock
G616 Gold Card receiver with 16 HUB75E interfaces
The Kystar G616 is a full-color LED receiving card with 16 HUB75E module interfaces and 32 groups of parallel data. The integrated interfaces remove the need for a separate adapter board in a compatible module installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Module connectors | 16 × HUB75E |
| Parallel data groups | 32 |
| Recommended load stated in the listing | 128 × 1024 pixels |
| Listed module scan support | 1–32 scan through the 75-series interface |
| Driver-chip categories | PWM, dual-latch and general-purpose chips; confirm exact chip support |
| Calibration | Point-by-point correction |
| Image processing | Color reproduction, frequency multiplication and low-brightness grayscale processing |
Module matching and calibration
Match the HUB75E pinout, module scan mode and driver-chip configuration before connection. The stated 128 × 1024 load is a recommendation from the listing, not a universal maximum for every operating condition.
Point-by-point correction and low-brightness grayscale processing support display adjustment. Confirm the sending system, module driver and required operating settings for the installation.
Frequently asked questions
How many HUB75E connectors does the G616 have?
It provides 16 HUB75E interfaces and 32 groups of parallel data.
Does it need a separate HUB adapter board?
The card integrates HUB75E interfaces, so a separate adapter board is not required when the module interface and pinout are compatible.
Is 128 × 1024 the maximum load?
The original listing describes 128 × 1024 as the recommended load. Confirm the allowable load for the module, scan mode and operating settings in use.
Does the G616 support calibration?
Yes. Point-by-point correction is listed, together with color reproduction and low-brightness grayscale processing.

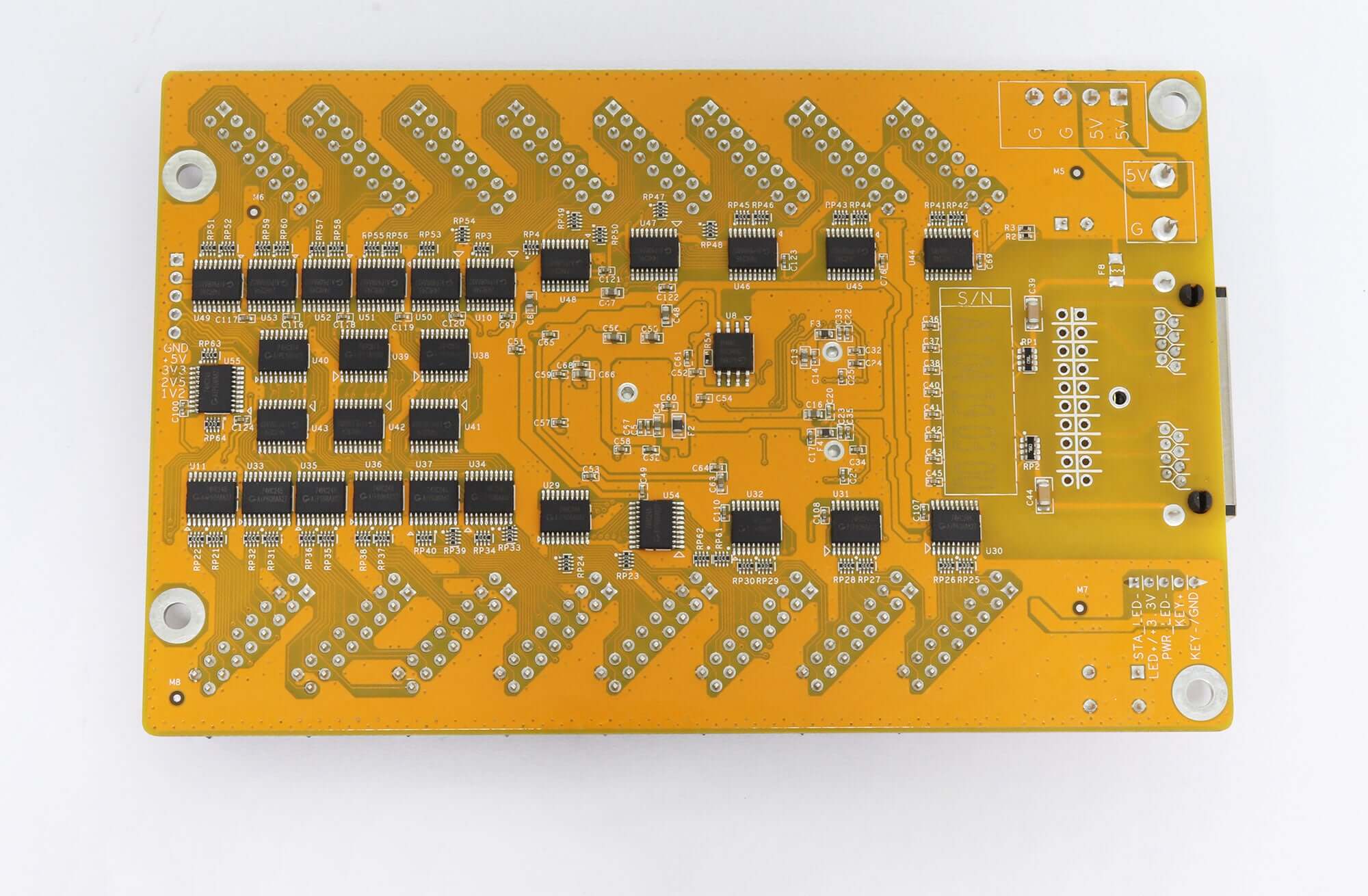

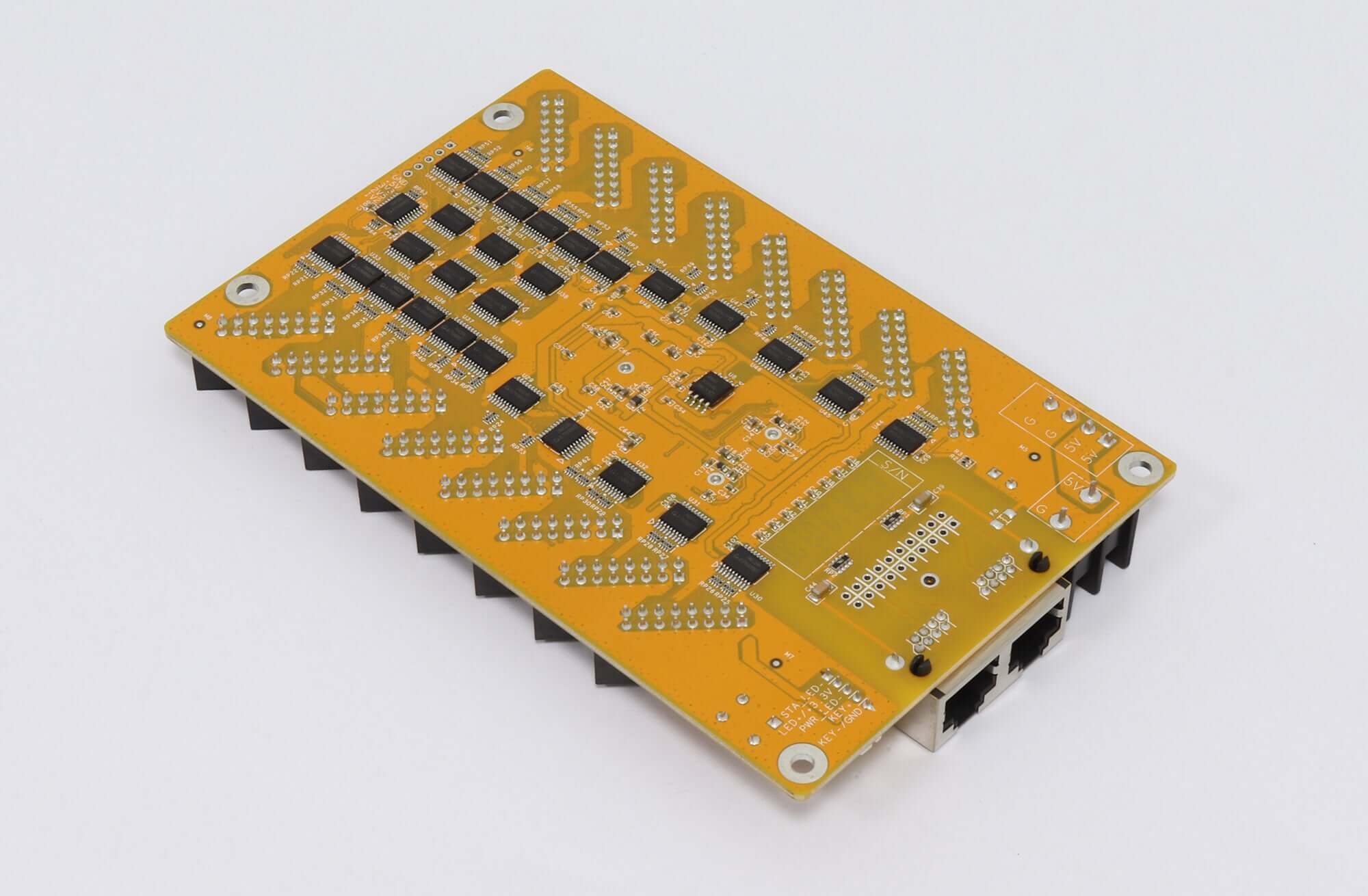

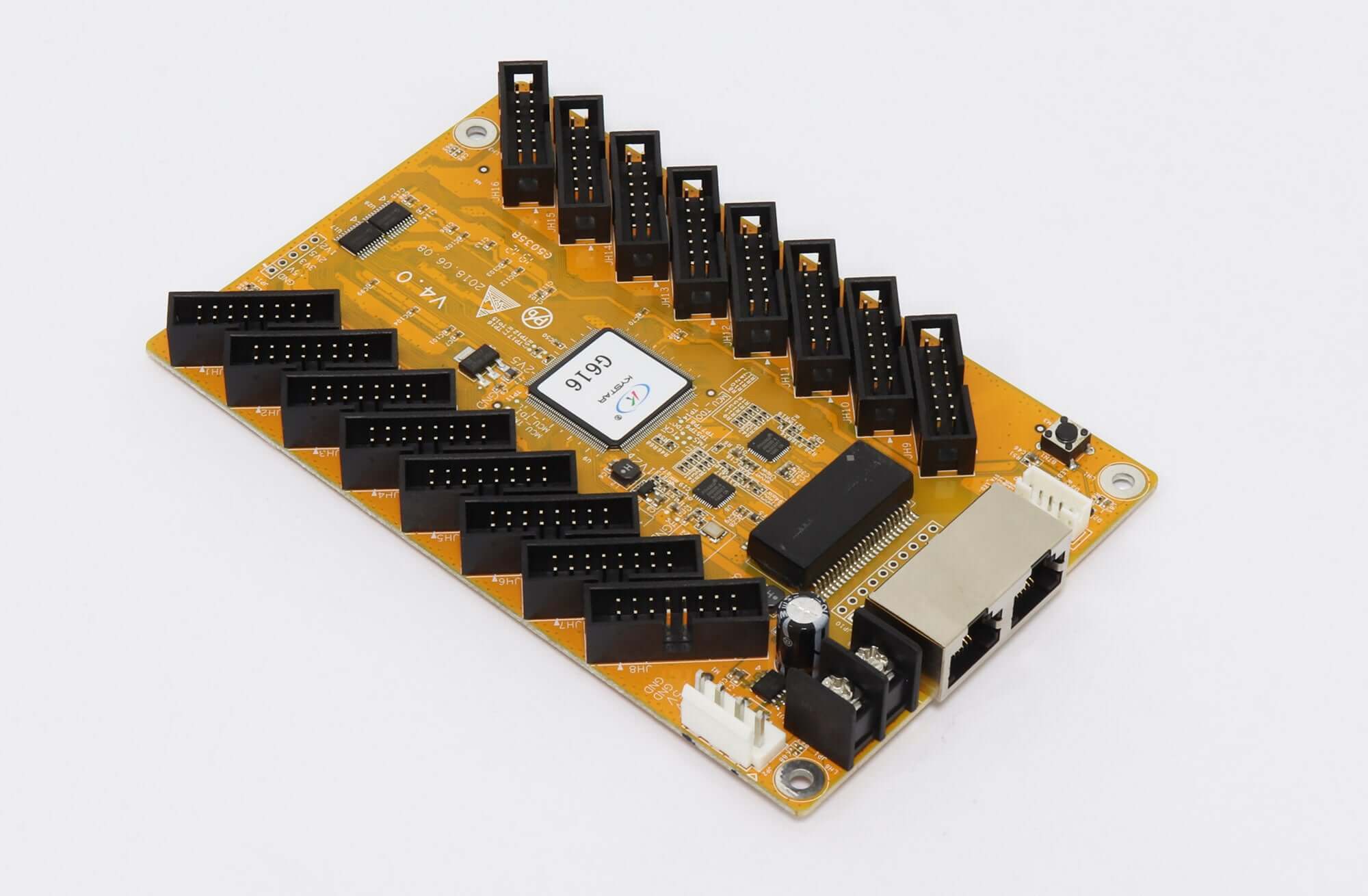

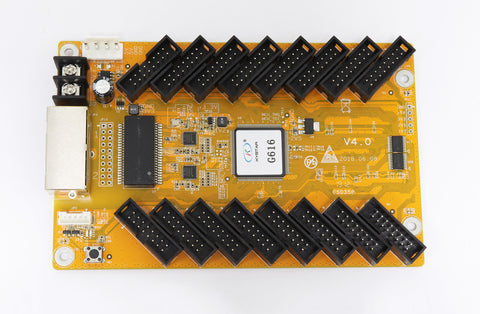

Original product images and specification
Download Specification:
KYStar Gold Card G616 LED Sign Receiving Card Specification
| Weight | 0.35 kg |
|---|
