Huidu HD-R612 LED Receiving Card – 12 HUB75E Interfaces
$ 14.00
HD-R612 is a full-color LED receiving card with 12 HUB75E interfaces and two interchangeable Gigabit Ethernet ports. It supports static to 1/64 scan, common IC modules and most PWM IC modules.
HD-R612 Full-Color LED Receiving Card
The Huidu HD-R612 connects LED modules through 12 HUB75E interfaces. Two interchangeable Gigabit Ethernet ports connect to a sending card or another receiving card, with flexible card ordering for multi-card installations.
| Parameter | Specification |
|---|---|
| Module interfaces | 12 × HUB75E |
| Network ports | 2 × Gigabit Ethernet; interchangeable |
| Module support | Common IC modules and most PWM IC modules |
| Scan mode | Static to 1/64 scan |
| Recommended loading | 256 × 256 pixels |
| Listed module-width limits | Outdoor ≤256 pixels; indoor ≤128 pixels |
| Grayscale | 256–65536 |
| Network cable distance | Within 146 m using Super Cat5 or Cat6 cable |
| Power connections | 2 × 5 V DC interfaces |
| Input voltage — parameter list | 4–6 V |
| Input voltage — interface description | 4.5–5.5 V DC |
| Rated voltage — technical table | Minimum 4.2 V; typical 5.0 V; maximum 5.5 V |
| Working temperature — parameter list | −40°C to 85°C |
Compatible Sending Equipment
| Parameter | Specification |
|---|---|
| Dual-mode players | A4, A5, A6, A601, A602, A603 |
| Asynchronous controllers | A3, A30, A30+, C10, C10C, C30, C15, C15C, C35, C35C |
| Synchronous controllers | T901, T901B, T901S |
| Video processors | VP210, VP410 |
Loading and Power-Supply Notes
The V0.1 specification describes R612 as a dedicated receiver for LSS9929/9919-chip modules and also lists conventional receiving-card use with a 128 × 1024 limit. Its parameter table recommends 256 × 256 and gives the indoor/outdoor width limits shown above. Match the module driver and configuration before using a loading figure.
The same document gives different voltage ranges in its parameter list, interface description and rated-voltage table. These values are preserved separately above; confirm the applicable supply specification for the actual card before connection.
Indicators and Screen Testing
A flashing D1 indicates normal card operation. Rapid D2 flashing indicates that a Gigabit connection has been recognized and data is being received. The test button checks display brightness uniformity and module flatness, while external run and data indicators provide status information.

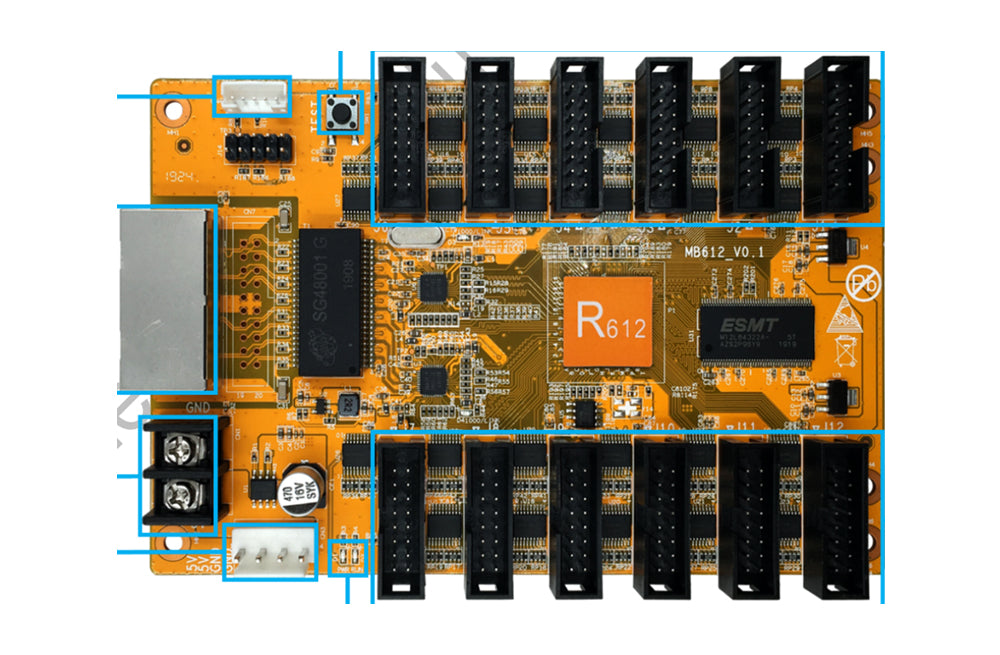

Product Reference Images
Specification Download
Download the HD-R612 V0.1 specification (PDF)
Frequently Asked Questions
How many module ports does the HD-R612 have?
It has 12 HUB75E interfaces and two interchangeable Gigabit Ethernet ports.
What loading range should I use?
The parameter table recommends 256 × 256 pixels, with outdoor width up to 256 and indoor width up to 128. The overview separately lists 128 × 1024 for conventional receiving-card use. Match the value to the module driver and configuration.
Does R612 support 1/64 scan?
Yes. It supports scanning from static to 1/64 and is listed for common IC modules and most PWM IC modules.
What do the D1 and D2 indicators mean?
D1 flashing indicates normal operation. Fast D2 flashing indicates that Gigabit communication is recognized and data is being received.
What voltage does the R612 require?
The document lists 4–6 V in the parameter table, 4.5–5.5 V DC in the interface description, and rated values of 4.2 V minimum, 5.0 V typical and 5.5 V maximum. Confirm the applicable specification for the card before connecting power.
| Weight | 0.4 kg |
|---|
