Huidu HD-E62 / E63 / E64 LED Control Cards – Ethernet & USB
Price range: $ 22.00 through $ 49.00
Huidu E62, E63 and E64 update LED sign programs through Ethernet or USB drives. They support partitioned layouts, timed content and sensor functions; select the model to match the display capacity and module connections.
Ethernet and USB control for LED signs
Huidu HD-E62, E63 and E64 update programs through a network cable or USB drive. These cards support single-color, dual-color and tricolor modules using conventional scan methods. Choose by color mode, display size and output connector.
E62 vs E63 vs E64 specifications
| Parameter | HD-E62 | HD-E63 | HD-E64 |
|---|---|---|---|
| Single-color range | 1024 × 64 or 2048 × 32 | 1024 × 128 | 1024 × 256; maximum width 2048 |
| Dual-color range | 512 × 64 | 512 × 128 | 512 × 256 |
| Tricolor range | 672 × 32 | 672 × 64 | 672 × 128 |
| Display connectors | 4 × HUB12; 2 × HUB08 | 8 × HUB12; 4 × HUB08 | 1 × 50-pin connector |
| Flash | 8M Byte | 8M Byte | 8M Byte |
| Software in V2.0 manual | HD2016 | HD2016 | HD2016 |
Dimensions above are in pixels. E64’s maximum width is a separate limit and does not imply 2048 × 256 capacity. All three manuals identify a 5V power connection.
Program layout and updates
The original series description lists real-time preview, overlapping regions, partition backgrounds, up to 32 gray levels and seven-color display. Timed content and LAN management support information signs. USB drives transfer programs, but the listed smart-settings function requires the network connection.
Temperature, humidity and brightness functions require the corresponding external sensors. Use the manual matching the selected card to check wiring and configuration.

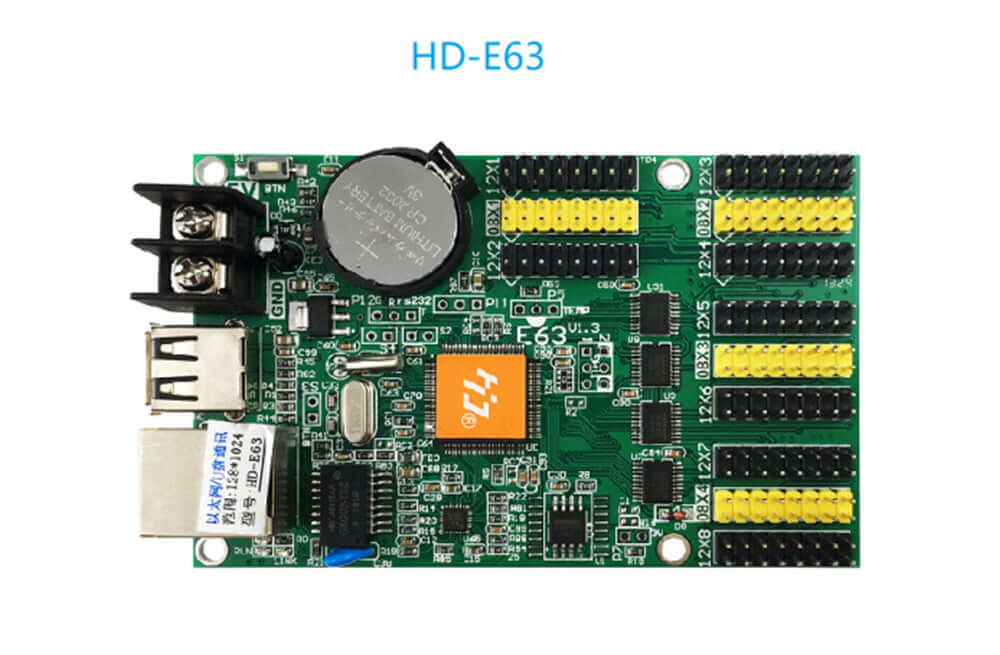

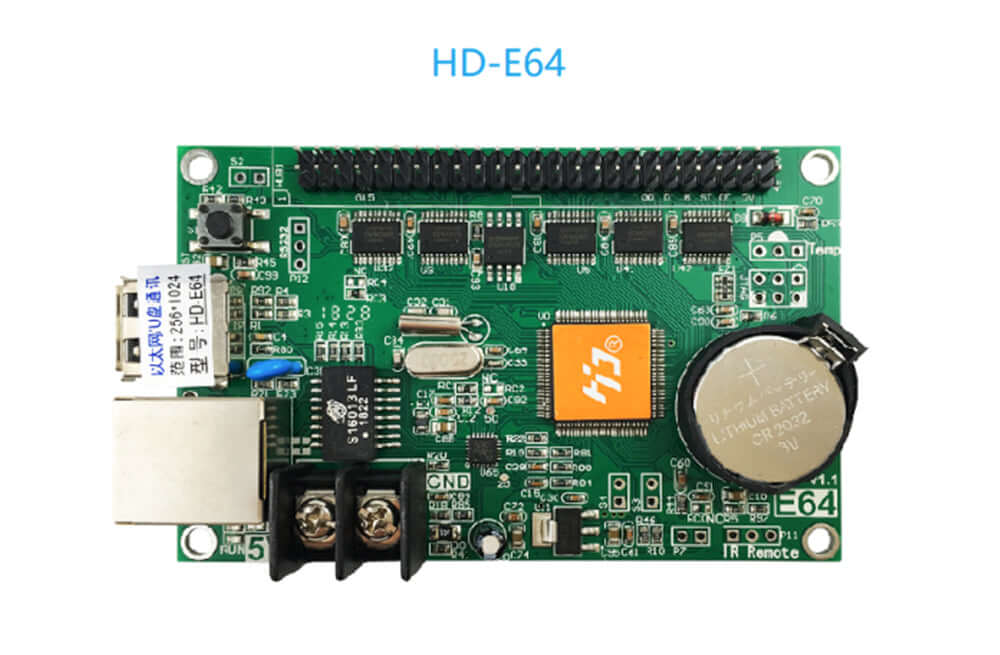

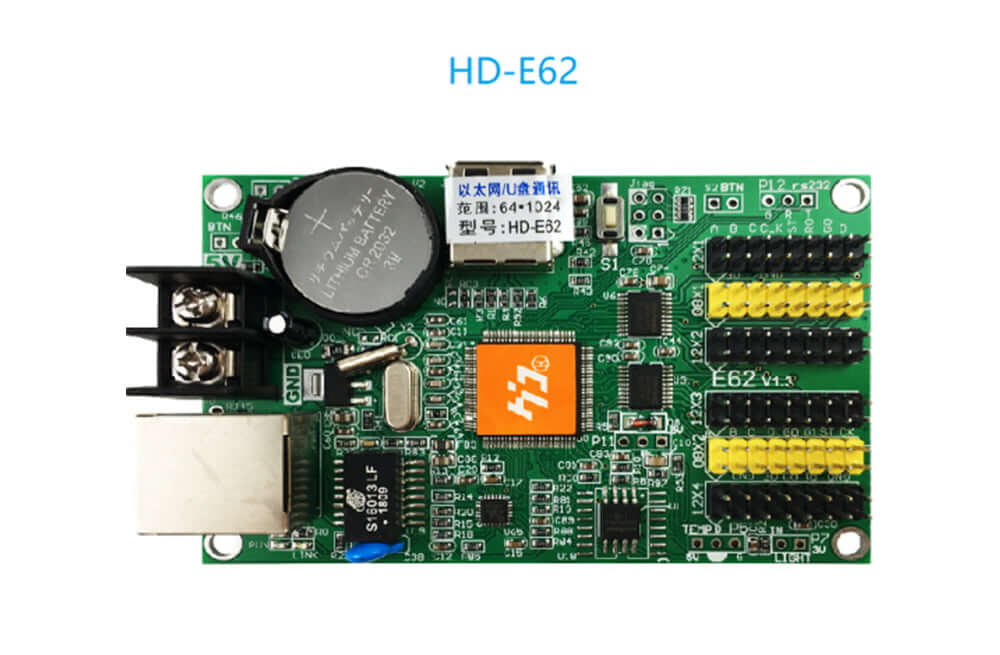

Product images
Download model specifications
Frequently Asked Questions
What is the difference between E62, E63 and E64?
Their control ranges and display connectors differ. Compare the color-mode rows and connectors in the table before selecting a model.
Can I update the sign with a USB drive?
Yes. Ethernet and USB-drive program updates are supported. Smart settings are not available through USB according to the series description.
Which software is listed for these cards?
The linked V2.0 specifications list HD2016. Check the card revision when selecting software.
Can the cards show temperature or humidity?
Yes, with the appropriate external sensor module.
Does E64 support a 2048 × 256 single-color screen?
That combination is not listed. The manual specifies 1024 × 256 and a separate maximum width of 2048 pixels.
