HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box

HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box, it is an LED control system for remote control and offline HD video playback for small-pitch LED advertising screens. Including asynchronous sending box HD-A4, receiving card R50X and control software HDPlayer three parts.
$115.00
More Information
Weight(kg) 2.00 kgs
Manufacturer Huidu
Availability: In stock
SKU
HUIDU-HD-A4

HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box Overview:

HD-A4, it is an LED control system for remote control and offline HD video playback for small-pitch LED advertising screens. Including asynchronous sending box HD-A4, receiving card R50X and control software HDPlayer three parts.

HD-A4 can come to some functions such as video playback, program storage, and parameter setting. It is sending part.

R50X is receiving card for grayscale technology, which realizes the scanning display of LED screen.

The user completes the parameter setting and program editing and transmission of the display through HD Player



HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box Features:

Support Asynchronous & Synchronous.

Control Range: 1280*512.

Support expending memory by U-disk.

HDMI high-definition video input & output.

Support HD video decoding, 60Hz frame rate output.

Support HDMI HD video zoom, no need video processor.

Support widest 3840 pixel, highest 2048 pixel.

No need set IP address, it could be identified by controller ID automatically.

Unified management of more LED display through Internet or LAN.

Equipped with Wi-Fi, Mobile APP management.

Equipped 3.5mm standard audio interface output.



HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box Parameter:

Module Type Compatible with indoor and outdoor full color and single
color module
Support conventional chip and mainstream PWM chip
Scan Mode  Static to 1/64 scan mode
Control Range  Resolution: 1280*512, Widest 3840 pixel, highest 2048
pixel
Gray Scale  256-65536 (adjustable)
Basic
Functions
Video, Pictures, Gif, Text, Office, Clocks, Timing, etc.
Remote, Temperature, Humidity, Brightness, PM Value,
etc.
Support Synchronized picture auto-zooming, Playing Live
Screen Without Video Processor
Video Format HD video hard decoding, 60Hz frame rate output.
AVI, WMV, RMVB, MP4, 3GP, ASF, MPG, FLV, F4V, MKV,
MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format  Support BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM,
XPM, XBM, etc.
Text  Text editing, Image, Word, Txt, Rtf, Html, etc.
Document  DOC, DOCX, XLSX, XLS, PPT, PPTX, etc.
Office2007 Document format
Time  Classic Analog Clock, digital clock and various of clock with
image background
Audio output  Double track stereo audio output
Memory  8GB Flash Memory, Expanding memory by U-disk
Communication  100M/1000M RJ45 Ethernet, Wi-Fi, 3G/4G, LAN, USB
Working Temp  -40-80
Port IN: 12V Power Adapter*1, 1Gbps RJ45*1, USB 2.0*1, Test
Button*1, GPS, 3G/4G(Optional), Sensor port*1, HDMI*1
OUT
: 1Gbps RJ45*1, AUDIO*1, HDMI*1

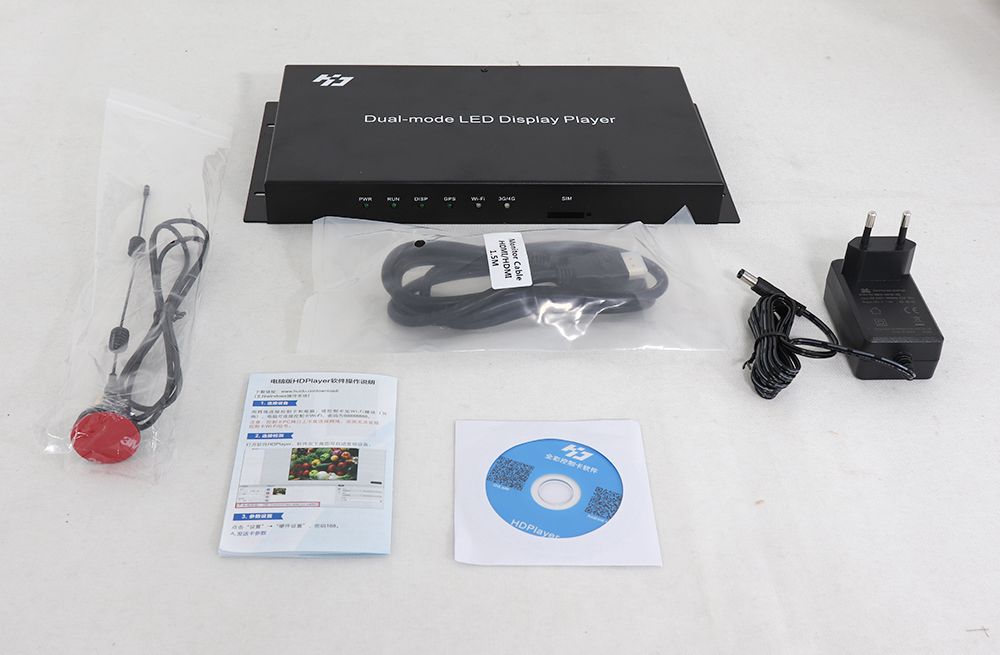

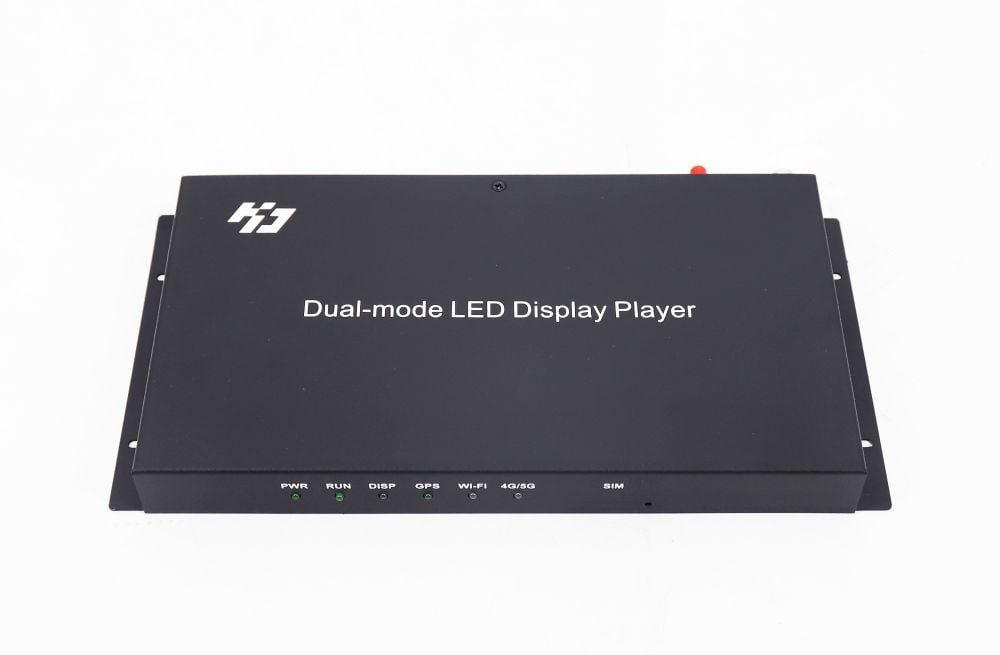

More Pictures of HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box

HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box



Download Specification

HUIDU HD-A4 Full Color LED Screen Dual-model Controller Box Specification
