Colorlight X26m 4K LED Video Controller with Ethernet and Fiber
$ 1,902.00
Colorlight X26m supports 4K video input and up to 17.03 million pixels. Choose between 26 Gigabit Ethernet outputs and three 10G optical outputs, with multi-window processing, USB playback and 128 preset scenes.
1915 in stock

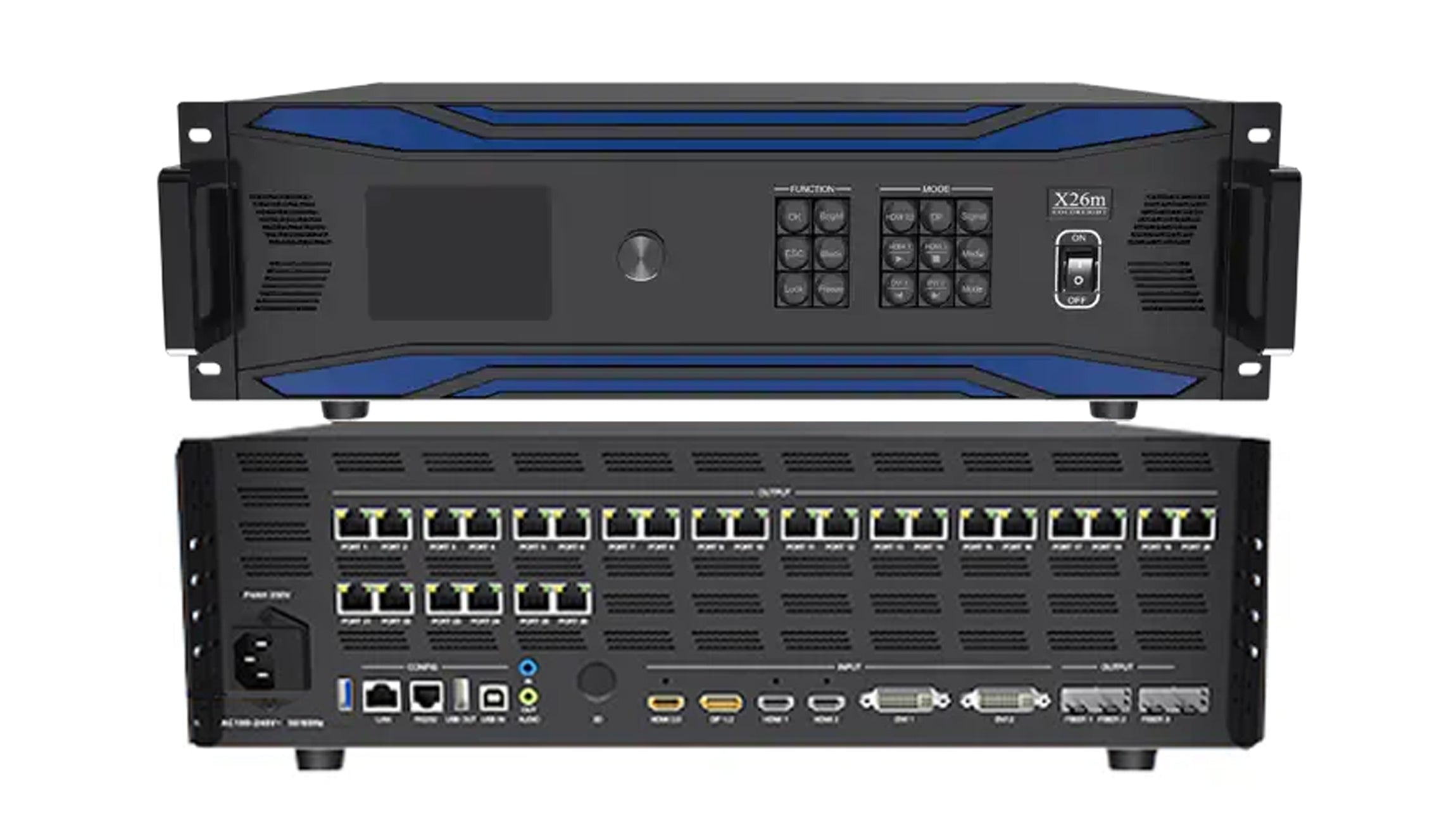

Colorlight X26m LED Video Controller
The Colorlight X26m combines 4K video input, multi-window processing and LED output control in one device. With a specified maximum loading capacity of 17.03 million pixels, it provides 26 Gigabit Ethernet outputs and three 10G optical outputs, with Ethernet or optical output selected for the installation.
Connect and Arrange Your Sources
HDMI 2.0 and DisplayPort 1.2 accept 4K sources, while two HDMI 1.4 and two DVI connections serve HD inputs. Cropping, scaling and window positioning help fit the source content to the LED canvas. Preset scenes allow recurring layouts to be saved and recalled.
Product Specifications
| Parameter | Specification |
|---|---|
| Maximum input resolution | 4096 × 2160 at 60 Hz |
| 4K inputs | 1 × DisplayPort 1.2; 1 × HDMI 2.0 |
| HD inputs | 2 × HDMI 1.4; 2 × DVI |
| Maximum loading capacity | 17.03 million pixels |
| LED output connections | 26 × Gigabit Ethernet and 3 × 10G optical ports; select Ethernet or optical output |
| Windows | Up to 6; supported layout depends on input sources |
| Minimum window/crop size | 64 × 64 pixels |
| Audio | 1 × 3.5 mm input; 1 × 3.5 mm output; HDMI/DP audio decoding |
| Preset scenes | 128 |
| USB drive functions | Media playback and upgrade |
| Control | USB control/cascading, RS-232, LAN and app control |
| Optional functions | 3D requires separately purchased accessories; Bluetooth remote control is optional |
Plan Output and Receiver Compatibility
Choose the output path before planning cable routes and receiving equipment. The Ethernet and optical port counts do not represent two independent pixel capacities that can be added together. Check the LED cabinet resolution and load distribution against the selected output configuration.
Brightness and color-temperature controls support display adjustment. Precise color-gamut management requires receiving cards that support the function. Confirm optional 3D accessories and Bluetooth remote control when specifying the system.
Frequently Asked Questions
How many pixels can the Colorlight X26m control?
The X26m specification lists a maximum total loading capacity of 17.03 million pixels. Confirm the intended output mode and cabinet layout before finalizing a screen design.
Does the X26m have Ethernet and fiber outputs?
Yes. It has 26 Gigabit Ethernet ports and three 10G optical ports. The specification says to choose Ethernet or optical output; the port groups should not be treated as separate capacities to add together.
Which video inputs are available?
The X26m provides one HDMI 2.0 and one DisplayPort 1.2 input for 4K sources, plus two HDMI 1.4 and two DVI inputs for HD sources. Maximum input resolution is 4096 × 2160 at 60 Hz.
Can the X26m save layouts and play USB media?
Yes. It supports saving and loading 128 preset scenes, as well as USB drive playback. Check file-format compatibility in the specification before preparing media.
Is 3D included with every X26m?
3D operation requires accessories purchased separately. Bluetooth remote control is also listed as optional, so confirm both requirements when ordering.
Specification Download
| Weight | 10 kg |
|---|
