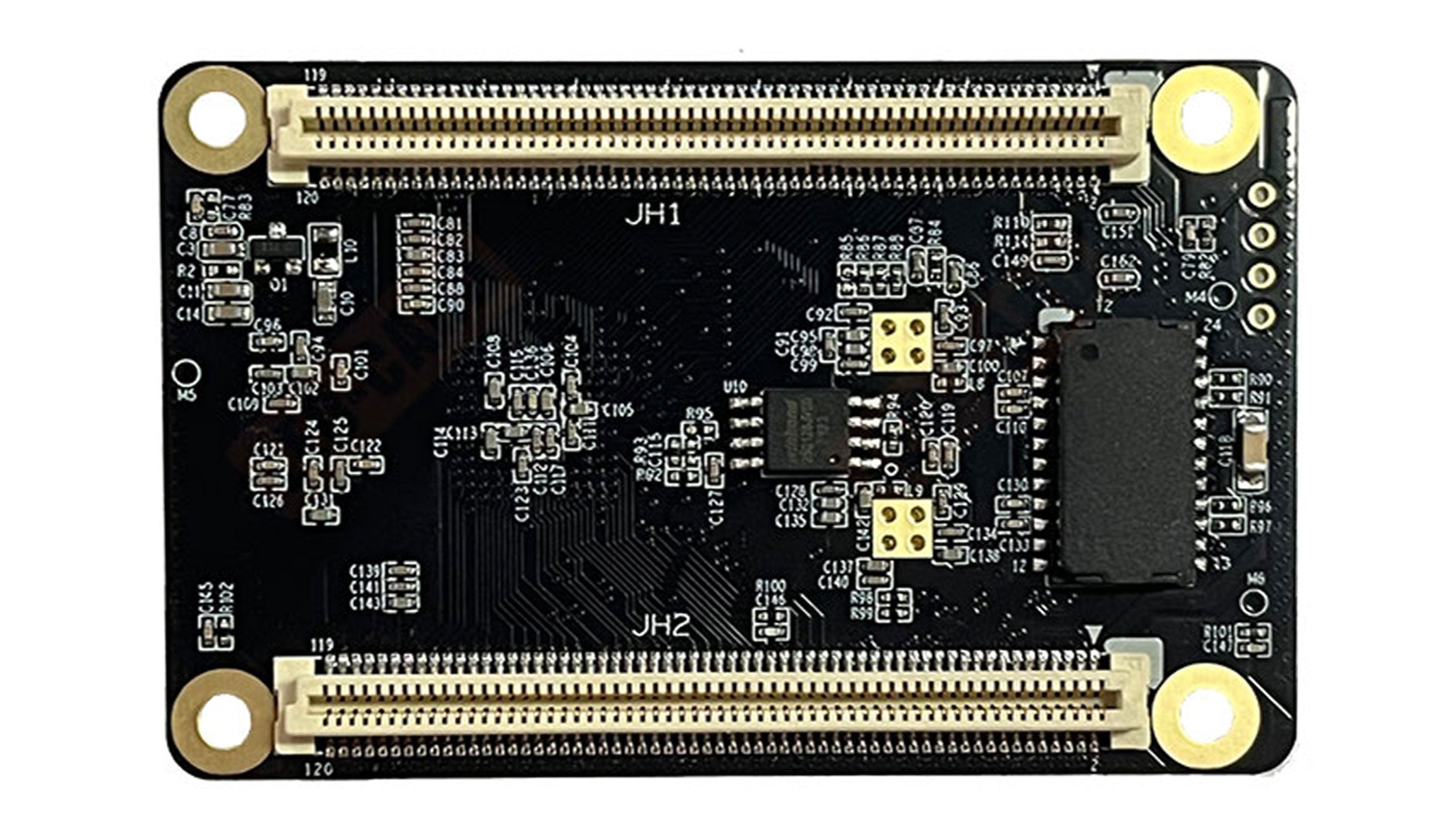

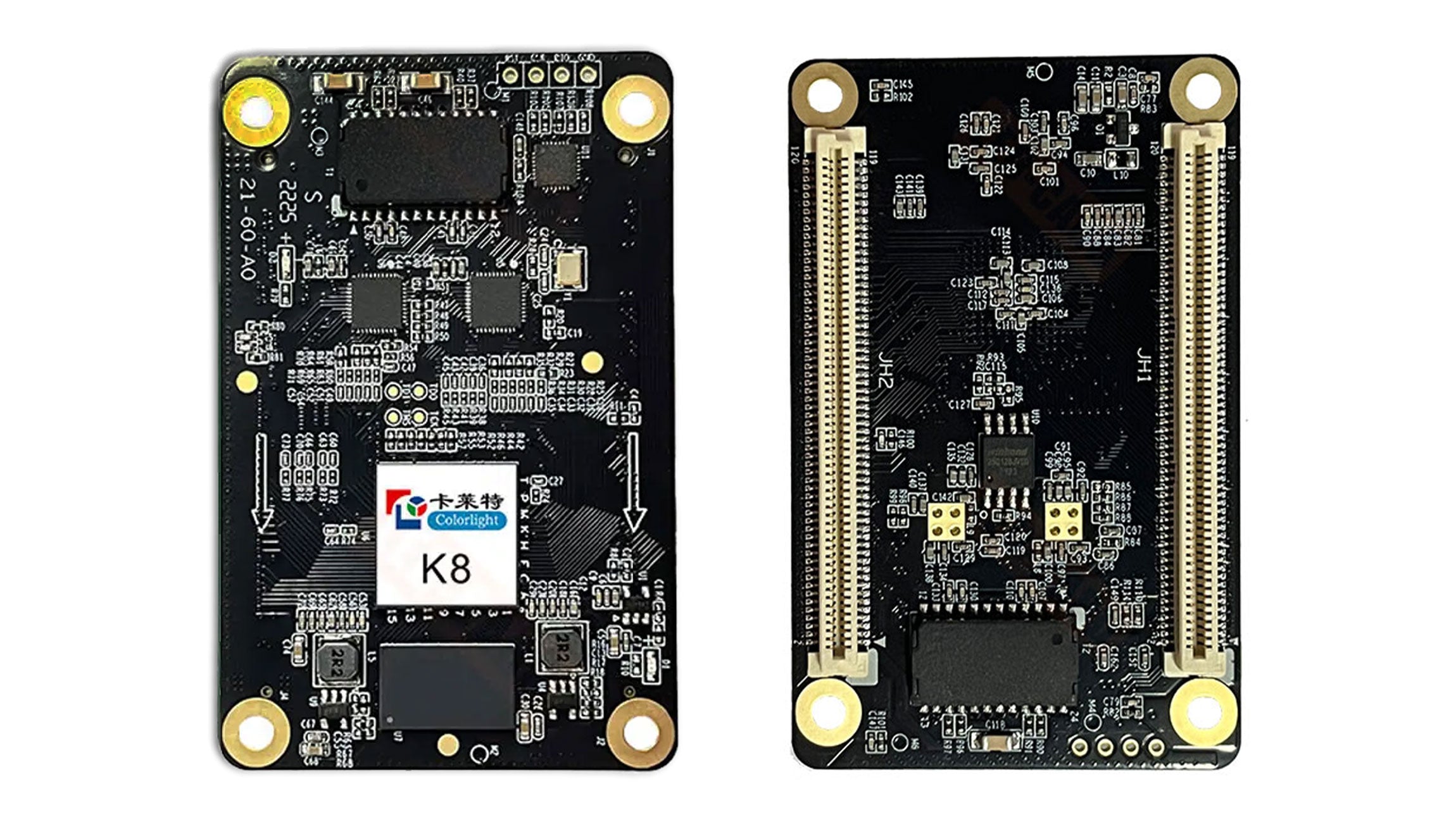

Colorlight K8 LED Receiving Card for Fine-Pitch Displays
$ 16.00
Colorlight K8 is a compact receiving card for fine-pitch LED cabinets, with up to 32 parallel or 64 serial data groups, 10-bit video support, per-pixel calibration and redundancy functions. Check hub-board and module compatibility before replacement.
915 in stock
Colorlight K8 Receiving Card for Fine-Pitch LED Cabinets
The Colorlight K8 is a compact LED receiving card for fine-pitch fixed installations and rental cabinets. It supports up to 32 parallel data groups or 64 serial data groups, with calibration, image adjustment and redundancy features for cabinet-level display control.
Product Parameters and Functions
| Parameter | Specification |
|---|---|
| Model | K8 |
| Product type | LED receiving card |
| Parallel / serial data | Up to 32 parallel groups or 64 serial groups |
| Video source bit depth | 8-bit / 10-bit; maximum 10-bit input and output in the linked V1.0.2 specification |
| Display functions | HDR, full gamma adjustment, Infi-bit color extension and low latency |
| Calibration | Per-pixel brightness and chromaticity calibration |
| Image adjustment | Color temperature, grayscale refinement and improved grayscale at low brightness |
| Module management | 8-way support for up to 16 intelligent modules |
| Maintenance | Seam correction, highlight/OSD, screen rotation and prestored picture |
| Monitoring | Cabinet temperature, humidity, voltage and power monitoring |
| Redundancy | Loop redundancy, dual receiving-card hot backup and PSU redundancy |
Integration and Maintenance
Check the cabinet hub board, connector pinout, LED driver IC and scan configuration before choosing a receiving card. Parallel and serial data-group counts describe output organization; they do not by themselves determine the usable cabinet pixel resolution.
The K8 supports configuration-parameter and calibration-coefficient redundancy, along with firmware redundancy and readback. It also supports firmware upgrades without a power restart and Ethernet cable status monitoring. These functions should be configured with the compatible controller, cabinet hardware and software.
Frequently Asked Questions
Is the Colorlight K8 a sending card or receiving card?
The K8 is a receiving card installed within an LED display system. It is used with a compatible sending controller and cabinet interface.
How many data groups does the K8 support?
It supports up to 32 parallel data groups or 64 serial data groups. Match the selected output mode to the cabinet hub board and LED module configuration.
Can I replace another receiving card with a K8 directly?
Do not assume it is a direct replacement based on appearance. Check connector pinout, hub-board compatibility, driver IC, scan settings, firmware and the existing cabinet configuration before replacing a card.
Does the K8 support per-pixel calibration and backup?
Yes. It supports brightness and chromaticity calibration per pixel, loop redundancy and dual receiving-card hot backup. The required system connections and settings must also be configured.
Specification Download
Colorlight K8 LED Display Screen Receiving Card Specification
| Weight | 0.3 kg |
|---|
