Sysolution M80 Cloud LED Controller, 2.3 Million Pixels
$ 312.00
The Sysolution M80 combines cloud media playback and LED sending through four Gigabit outputs, with a total load of 2.3 million pixels. It supports synchronous/asynchronous switching, HDMI input and loop output, LAN and Wi-Fi; the 4G modem is optional.
10000 in stock
M80 cloud playback and HDMI display control
The Sysolution M80 serves LED advertising screens that need both stored programs and a live HDMI source. An eight-core processor and Android 7.1 platform handle media playback, while four Gigabit LED outputs connect the display system. LedOK Express and AIPS support local configuration and remote program distribution.
Prepare content as playlists or multiple windows with adjustable size, position and overlap. USB updates offer another way to load programs. For selection, check the 2.3-million-pixel total capacity, receiving-card compatibility and network access. The maximum width and height are individual limits; they must not be combined into a full 4K LED load claim.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sysolution M80 cloud LED display controller |
| LED data outputs | 4 Gigabit Ethernet ports |
| Maximum LED load | 2.3 million pixels |
| Maximum dimensions | 3840 pixels wide or 2160 pixels high, subject to the total pixel-load limit |
| Operating modes | Synchronous and asynchronous; remote switching supported |
| Video interfaces | HDMI input and HDMI loop output |
| Video decoding | H.265 hardware decoding |
| Processor / system | 8-core CPU / Android 7.1 |
| Memory / storage | 2 GB DDR3 RAM / 8 GB eMMC |
| Network communication | LAN, Wi-Fi AP/Station modes and optional 4G modem |
| USB interfaces | 2 × USB 2.0; USB Type-B for screen-parameter configuration |
| Audio output | 3.5 mm TRS |
| Sensor functions | RS485 environmental data; brightness probe connection and automatic/scheduled brightness |
| Program functions | Multi-window layouts with overlap, playlists, USB updates and cloud program distribution |
| Time / screen control | NTP time calibration; remote screen on/off |
| Receiving cards | D80 and D9 series, as listed in the specification |
| Software | LedOK Express and AIPS |
| Power input / rated power | 12 V / 15 W |
| Power connector | 5.5 × 2.5 mm |
| Operating temperature / humidity | −20 to +70 °C / 10–90% RH, non-condensing |
| Dimensions / net weight | 193 × 139 × 33 mm / 1 kg |

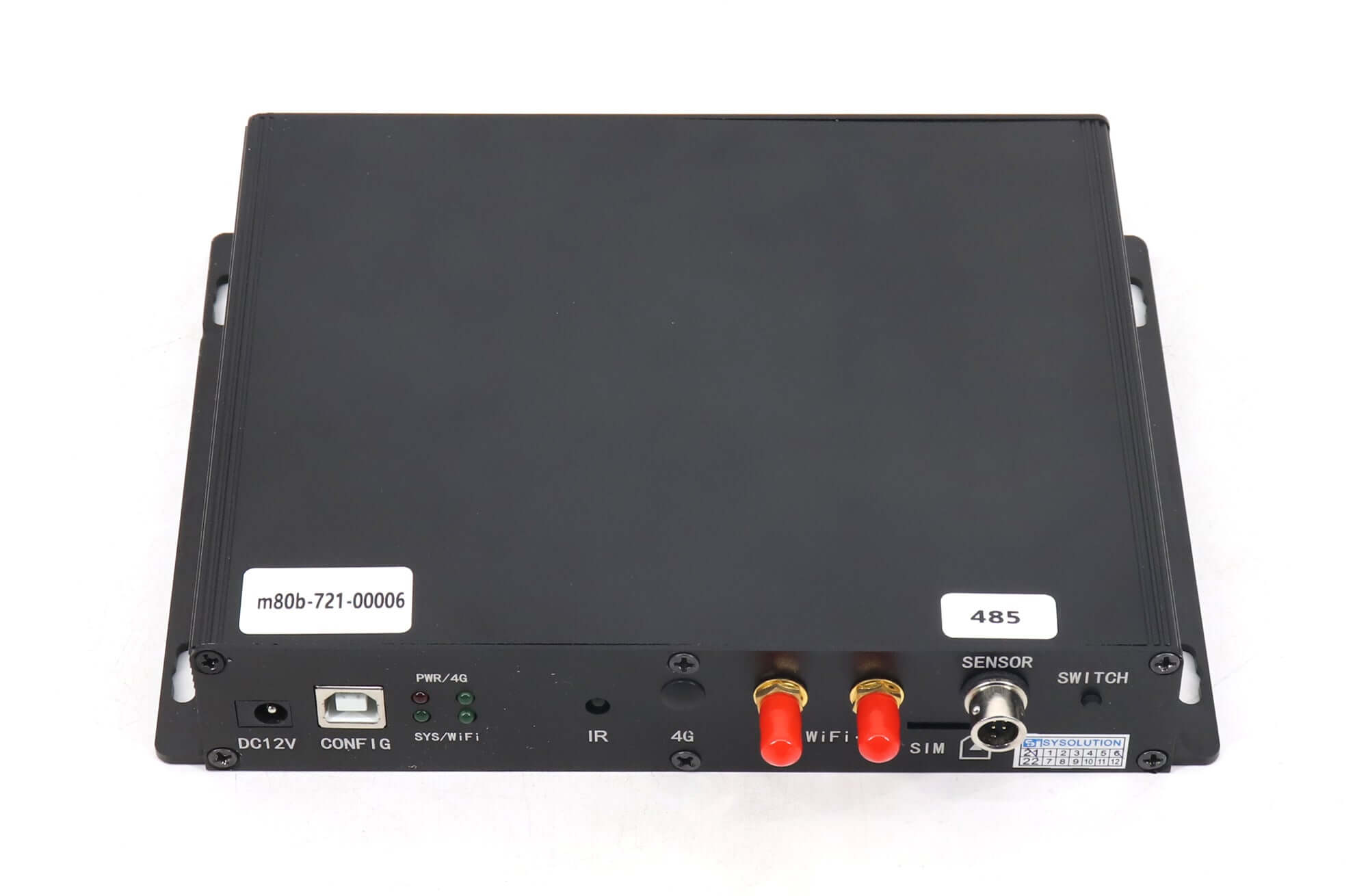

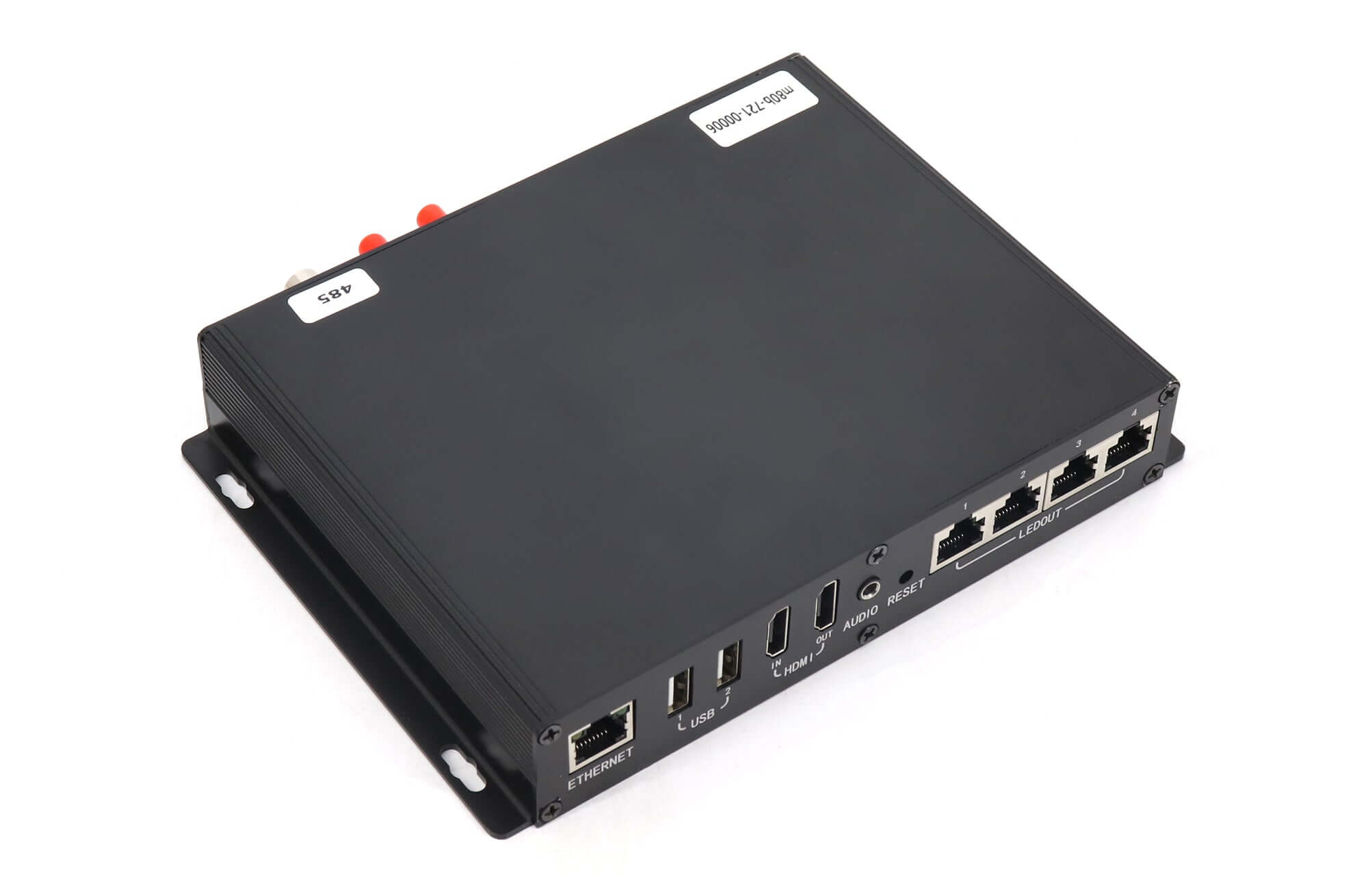

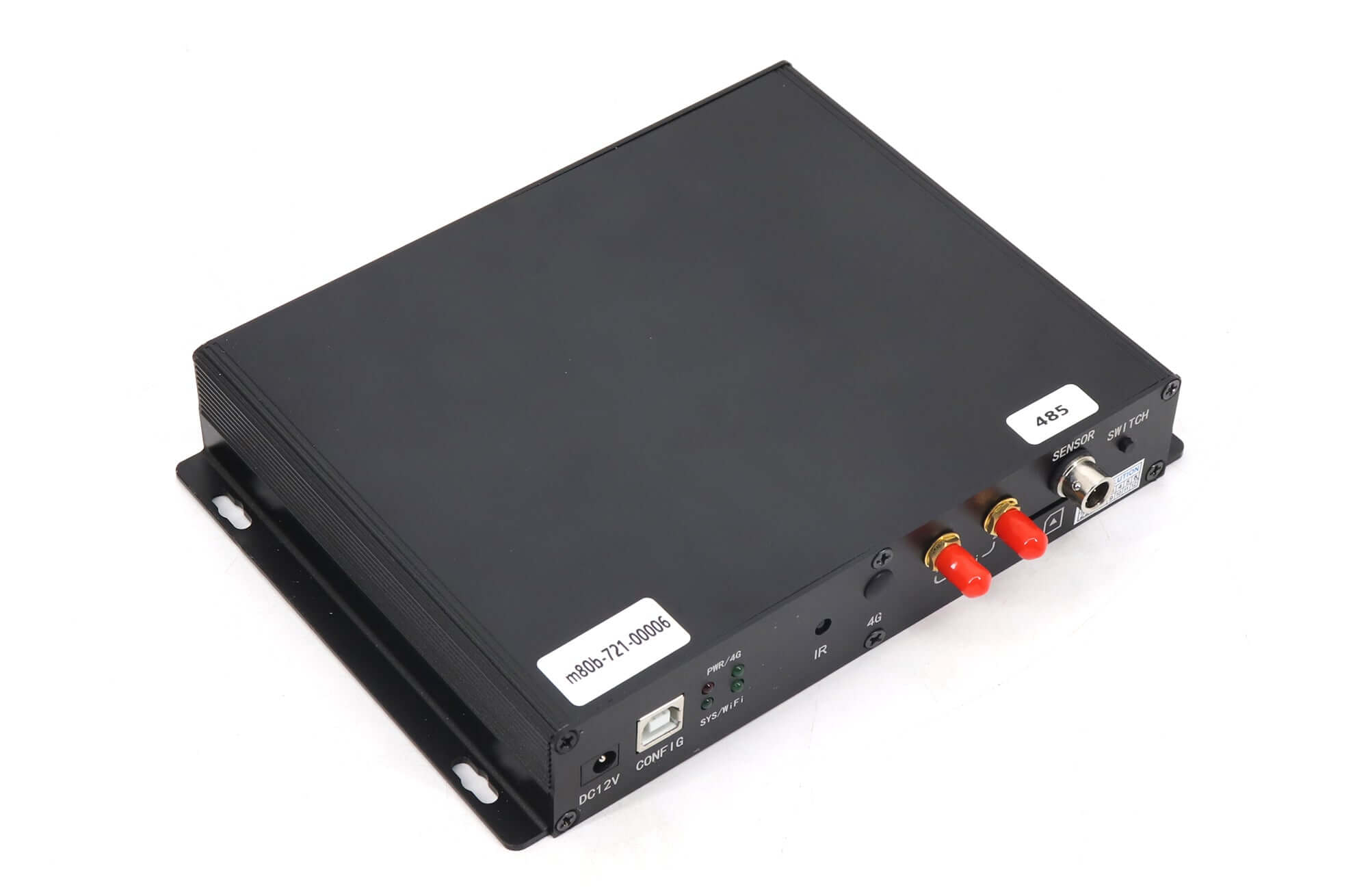

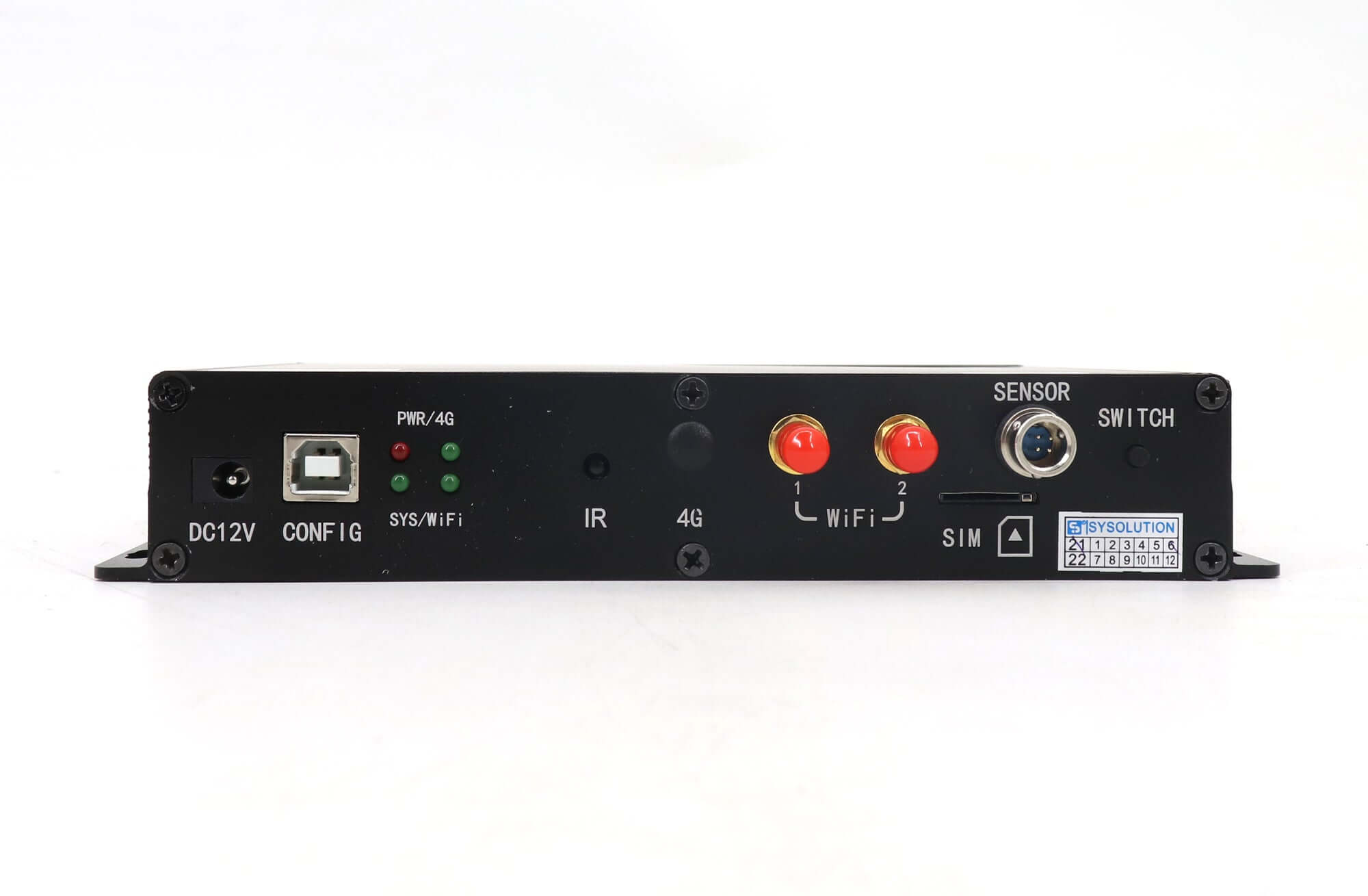

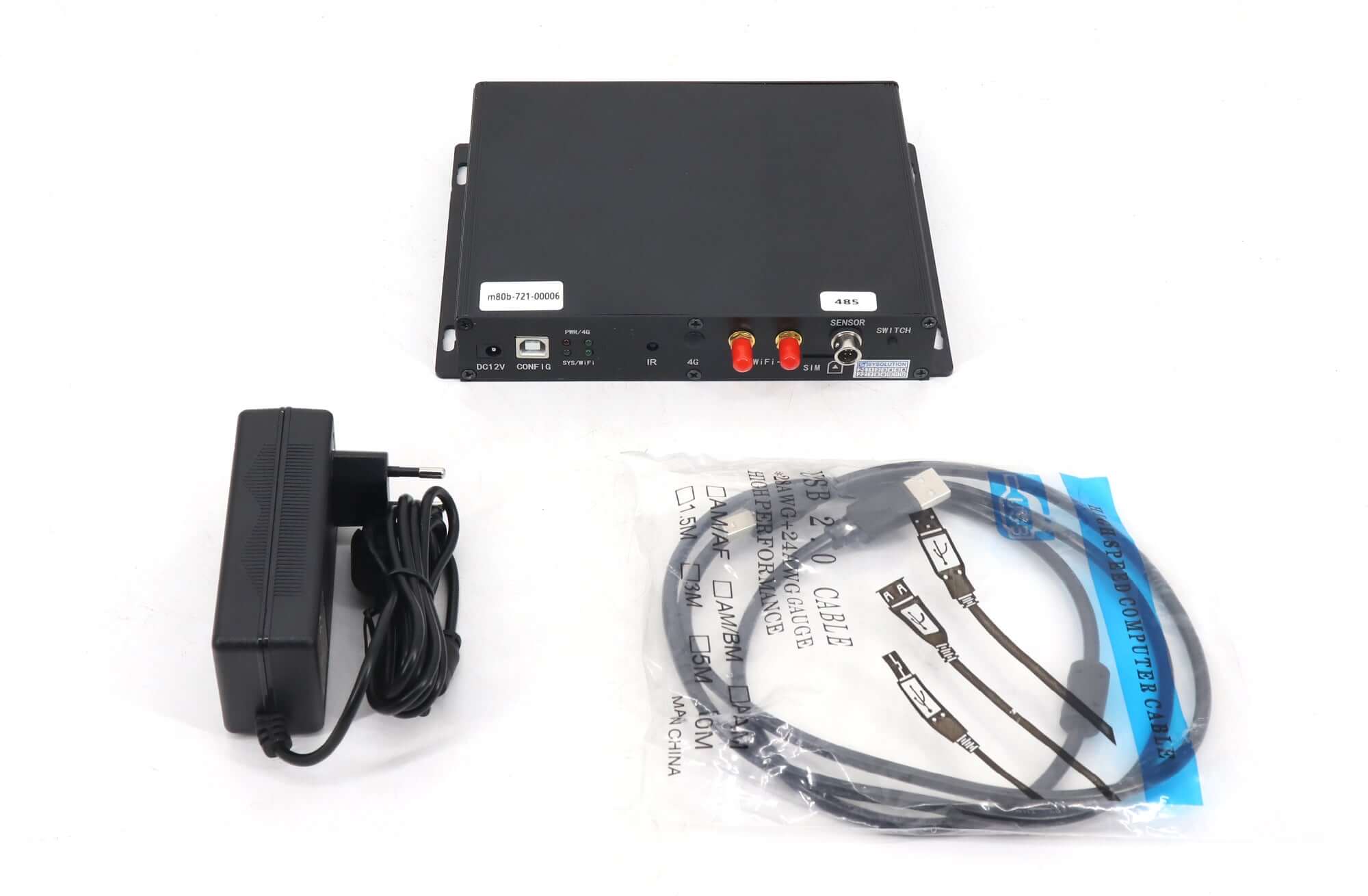

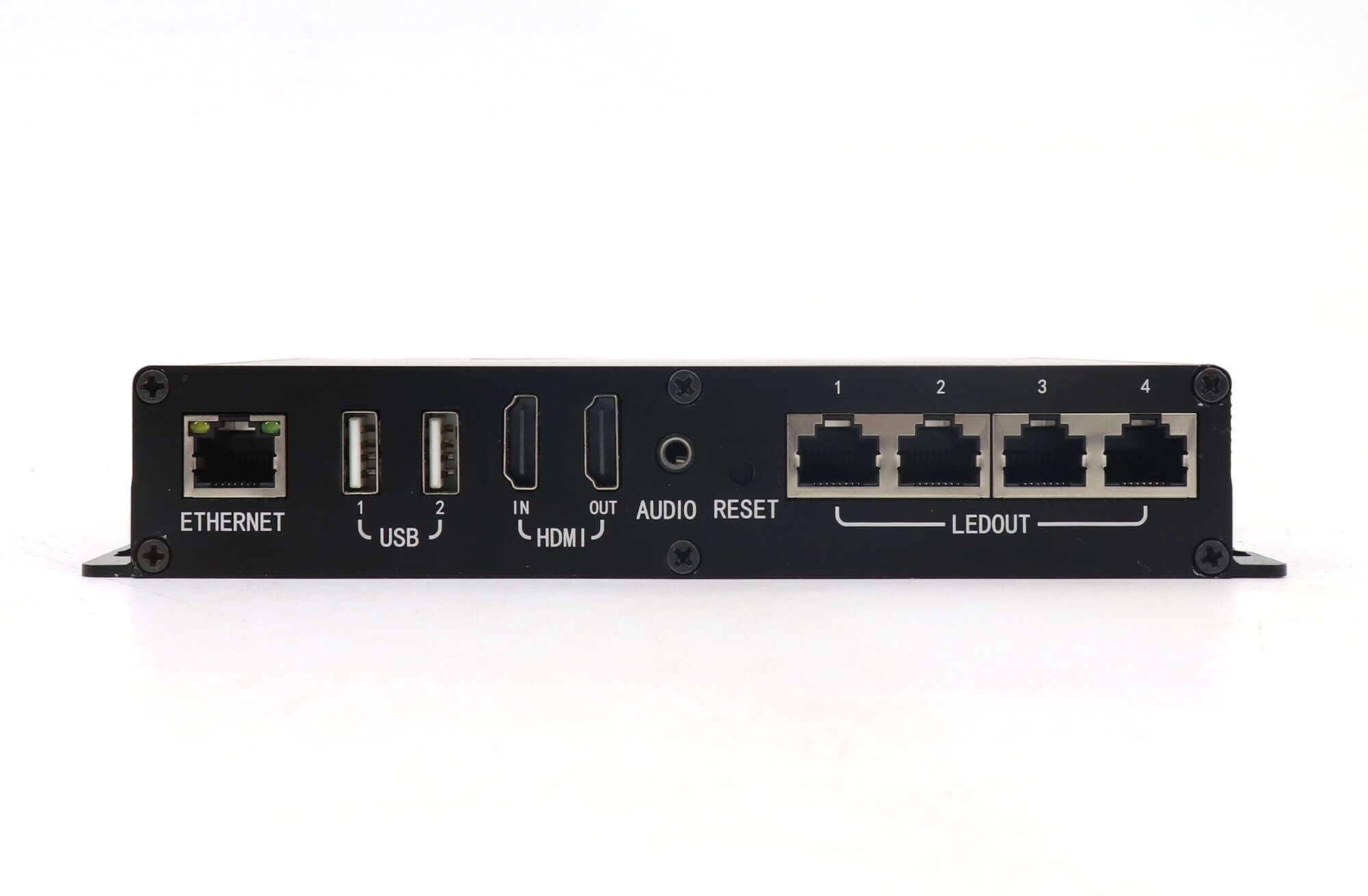

Product images and specification download
Download specification:
Sysolution M80 Cloud Internet/USB/Camera LED Screen Controller Specification
Frequently asked questions
Can the M80 switch between HDMI input and stored programs?
Yes. The M80 supports synchronous and asynchronous operation, including remote mode switching. It has an HDMI input and HDMI loop output as well as playlist, USB update and cloud publishing functions.
Can one M80 drive a 3840 × 2160 LED screen?
The specification sets a total LED load limit of 2.3 million pixels. The 3840-pixel width and 2160-pixel height are separate maximum dimensions, not a promise of a full 3840 × 2160 LED canvas. Check the complete screen layout against the total load.
Is the 4G modem included with every M80?
The PDF lists the 4G modem and antenna as optional items. LAN and Wi-Fi are documented communication methods; confirm the cellular module and required network compatibility if the installation needs 4G.
Which receiving cards and software are listed for the M80?
The linked specification lists D80 and D9 series receiving cards, LedOK Express and AIPS. Check the exact receiving-card model and screen configuration before changing an existing control system.
Can the M80 adjust brightness and display environmental data?
Yes. The functions include automatic and scheduled brightness control and environmental measurements over RS485. The interface description includes a brightness probe connection; confirm the required compatible sensors for the intended measurements.
