Sysolution M90 Plus 4-in-1 LED Video Processor
$ 537.87
The Sysolution M90 Plus combines video processing, synchronous LED sending, asynchronous playback and cloud management. It provides four Gigabit outputs, live-source switching and USB media playback. Review the receiving-card and power-input documentation differences before installation.
10000 in stock
M90 Plus live video, stored programs and cloud control
The Sysolution M90 Plus brings live-source processing and stored-media playback into one LED control system. It supports scaling, fade transitions, preset modes and scheduled source selection. AIPS and a built-in web server provide remote and local program-management options from computers and mobile devices.
Version checks before installation: The original product table and the linked PDF differ on receiving-card compatibility and temperature ratings. The PDF also contains inconsistent USB counts and separate AC-input and 12 V working-condition entries. These distinctions are retained below so that the delivered hardware can be checked without assuming incompatible specifications apply to one unit.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sysolution M90 Plus 4-in-1 LED video processor |
| Integrated functions | Video processor, synchronous sending, asynchronous playback and cloud management |
| LED outputs | 4 Gigabit Ethernet ports; original listing describes a 3+1 output/backup arrangement |
| LED load in original listing | 2,600,000 pixels total; 650,000 per port. Confirm usable load with the chosen backup arrangement. |
| Display dimensions in original listing | Maximum width 1920 pixels; maximum height 1200 pixels |
| DVI monitor output | 1 DVI-D output; PDF lists 1920 × 1080 at 60 Hz among its output modes |
| Video inputs in PDF | 1 HDMI, 1 DVI-D, 1 VGA and 2 BNC/CVBS inputs; CVBS supports PAL/NTSC |
| USB playback | Supported; PDF feature list says 2 USB channels while its interface table lists 1 USB input—confirm the supplied ports |
| Gray levels in original listing | 65,536 |
| Network access | Ethernet and Wi-Fi; 3G/4G support described, subject to fitted modem configuration |
| Storage described in PDF | 8 GB; SD-card expansion to 32 GB |
| Publishing | AIPS web-based platform and built-in local web server |
| Program features | Video, images, text, clocks and multi-area playback; scheduled and remote source switching |
| Source transitions | Signal switching and fade-in/fade-out transitions |
| Image control | Scaling and adjustable image position |
| Monitoring | Picture readback; USB camera support described |
| Receiving-card compatibility | Original listing names D20; linked PDF lists D90-series cards. Exact compatibility requires confirmation. |
| Operating temperature | Original listing: 0 to +40 °C; PDF working conditions: −20 to +70 °C. Confirm the supplied hardware rating. |
| Storage temperature | Original listing: −40 to +90 °C; PDF: −40 to +70 °C, recommended +5 to +35 °C |
| Power specification | PDF includes an 85–264 V, 2 A IEC power-port entry and a separate 12 V, 3 A working-condition table. Confirm the unit’s input label before connection. |

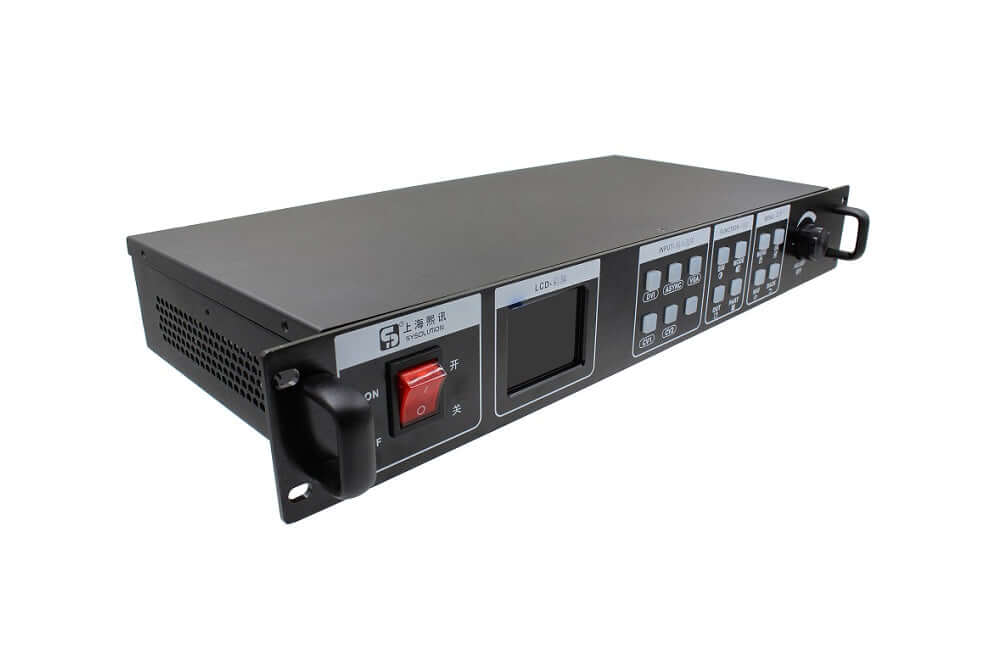

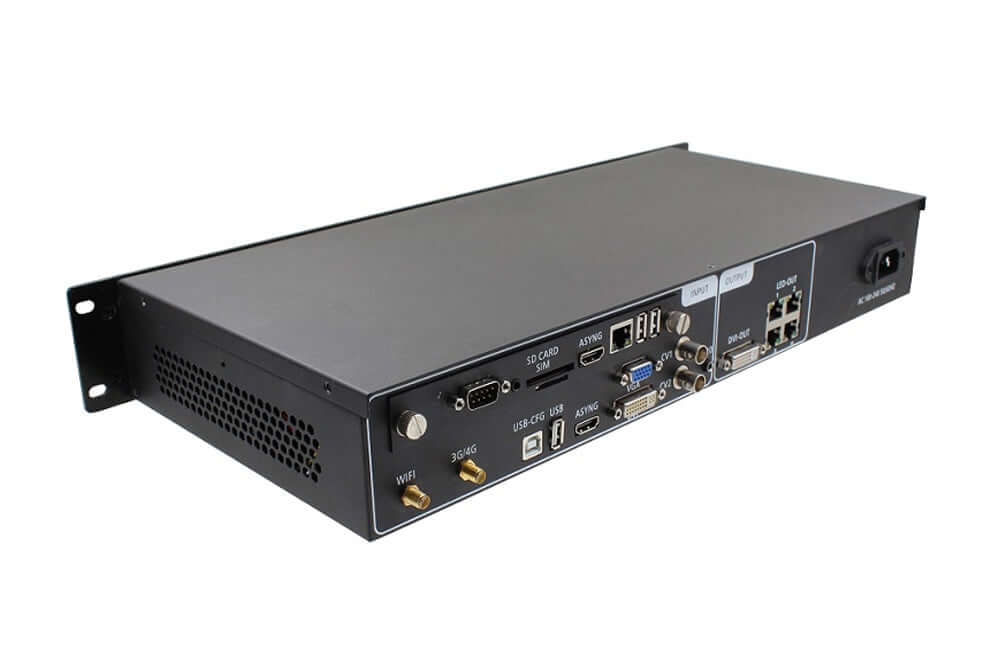

Product images and specification download
Download specification:
Sysolution M90 4 In 1 Plus LED Video Processor-Specification
Frequently asked questions
What does 4-in-1 mean on the M90 Plus?
It combines a video processor, synchronous LED sending, asynchronous media playback and cloud-platform management. This allows source switching and stored-program operation within the same product family.
Can I manage M90 Plus displays remotely?
Yes. The documentation describes AIPS cloud management for groups of displays, program editing, permissions and remote or scheduled source switching. Ethernet and Wi-Fi access are listed; cellular use depends on the fitted modem configuration.
Can the M90 Plus play content from a USB drive?
Yes. USB playback includes video, images, text, clocks and multi-area content. The source documents differ on the USB input count, so check the supplied rear panel if the number of physical ports matters.
Which receiving card should I use with this M90 Plus?
The original product table names D20, but the linked M90 Plus PDF lists D90-series cards. Verify the exact controller revision and compatible receiving-card model before replacing a component; do not assume the two families are interchangeable.
What should I confirm before powering and installing the unit?
Check the actual input-voltage label, receiving-card match, usable LED load with backup enabled and environmental rating. The PDF contains both an AC IEC power-port entry and a separate 12 V working-condition table, and its temperature ratings differ from the original listing. These require version-specific confirmation.
| Weight | 7 kg |
|---|
