XINGXIU DSP800A-3242 4.2V/3.2V Dual Output LED Power Supply
$ 70.00
XINGXIU DSP800A-3242 dual output LED power supply with nominal 4.2V and 3.2V DC channels. The PDF lists 676W normal output power and different current ratings for low and high AC input ranges. See the channel table and original specification.
9983 in stock
The XINGXIU DSP800A-3242 is a dual output LED display power supply with nominal 4.2V and 3.2V DC channels. The specification lists 676W normal output power and a normal AC input of 100–240V.
The available output current depends on the AC input. Check both channel loads against the appropriate input range, rather than using the higher current figures for every installation.
Output ratings by AC input
Source: DSP800A-3242 specification V1.0, dated March 1, 2021.
| AC input range stated on PDF cover | Channel V1 | Channel V2 |
|---|---|---|

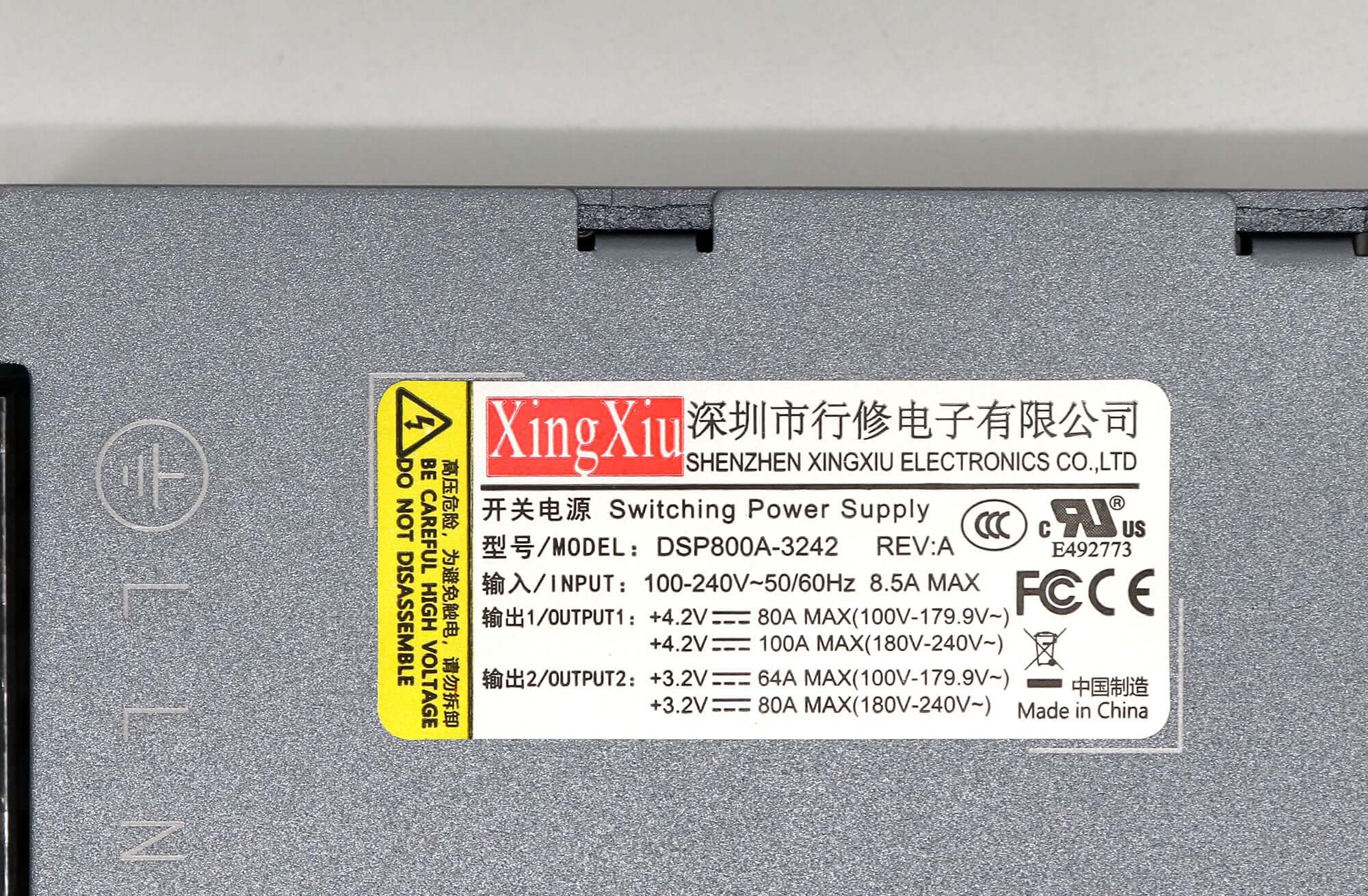

| 100–179.9VAC | 4.2V, 80A | 3.2V, 64A |
| 180–264VAC | 4.2V, 100A | 3.2V, 80A |
Channel adjustment and regulation
| Parameter | V1 | V2 |
|---|---|---|
| Nominal voltage | 4.2V | 3.2V |
| Voltage adjustment range | 4.2–4.6V | 3.2–3.6V |
| Voltage regulation accuracy | ±3% | ±3% |
| Voltage regulation | ±2% | ±2% |
| Load regulation | ±2% | ±2% |
| Minimum current | 0A | 0A |
| Peak current in output table | 110A | 88A |
Input specifications
| Input voltage range | 90Vac to 264Vac |
|---|---|
| Normal voltage range | 100Vac to 240Vac |
| Frequency range | 47Hz—63Hz |
| Max input ac current | 8.5Amax@100Vac |
| Inrush current (cold state) | <60A@230V |
| Efficiency (full load) | 90%TYP@230Vac，FULL LOAD |
| Leakage Current | Less Than 3 mA, @ 230Vac input |
| Normal output power | 676W |
| Input Fuse | T10AL/250Vac |
| Power Factor | PF>0.95/230Vac |
| Safety Certification | CE,UL,FCC,CCC,CB |
The PDF lists CE, UL, FCC, CCC and CB under its safety-certification entry. Request matching documentation for the supplied revision if certification evidence is needed. Peak-current entries are not continuous-load ratings; use the applicable rated outputs and the PDF loading curves.
Choosing a dual voltage supply

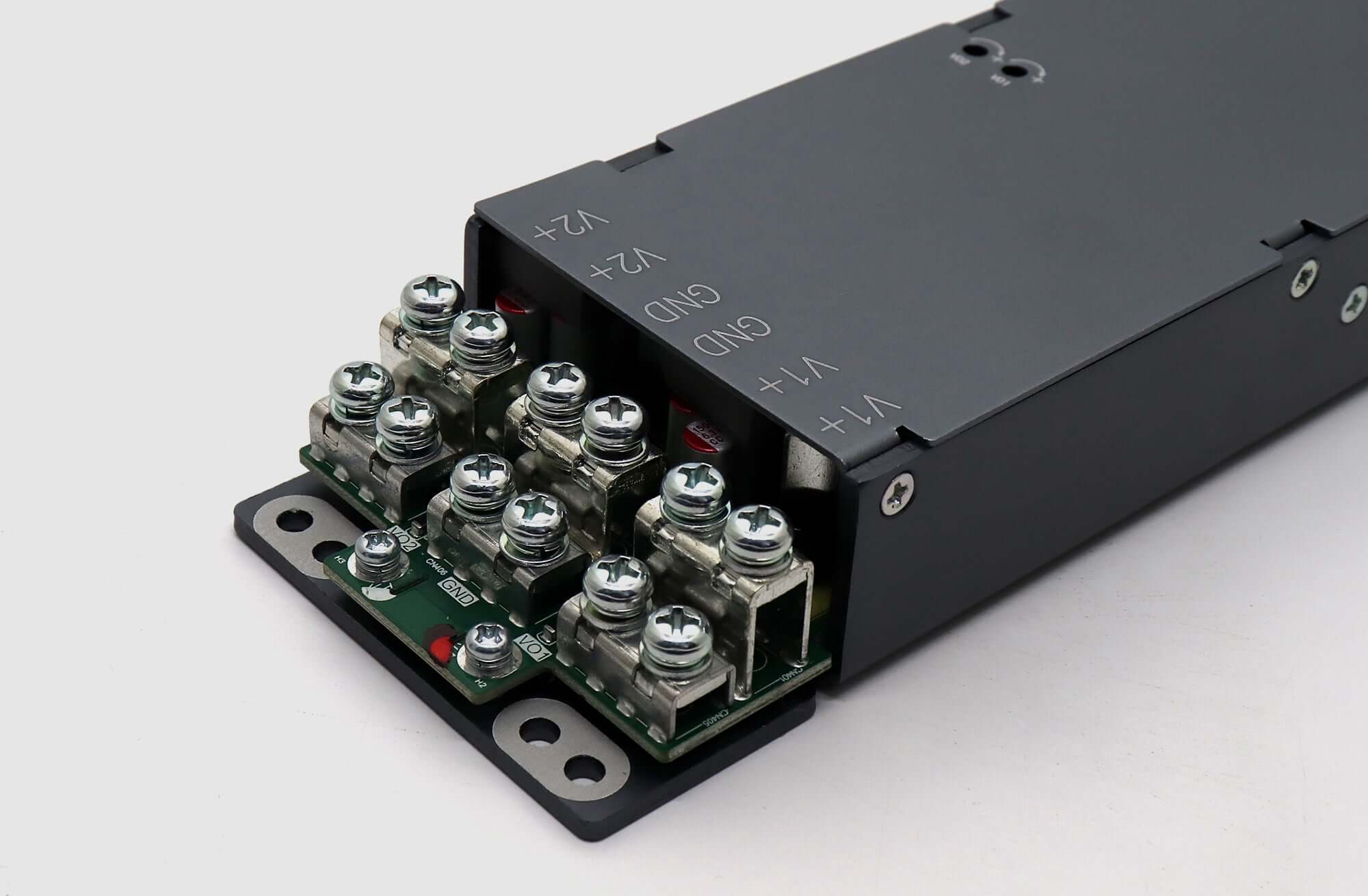

Confirm that the LED module requires the two stated supply voltages, then check its load on each channel. This is not a standard single-output 5V supply. Match the terminal arrangement and mounting dimensions to the existing installation, and use the model-specific PDF for loading and connection details.
Frequently asked questions
What voltages does the DSP800A-3242 output?
It has two nominal DC outputs: V1 at 4.2V and V2 at 3.2V. Their published adjustment ranges are 4.2–4.6V and 3.2–3.6V respectively.
What are the output current limits on 110V AC?
110VAC falls within the PDF cover’s 100–179.9VAC band, which lists 80A for the 4.2V channel and 64A for the 3.2V channel. Check the PDF loading curves for the complete operating conditions.
Does the model number mean this is an 800W power supply?
No. The linked specification states 676W normal output power. The model name should not be used as a substitute for that rating.
Can it directly replace a single-output 5V LED power supply?
Do not assume that it can. Its two outputs have different nominal voltages and neither published adjustment range reaches 5V. Confirm the LED module’s required voltages and wiring before choosing a replacement.
Where is the DSP800A-3242 datasheet?

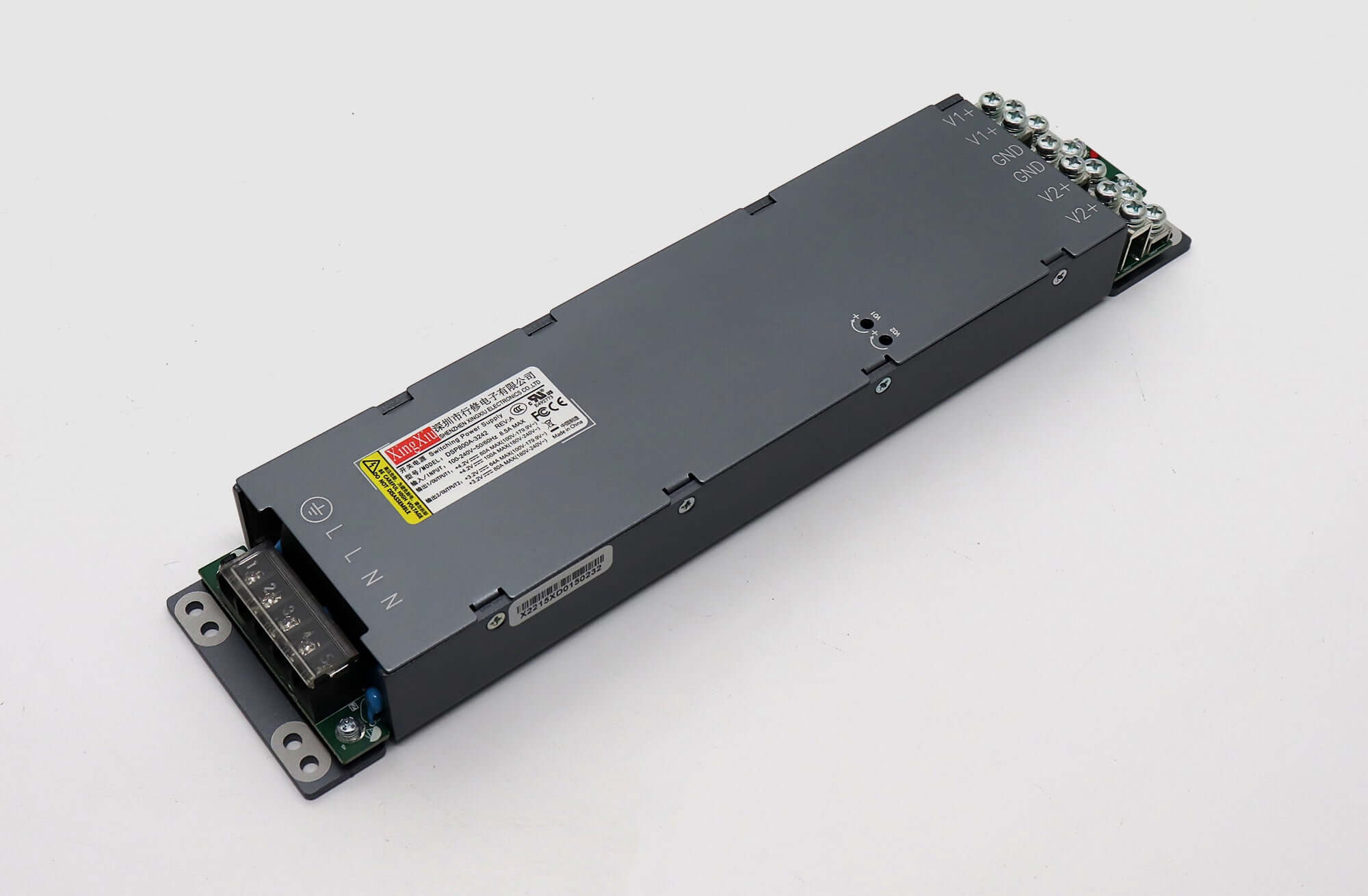

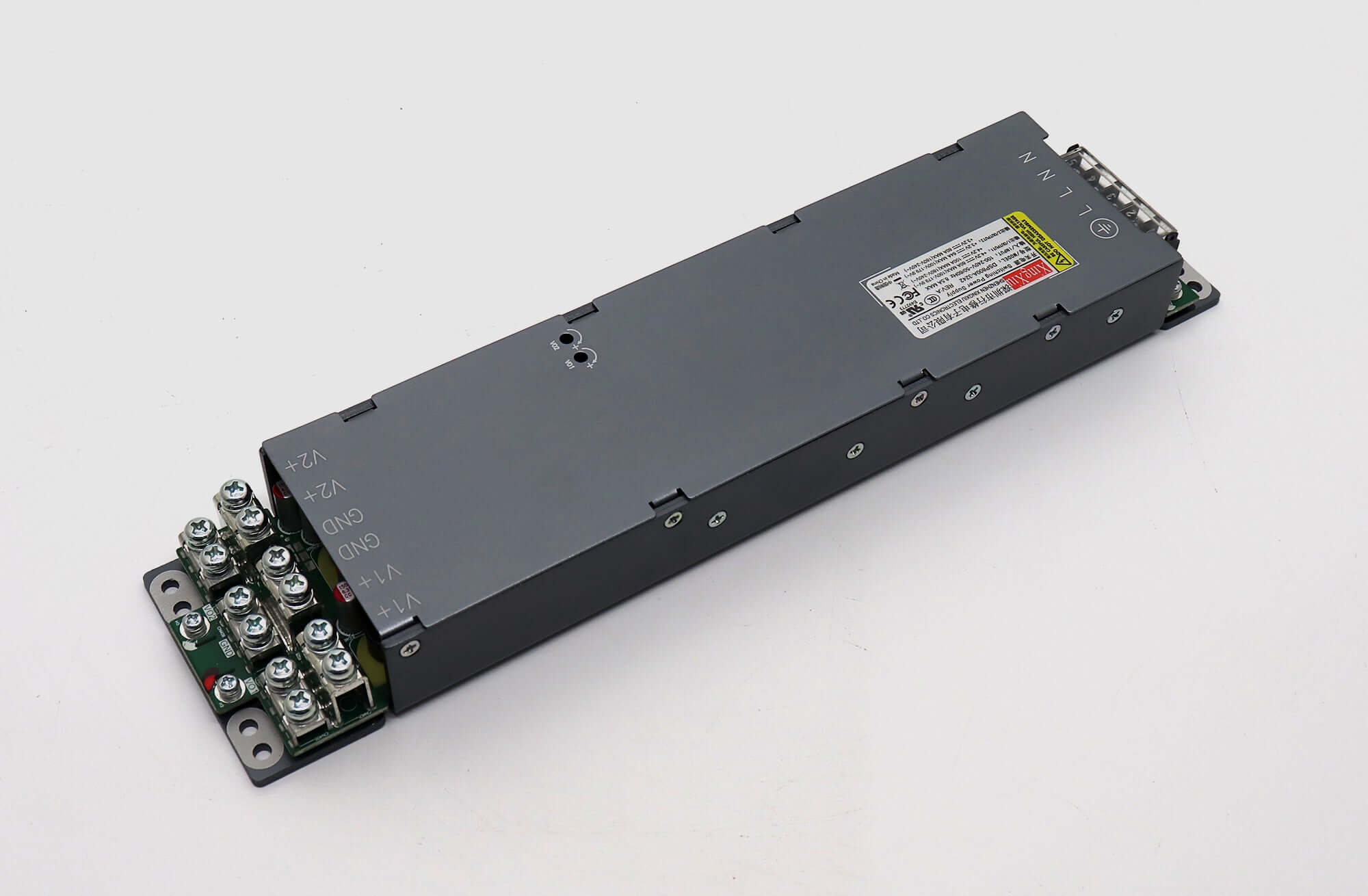

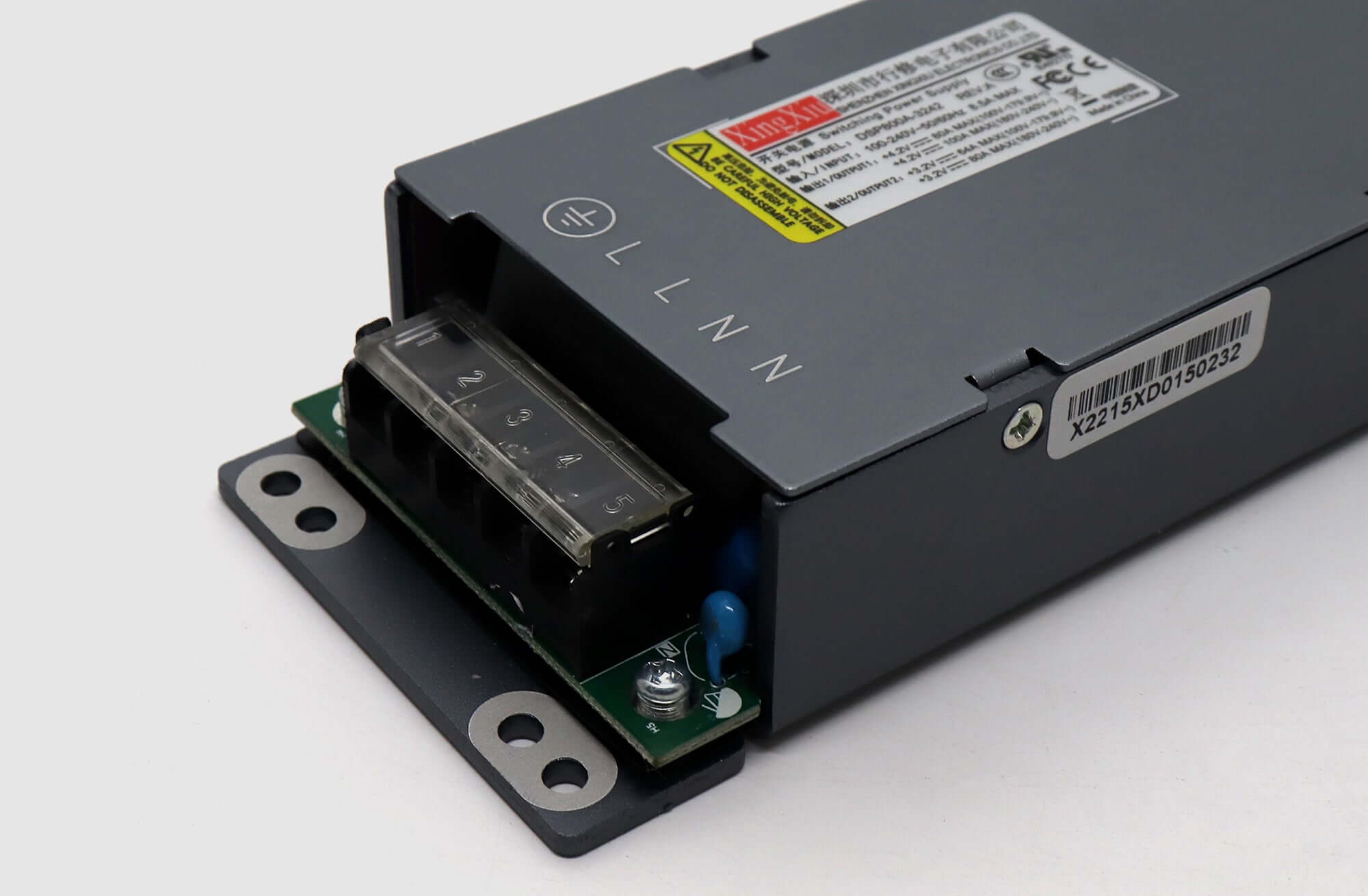

The original specification PDF is linked below the product photos. It includes the input-dependent channel ratings, electrical parameters and loading curves.
Original product photos and specification
Download Specification
XINGXIU DSP800A-3242 LED Display Dual Output Power Supply Specification
| Weight | 1 kg |
|---|
