VDWALL LVP7021 LVP7042 Multi-window LED video wall processor

For VDWall LVP7000 mulit-window processor, there are two options, LVP7021(2 input cards and 1 output card) and LVP7042(4 input cards and 2 output cards).

LVP7021 inputs: 2×CVBS,2×VGA(RGBHV), 2×DVI(VESA/ CEA-861),2×SDI(SDI/HD-SDI/3G-SDI) LVP7021 outputs: 4xDVI.

LVP7042inputs: 4×CVBS,4×VGA(RGBHV), 4×DVI(VESA/ CEA-861),4×SDI(SDI/HD-SDI/3G-SDI)  LVP7042 outputs: 8xDVI.

was $1,574.00 Special Price $1,495.00
More Information
Weight(kg) 9.00 kgs
Manufacturer VDWall
Availability: In stock

Features of VDWALL LVP7000 Multi-window LED video wall processor:

1.Highly integrated video processor with varieties of advanced image.processing technologies:Seamless switching, Sync-output cropped images, Multi-window display by image overlay etc

2.Supports SD and HD, Analog and Digital Video Inputs:

   4×CVBS    4×VGA

   4xDVI(HDMI)     4×SDI(SD-SDI / HD-SDI / 3G-SDI)

3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi

4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz

5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000

6.Device Aided calculation of the cropped image’s size and position

7.Fully CrossPoint high bandwidth video switching

8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals

9.Backup or Restore the device settings and adjustment data by a PC

10.24/7 Application, stable and reliable

Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.

VDWALL LVP7000 Multi-window LED video wall processor Specification:

Input signal index


4×DVI(VESA/ CEA-861)

Video standard


Composite Video


1V(p_p)/ 75Ω

VGA format



VGA Scope/Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI format





SDI format








Input port

CVBS:VGA socket P4
VGA:15pin D_Sub(female)
DVI:24+1 DVI_D

Output signal index



Preview output

1×DVI(one channel

of Out_K or Out_L is optional

as preview output)

DVI resolution





Output port

DVI:24+1 DVI_D


Control port


Input Voltage

100-240VAC 50/60Hz

Maximum power consumption


Operating Temp

0-45 ℃




482.6(length) x 300(width)

x 89(height)mm


540(length) x 400(width)

x 180(height)mm

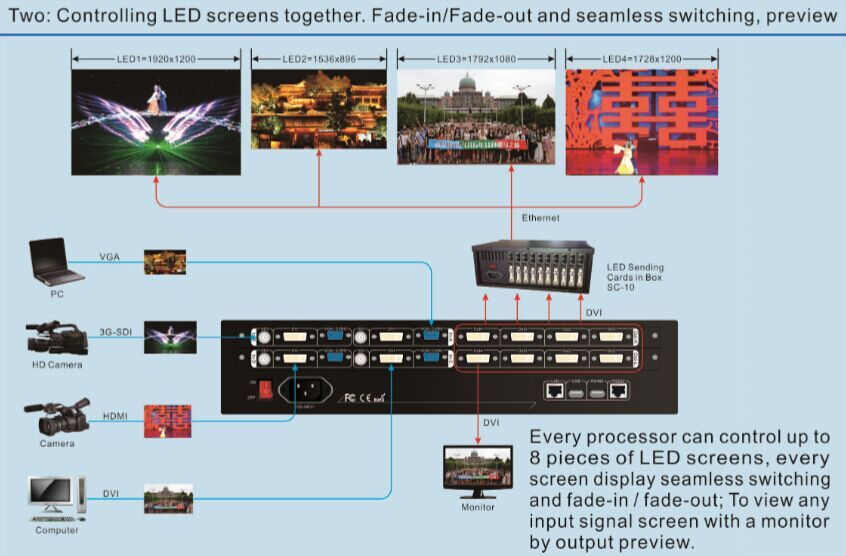

●  LVP7000 connection diagram:

Connection diagram

VDWALL LVP7000 Multi-window LED video wall processor features

VDWALL LVP7000 Multi-window LED video wall processor features

Download Specification:

VDWALL LVP7000 Multi-window LED video wall processor Specification

VDWALL LVP7000 Multi-window LED video wall processor User Manual
