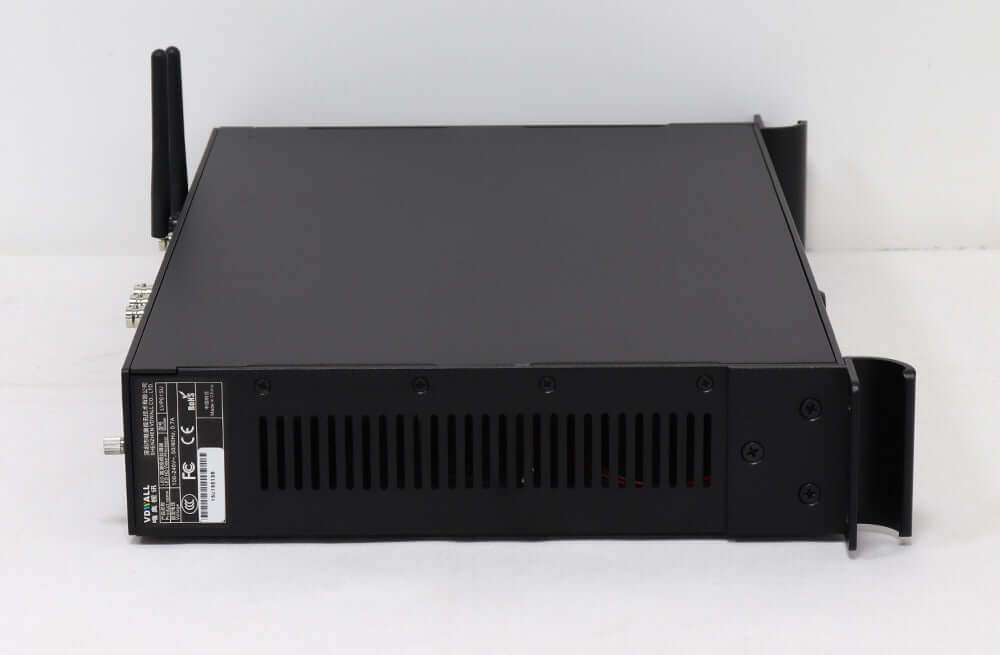

VDWall LVP615U HD LED Video Processor with USB & Wi-Fi
$ 480.00
VDWall LVP615U HD video processor with USB media input and Wi-Fi functions. Supports PIP/PBP layouts, AIAO cropping, DVI loop-through and one-button or Preselect + TAKE source switching.
10000 in stock
Video processing with USB media and Wi-Fi

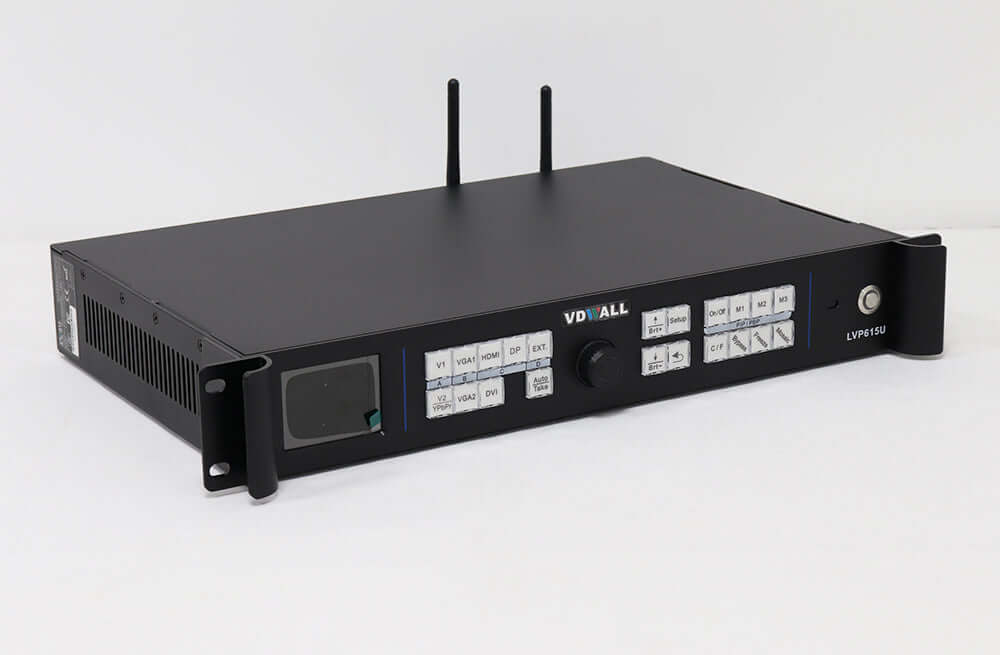

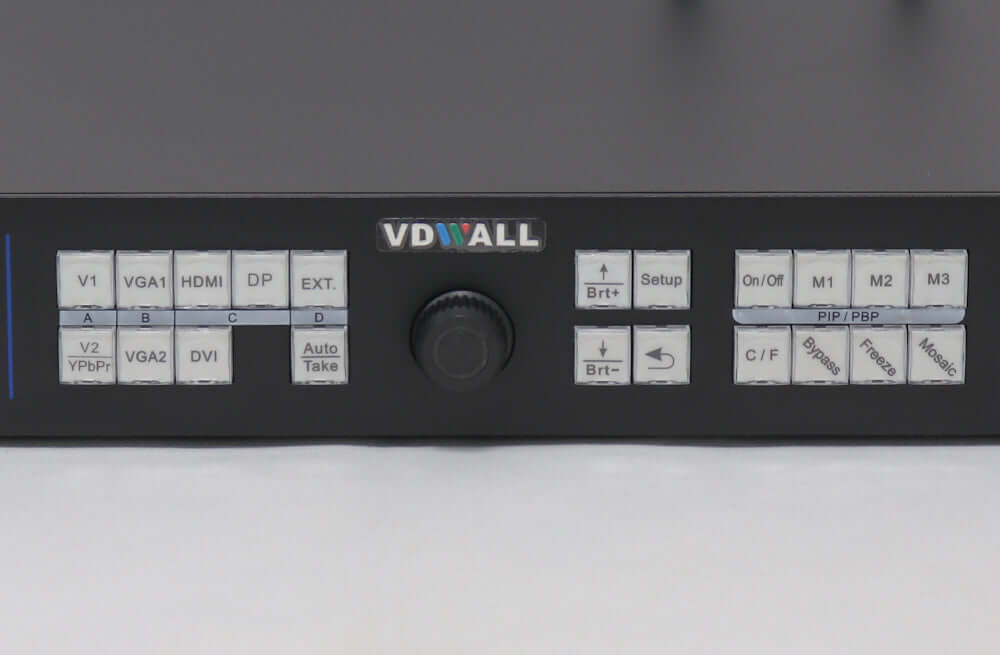

The VDWall LVP615U combines LED screen video processing with a USB/Wi-Fi expansion configuration. It supports USB media playback, network resources and wireless operation alongside conventional video inputs. For source switching, operators can use a direct button or Preselect + TAKE.
Screen layout and playback
Three custom PIP/PBP modes provide reusable layouts. AIAO cropping places a selected source area within the screen, while custom output formats and user-defined DVI EDID support screen matching. DVI loop-through supports synchronized multi-unit arrangements.
The media functions list 4K/2K 60FPS hardware decoding, USB plug-and-play and AirPlay, DLNA and Miracast support. Media decoding capability is separate from the LED processor output timing limits.
LVP615U specifications
| Parameter | Specification |
|---|---|

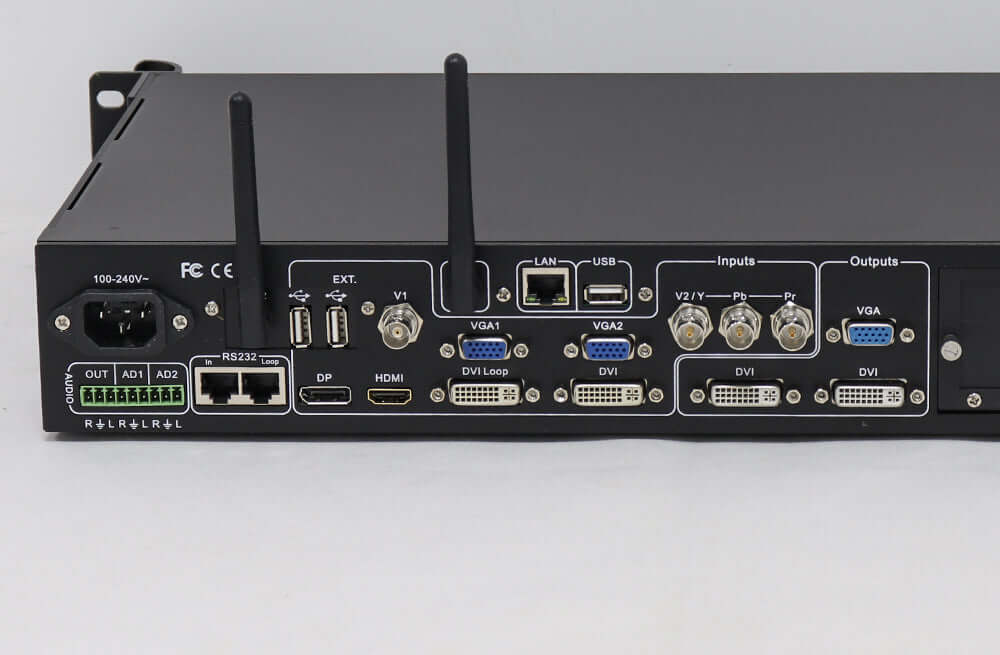

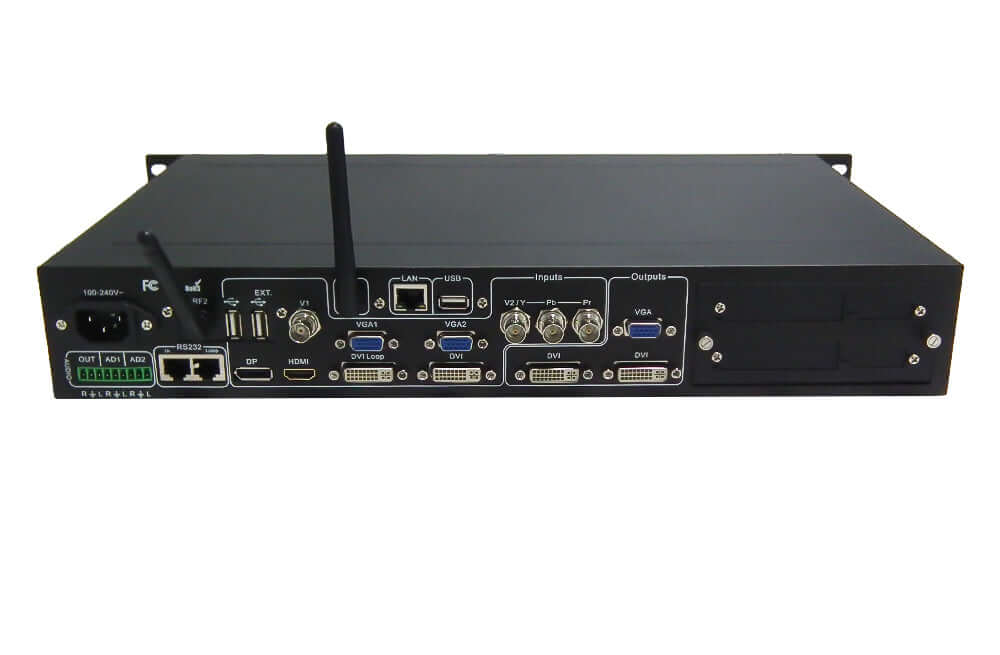

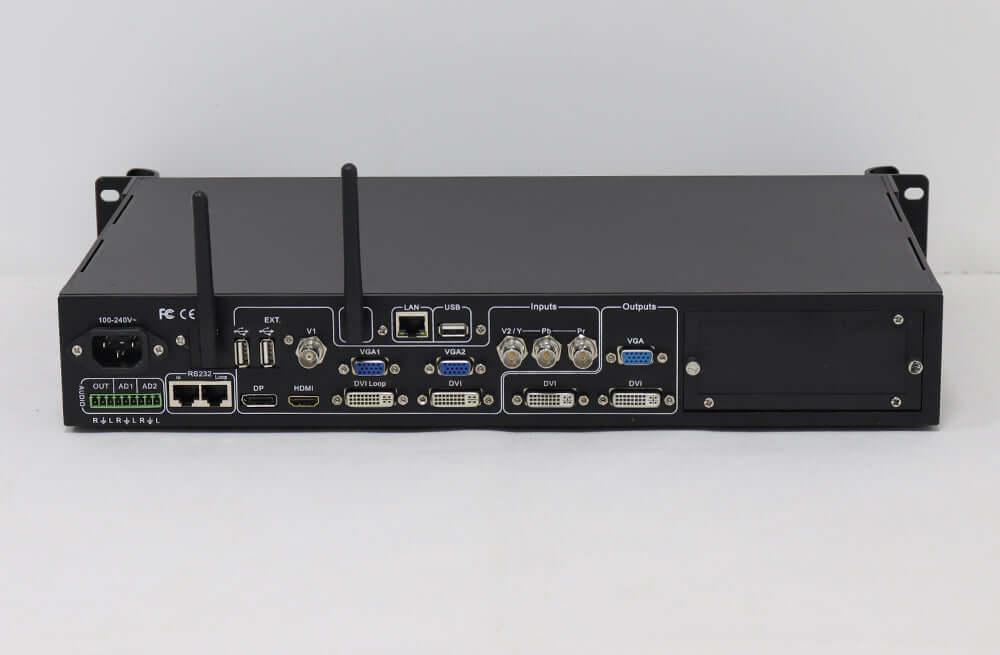

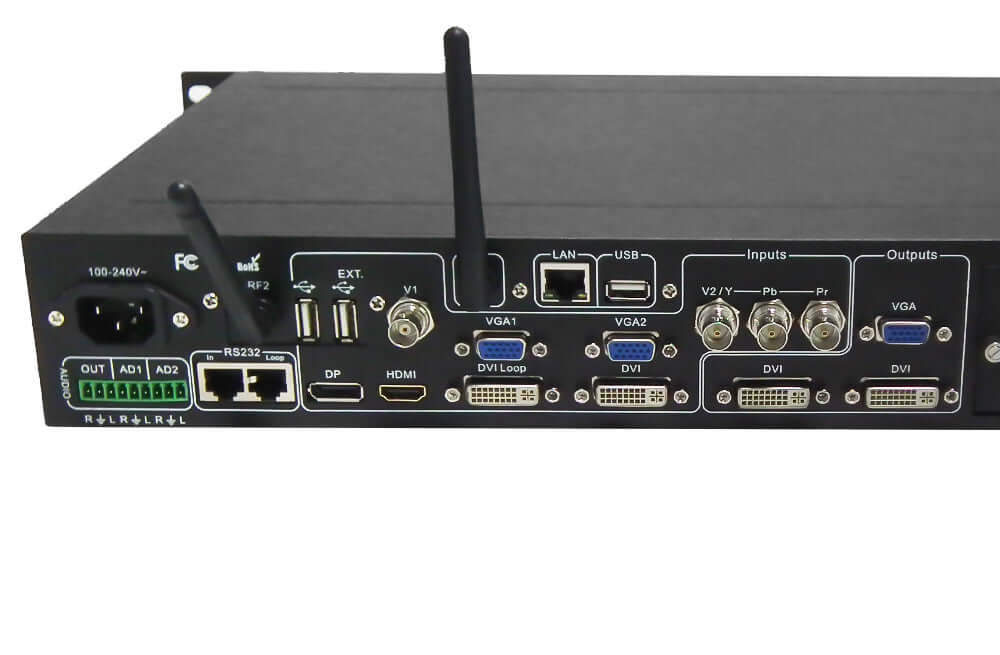

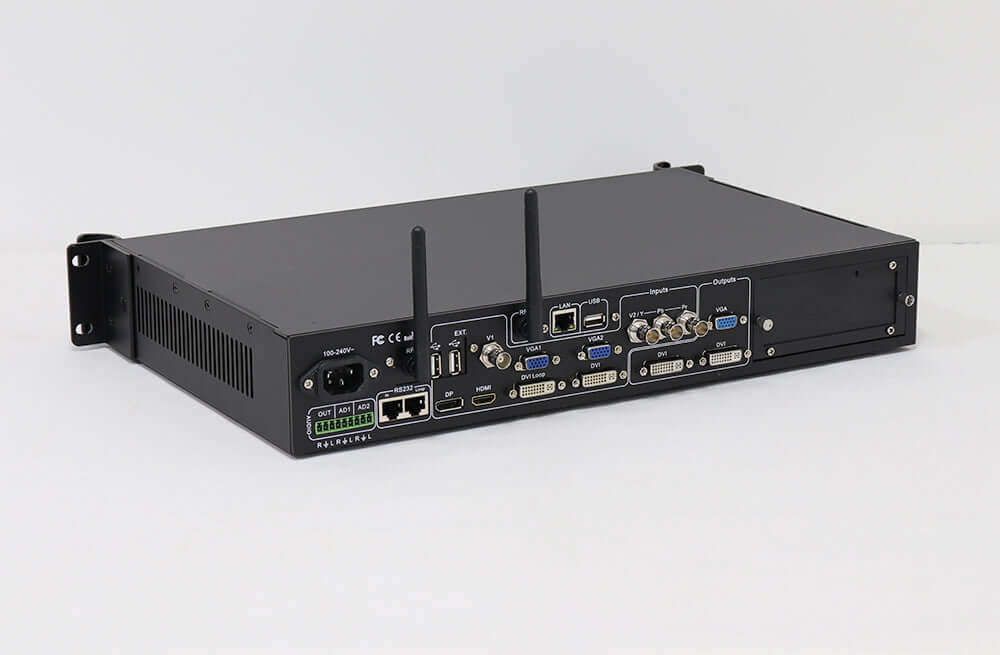

| Standard inputs | 2 × Video; 1 × YPbPr; 2 × VGA; 1 × DP; 1 × DVI; 1 × HDMI |
| Expansion configuration | 2 × USB + Wi-Fi |
| Outputs | 1 × VGA; 2 × DVI |
| PIP/PBP presets | 3 custom modes |
| Custom output limits | Width ≤3840 pixels or height ≤1920 pixels |
| VGA PC input | Up to 2048 × 1152 at 60Hz |
| DVI / HDMI PC input | Up to 2304 × 1152 at 60Hz |
| HDMI video input | Up to 1920 × 1080p at 60Hz |
| DisplayPort | DisplayPort 1.1 |
| Control methods | Wi-Fi, IP/LAN, front panel, infrared remote, PC software |
| Input voltage | 100–240VAC, 50/60Hz |
| Maximum power consumption | ≤25W |
| Temperature | 0–45°C |
| Humidity | 15–85% |
| Package size | 130 × 350 × 520 mm (H × W × L) |
| Weight | Net 4.0 kg; gross 5.7 kg |
The width and height maxima are separate limits. Select a supported output timing for the LED screen and receiving equipment.
Frequently asked questions
What distinguishes the LVP615U configuration?
This listing specifies an expansion configuration with two USB interfaces and Wi-Fi, along with USB media and network playback functions.
Does 4K decoding mean the processor outputs 4K at 60Hz?
The listed 4K/2K 60FPS capability refers to media hardware decoding. Check the processor output timing table and custom width/height limits separately.
Can the LVP615U show two sources together?
Yes. It supports PIP/PBP and three custom display modes, plus AIAO input cropping.
Where can I find the LVP615U price and operating instructions?
The current price appears in the purchase section. The overview and user manual PDFs below cover the listed model.

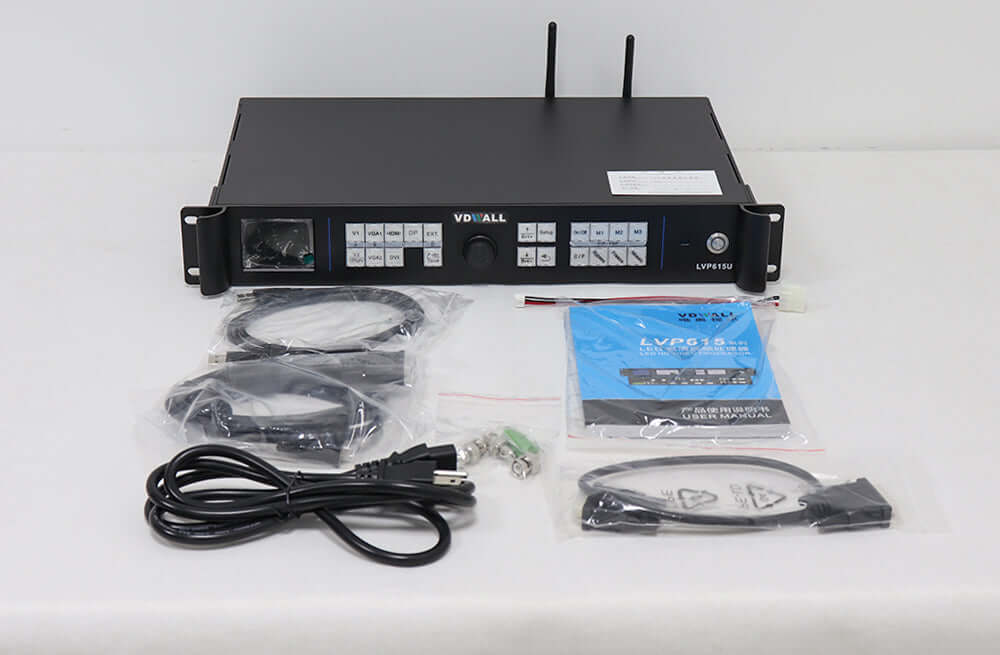

Feature images and PDF manuals
Overview of VDwall LVP615U HD LED Video Processor Price V1.0
VDwall LVP615U HD LED Video Processor user manual
| Weight | 7 kg |
|---|
