Sysolution D60-12A LED Receiving Card – 12 HUB75E
$ 16.00
Sysolution D60-12A LED receiving card for compatible LED display systems, with 12 HUB75E interfaces and up to 24 parallel RGB data groups.
- Maximum load: 512 × 256 pixels
- Chromaticity correction load: 256 × 320 pixels
- Input: DC 3.5–5.5 V; rated 0.6 A / 3 W
- Operating range: −20°C to +70°C, 10%–90% RH
- Board size: approximately 144.02 × 91.2 mm
Confirm controller compatibility, module pinout and scan configuration before ordering. See the full specifications and PDF below.
10000 in stock
Sysolution D60-12A LED Receiving Card Overview
The Sysolution D60-12A is an LED display receiving card with 12 HUB75E interfaces and up to 24 groups of parallel RGB data. Its specified maximum load is 512 × 256 pixels. It is intended for LED rental screens, broadcast displays, event screens and installed display projects.
Choose this card by checking your sending system, LED module wiring and cabinet resolution together. A matching connector alone does not establish compatibility with an existing display.
Technical Specifications
| Parameter | D60-12A specification |
|---|---|
| Manufacturer / model | Sysolution Technology (Xixun) / D60-12A |
| Output interfaces | 12 × HUB75E |
| Parallel RGB data | Up to 24 groups |
| Maximum loading | 512 × 256 pixels; normal or PWM drivers |
| Brightness correction loading | 512 × 256 pixels |
| Chromaticity correction loading | 256 × 320 pixels |
| Scan range | 1–64 scan |
| Input voltage | DC 3.5–5.5 V |
| Rated current / power | 0.6 A / 3 W |
| Operating temperature | −20°C to +70°C |
| Operating humidity | 10%–90% RH |
| Board dimensions | Approximately 144.02 × 91.2 mm |
| Net weight | 100.8 g |
| Configuration software referenced | LedSet 4.0 |
Specifications follow the D60-12A product specification, version 1.0. In particular, use the chromaticity-correction limit when planning a configuration that requires color calibration.
Configuration and Display Features
- Display adjustment: LedSet 4.0 provides refresh-priority or grayscale-priority settings, rotation in 90-degree steps and screen scaling.
- Service tools: Configuration readback, cable signal monitoring and receiving-card status monitoring help with commissioning.
- Network backup: Hot backup requires the specified main and standby cable loop arrangement.
Check Compatibility Before Ordering
- Record the sending controller model, current receiving-card model and firmware version.
- Check the module driver IC, scan ratio, HUB75E pinout and ribbon-cable arrangement.
- Calculate cabinet width and height in pixels and confirm which correction mode your project needs.
- Check the available DC supply, mounting space and fixing-hole positions against the specification drawing.
For a replacement, keep a copy of the working cabinet configuration before changing hardware. Ask us to review your module details and controller model through the LED-Mall contact page. You can also browse our LED receiving cards.
Frequently Asked Questions
What is the difference between maximum loading and correction loading?
The D60-12A supports up to 512 × 256 pixels for maximum loading and brightness correction. Its specified chromaticity correction load is 256 × 320 pixels. Plan the cabinet around the correction mode you will use.
Can I replace another receiving card just because it has HUB75E connectors?
Do not select a replacement by connector type alone. Confirm the sending system, module pinout, driver IC, scan ratio and cabinet configuration before ordering.
What should I send for a compatibility check?
Provide clear photos of the existing card and module label, the sending controller model, module pixel dimensions, cabinet layout and any available configuration file.

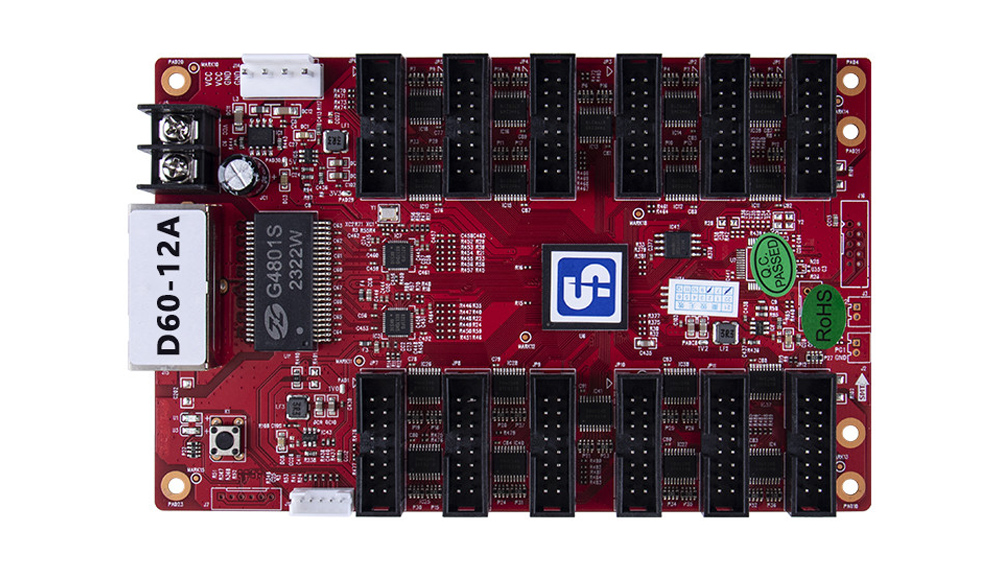

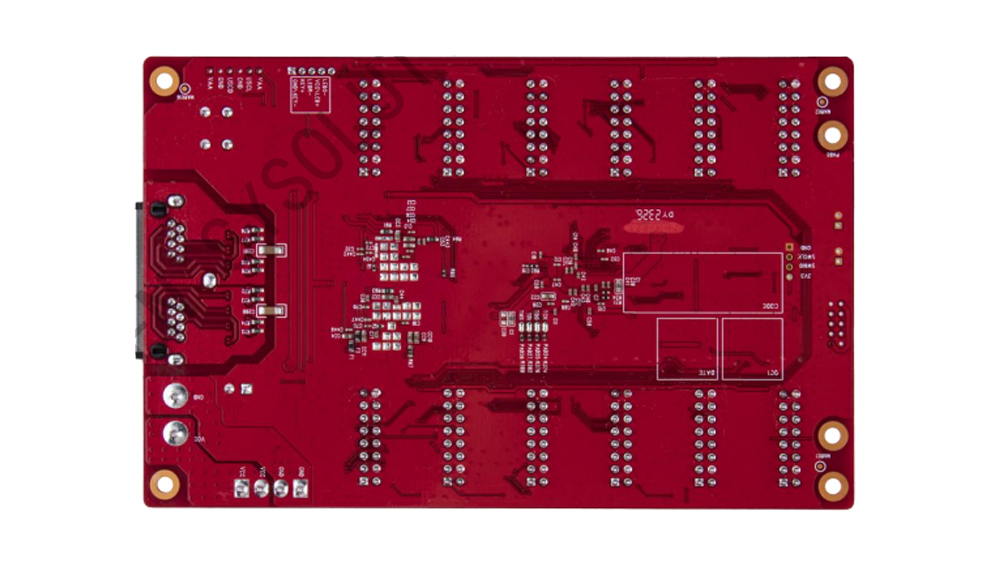

Product Images
Download the D60-12A Specification
Sysolution D60-12A Receiving Card Specification (PDF) — version 1.0, including loading limits, interface definitions and mounting dimensions.
