Huidu HD-D35 Wi-Fi Asynchronous LED Control Card – Discontinued
$ 41.00
HD-D35 is a discontinued asynchronous controller for full-color LED strip and vehicle-mounted displays, with a 1024 × 64 control range and 4 GB memory. This page retains its specifications and links to D16/D36 alternatives for replacement planning.
HD-D35 specifications and replacement options
The Huidu HD-D35 is no longer in production. The existing product recommendation is to consider HD-D16 or HD-D36. Compare control range, module interfaces and communication options before selecting a replacement.
D35 is an asynchronous controller for full-color strip displays, including shopfront lintels, taxi-roof signs and bus advertising screens. It uses an ARM A9 CPU with hardware video decoding and supports management from a PC, mobile app or cloud platform.
D35 technical specifications
| Parameter | Specification |
|---|---|
| Control range | 1024 × 64 |
| Maximum width / height | 1024 pixels wide; 128 pixels high |
| CPU | ARM A9 |
| Module scan | Static through 1/64 scan |
| Grayscale | 256–65,536 levels |
| Video playback | 720p hardware decoding; 60 Hz output; direct transfer without transcoding wait |
| Memory | 4 GB; expandable with USB storage |
| Module interface | 1 × 50-pin HUB; compatible HUB boards required for the module connection |
| Power input | 5 V DC |
| Network port | 1 × 100 Mbps RJ45 |
| USB | 1 × USB 2.0 for program updates |
| Expansion slot | Mini PCIe for optional 3G/4G or Wi-Fi module; SIM slot on the rear |
| Software | HDPlayer |
| Additional connections | Temperature sensor, GPS module and external sensor ports |
| Video formats | AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS and WEBM |
| Animation / image formats | SWF, FLV, GIF / BMP, JPG, JPEG, PNG |
The maximum width and height are separate limits, not a combined 1024 × 128 capacity. The product listing identifies a Wi-Fi configuration, while the interface description lists Wi-Fi and cellular modules as optional expansion hardware; confirm the fitted module when matching an existing card.
Playback and status checks
The D35 supports video and animation, editable text with pictures, clocks, neon effects and counting functions. Temperature/humidity display and adaptive brightness are also listed in the specification. The stated program duration is more than four hours with 4 GB memory; content size affects actual duration, and USB storage can expand capacity.
During normal operation, the RJ45 orange light stays on and its green light flashes. The Display indicator flashes, D1 is the flashing running indicator and D2 is the steady power indicator. A test button checks display brightness and contrast. The GPS connection supports time correction and positioning.

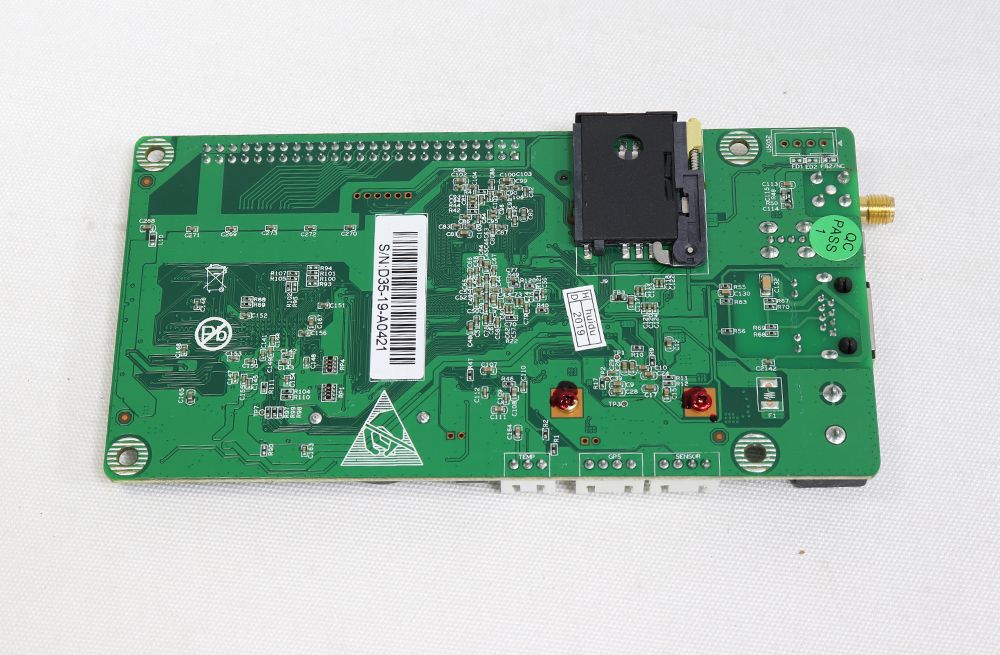

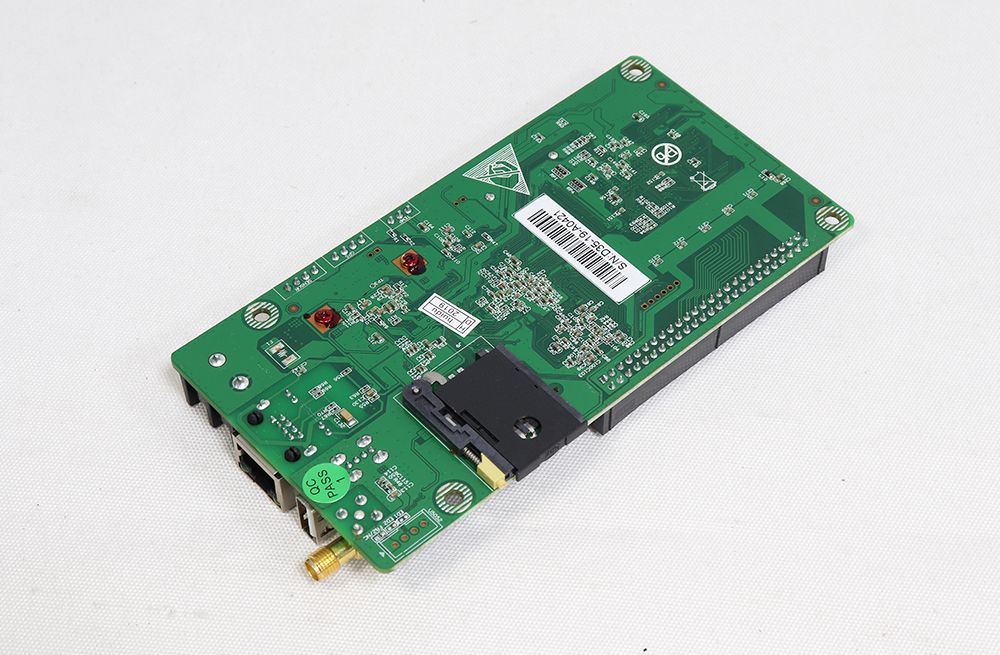

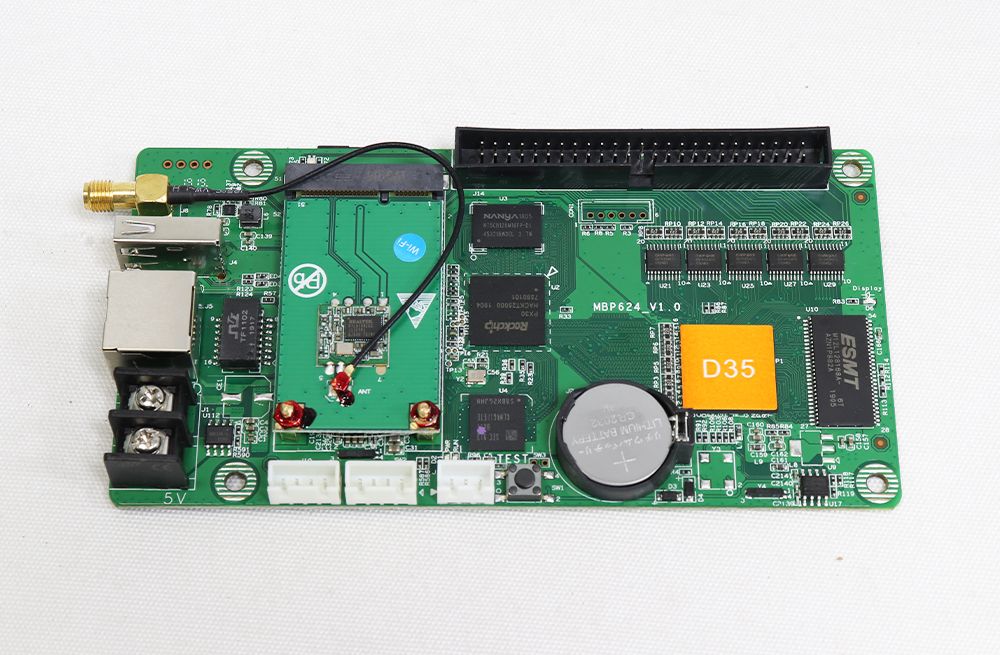

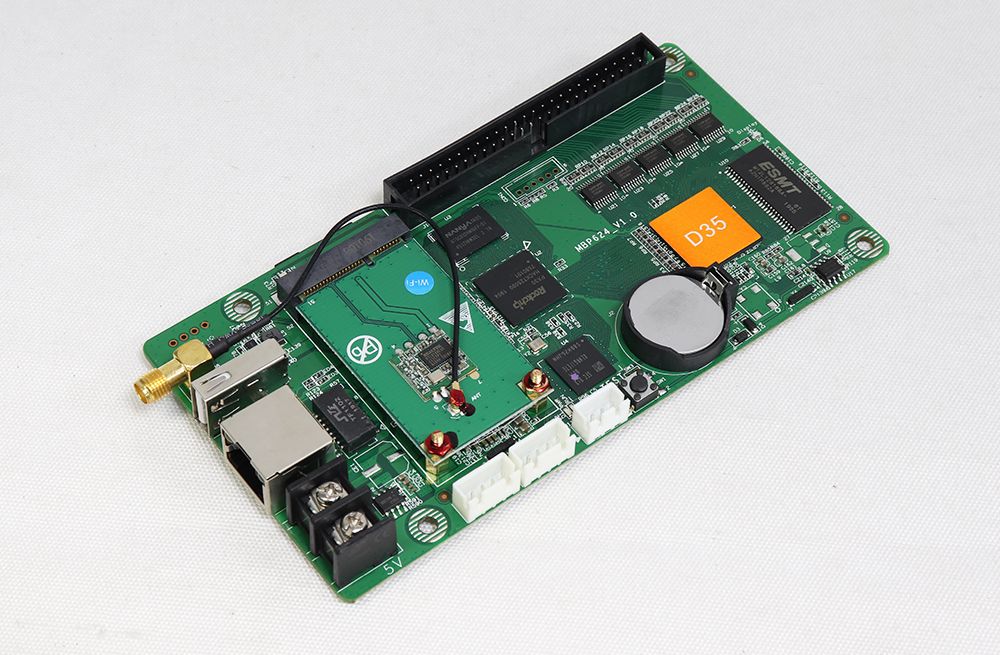

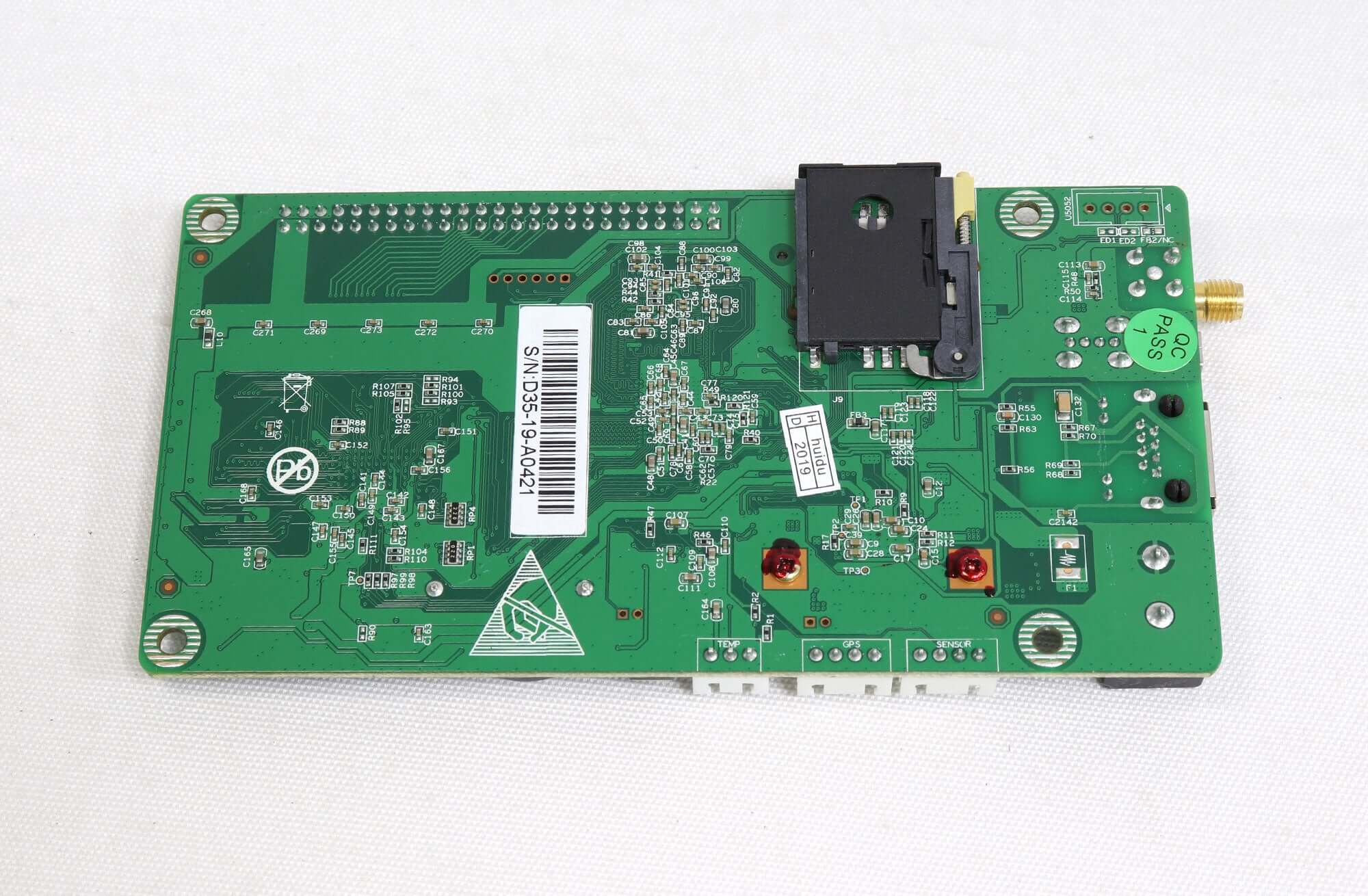

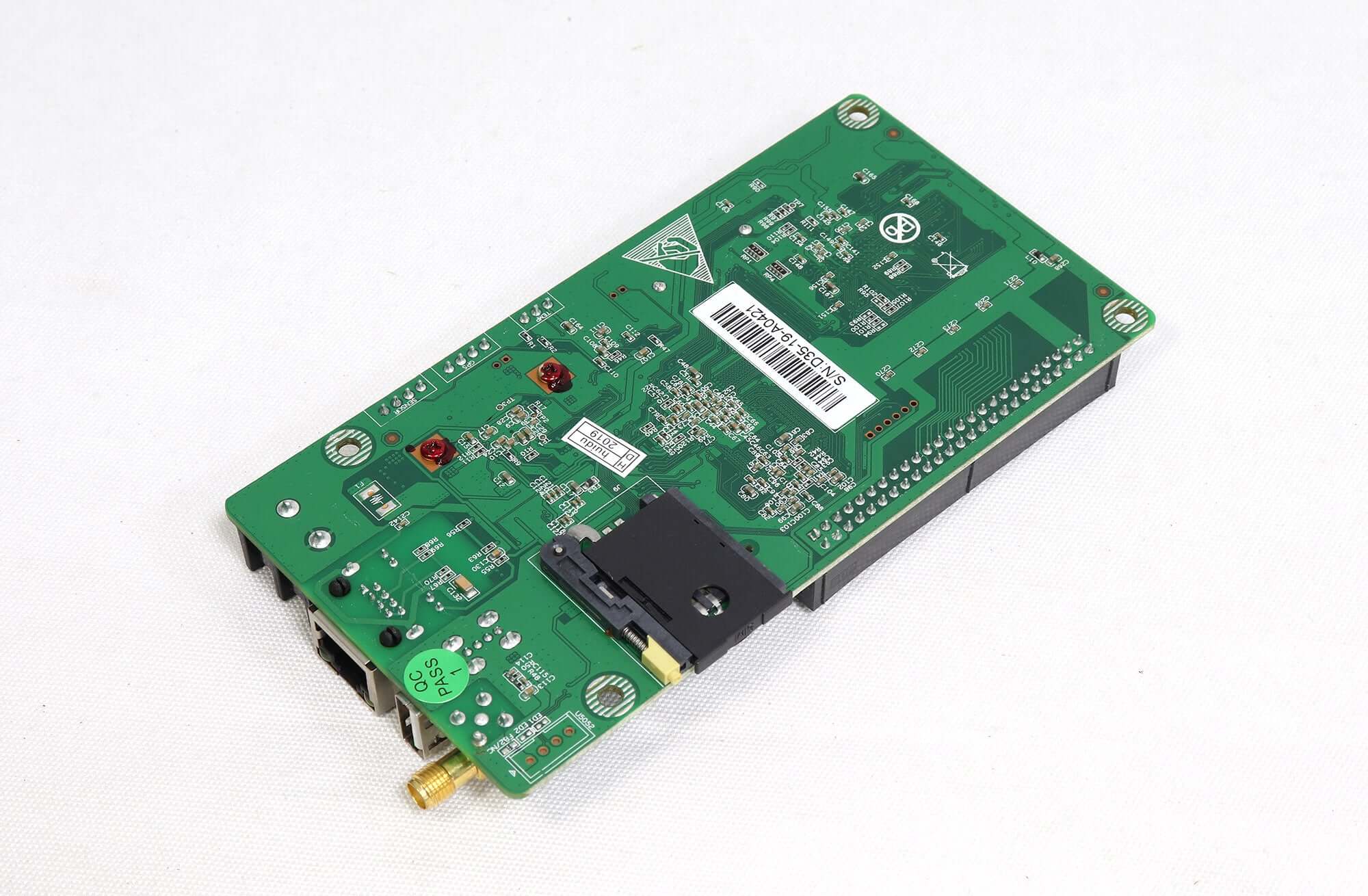

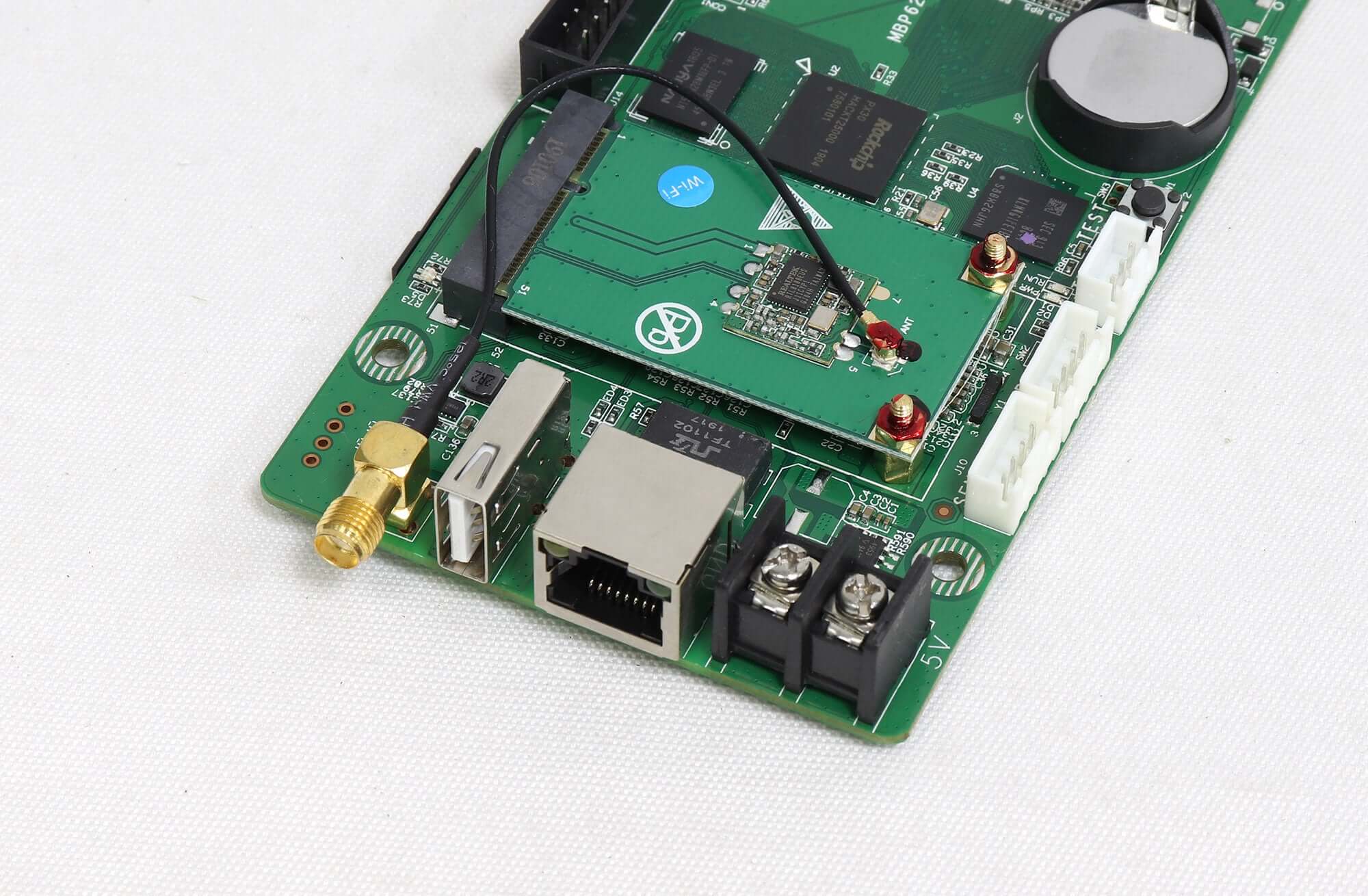

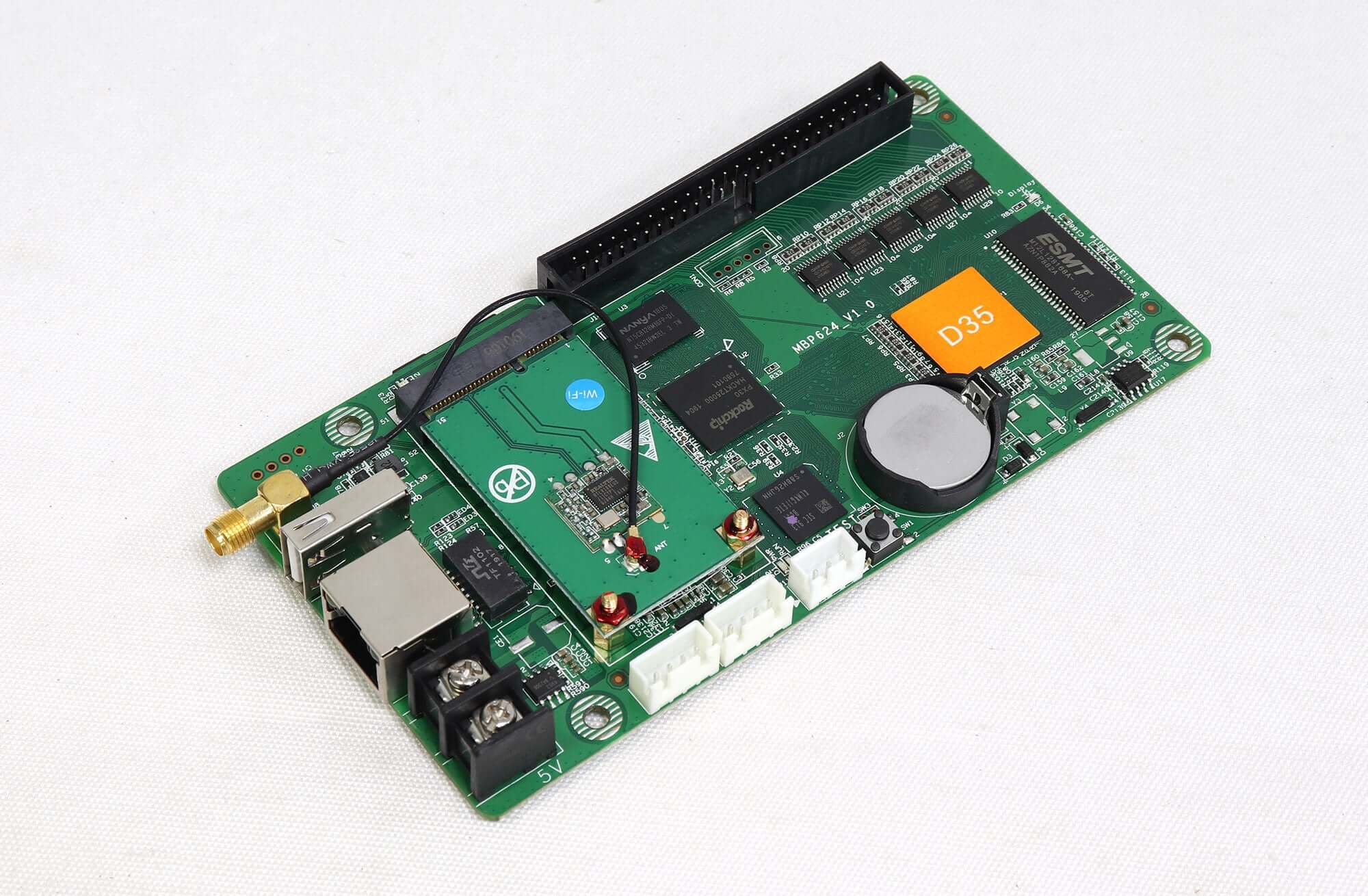

Original product and interface images
Specification download
Download the HD-D35 V1.0 specification (PDF)
Frequently Asked Questions
Is Huidu HD-D35 still in production?
No. The product listing states that D35 is discontinued and recommends considering D16 or D36. Check the replacement’s control range, interfaces and communication configuration before changing hardware.
What screen range does the D35 support?
The specified control range is 1024 × 64, with maximum width 1024 pixels and maximum height 128 pixels listed separately.
Does every D35 include Wi-Fi or 4G?
This listing identifies a Wi-Fi configuration, but the hardware description lists Wi-Fi and 3G/4G as optional Mini PCIe modules. Check the module fitted to the specific card; cellular capability is not implied by Wi-Fi.
Which software is listed for HD-D35?
The D35 specification lists HDPlayer. The product also describes PC, mobile-app and cloud-platform management.
What output interface does the D35 have?
It has one 50-pin HUB interface for connection through a suitable HUB board. The specification PDF includes the interface definition.
| Weight | 0.4 kg |
|---|
