South Creative NDA200HS5 5V 40A 200W LED Power Supply
$ 6.00
South Creative NDA200HS5 5V 40A 200W LED screen power supply with 190–264VAC input and natural air cooling. Review temperature derating, efficiency notes and the manufacturer PDF before choosing a replacement.
9938 in stock
200W supply for 5V LED screens
The South Creative NDA200HS5 is a 5V, 40A, 200W LED screen power supply intended for a 190–264VAC input. It uses natural air cooling and includes input undervoltage, output current limiting and short-circuit protection.
This model’s input range should be checked before ordering: a similar name or an equal wattage does not establish compatibility with a different mains supply or cabinet.
NDA200HS5 specifications
Values are from the NDA200HS5 V1.0 specification dated 29 May 2018. The efficiency table and overview use different figures, which are identified below.
| Parameter | Specification |
|---|---|
| Model | South Creative NDA200HS5 |
| DC output voltage | 5V typical; 4.9–5.1V listed range |
| Output current | 0–40A |
| Output power | 200W |
| AC input | 190–264VAC; 220VAC typical |
| Input frequency | 47–63Hz |
| Efficiency | Output-characteristics table: ≥88% at 220VAC, full load; the overview separately states 87% |
| Inrush current | 40A maximum at 220VAC, full load, cold start |
| Load / voltage regulation | ±1% / ±1% |
| Regulation accuracy | ±2% |
| Ripple and noise | ≤150mVp-p at full load; 20MHz bandwidth and specified output capacitors |
| Cooling | Natural air cooling |
| Operating temperature | −30 to +60°C in the environmental table; derating required from 55 to 80°C |
| Storage temperature | −40 to +80°C |
| Operating humidity | 10–90% RH, non-condensing |
| Protection functions | Input undervoltage, output current limiting and output short-circuit protection |
Thermal and replacement checks
Follow the temperature derating curve when sizing the load above 55°C. Keep the supply’s ventilation clear and compare the mounting drawing and terminal layout with the installation. Protection thresholds are separate from the 40A output rating.
Frequently asked questions
What output does the NDA200HS5 provide?
The manufacturer lists a typical 5V DC output, 0–40A output current and 200W output power. Its output-voltage range is 4.9–5.1V.
Can the NDA200HS5 be connected to 110V AC?
110VAC is outside its documented 190–264VAC input range. Check the available mains voltage before selecting this model.
Is the efficiency 87% or 88%?
The PDF overview states 87%, while its output-characteristics table lists ≥88% at 220VAC and full load. These entries are shown separately here; confirm the supplied version if efficiency is a deciding specification.
Can it operate at full load above 55°C?
The environmental table lists −30 to +60°C, but its note requires derating from 55 to 80°C. Use the manufacturer’s temperature-versus-output curve rather than assuming full output at high temperature.
Is NDA200HS5 interchangeable with NDA200PS5?
Do not treat the model names as interchangeable. The NDA200HS5 PDF specifies 190–264VAC input. Compare the exact input rating, output, terminals, cooling and mounting drawings of the replacement and the existing supply.

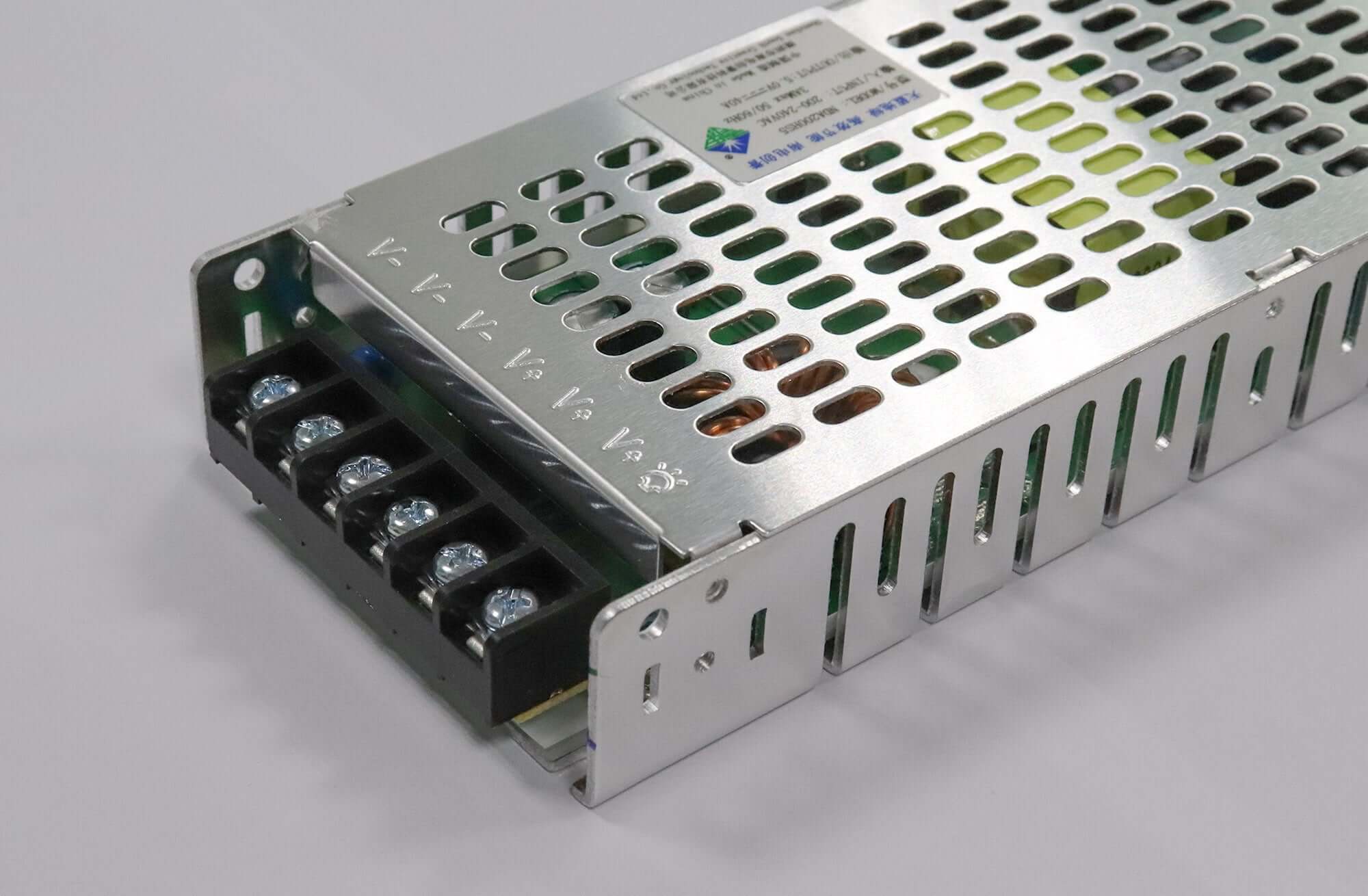

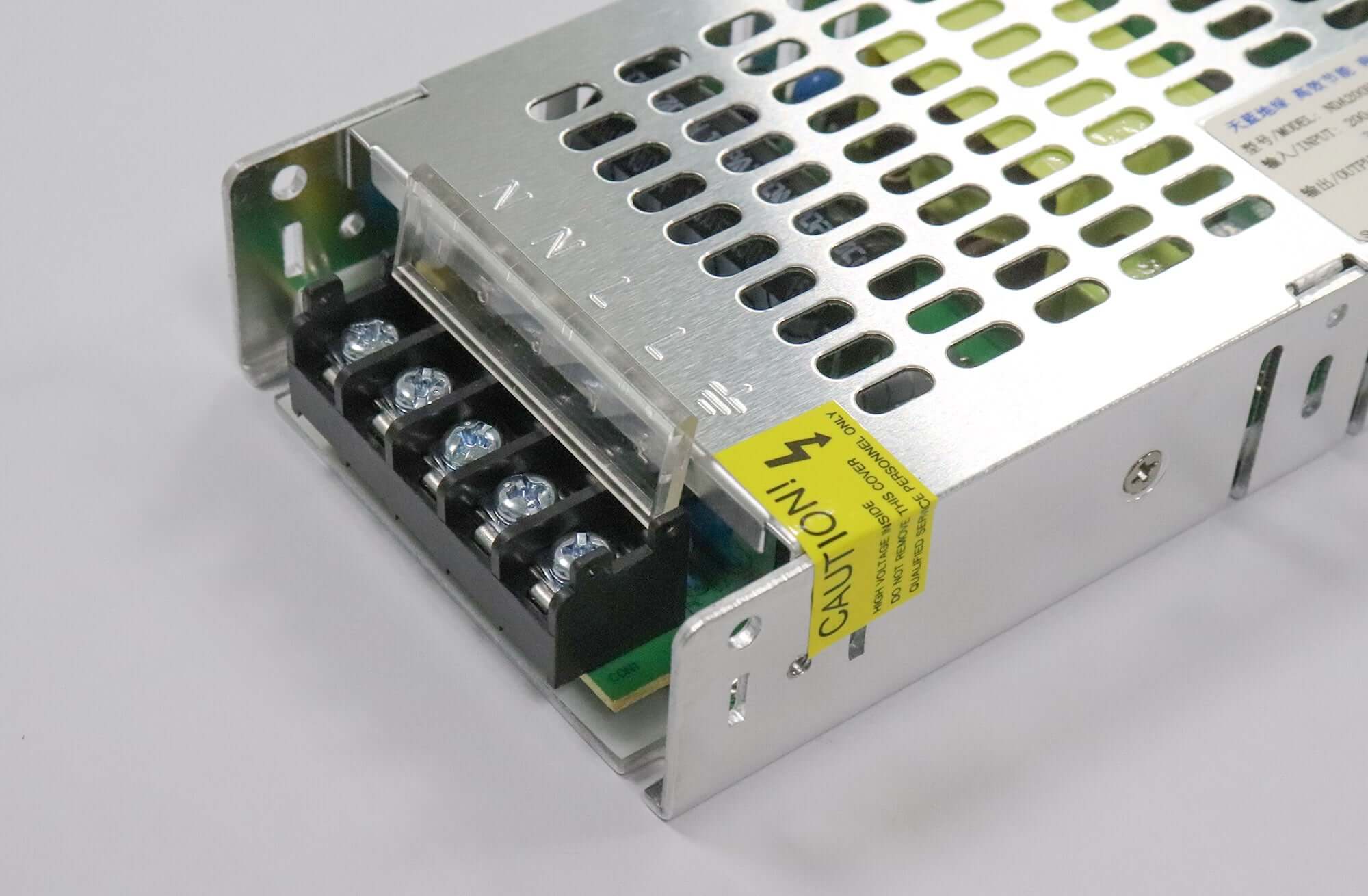

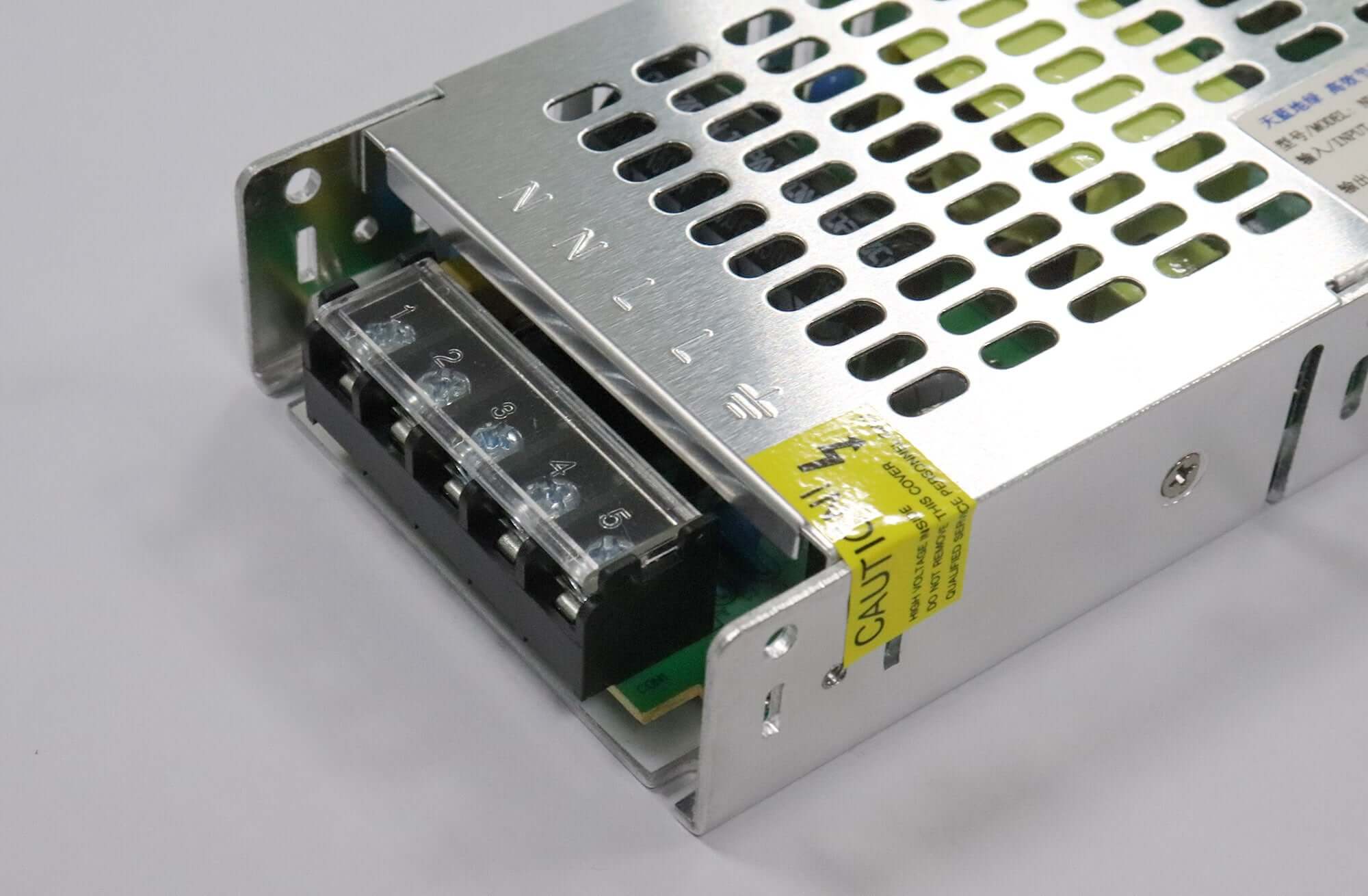

Product image and specification download
Download Specification
South Creative NDA200HS5 LED Screen Power Supply Specification
| Weight | 0.42 kg |
|---|
