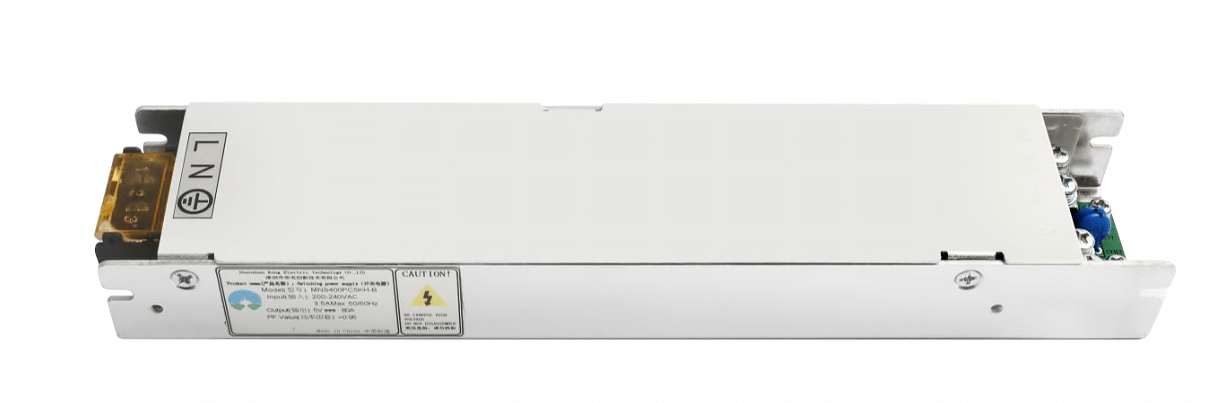

Rong-Electric MNS400PC5 5V 80A LED Power Supply
$ 22.00
The Rong-Electric MNS400PC5 is a narrow 5 V DC, 80 A, 400 W LED power supply measuring 220 × 47 × 26 mm. Its specification requires an auxiliary cooling plate and reduces permitted load at low AC input voltage.
4980 in stock
MNS400PC5 narrow power supply: mounting and load selection
The Rong-Electric MNS400PC5 specification describes a narrow supply for LED display applications, with nominal 5 V DC output and a 400 W rating. Its 220 × 47 × 26 mm housing is paired with an explicit requirement for an additional heat-dissipation plate.
Use the cabinet temperature, input voltage and cooling arrangement when selecting the load. The low-line curve calls for reduced output below the full-load input region. The environmental table limits operation to +50°C; the higher temperatures drawn on the graph are recorded as a source discrepancy rather than an expanded operating rating.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Rong-Electric MNS400PC5 |
| Rated output | 5.0 V DC; 0–80 A; 400 W |
| Rated / operating AC input | 100–240 V AC rated; 90–264 V AC operating range |
| Input frequency | 47–63 Hz |
| Input-voltage derating | 80% load at the plotted 90–160 V AC points; 100% from 170–264 V AC |
| Output-voltage range | 4.9–5.1 V DC |
| Overall regulation | ±2% |
| Voltage / load regulation | ±1% / ±1% |
| Ripple and noise | ≤250 mVp-p at full load; 20 MHz bandwidth with 0.10 µF ceramic and 10 µF electrolytic capacitors |
| Efficiency | ≥89% at 220 V AC, full load and room temperature |
| Maximum input / inrush current | ≤5.5 A / ≤80 A |
| Turn-on delay / output rise time | ≤3,500 ms / ≤250 ms |
| Hold-up time | ≥10 ms at 220 V AC |
| Overcurrent protection | 88–120 A threshold; hiccup with automatic recovery |
| Other protection | Input undervoltage and output short-circuit protection |
| Working temperature | −30°C to +50°C in the environmental table |
| Temperature-curve limitation | Graph shows 75% at 60°C and 50% at 70°C, beyond the table’s +50°C operating limit; confirmation is required before use above that limit |
| Required heat-dissipation plate | 400 × 400 × 3.0 mm beneath the narrow supply, as specified in the environmental-table note |
| Cooling / working humidity | Natural cooling; 10–90%, non-condensing |
| Altitude | 0–2,000 m |
| Dimensions / tolerance | 220 × 47 × 26 mm; ±1.0 mm |
| Unit weight | Approximately 378 g |
| AC terminal order | L, N, earth, facing the input connector from left to right |
| DC terminal order | GND, GND, +5 V, +5 V, facing the output connections from left to right |
| Reference | MNS400PC5 approval specification V1.0, 2021-12-30 |
Product images and specification download
MNS400PC5 Rong-Electric led Power Supply Specification
Frequently asked questions
How much power is available from MNS400PC5 at 110 V AC?
The input curve specifies 80% load at the plotted points from 90 to 160 V AC, including 110 V. The 400 W nominal rating therefore is not a full-load allowance at 110 V AC. Follow the derating curve and cooling requirements.
Does the narrow power supply need an additional heatsink?
Yes. The environmental-table note specifies a 400 × 400 × 3.0 mm heat-dissipation plate under the supply. Its compact 220 × 47 × 26 mm housing does not remove that installation requirement.
Can it be used at 70°C because the curve includes that temperature?
The environmental table specifies operation from −30°C to +50°C. The graph extends to 70°C, creating a documentation difference. Obtain confirmation for the actual unit before using it above the table’s +50°C limit.
What are the output terminals?
The PDF gives two GND connections followed by two +5 V connections when facing the output terminals from left to right. Confirm the markings on the actual power supply and use the mechanical drawing for the installation.
Is the 88–120 A figure the usable output current?
No. The output-current rating is 0–80 A. The 88–120 A range is the overcurrent-protection threshold; the specified recovery mode is hiccup with automatic recovery.
