Rong-Electric MDH200H5 5V 40A 200W LED Power Supply
$ 13.00
Rong-Electric MDH200H5 constant-voltage LED power supply, listed at 5V, 40A and 200W maximum, with a 142 × 58 × 30mm housing. For transparent LED video wall installations, check the mounting arrangement and the input, efficiency and storage-temperature differences between the listing and linked PDF.
9990 in stock
5V power supply for transparent LED video walls
The Rong-Electric MDH200H5 is listed as a constant-voltage LED screen power supply with a 5V, 40A output and 200W maximum output power. The original listing gives housing dimensions of 142 × 58 × 30mm for checking clearance in a transparent LED display cabinet.
The original product information and linked MDH200H5 PDF contain several parameter differences. The table below keeps these values separate so the supplied version can be checked before ordering or installation.
MDH200H5 specifications and source notes
PDF reference: MDH200H5 V1.0, dated February 29, 2016. Values marked “as listed” come from the original product information.
| Parameter | Value and source |
|---|---|
| Model / type | MDH200H5 / CV (constant voltage), as listed |
| Output voltage | 5V DC |
| Output current | 40A listed; PDF output current range: 0–40A |
| Maximum output power | 200W, as listed |
| Output voltage range | 4.8–5.0V DC in the PDF |
| Rated input | 200–240VAC in the PDF input table |
| Input voltage range | Original listing: 186–264VAC; PDF input table: 190–264VAC. Confirm the applicable lower limit for the supplied version. |
| Input frequency | 47–63Hz |
| Efficiency | Original listing: 0.89 (89%); PDF: ≥87% at 220VAC, full load and room temperature. Confirm the applicable specification. |
| Ripple and noise | Original listing: <150mV; PDF: ≤150mVp-p at full load, 20MHz bandwidth, with 0.1µF ceramic and 10µF electrolytic capacitors at the output |
| Maximum input current / inrush | PDF: ≤3.0A / ≤60A |
| Insulation, as listed | Input–output: 3.0kVAC; input–FG: 1.5kVAC; output–FG: 0.5kVAC |
| Leakage current, as listed | 0.30mA at 230VAC |
| Protection functions, as listed | Input undervoltage, overload and short circuit |
| Operating temperature | −30 to +60°C |
| Storage temperature | Original listing: −40 to +100°C; PDF environmental table: −40 to +80°C. Confirm before storage outside the shared range. |
| Operating relative humidity | PDF: 10–90%, non-condensing |
| Cooling | Self-cooling in the listing; ventilation/self-cooling in the PDF |
| Dimensions, as listed | 142 × 58 × 30mm |
| Safety standards referenced in the listing | GB4943 and EN60950; confirm applicable documentation for the supplied unit |
Confirm the supplied version
The PDF input table states 190–264VAC, while its explanatory note also mentions 180–264VAC. The original listing states 186–264VAC. These lower limits have not been reconciled; use the supplied unit’s nameplate and matching manufacturer specification to confirm the permissible input.
Check the efficiency and storage-temperature differences in the table as well. For cabinet installation, compare the mounting holes, terminal layout and ventilation path with the existing supply. The listed standards are references, not evidence of a certification certificate for the individual unit.
Frequently asked questions
What is the output of the MDH200H5?
The listing identifies a constant-voltage 5V, 40A power supply with a maximum output power of 200W. The model-specific PDF gives a 0–40A output current range.
Can I use MDH200H5 on 110V AC?
110VAC is outside both the original listed input range and the PDF input range. The PDF rates the input at 200–240VAC. Check the supplied unit’s nameplate before connection.
What are the dimensions for a transparent LED wall installation?
The original listing gives 142 × 58 × 30mm. Check the actual supply, mounting holes, terminal clearance and cabinet cooling before replacing a unit in a transparent LED video wall.
Why do the listing and PDF show different parameters?
The available sources differ on the input lower limit, efficiency and storage temperature, and express ripple differently. The table preserves both sets with their sources. The materials do not establish the reason for these differences; confirm the matching revision for the supplied unit.
Can MDH200H5 replace any 5V 40A power supply?
No universal interchangeability is established. Match the model, AC input, DC output, mounting dimensions, terminal arrangement and operating conditions. Resolve the source differences before using those limits in a design.

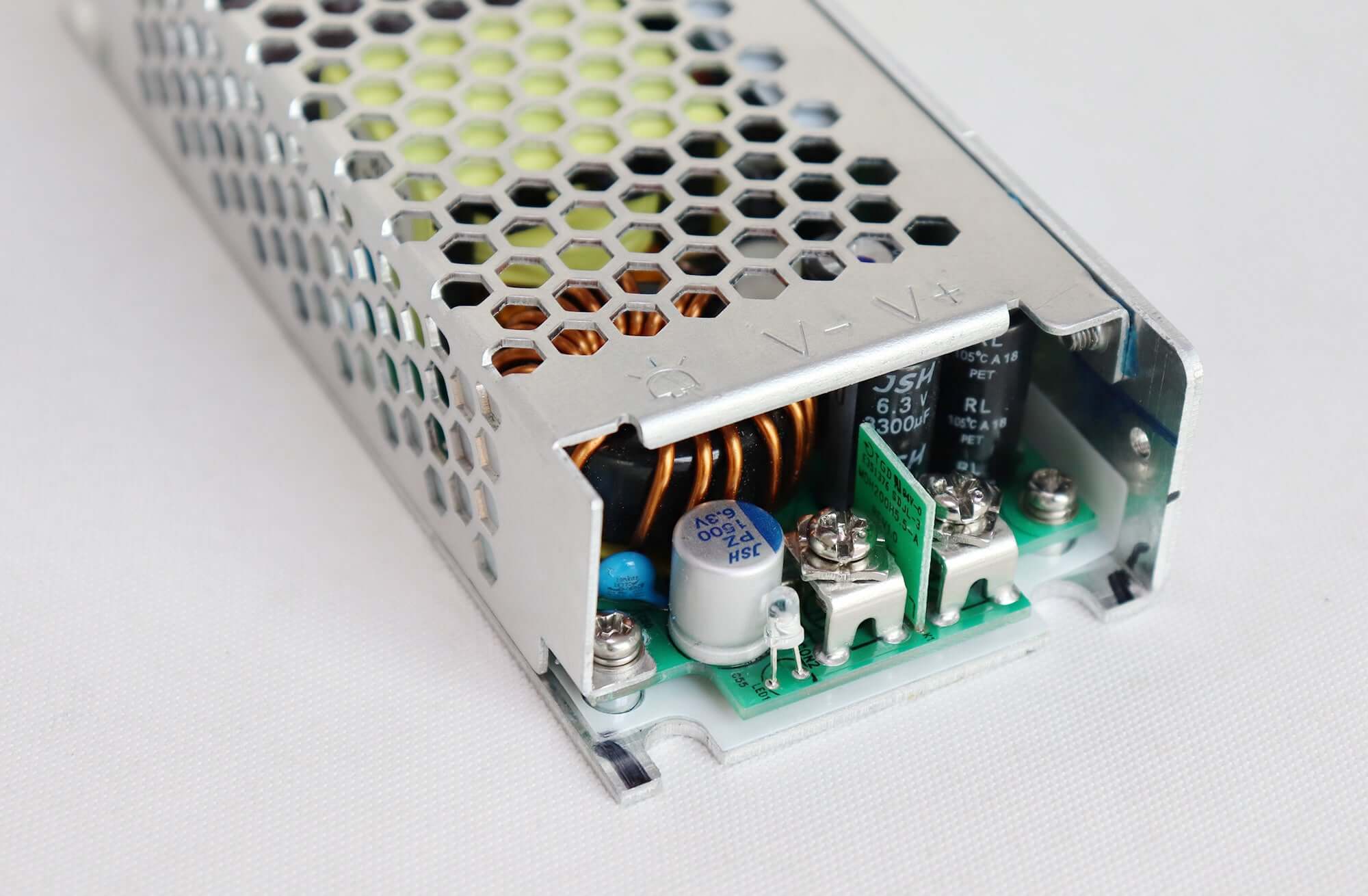

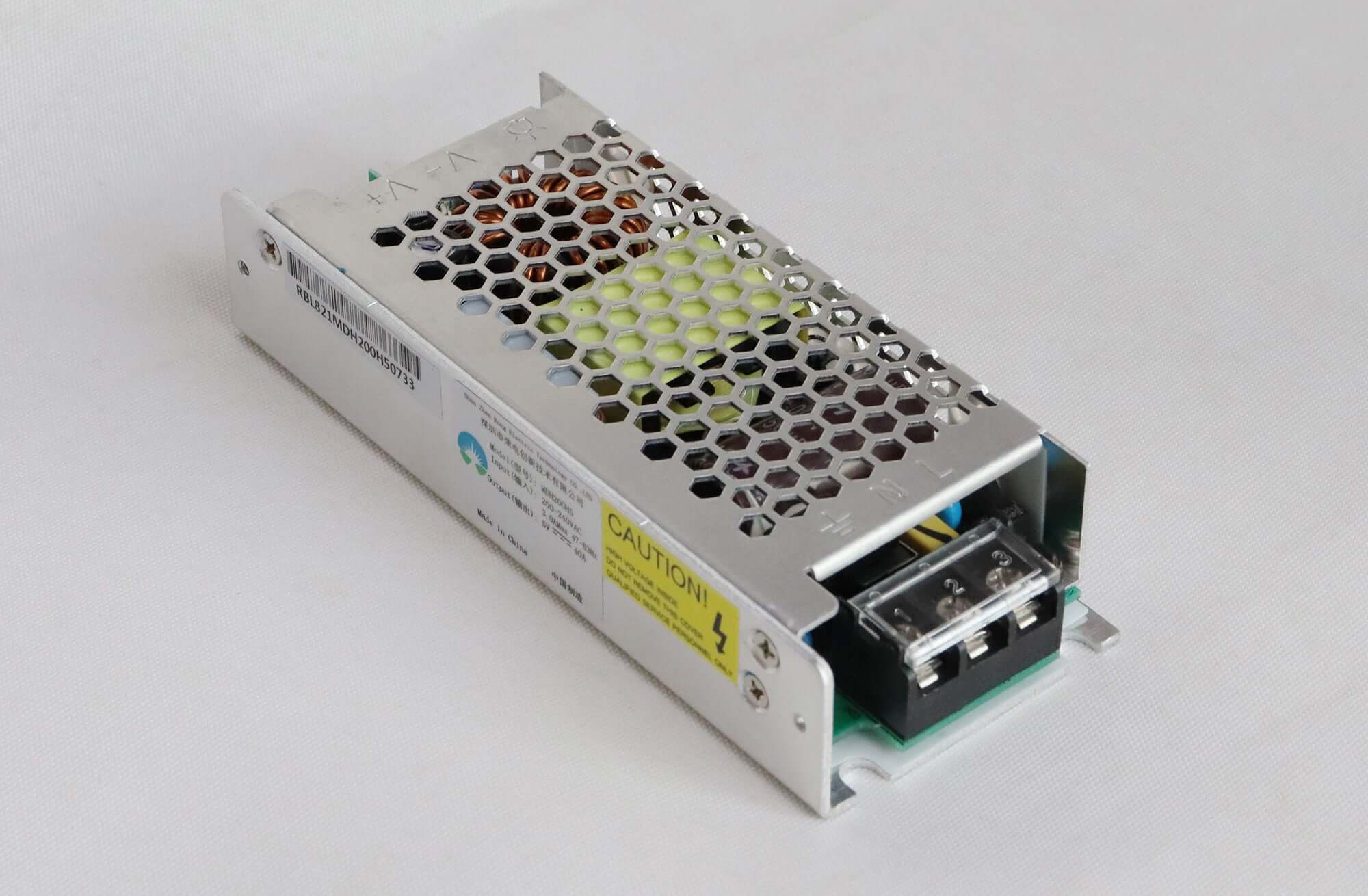

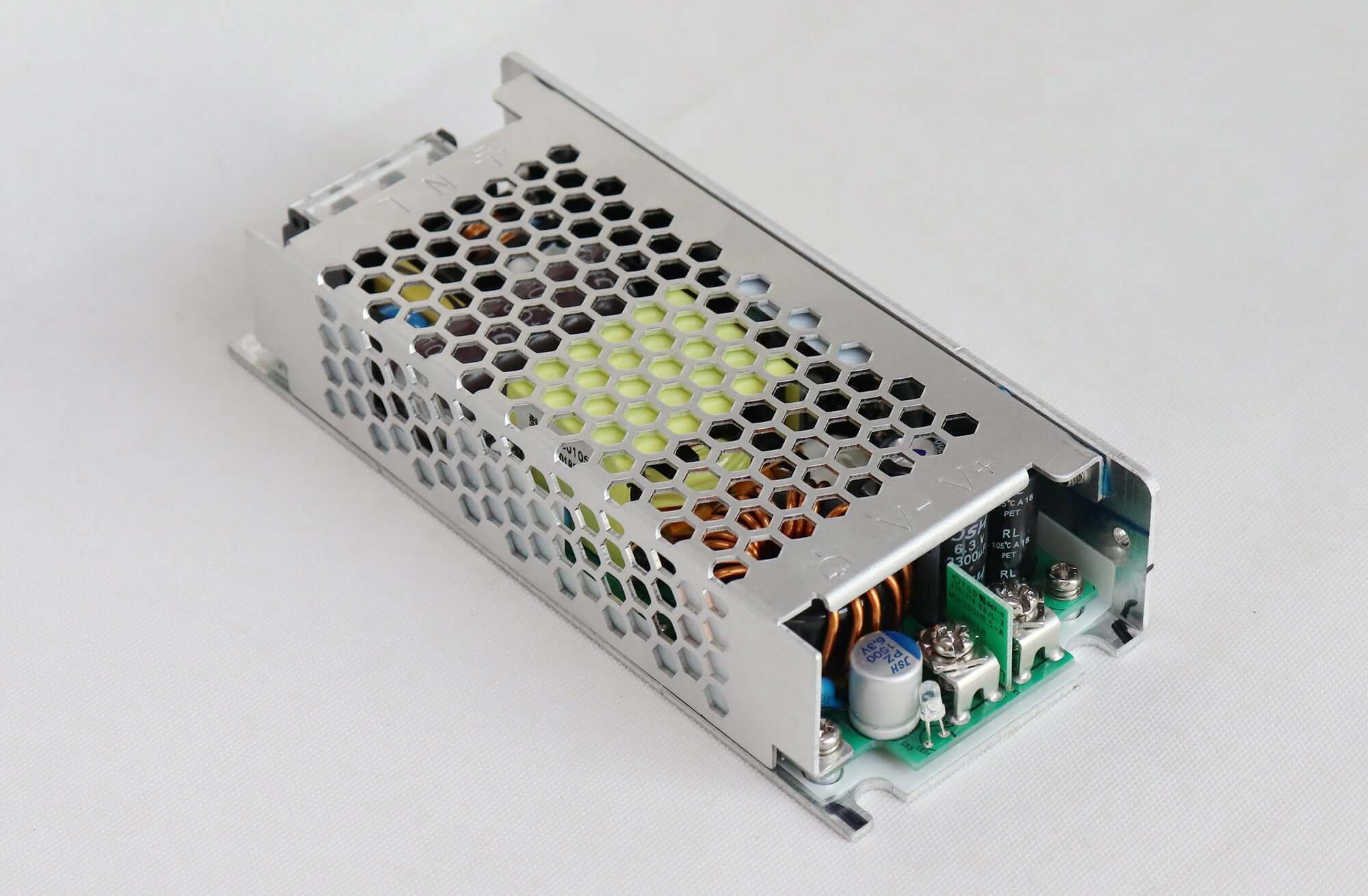

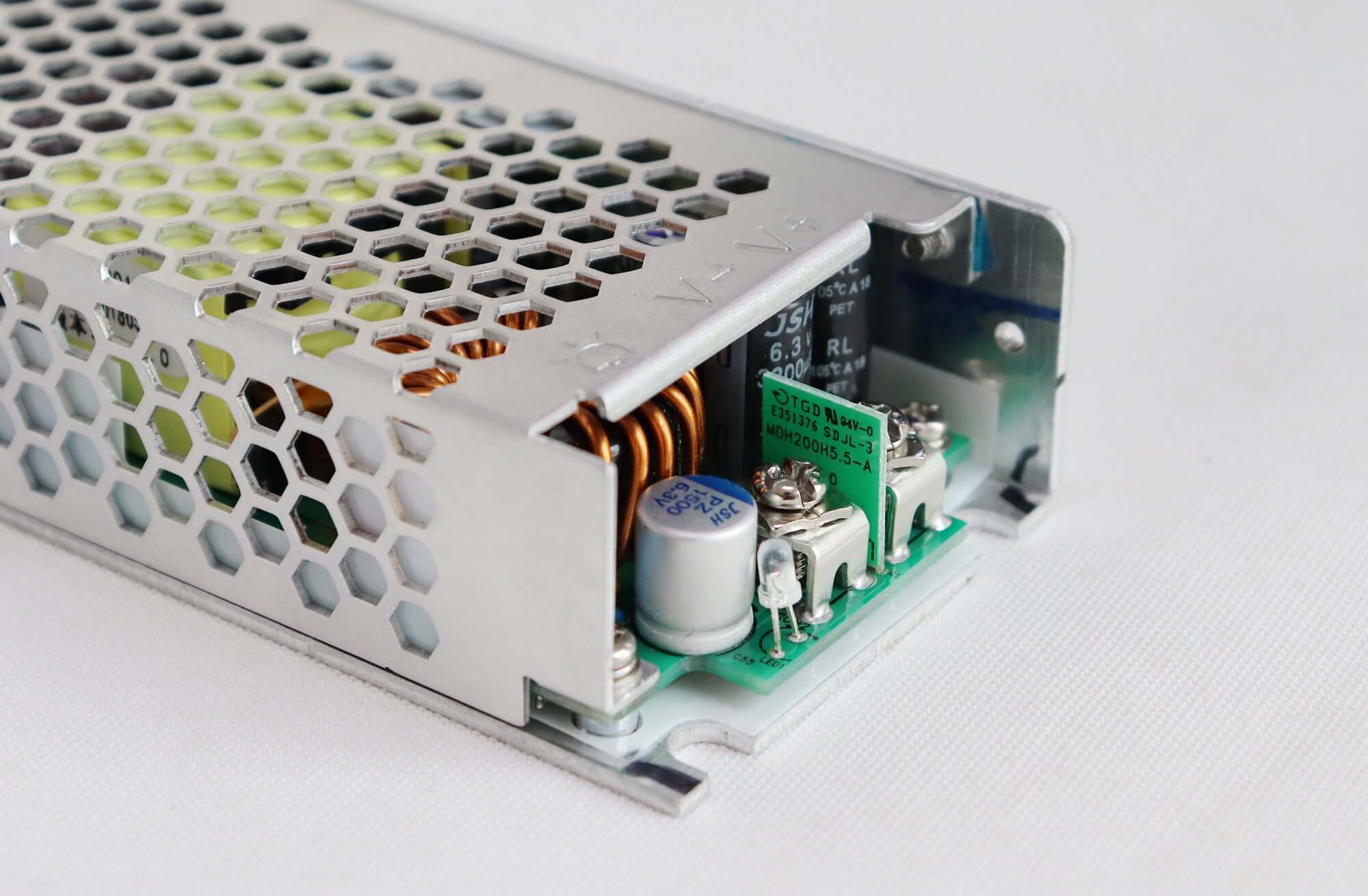

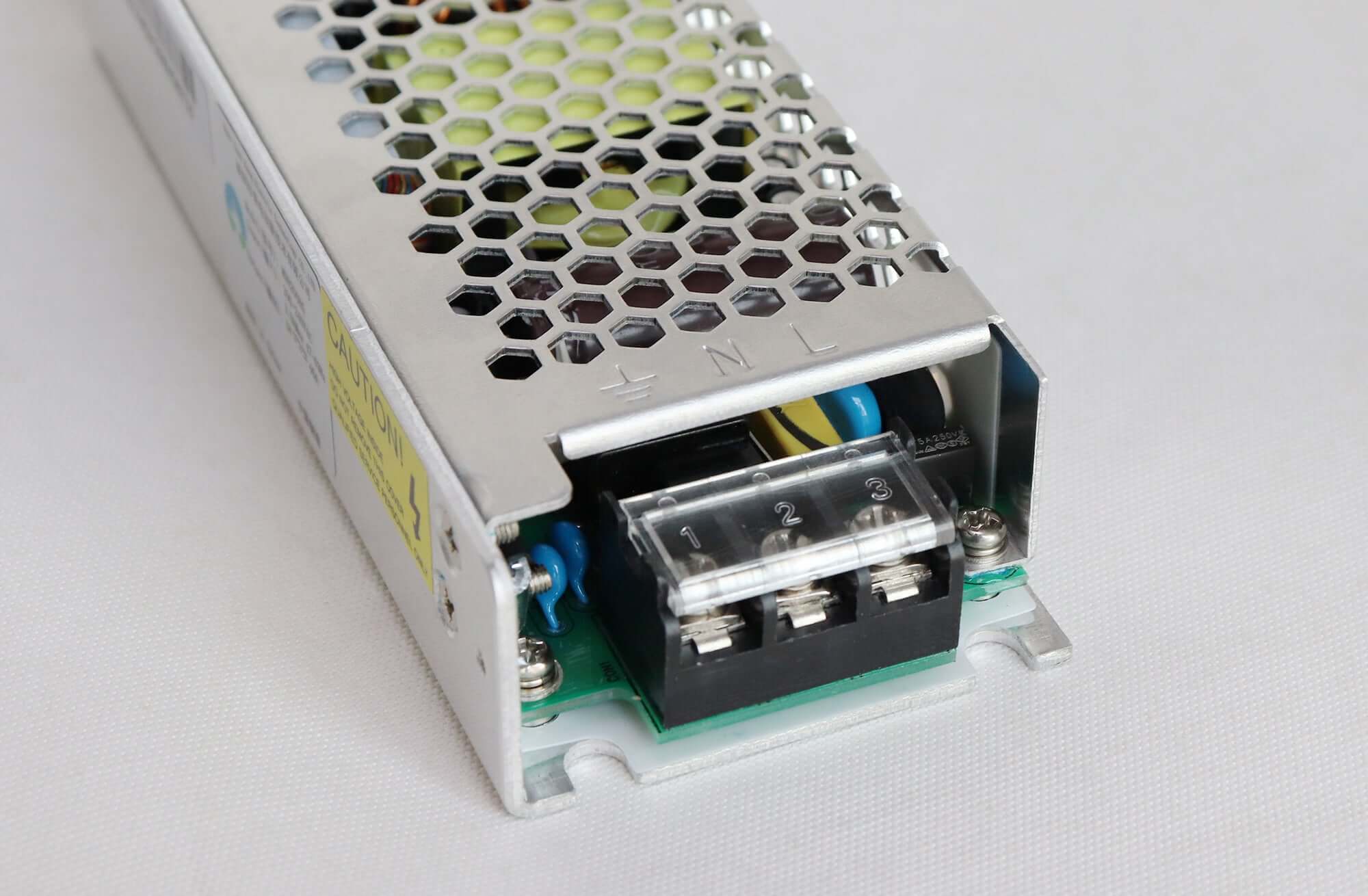

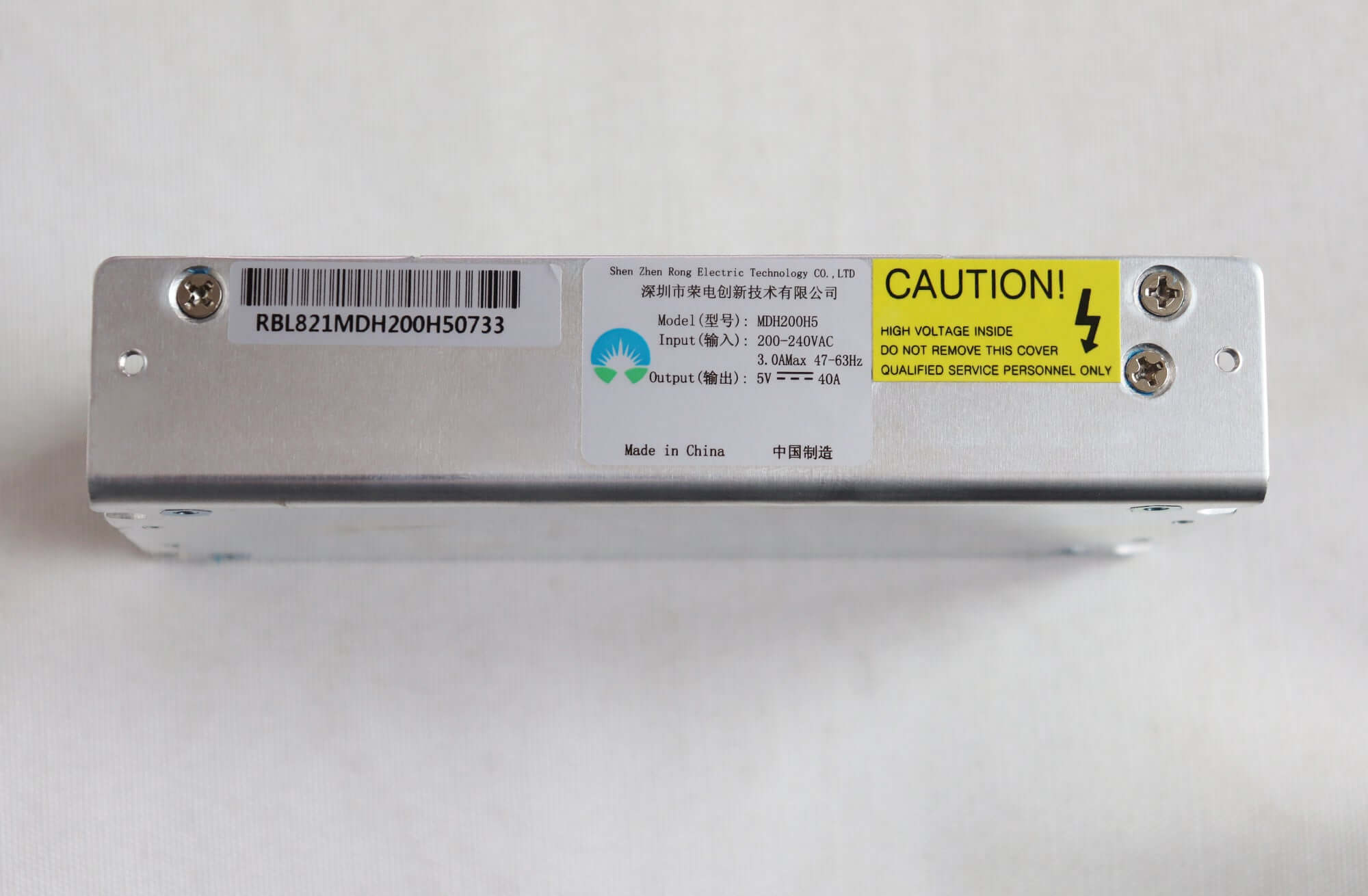

Product images and specification download
Download Specification:
Rong-Electric MDH200H5 LED Screen Power Supply For Transparent LED Video Wall Specification
| Weight | 0.4 kg |
|---|
