Rong-Electric MDA400PC4.2+3.2 Dual-Output LED Power Supply
$ 31.50
Rong-Electric MDA400PC4.2+3.2 common-cathode LED display power supply. The linked PDF lists 4.2 V/0–55 A and 3.2 V/0–35 A outputs with 343 W total output; see the specification notes for input-rating differences.
5000 in stock
Dual-output power for common-cathode LED displays
The Rong-Electric MDA400PC4.2+3.2 is a common-cathode LED display power supply with separate 4.2 V and 3.2 V DC outputs. The linked specification lists V1 at 0–55 A, V2 at 0–35 A and total output power of 343 W.
Technical parameters
The table follows the MDA400PC4.2+3.2 V1.0 PDF dated October 28, 2021. Check each output separately when matching the supply to a display module.
| Parameter | Specification |
|---|---|
| Model | MDA400PC4.2+3.2 |
| Type | Common-cathode dual-output LED display power supply |
| Output power (PDF) | 343 W |
| V1 rated output / current | 4.2 V DC / 0–55 A |
| V2 rated output / current | 3.2 V DC / 0–35 A |
| Rated AC input (PDF) | 100–240 V AC |
| Input voltage range (PDF) | 90–264 V AC; see the specification note below |
| Input frequency | 47–63 Hz |
| Efficiency (PDF) | ≥88% at 220 V AC, full load and room temperature |
| Power factor | ≥0.95 at full load |
| Operating temperature | −30 to +70°C; follow the temperature derating curve |
| Cooling / installation | Ventilation cooling; aluminum heat-dissipation plate required |

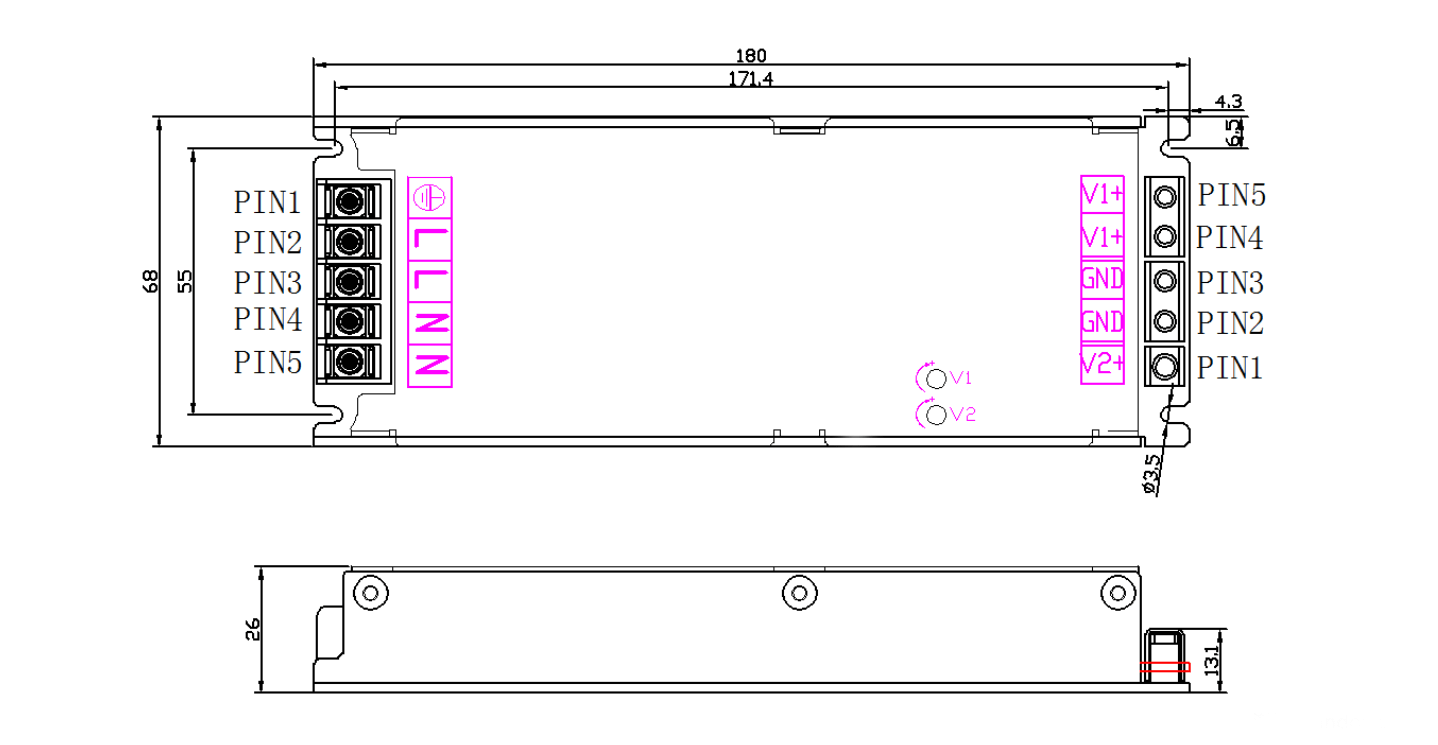

| Dimensions (L × W × H) | 180 × 68 × 26 mm |
| Weight | Approximately 485 g |
| Protection detailed in PDF | Output overcurrent and short circuit; recovery differs between outputs |
Specification differences to confirm
The earlier listing gives 180–264 V AC input and ≥87% efficiency. The PDF electrical tables give 100–240 V AC rated input, a 90–264 V AC range and ≥88% efficiency at 220 V AC and full load. A general note in the same PDF also refers to 180–264 V AC. Confirm the input rating of the supplied revision if the application depends on the wider range.
The original listing states output ranges of V1: 4.12–4.28 V DC and V2: 3.13–3.26 V DC, leakage current ≤1.0 mA at 242 V AC, and output overvoltage protection. The PDF leaves its output-range entry unspecified, lists leakage current <1.0 mA at 220 V AC, and details overcurrent and short-circuit protection. Those additional listing claims require confirmation for the supplied unit.
Mounting and temperature
Follow the aluminum-plate mounting requirements and derating curve in the PDF. The earlier listing specifies linear derating from +50 to +70°C; the upper operating temperature should not be treated as an unrestricted full-load rating.
Product image
Frequently asked questions
What are the two output voltages and current limits?
The PDF lists V1 at 4.2 V DC with 0–55 A output current and V2 at 3.2 V DC with 0–35 A output current. Check the required voltage and load separately for each rail.
Is this a 400 W power supply?
The model name contains 400, but the linked specification states an output power of 343 W. Use the documented rating and per-output current limits rather than inferring wattage from the model name.
Can it be used with 110 V AC input?
The PDF electrical tables list 100–240 V AC rated input and a 90–264 V AC range, while the earlier listing and a general PDF note refer to 180–264 V AC. Confirm the supplied revision and input rating before using it on 110 V AC.
Does this dual-output supply need a heat-dissipation plate?
Yes. The PDF installation section requires the bottom of the supply to contact an aluminum heat-dissipation plate. Follow its mounting drawing and thermal instructions, including the temperature derating curve.
Do both outputs recover in the same way after a short circuit?
No. The PDF describes recoverable turn-off for the 4.2 V output and latched shutdown for the 3.2 V output, with power removal required for recovery. Review the original protection table before integration.
Download specification
| Weight | 0.7 kg |
|---|
